Pinasco «EVOTEN BIG BORE» cylinder with 46 mm bore and 71 cc for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
The completely reworked 46 mm cylinder from Pinasco is now supplied with a 6-channel layout and the 5-fold bolted cylinder head manufactured for the highest loads.Various racing exhausts can be fitted to the supplied exhaust flange with 22.5 mm outer connection diameter.
The cylinder head is fitted without gasket. For optimum sealing, the tightening torque of 10 Nm for the M6 bolts and 14 Nm for the M7 stud bolts must therefore be observed.
The following parts are included in the scope of delivery:
- Additional screws for the cylinder head
- Decompressor valve (actuation not included)

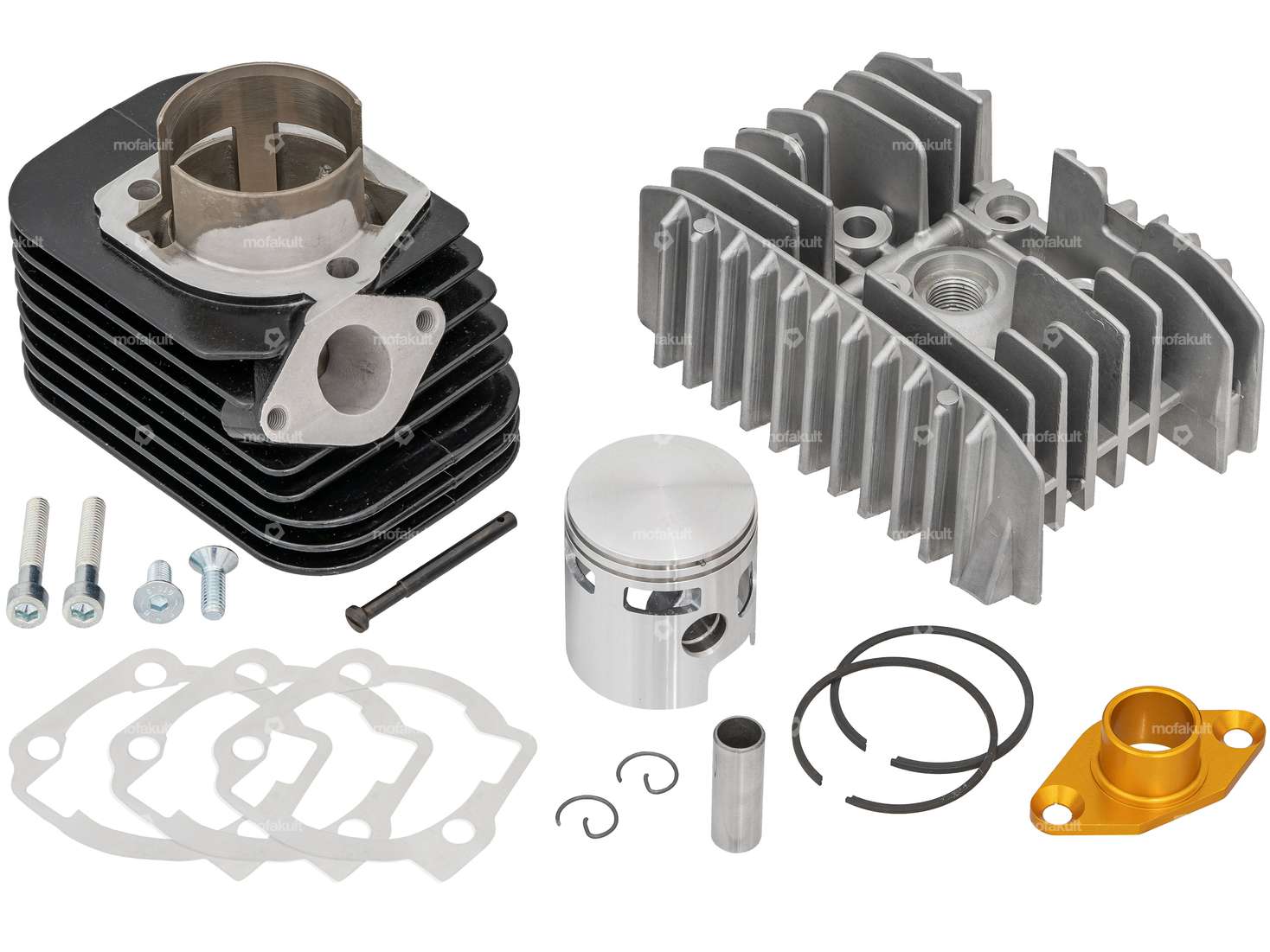

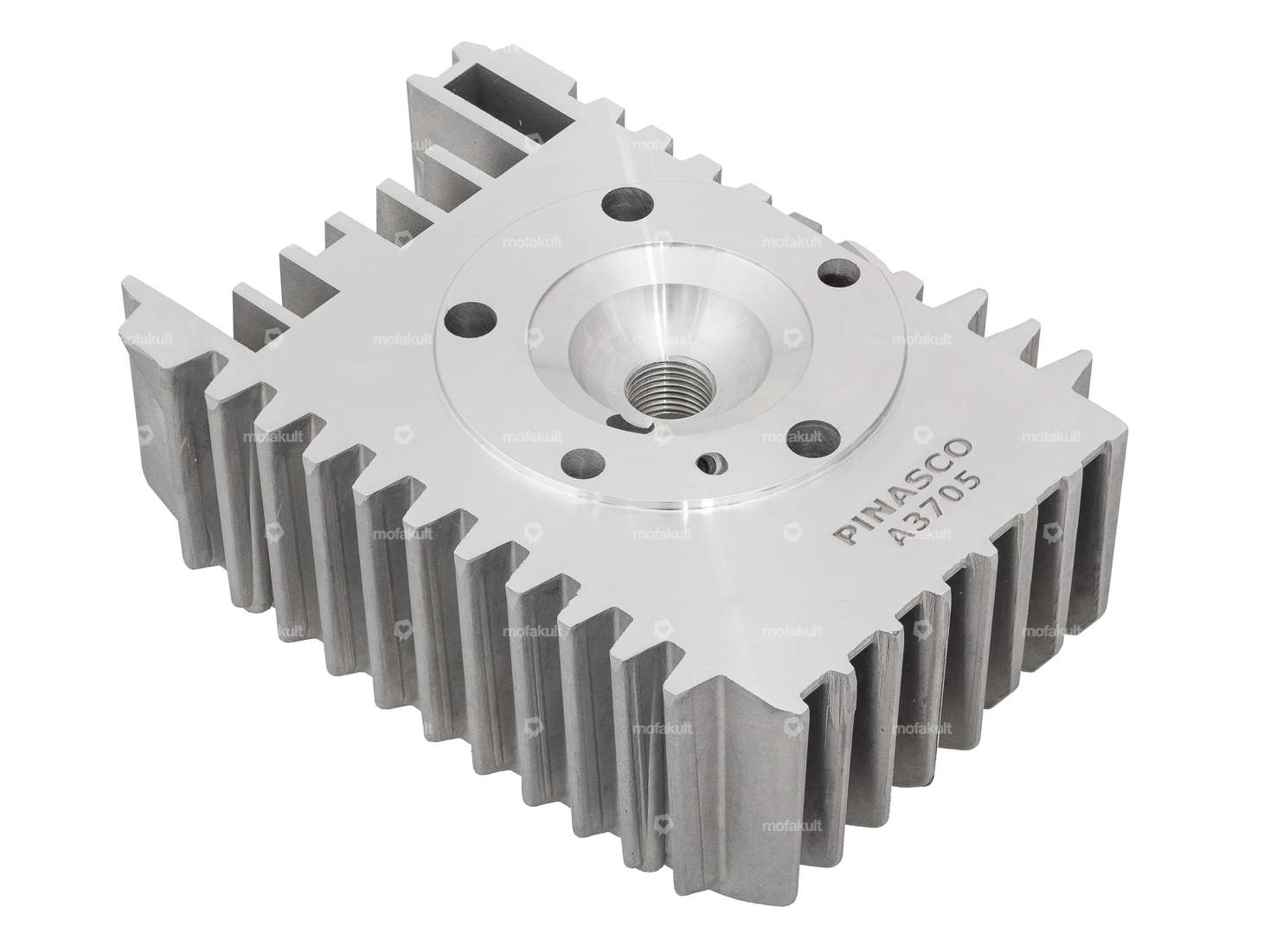

- Cylinder head empty

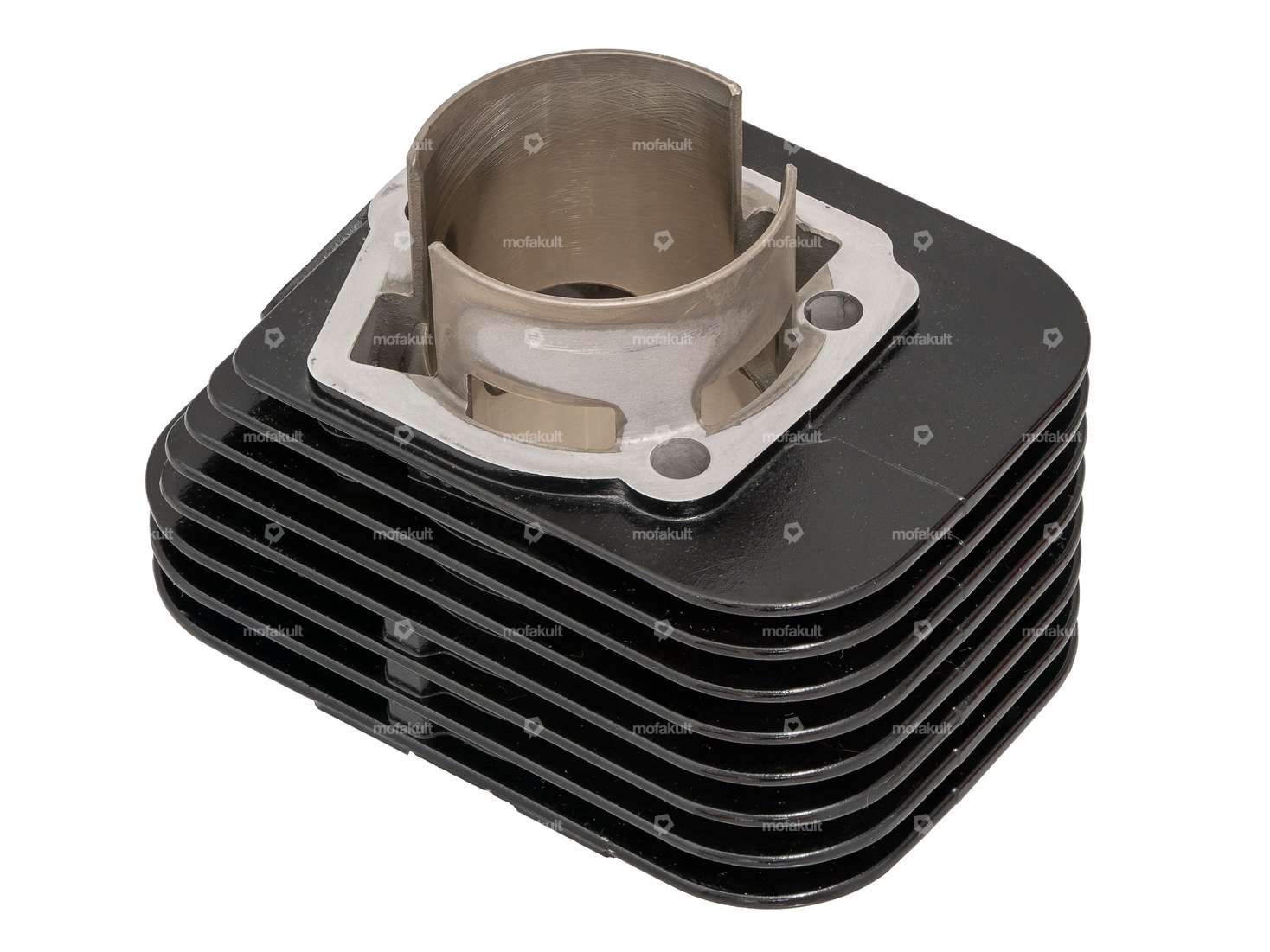

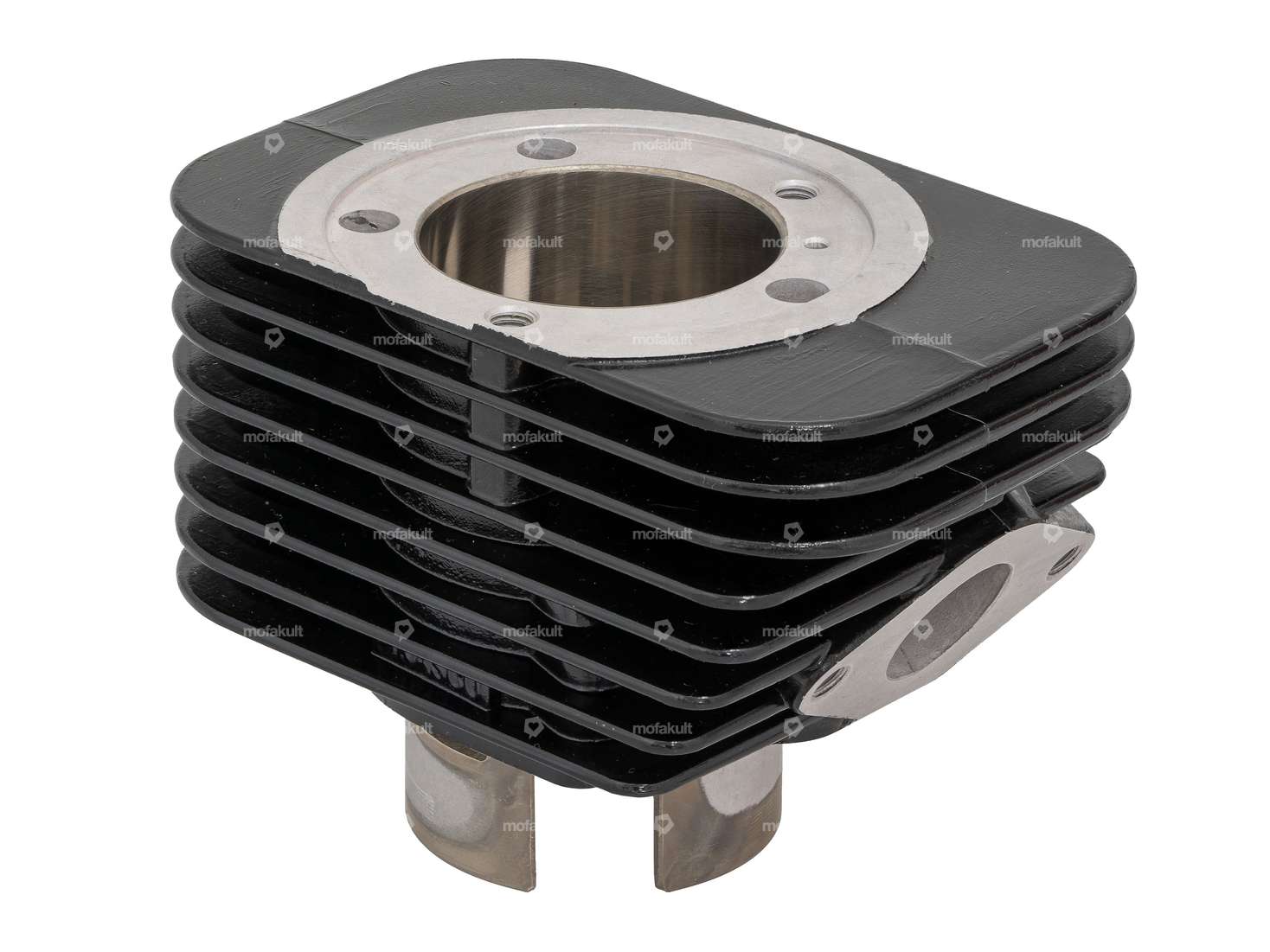

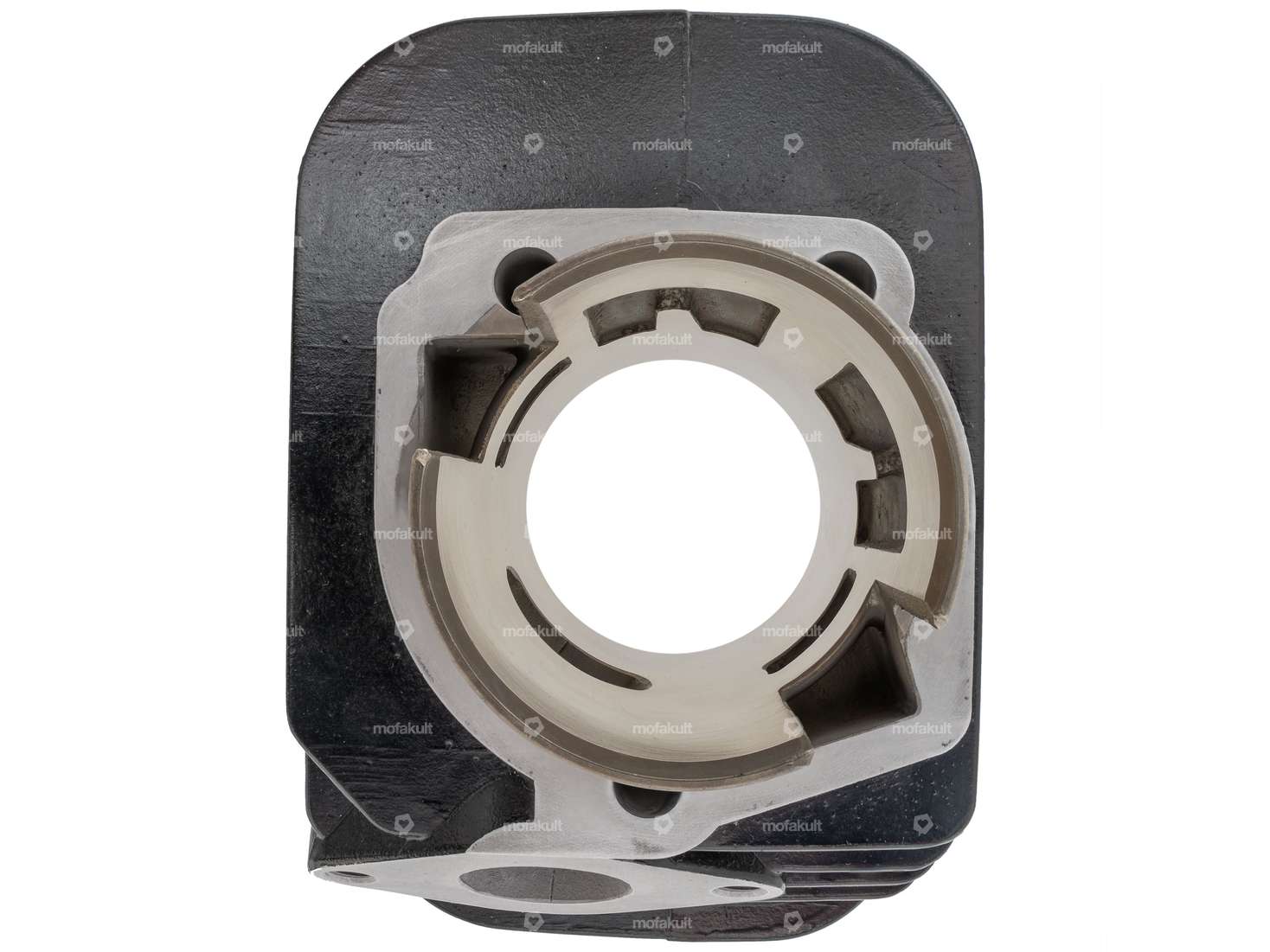

- Cylinder and accessories
- Piston with L-ring, rectangular ring and Ø 12 mm piston pin (axe 12)
- Various gaskets for the cylinder base
- Installation instructions in Italian
High-quality cast aluminum and durable Nikasil coating are the hallmarks of this high-end tuning cylinder.
The cylinder kit develops maximum power in the mid to upper rev range. We recommend using the racing cylinder in combination with a variomatic drive.
Mounting on an original engine housing is only possible with major modifications. The cylinder kit can be mounted on the well-known Pinasco, Polini and Malossi racing cases without any adaptation work.
Note: If the cylinder kit is mounted on a Piaggio Ciao, it must be ground down on the cooling fins on the right-hand side. Due to the cut-out for the Ciao's cable duct, the hook on the head for the decompression cable is also missing. As a result, the cylinder cover is only suitable to a limited extent for Piaggio Si, Bravo of the newer generations or Grillo. This can be remedied by attaching the decompression cable to the cylinder head from the front, as on the Ciao or Boxer.
Corresponding add-on parts such as racing gearboxes, racing crankshaft, racing variator etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Camouflaged | No |
| Area of application | Tuning |
| Surface | varnished |
| Displacement | 71 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 46 mm |
| Ø cylinder neck | 50 mm |
| Ø Outlet outside | 22.5 mm |
| Hole pattern [mm] | 55 x 34 |
| Ø outlet inside | 18.5 mm |
| Number of fixing points | 3 pcs |
| Hole spacing outlet | 48 mm |
| Decompressor | Yes |
| Outlet type | slanted, clamped |
| Thread outlet | M6x1 (standard thread) |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
