Pinasco «Master» engine case with crankshaft (43 mm stroke / 12 mm KoBo) and normal intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.

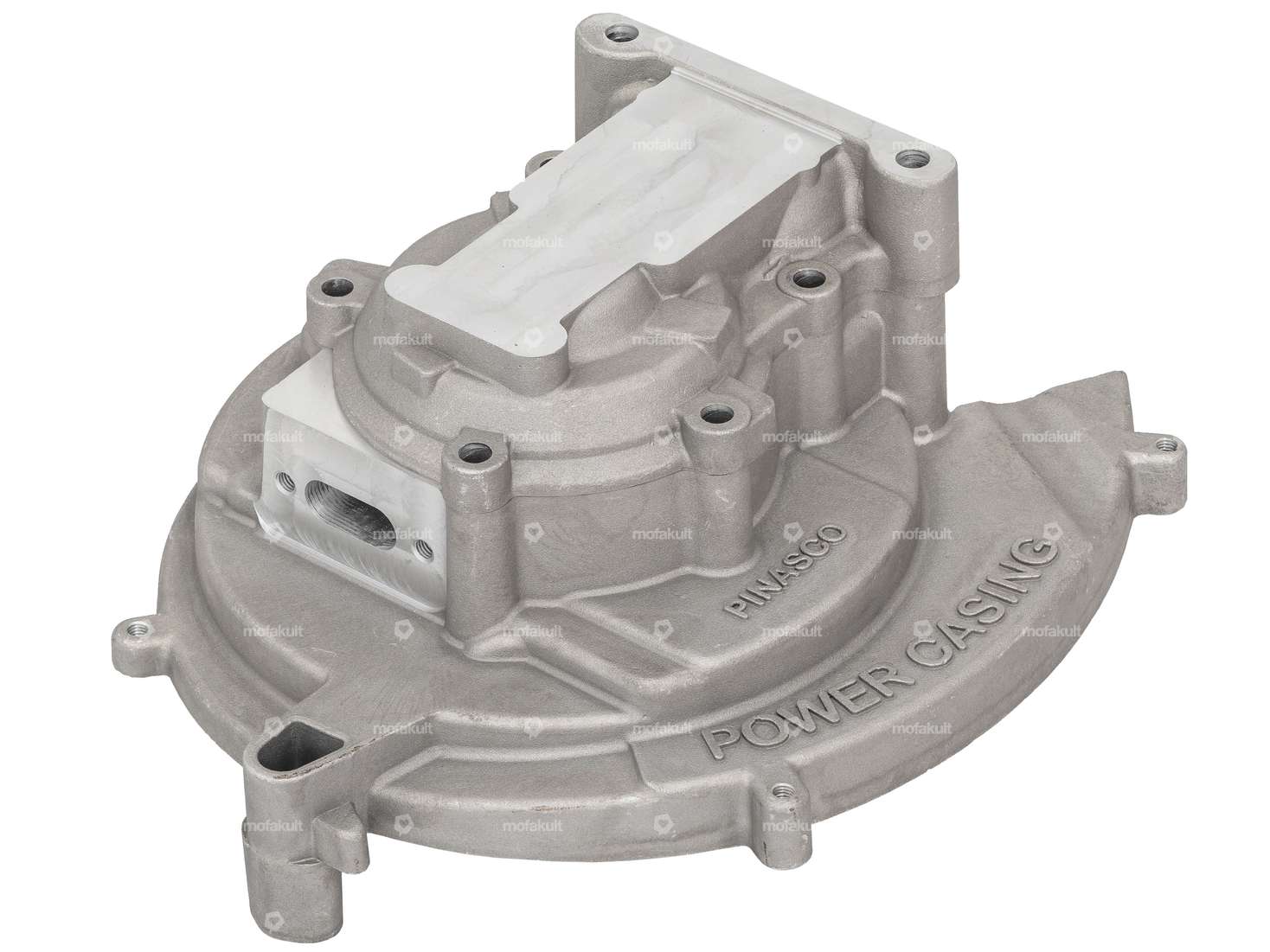

The Pinasco «Power Casing» engine housing is supplied with a specially developed crankshaft, which has a wide cheek for controlling the intake. A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this housing.

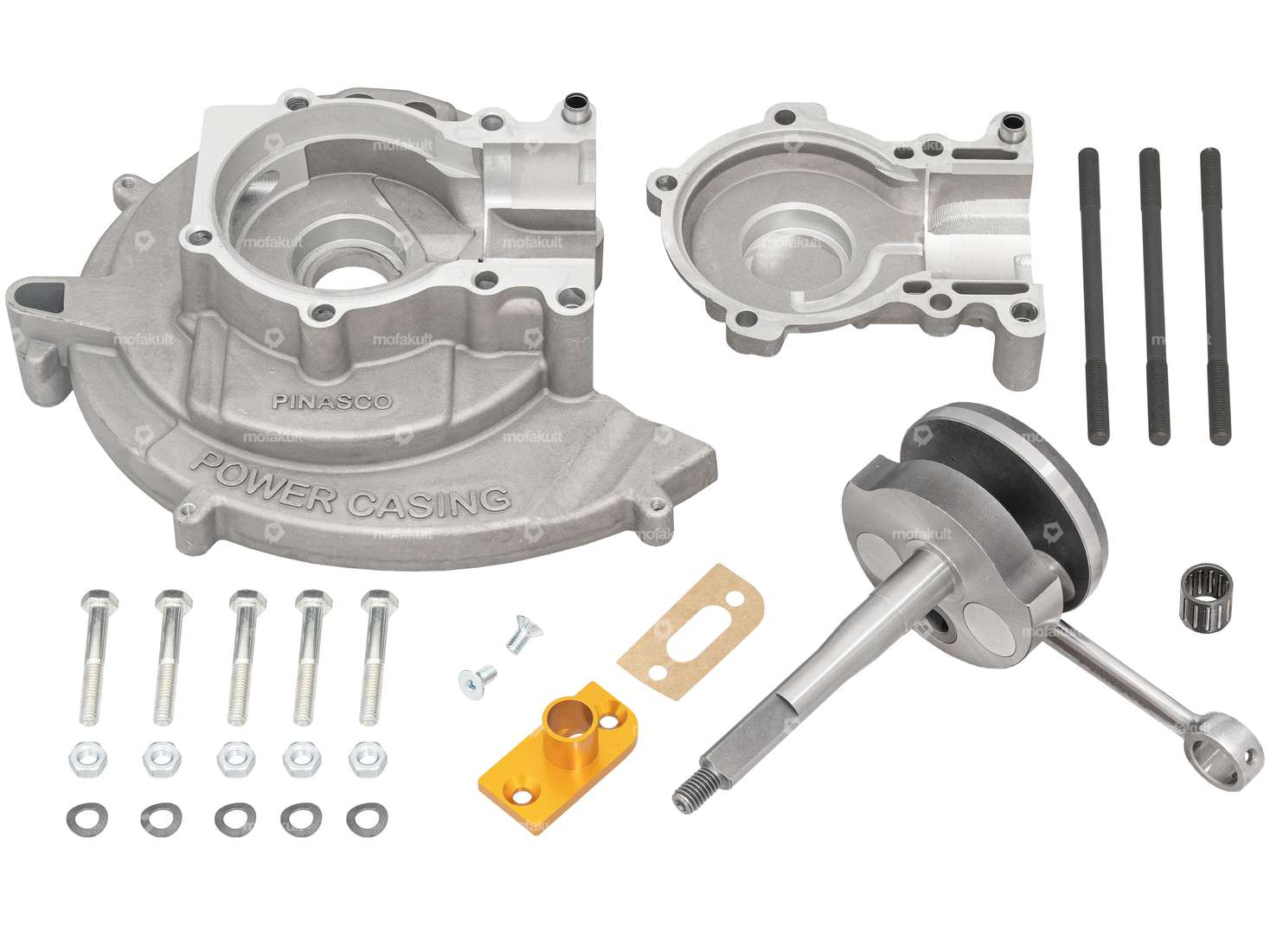

The following parts are included in the scope of delivery:
- Rear intake flange (connection diameter: 16 mm, Ø inside: 13 mm)
- Cylinder studs

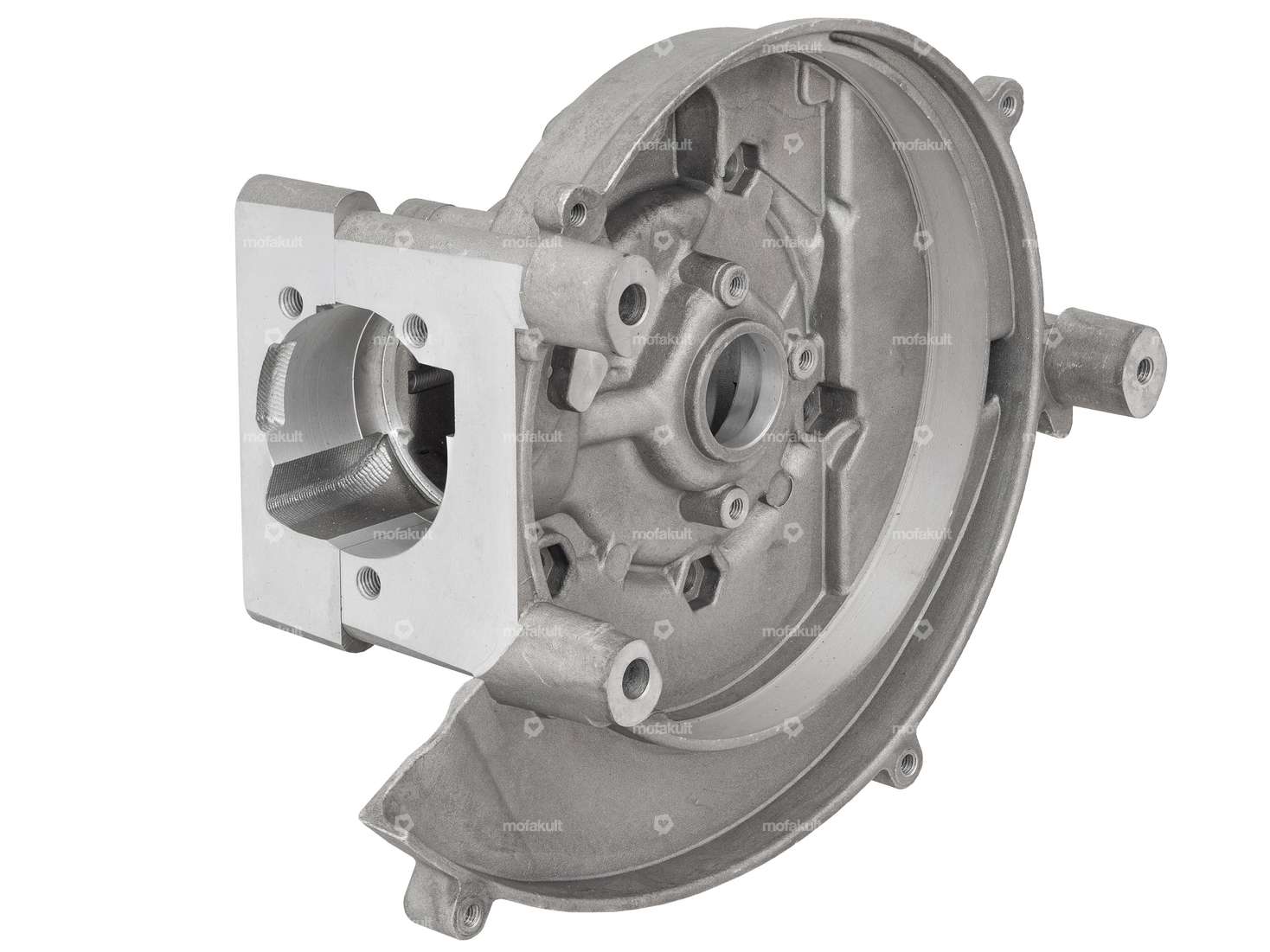

- Engine housing (Ø for cylinder necks up to 50.7 mm)
- Engine housing screws

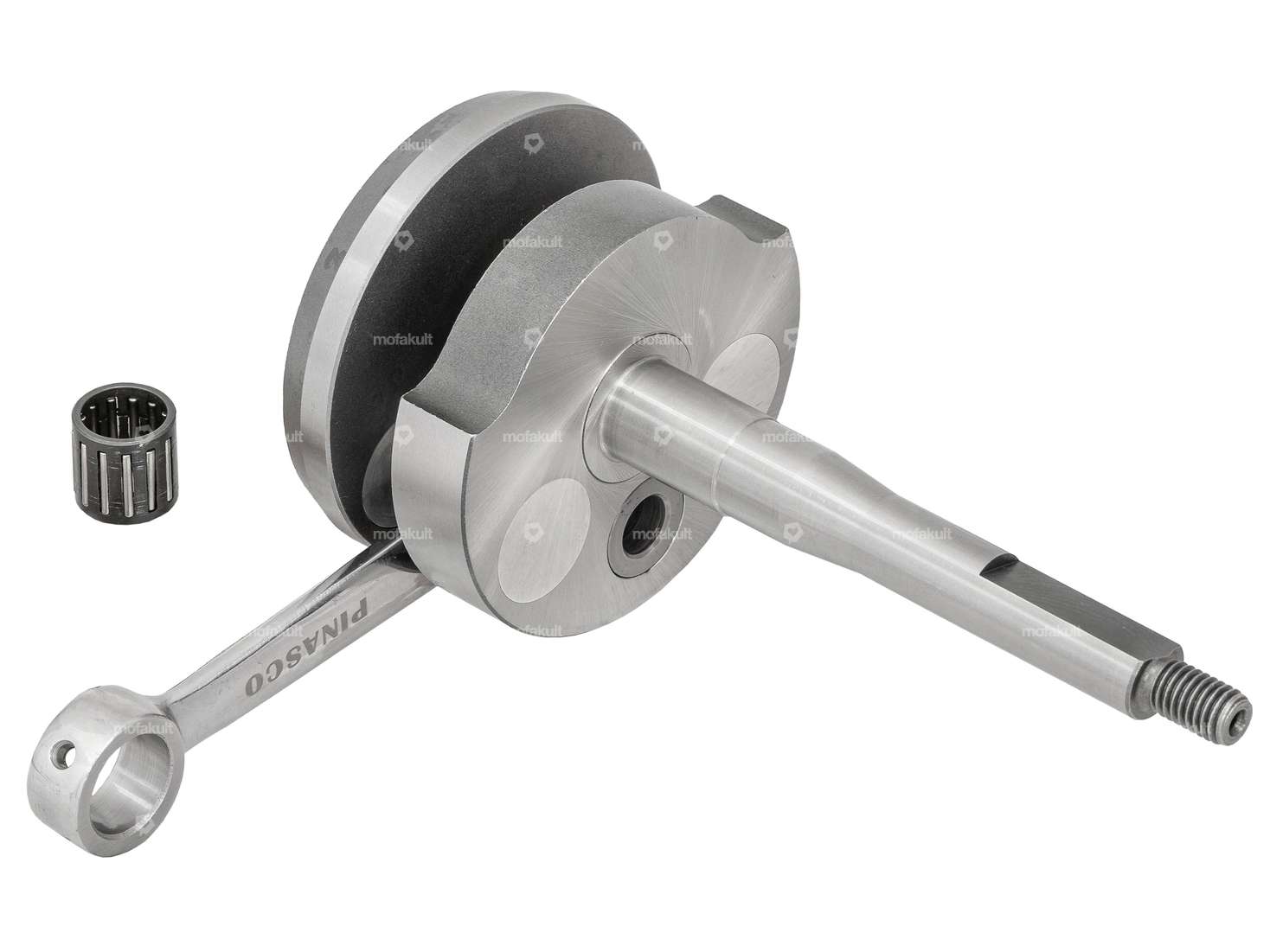

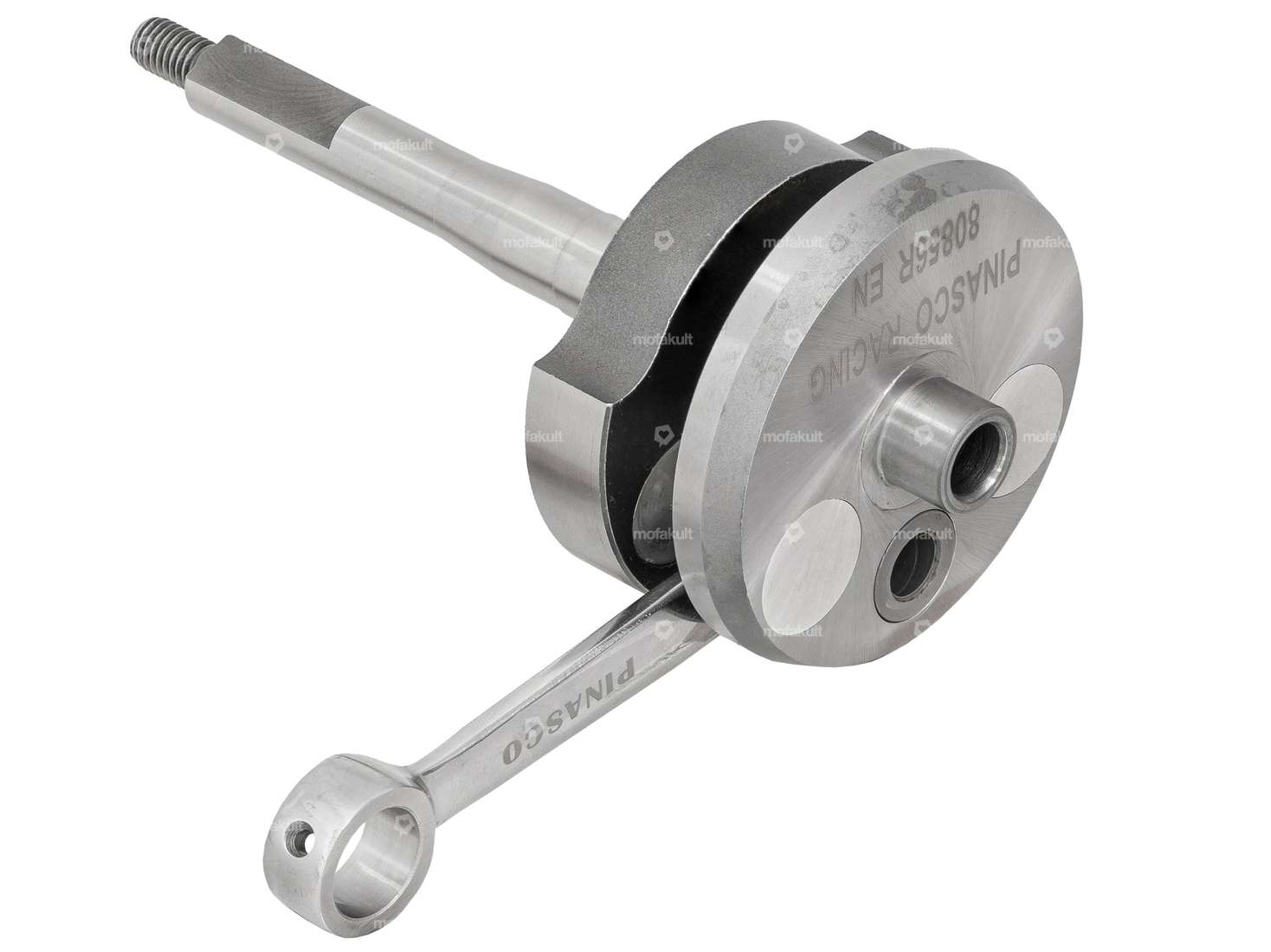

- Crankshaft Pinasco Competition with 43 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing seal is supplied. Sealing compound is used for sealing.
We recommend using the 46 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder. This process is described in the assembly instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
