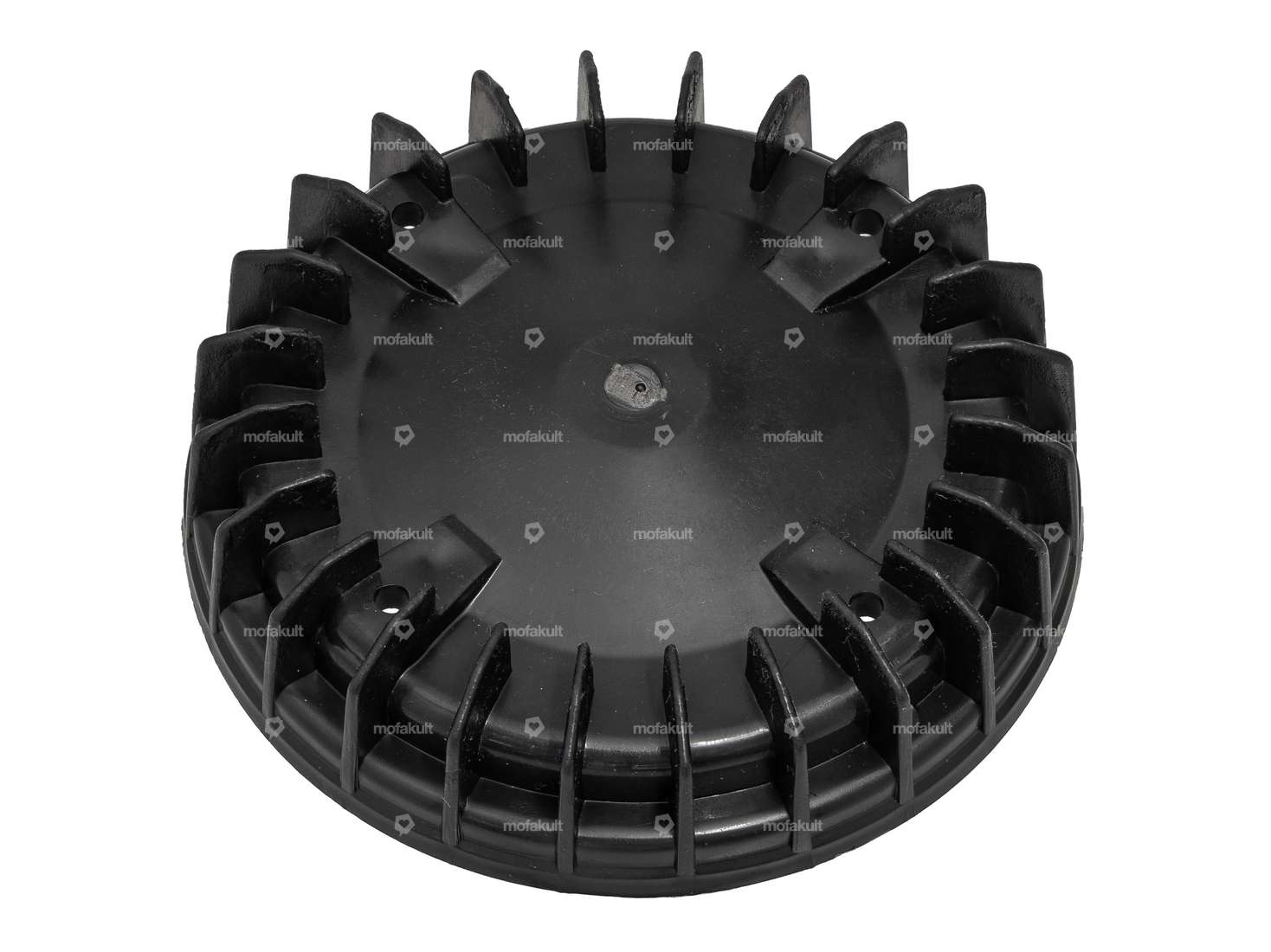

Plastic fan wheel | Minarelli V1 (108) engine (version 2)

Plastic fan wheel | Minarelli V1 103 engine (version 1)

Manufacturer: Minarelli · Material: Plastic · Color: black · Number of fixing points: 4 pcs

MLM 21 mm intake manifold | Minarelli V1

Ø inside: 21 mm · Manufacturer: MLM · Area of application: Tuning · Material: Steel · Color: black · Surface: varnished · Ø External connection: 25 mm · Number of fixing points: 2 pcs · Hole spacing inlet: 40 mm · Mounting type: Screws

Athena gasket cylinder base | Minarelli V1 / V1L

Manufacturer: Athena · Place of use: Cylinder base · Thickness: 0.4 mm · Hole spacing inlet: 64.5 mm · Ø screw holder: 6.5 mm

Gasket set 50 ccm Minarelli V1

Area of application: Standard · Ø cylinder: 39 mm · Number of components: 4 pcs

Athena oil seal set | Morini M1/M01, Minarelli V1

Manufacturer: Athena

Plastic fan wheel | Minarelli V1 engine (version 3)

Ø inside: 103 mm · Manufacturer: Minarelli · Material: Plastic · Color: black · Height: 38 mm · Ø outside: 123 mm · Number of fixing points: 4 pcs · Ø bolt circle: 87 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 4.15 mm · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1448 mm · Number of chain links: 114 pcs · Chain lock type: Spring lock · Ø bore: 4.2 mm

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Width: 12 mm · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ø inside: 17 mm · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Ø outside: 40 mm · Area of application: Standard · Ball bearing closed: No

Magura set screw M5x34 mm

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Ø cable holder: 2.55 mm · Ø Receptacle: 7.05 mm · Thread type: M5x0.8 (standard thread) · Slotted: No · Thread length: 24 mm · Width across flats Screw: 8 mm · Total length: 34 mm · Width across flats nut: 8 mm

Nut M12x1 x 10 SW19 Wheel nut galvanized

Height: 10 mm · Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Area of application: Standard · Width across flats SW: 19 mm · Thread depth: 10 mm · Strength class: 8

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red · Area of application: High End · Area of application: Standard

Petrol hose clamp (Ø 8.8 - 9.3 mm) Standard

Ø inside: 7.5 mm · Outer width: 5.3 mm · Material: Spring steel · Surface: blue galvanized · Color: silver · Ø outside: 9.5 mm · Mounting type: Plug connection clamped · Clamping range: 7.6 - 9.3 mm

swiing® revival gearbox cover gasket ZA50 engine | Puch Maxi S -2A, X30 NG - 2AH

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 175 mm · Thickness: 0.3 mm · Width: 125 mm · Number of fixing points: 6 pcs · Number of components: 1 pcs · Puch spare part no.: 321.1.10.649.1

Polini gasket set cylinder Minarelli V1 engine

Manufacturer: Polini · Area of application: Tuning · Ø cylinder: 47 mm · Number of components: 4 pcs

Gearbox cover gasket | Minarelli V1

Area of application: Standard · Material: Sealing paper · Surface: raw · Thickness: 0.5 mm · Number of components: 1 pcs
