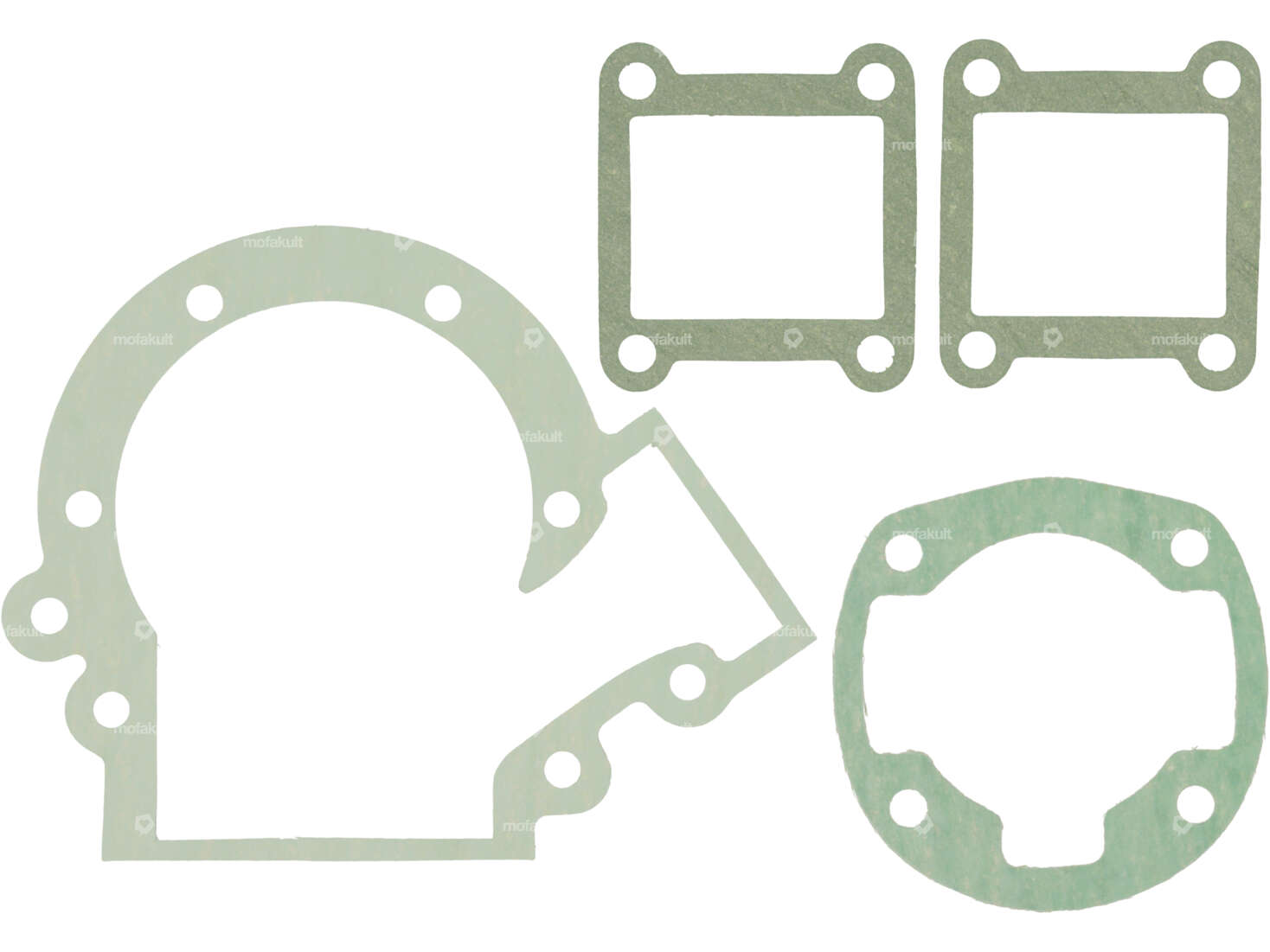

Gasket set with flat gaskets suitable for the Polini crankcase with 4-valve diaphragm intake system on your Peugeot 103, 103 SPX50, 104, 105, GL 10 moped / moped.
Hole pattern diaphragm gasket: 48x42 mm
The gasket set consists of the following gaskets:
- 1 pc. Cylinder base gasket 0.3 mm
- 2 pcs. Diaphragm gasket 1.0 mm
- 1 pc. Housing gasket 0.3 mm
The corresponding engine housings can be found under accessories.
Quality product from the Italian manufacturer Polini.
Details
| Material | Sealing paper |
| Manufacturer | Polini |
| Number of components | 4 pcs |
| Hole pattern [mm] | 48 x 42 |
Suitable for the following models
| Peugeot |
