For: Sachs

34379

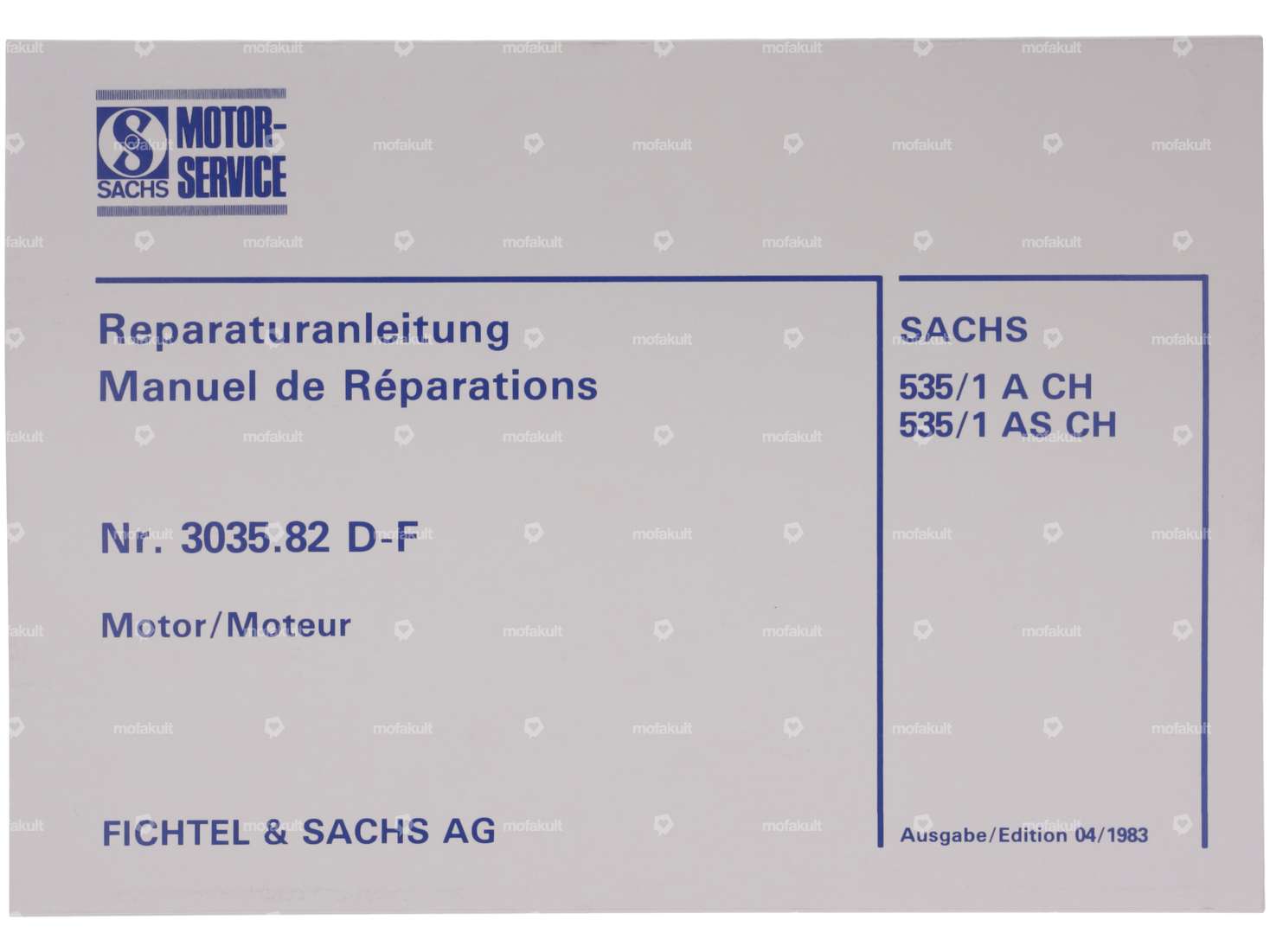

Repair instructions | Sachs 535/1 A, AS CH

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
38,80 EUR

Incl. 19% VAT.

Nostalgic repair manual with complete exploded views and descriptions for the repair of your Sachs 535/1 A CH and 535/1 AS CH moped / moped engine.

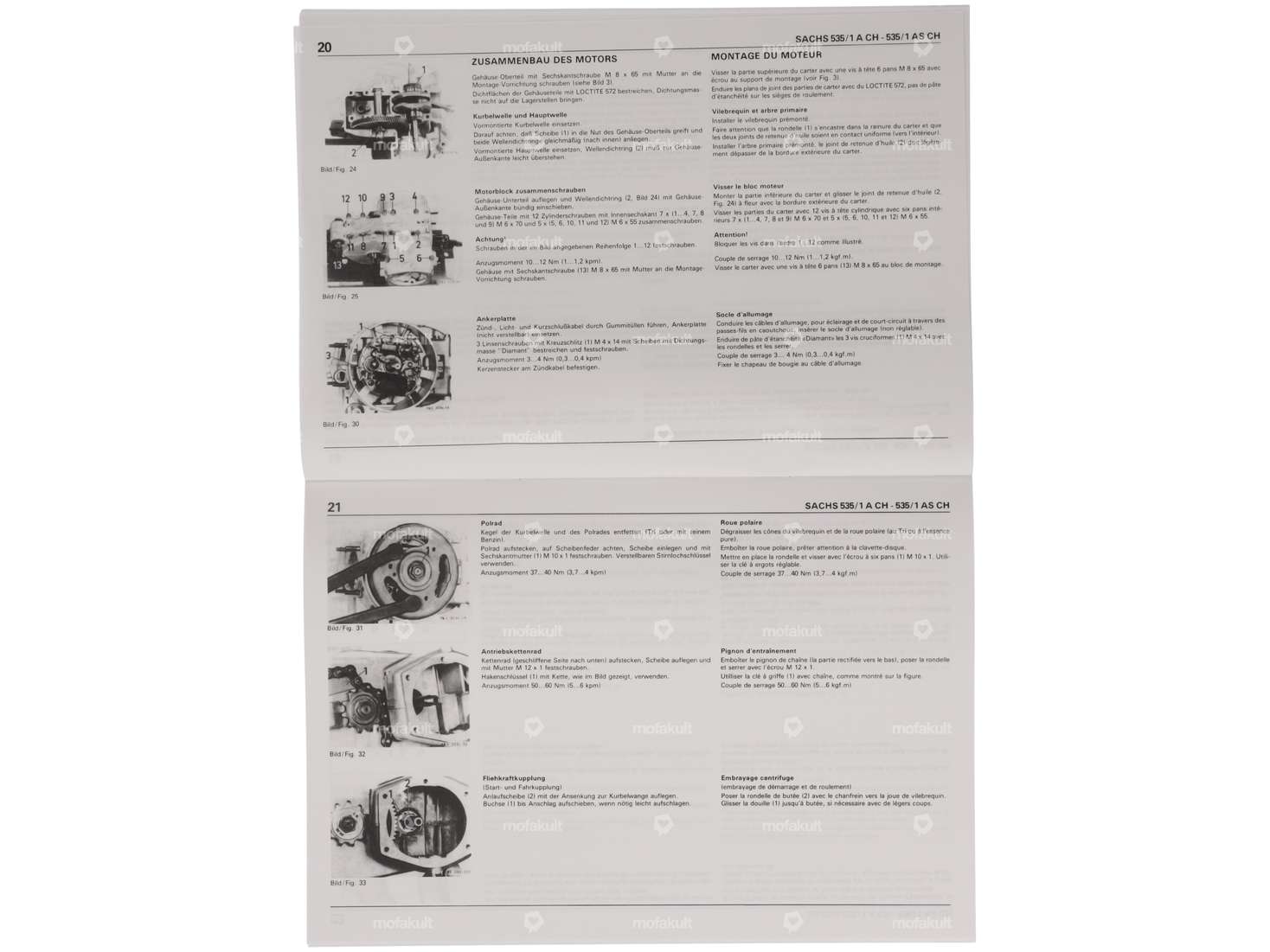

All aspects of the engine are described in detail and are illustrated by comprehensive revision instructions, numerous pictures and important facts.

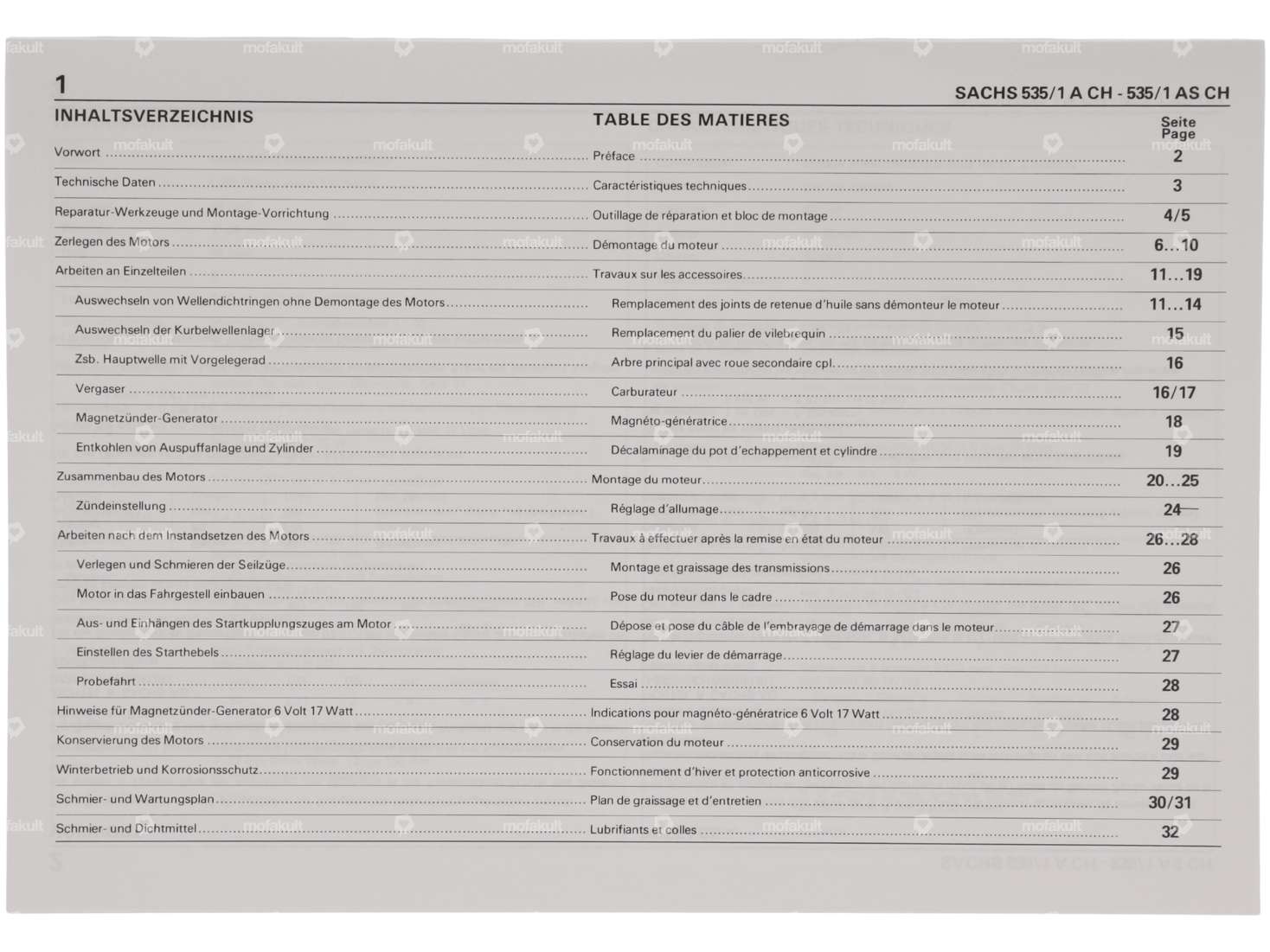

In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.

Details

MaterialPaper
DIN formatA4
Number of pages34 pcs
LanguageGerman, French

Suitable for the following models

Sachs

535
