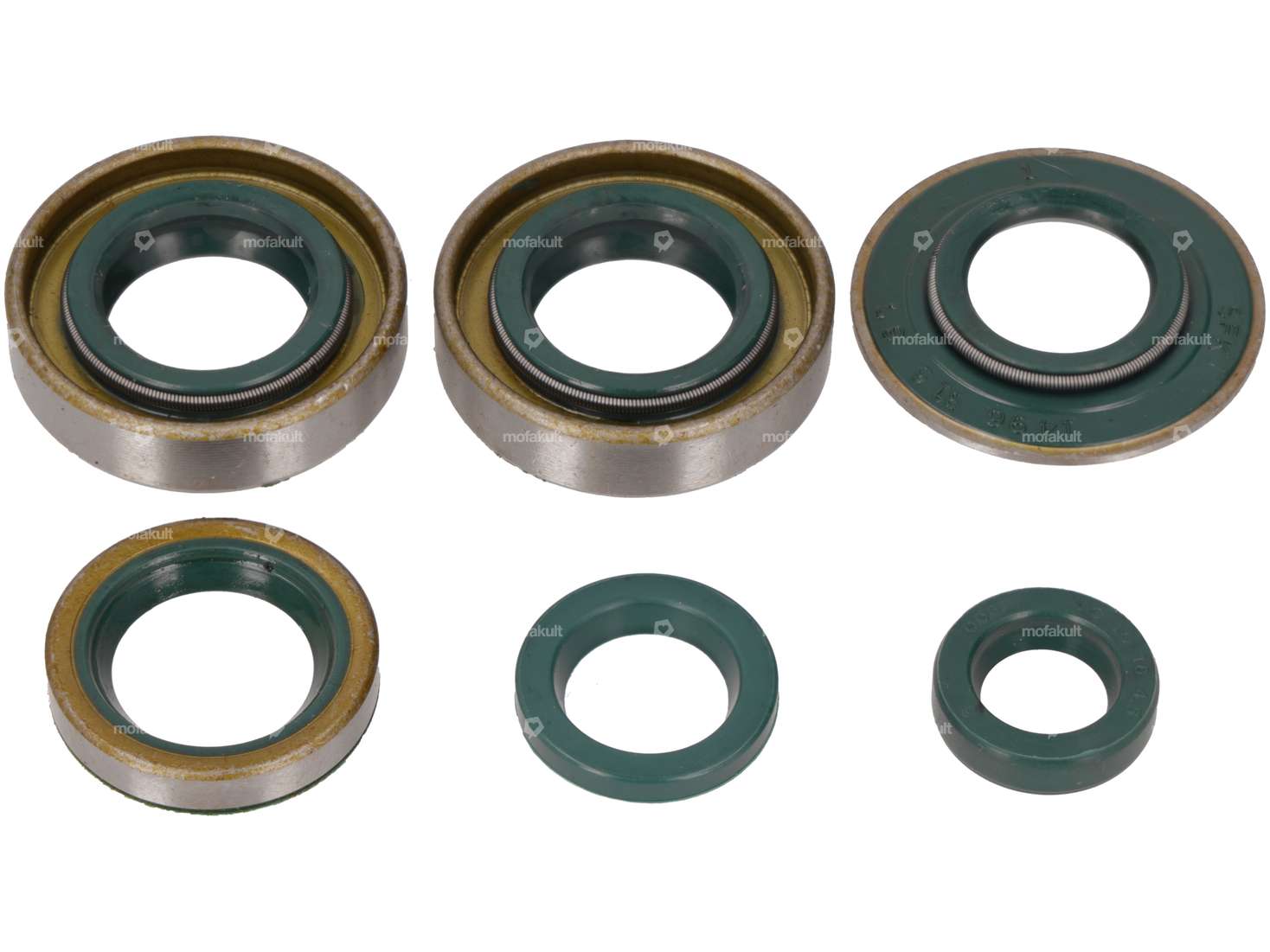

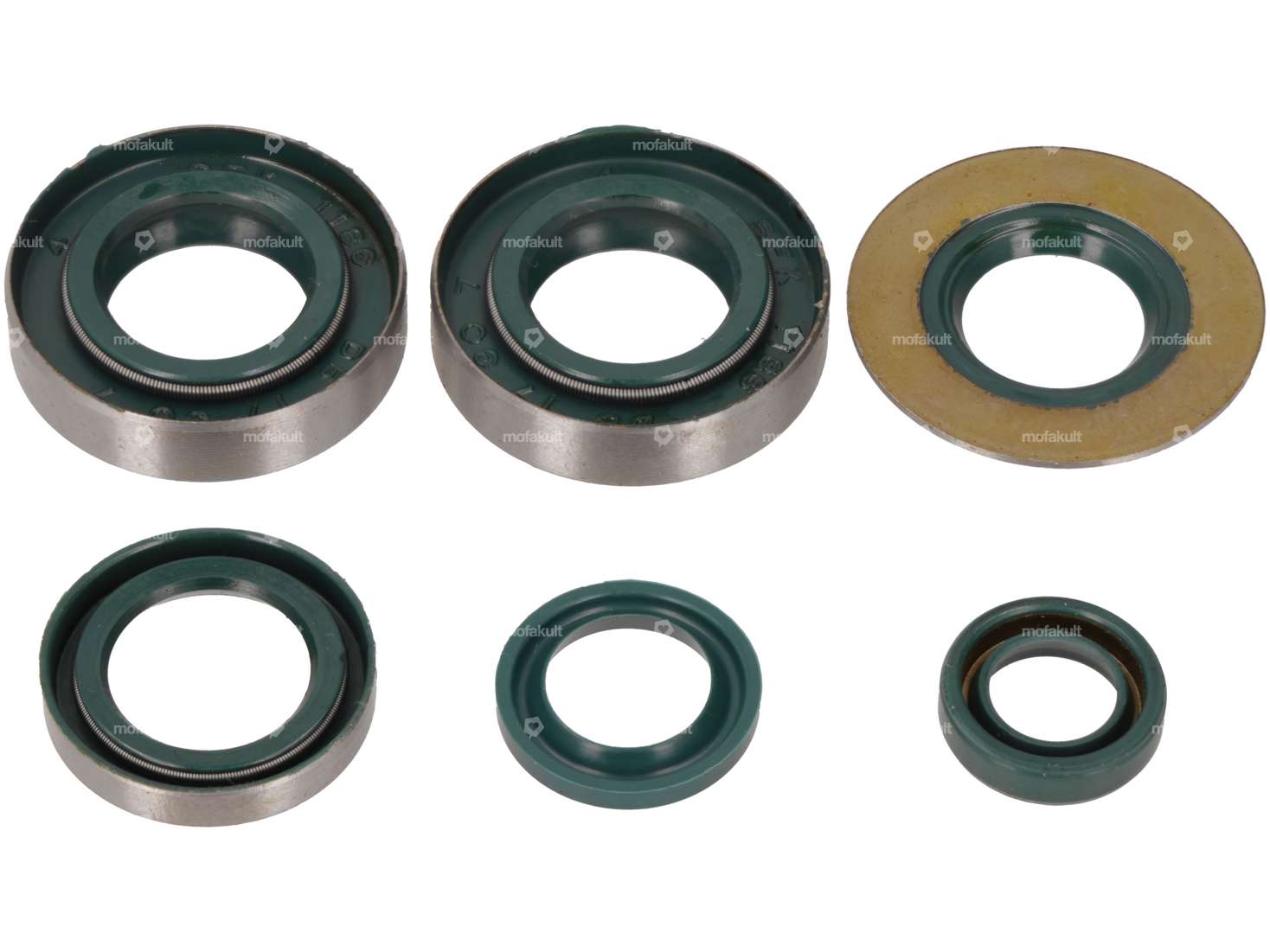

Complete oil seal set suitable for mopeds / mopeds with Sachs 3, 4-speed engines that have a kick starter installed.
The set consists of the following six oil seals (also known under the trademarked brand name Simmerring®):
- 17/30/7 DUO - 2 pieces
- 14.96/31.5/3.5 - 1 piece
- 15/24/4 - 1 piece
- 13.8/19/2.5 - 1 piece
- 10/16/4.5 - 1 piece
Single sealing rings and alternative sets can be found in the accessories section.
Details
| Ø inside | 10 mm, 13.8 mm, 14.96 mm, 15 mm, 17 mm |
| Ø outside | 16 mm, 19 mm, 24 mm, 30 mm, 31.5 mm |
| Width | 2.5 mm, 3.5 mm, 4 mm, 4.5 mm, 7 mm |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Contents [ml]: 10 ml · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
25,40 EUR
2.540,00 EUR/l
Oil seal NBR 17/30/7 B DUO crankshaft | Sachs 50/3, 50/4
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 17 mm · Width: 7 mm · Ø outside: 30 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C
6,85 EUR
GPO oil seal set 3-speed pedal start | Sachs
Manufacturer: GPO · Ø inside: 10 mm · Ø inside: 13 mm · Ø inside: 14 mm · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 24 mm · Width: 2.5 mm · Width: 3.5 mm · Width: 4 mm · Width: 4.5 mm · Width: 7 mm · Ø outside: 16 mm · Ø outside: 19 mm · Ø outside: 24 mm · Ø outside: 30 mm · Ø outside: 31.4 mm · Ø outside: 31.5 mm
34,70 EUR
Shaft seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 10 mm · Width: 4.5 mm · Ø outside: 16 mm · Place of use: Shift shaft · Temperature resistance (min.): -30 - 100 °C
5,70 EUR
Shaft seal FPM 14.96/31.5/3.5 Pinion shaft | Sachs 50/2, 503 (A1134)
Place of use: Pinion shaft · Temperature resistance (min.): -30 - 200 °C · Width: 3.5 mm · Manufacturer: Sachs · Material: FPM - Fluororubber · Ø inside: 14.96 mm · Ø outside: 31.4 mm · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 200 · Sachs OEM no.: 0230 011 100
15,00 EUR
