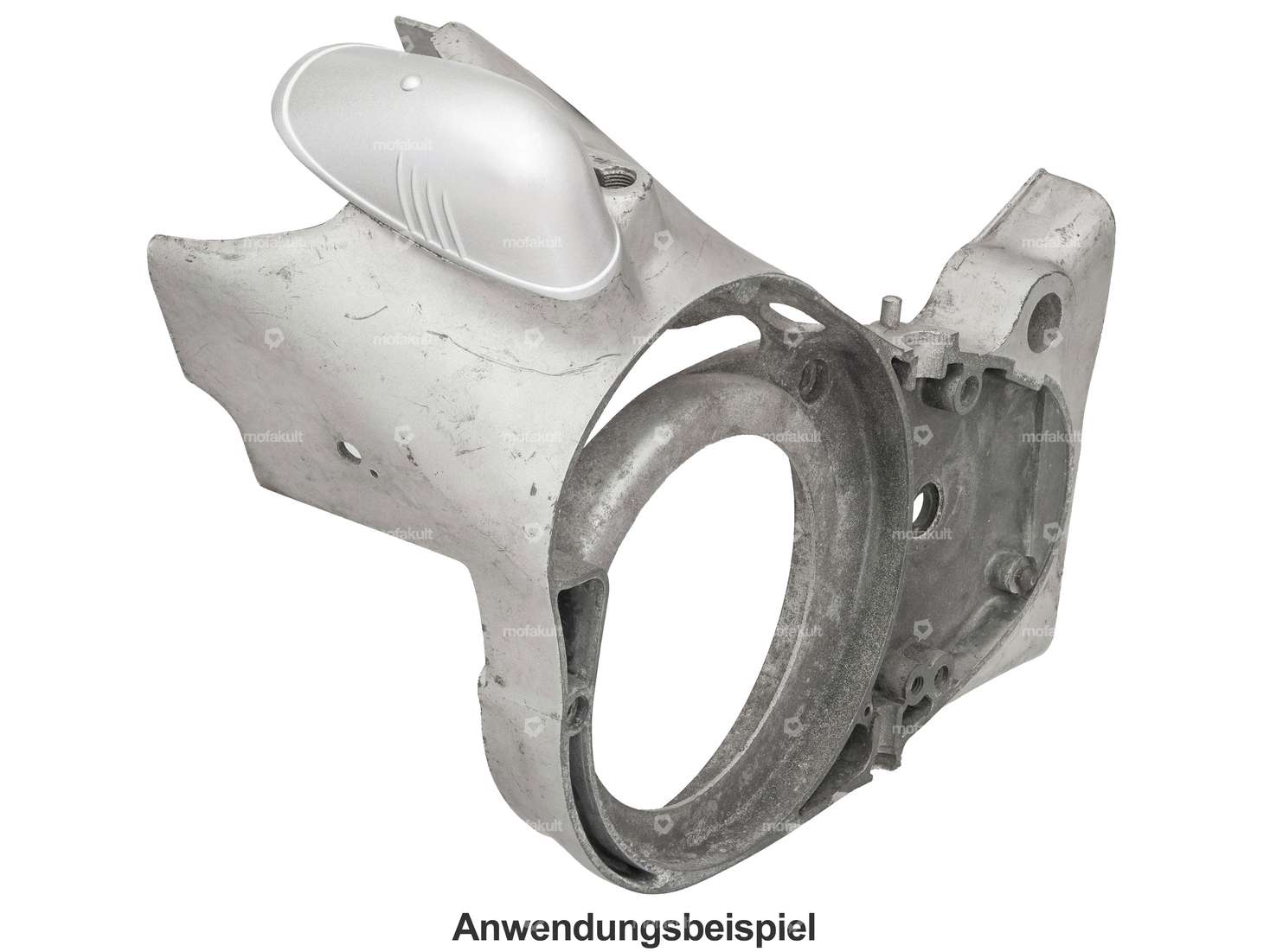

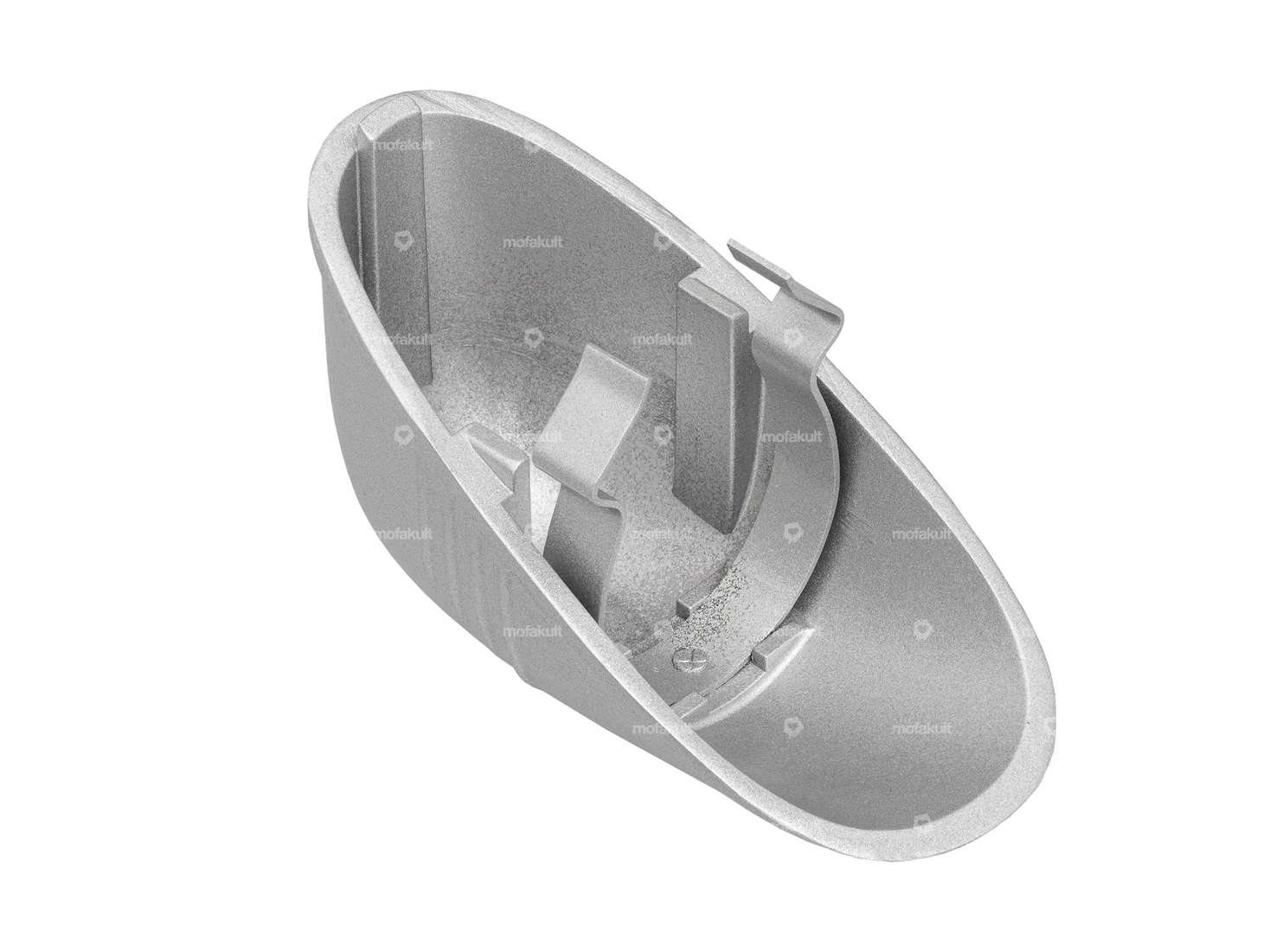

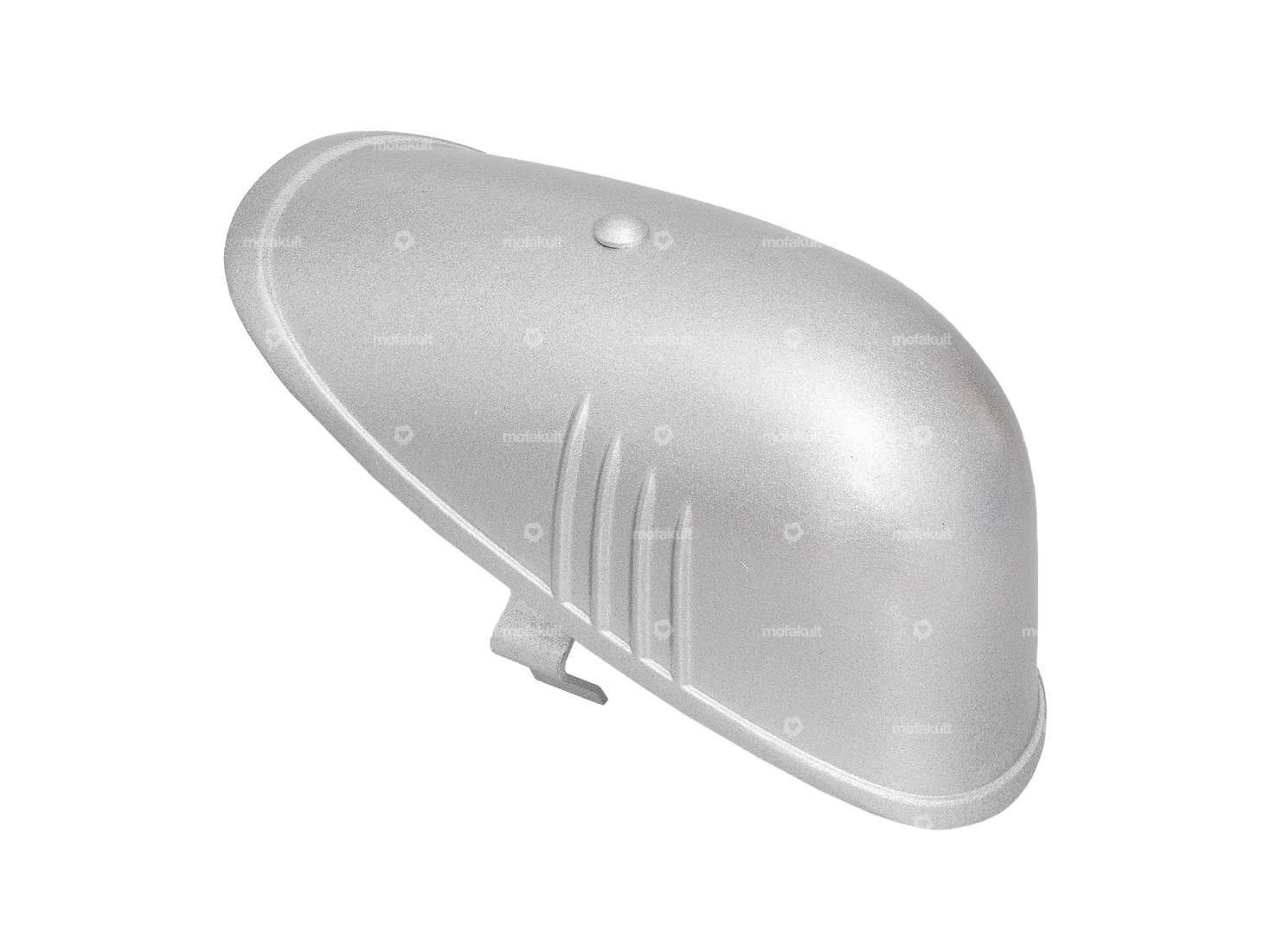

Spark plug cap | Sachs 50/3 LKH manual transmission

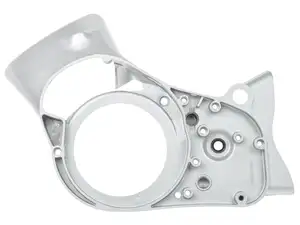

Blower hood | Sachs 50/3, 50/4 LKH

Material: Aluminum

Repair instructions | Sachs 50/3 LFH, MLFB, 50/4 LKH, LKS, MLFB, MLKAX

Material: Paper · DIN format: A5 · Number of pages: 63 pcs · Language: German

Spare parts list | Sachs 50/3 LKH, LH engine

Material: Paper · DIN format: A5 · Number of pages: 30 pcs · Language: German

Spare parts list | Sachs 50/3 ML, MLA, MLK, LKH, LHX engine

Material: Paper · DIN format: A5 · Number of pages: 30 pcs · Language: German

PVL spark plug connector small / not suppressed

Manufacturer: PVL · Material: Rubber · Color: black · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: SAE · Cable available: No · Suppressed: No · Component group Carburetor: Spraying

BOSCH WSR6F spark plug special short thread | Solex, Sachs LKH

Manufacturer: BOSCH · Candle designation: WSR6F · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 19 mm · Spark plug socket: SAE · Suppressed: Yes · Area of application: Original · Area of application: Standard

NSK L17 shoulder ball bearing

Bearing type: Shoulder bearing · Stock number: L17 · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank / oiled · Area of application: Standard · Ø outside: 40 mm · Ø inside: 17 mm

Handlebar with stem 9 cm curved chrome

Material: Steel · Surface: chrome-plated · Ø outside: 22 mm · Width: 630 mm · Height: 90 mm · Color: Chrome · Ø Stem: 22 mm · Stem height: 180 mm · Length handlebar ends: 200 mm · Mounting type: Front boom mounting · Crossbar: No

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Standard · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

GPO flame tube 32 mm | Sachs 50/2, 50/3

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Union nut · Ø External connection: 38 mm · Total length: 255 mm · Ø outside: 32.2 mm · Ø inside: 29.6 mm

Flute muffler Ø 32 / 70 mm | Sachs /

Surface: chrome-plated · Color: Chrome · Material: Steel · Total length: 690 mm · Exhaust type: Flute · Ø Internal connection: 32 mm · Ø outside: 70 mm · Mounting type: Screwed clamp

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

Gearbox cover gasket manual transmission | Sachs 50/2, 50/3, 50/4 A1827 0.4 mm (1A quality)

Width: 130 mm · Thickness: 0.4 mm · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Total length: 215 mm · Number of fixing points: 5 pcs · Pony OEM number: A1827 · Sachs OEM no.: 0250 087 100

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.5 mm · Place of use: Cylinder base · Hole pattern [mm]: 40.5 x 51

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony OEM number: A1908 · Sachs OEM no.: 0259 015 000

swiing® revival exhaust nut M40x1.5 galvanized (for 32 mm pipe) | Sachs

Thread type: MF40x1.5 (fine pitch thread) · Height: 19 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Union nut · Ø inside: 33.5 mm · Ø outside: 46 mm
