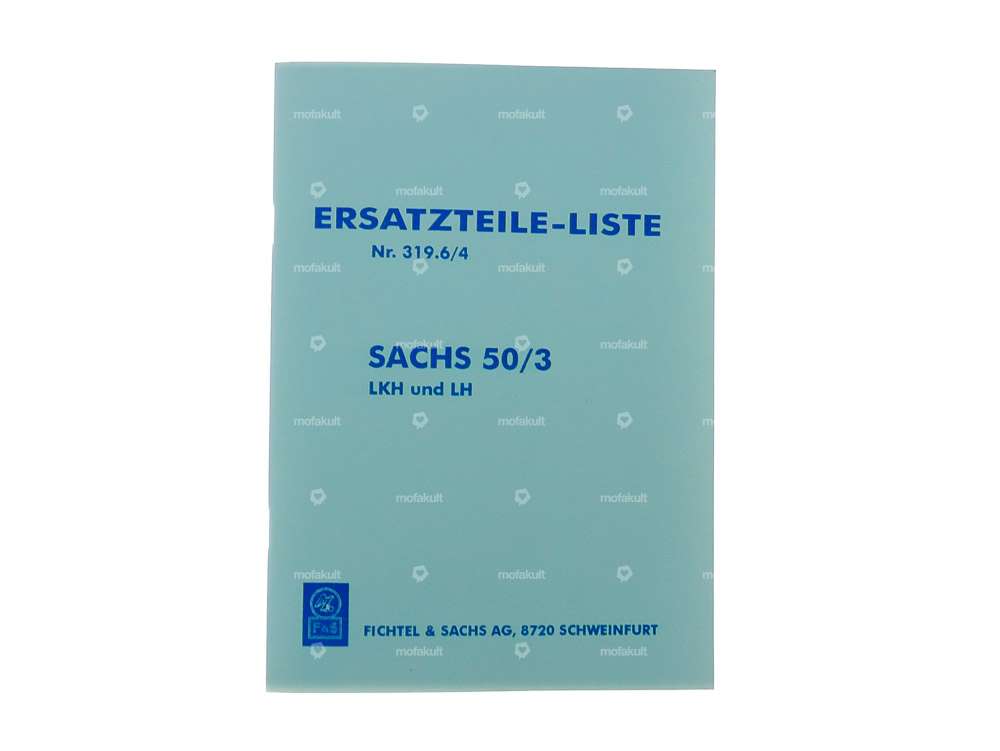

Catalog with all exploded views of the Sachs three-speed 50/3 LKH and LH engines.

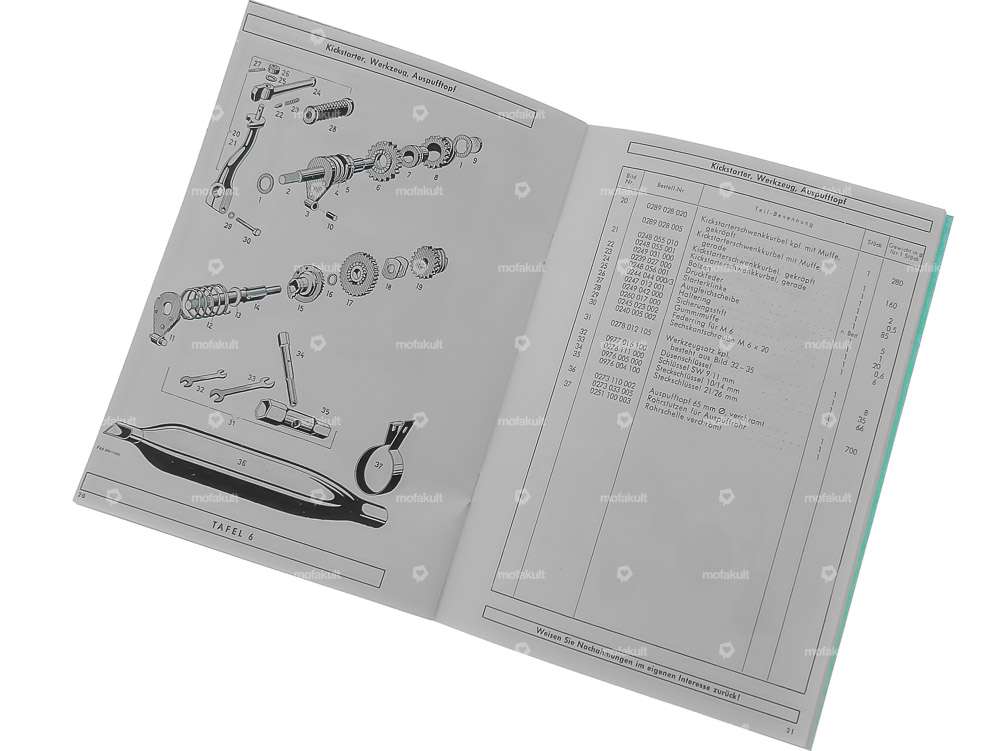

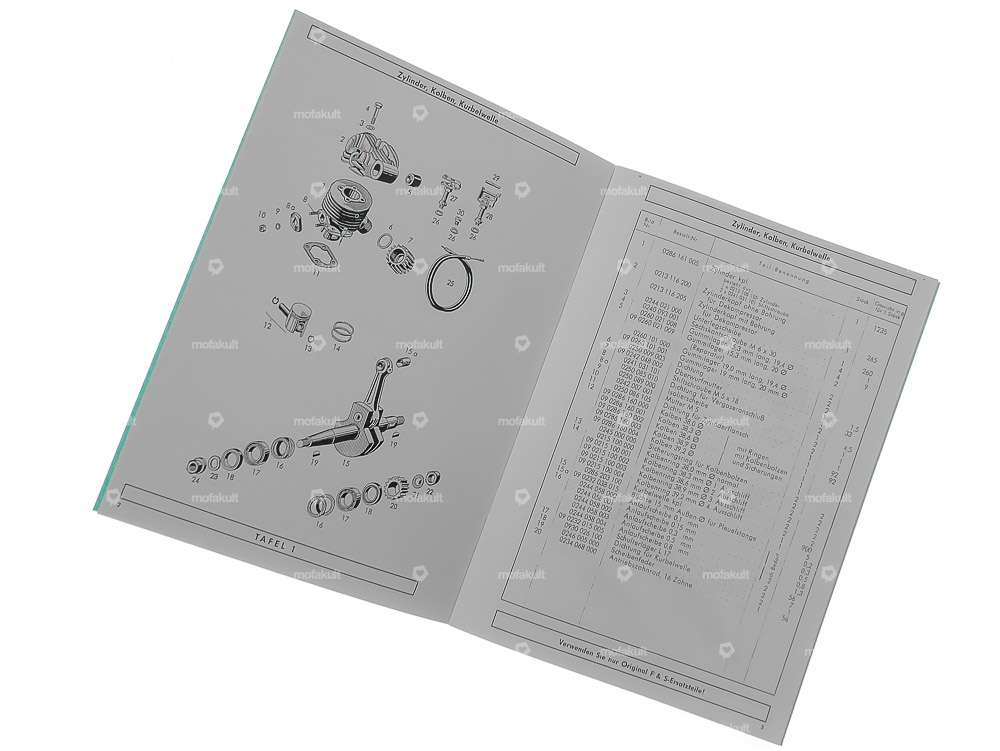

The complete engine from cylinder to carburetor is shown in helpful exploded views. Each individual component is provided with part number, spare part number, weight and installation location.
A helpful catalog with 30 interesting pages.
Details
| Material | Paper |
| DIN format | A5 |
| Number of pages | 30 pcs |
| Language | German |
Suitable for the following models
| Sachs | 50/3 |
