Carburetor complete set for Sachs mopeds / mopeds with 50/2 engines and slot control, not suitable for diaphragm-controlled cylinders.

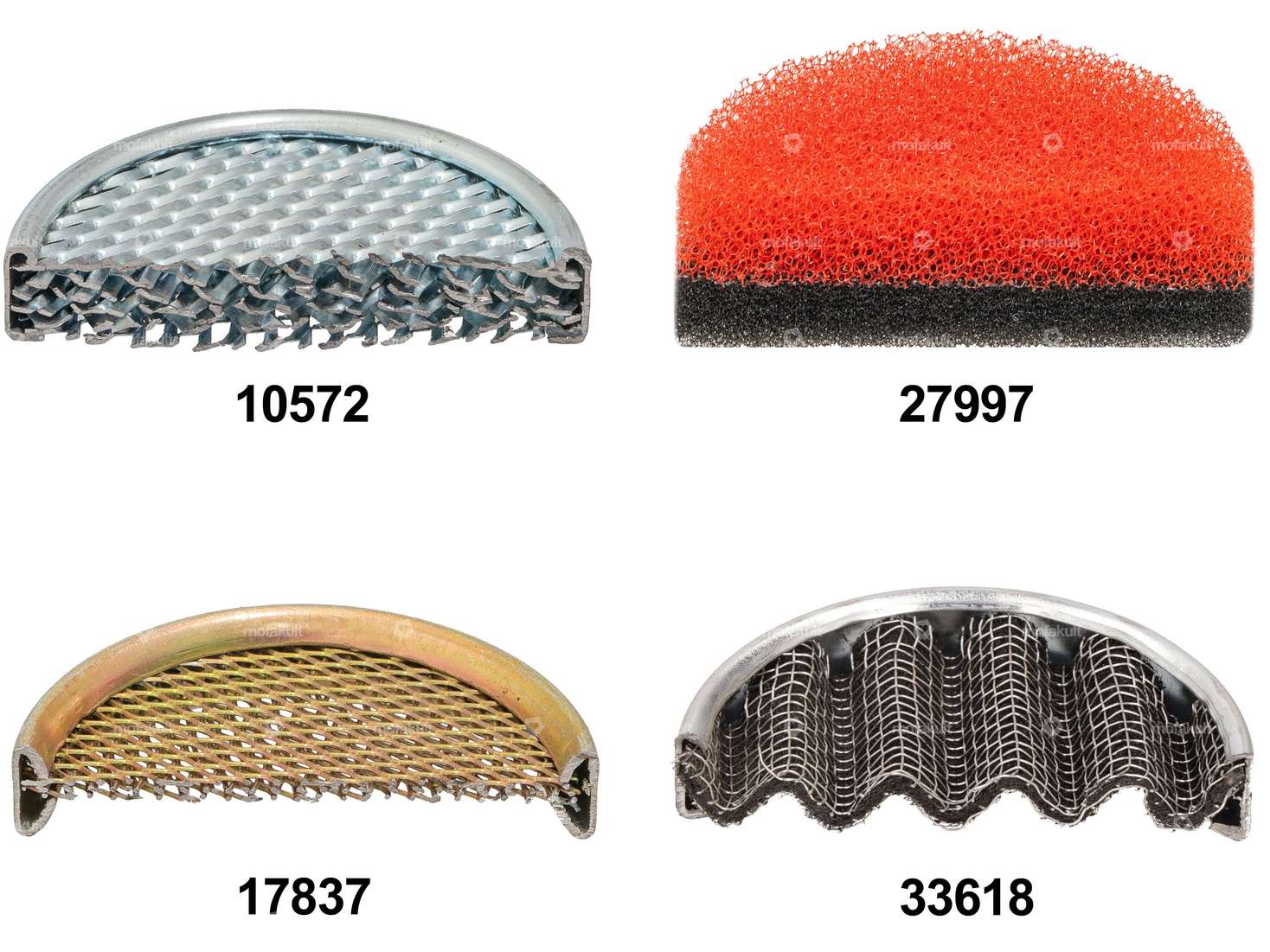

The very short intake path in combination with the 15 mm Bing replica carburetor leads to a considerable increase in performance. If the amount of air drawn is still too large, you can use item 17273 as an insert.
As the space between the cylinder, engine block and frame is very tight, the following must be observed during installation:
- The stud bolts must be removed from the cylinder. The M5x12 bolts to be used are included.
- The «swiing» lettering on the intake manifold must face upwards, as the flange of the manifold has a slight angle.
- The milled surface of the air filter housing must face downwards.
- The manifold, carburettor and air filter must be pre-assembled. Only then can the entire assembly be used.

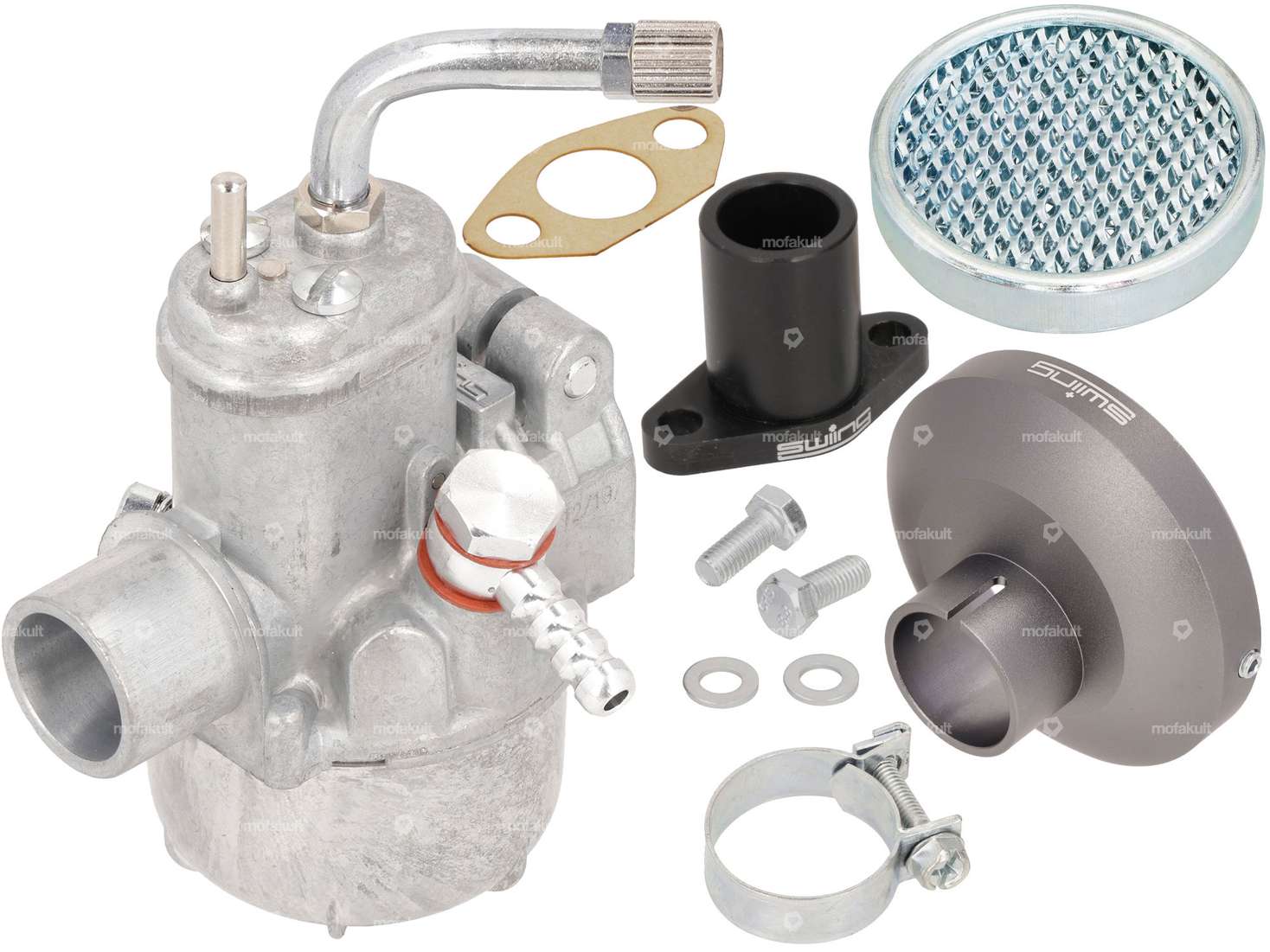

Scope of delivery as per image 1.
When purchasing this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Exclusive product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Manufacturer: swiing® ingenious parts · Camouflaged: No · Color: gray · Material: Aluminum · Filter type: Grille · Total length: 29 mm · Length of filter section: 9.5 mm · Ø Internal connection: 20 mm · Ø outside: 56 mm · Mounting type: Screws, Bride · Area of application: Tuning
Manufacturer: swiing® ingenious parts
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Details
| Manufacturer | swiing® ingenious parts |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SRE |
| Choke control | Hand choke |
| Nominal diameter | 15 mm |
| Hole spacing inlet | 31 mm |
| Ø Internal connection | 20 mm |
| Ø Inside entrance | 15 mm |
| Ø Output inside | 15 mm |
| Mounting type | Flange, Plug connection clamped |
| Ø Air filter connection | 20 mm, 52 mm |
| Ø fuel hose connection | 6 mm |
| Area of application | Tuning |
| Nozzle thread | M3.5x0.6 (standard thread) |
| Clamping screw torque (max.) | 4 N/m |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
