41mm everyday tuning kit with 55 cc displacement and reed valve intake, suitable for Swiss mopeds / mopeds with Sachs 50/2 (502) engine.
Ideal for beginners and anyone who prefers an unobtrusive and quiet performance increase.
With a larger displacement and optimized timing, this tuning kit turns your oldie into a powerhouse. In addition, this racing cylinder is visually indistinguishable from the original cylinder when fitted.
In addition to the cylinder, the kit also includes an exhaust with 28 mm flame tube and a 13 mm racing carburetor. The square intake flange with 13 x 13 mm opening corresponds to an area of a round 15 mm tuning carburetor and gives your bike plenty of steam under the saddle.

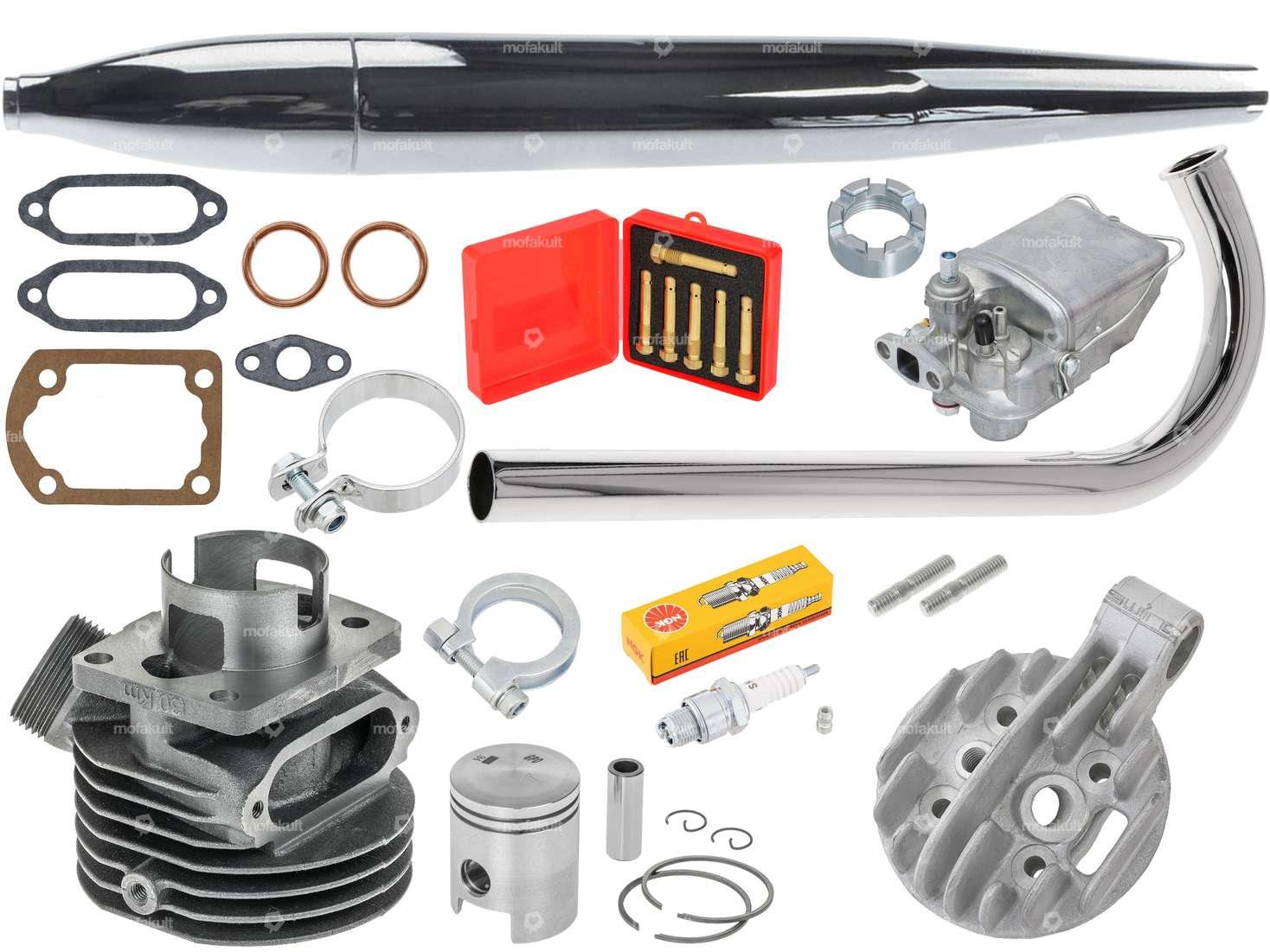

The set includes the following fixed parts:
Hole pattern [mm]: 60 x 40 / 37 x 37 · Inlet window: 57.5 x 19 · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 68 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101, 0640 016 102
Manufacturer: GPO · Nominal diameter: 40 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm
Hole pattern [mm]: 60 x 40 mm · Manufacturer: swiing® revival parts · Material: Sealing paper, Copper · Number of components: 5 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 31 mm, 67 - 31 mm · Ø outlet inside: 28 mm · Area of application: Standard
Hole pattern [mm]: 37 x 37 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 98 mm · Number of fixing points: 4 pcs · Ø screw holder: 19 mm · Candle thread: long · Decompressor: M10x1.5 · Total length: 127 mm · Width: 95 mm · Height: 50 mm · Area of application: Standard

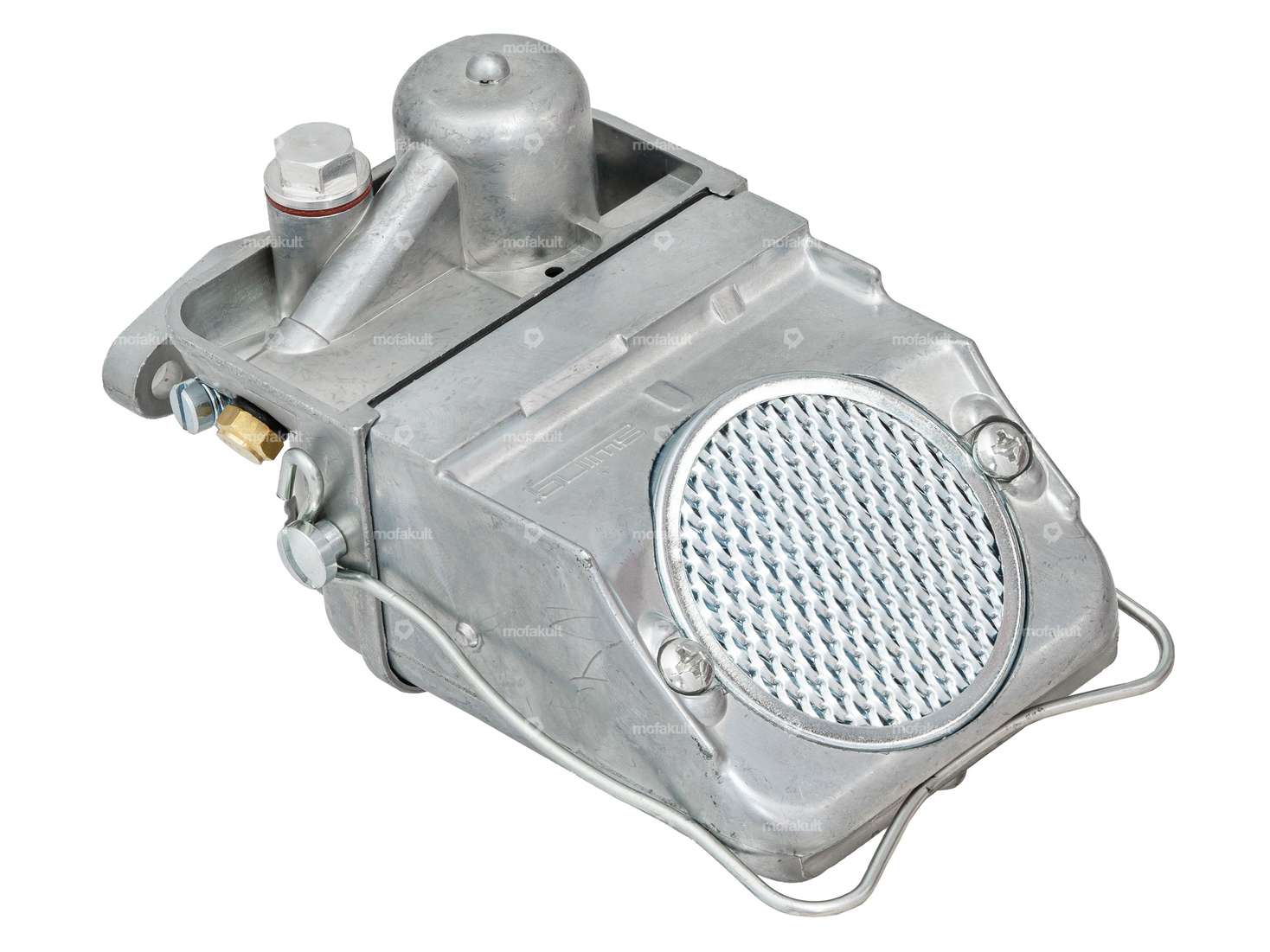

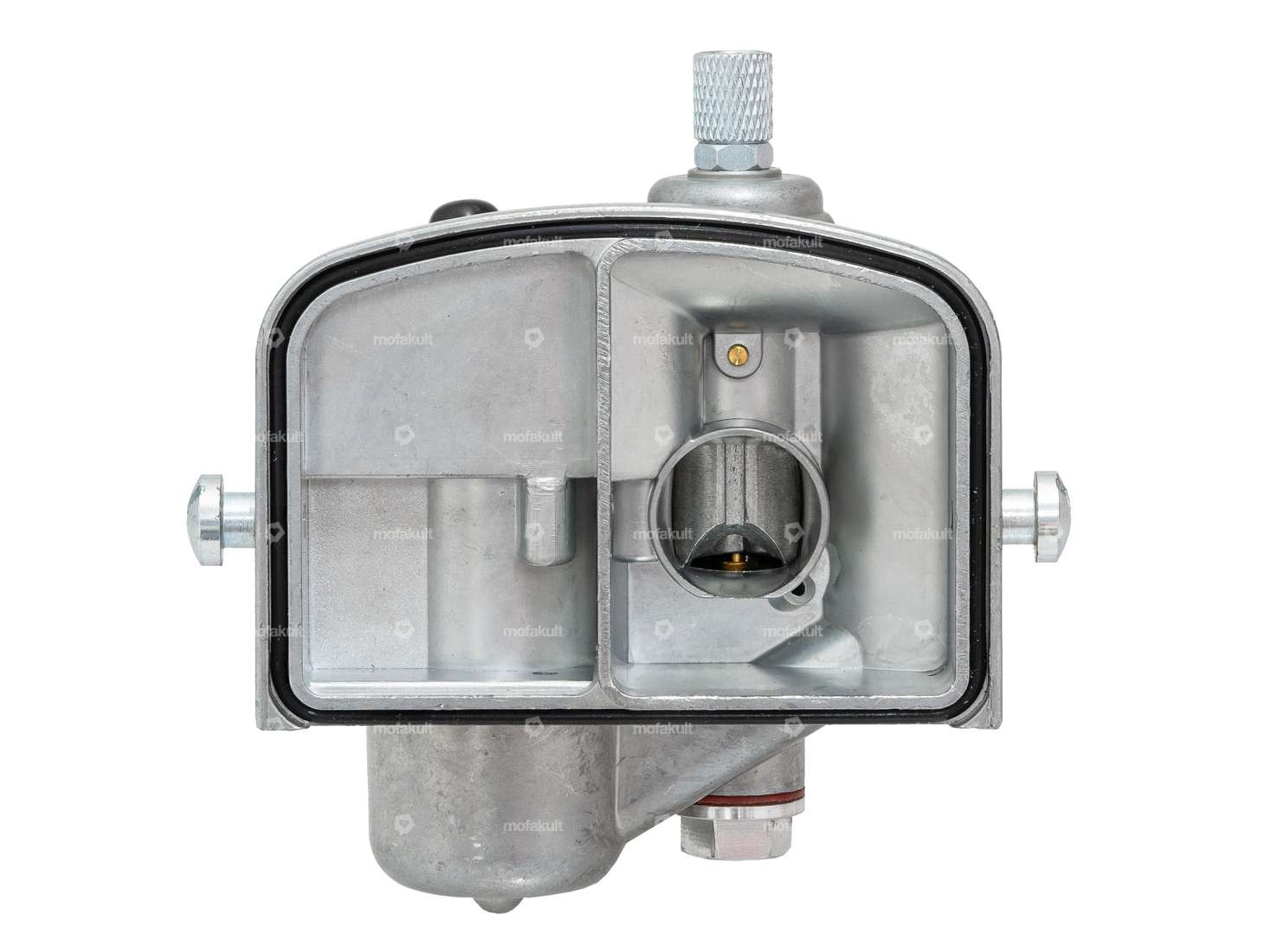

Nozzle size: 75 · Manufacturer: swiing® revival parts · Camouflaged: No · Material: Aluminum · Carburetor type: SSB · Nominal diameter: 13 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: without choke · Mounting type: Flange · Hole spacing inlet: 31 mm · Total length: 132 mm · Width: 87 mm · Height: 85 mm · Area of application: Standard, Tuning
Nozzle size: 58, 60, 62, 64, 66, 68 · Manufacturer: swiing · Material: Brass · Quantity: 6 pcs · Carburetor type: SSB · Nozzle type: Main nozzle · Drive: External hexagon · Width across flats SW: 8 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 55 mm · Total length: 570 mm · Ø Internal connection: 28 mm · Exhaust type: Flute · Mounting type: Screwed clamp
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 25.7 mm · Ø outside: 28 mm · Total length: 368 mm · Mounting type: Union nut · Ø External connection: 32.25 mm · Sachs spare part no.: P5005
Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Color: silver · Ø inside: 28 - 30 mm · Ø outside: 41 mm · Total length: 46 mm · Material thickness: 1.6 mm · Width: 42.5 mm · Mounting type: Nuts & bolts · Pony spare part no.: A1897 · Sachs spare part no.: 0251 113 105
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Nut type: Union nut · Thread type: M35x2 (standard thread) · Ø inside: 30 mm · Ø outside: 43 mm · Pony spare part no.: A1507 · Sachs spare part no.: 0242 048 101
Material: Copper, Graphite / Graphite · Ø inside: 25.6 mm · Ø outside: 32.8 mm · Thickness: 4 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 55 mm · Width: 18 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm
Details
Manufacturer | swiing® ingenious parts, GPO, NGK |
Material | Gray cast iron |
Displacement | 55 ccm |
Suitable for the following models
Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) |
