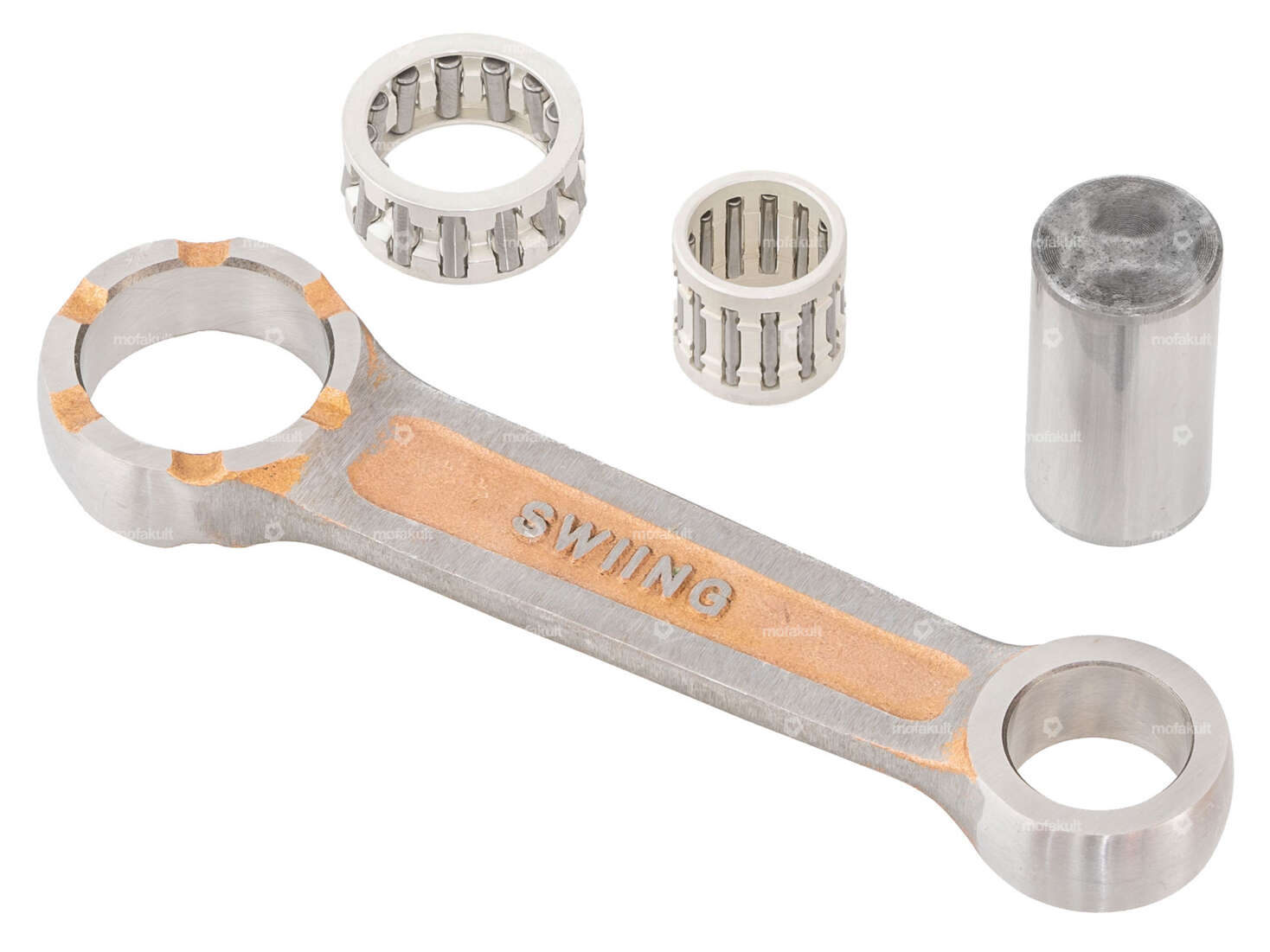

Complete connecting rod suitable for crankshafts on various mopeds, mopeds and small motorcycles with Sachs engine.
Racing version with polished connecting rod and silver-plated needle bearings.
The silver-plated bearing cages have the following advantages:
Details
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Total length | 111 mm |
| Surface | ground |
| Thickness | 10 mm |
| Connecting rod length center-center | 85 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower connecting rod eye outside | 28.8 mm |
| Ø upper connecting rod eye outside | 23.4 mm |
| Ø piston pin (B) | 12 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.7 mm |
| Dimension upper bearing | 12/15 x 14.2 mm |
| Connecting rod pin length | 30 mm |
| Area of application | Tuning |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
