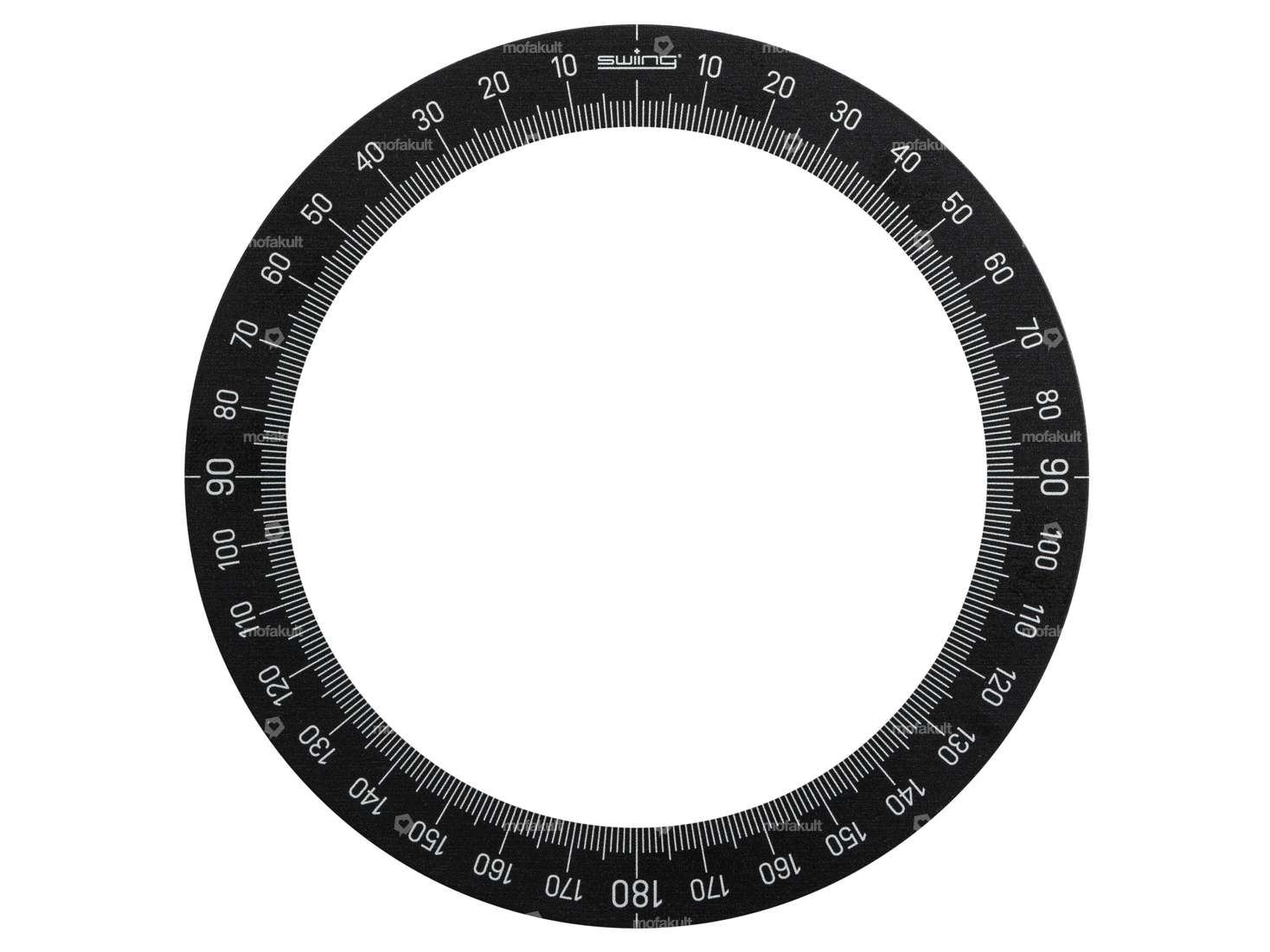

Aluminum angle disk for measuring the intake timing on your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The angle meter was designed so that it is guided through the sealing edge on the original and Polini Speed Engine housing and can be rotated.

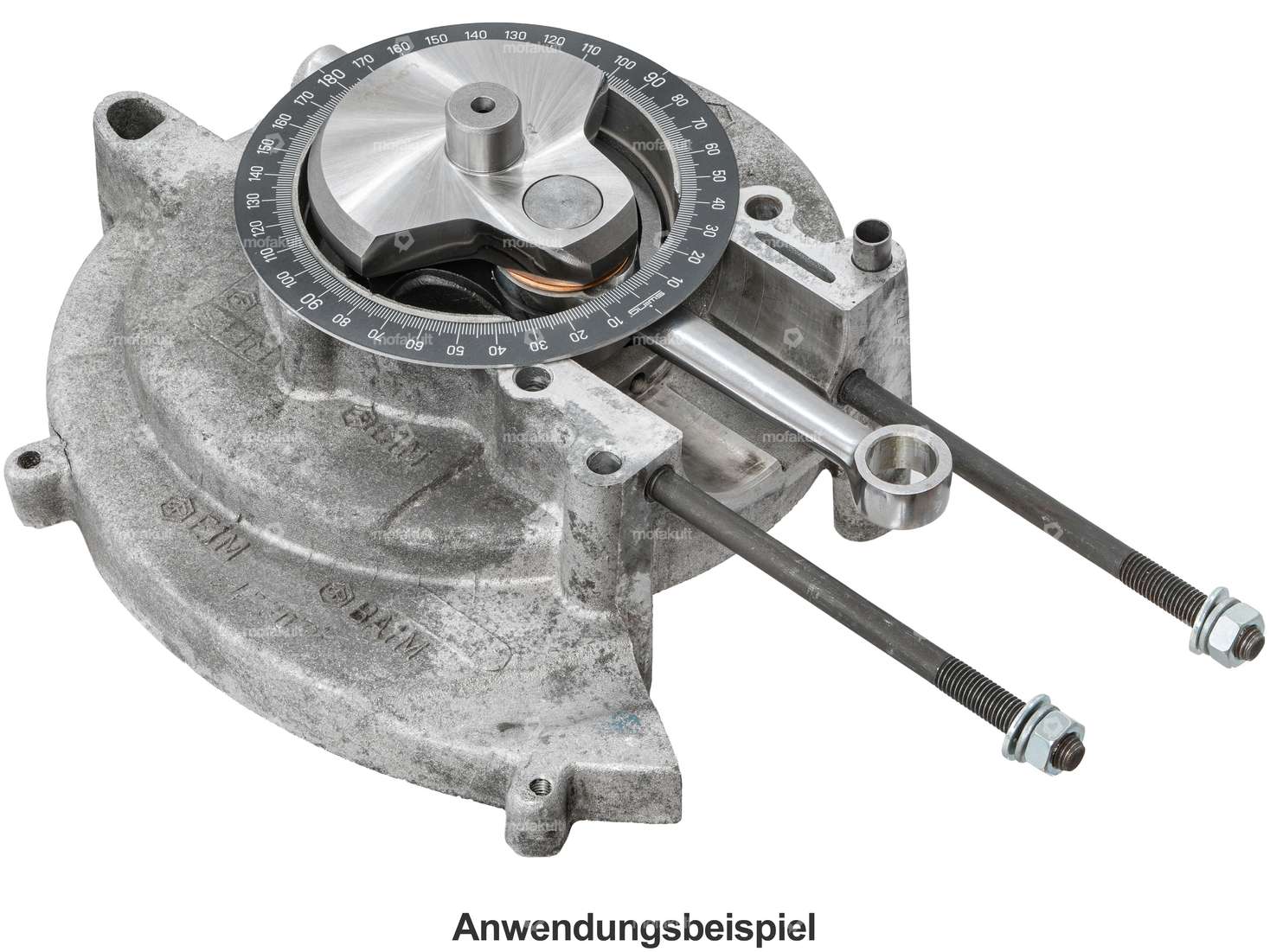

To use, mount your crankshaft in the large housing section and set it to top dead centre (TDC). Then mark the crankshaft with a line and set the degree disk to 0° accordingly. By turning the crankshaft, you can now measure the timing until the intake opens and closes.
Material: Aluminum
Ø outside: 100 mm
Ø inside: 77 mm
Material thickness: 1 mm
Note: The angle measuring disk does not fit on the Pinasco racing gearboxes Slave and Master.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Measuring tool, Special tool |
| Diameter | 90 mm |
| Number of components | 1 pcs |
| Thickness | 1 mm |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
