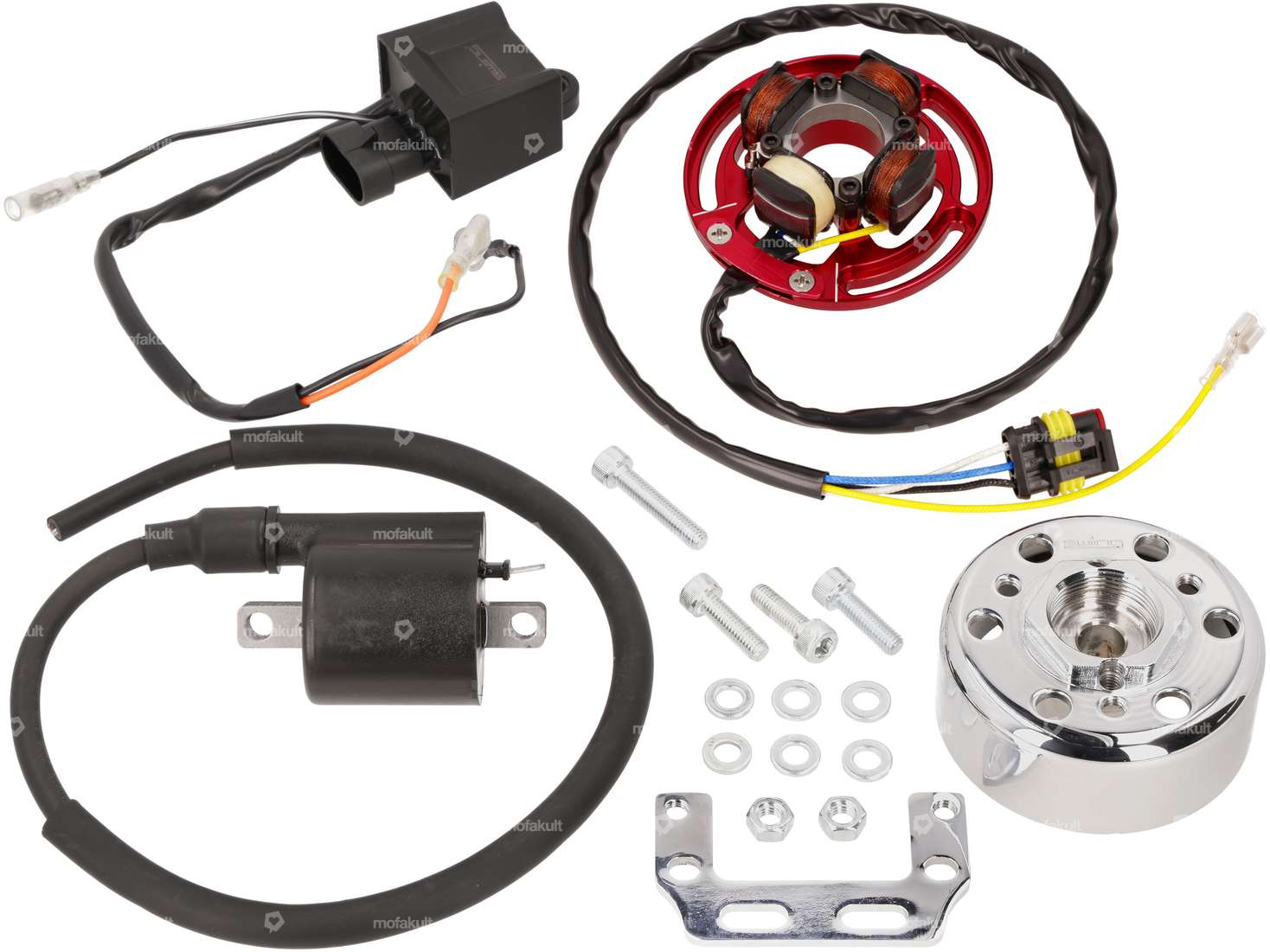

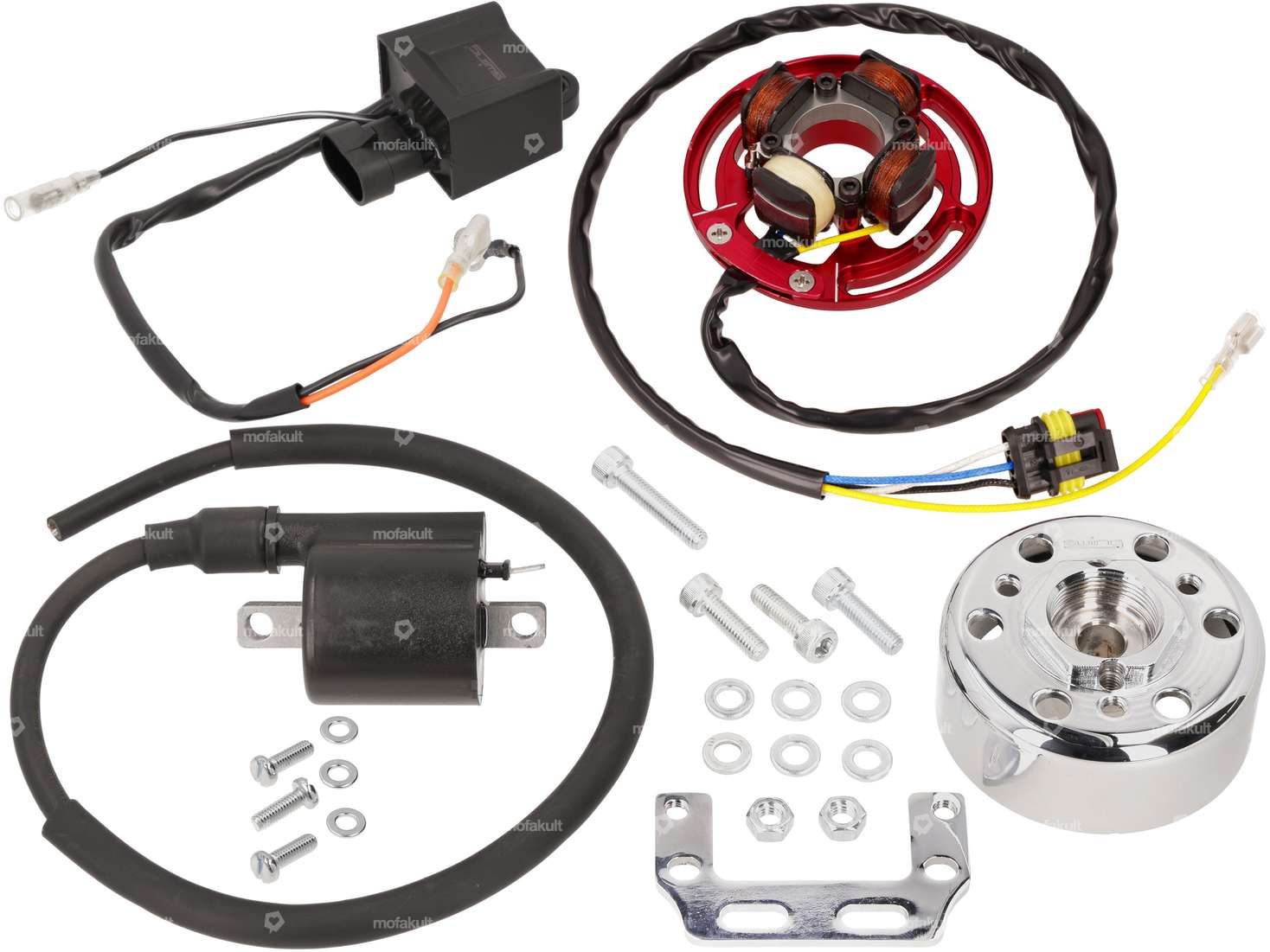

Complete set of the 12V swiing® ingenious EVO ignition with built-in 60W light coil and fan wheel. Suitable for your Tomos Classic, Sprint and FunSport moped / moped.
Advantages of the EVO tuning ignition:
- Always a constant, strong spark
- No more misfires
- One-time adjustment
- Little to no wear
- Large adjustment range thanks to long slots
The following special features characterize this ignition:

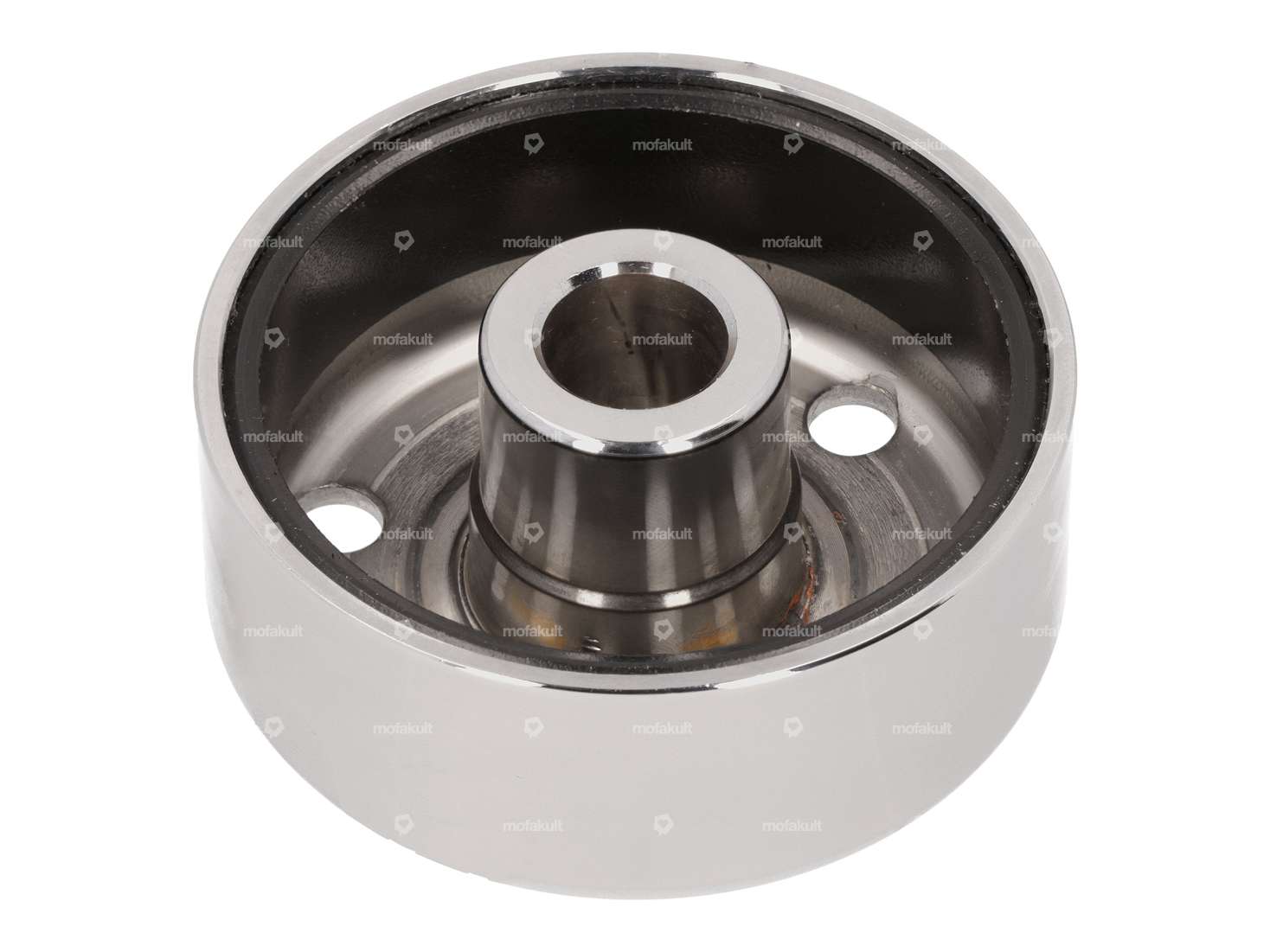

- From the factory more flywheel mass than HPI ignitions, therefore smoother engine idling (382 grams)
- Fine balanced flywheel for less vibration
- Trigger thread with normal M26x1.5 mm pitch, so normal Bosch/Ducati flywheel pullers can be used
- Easy adjustment of the ignition timing

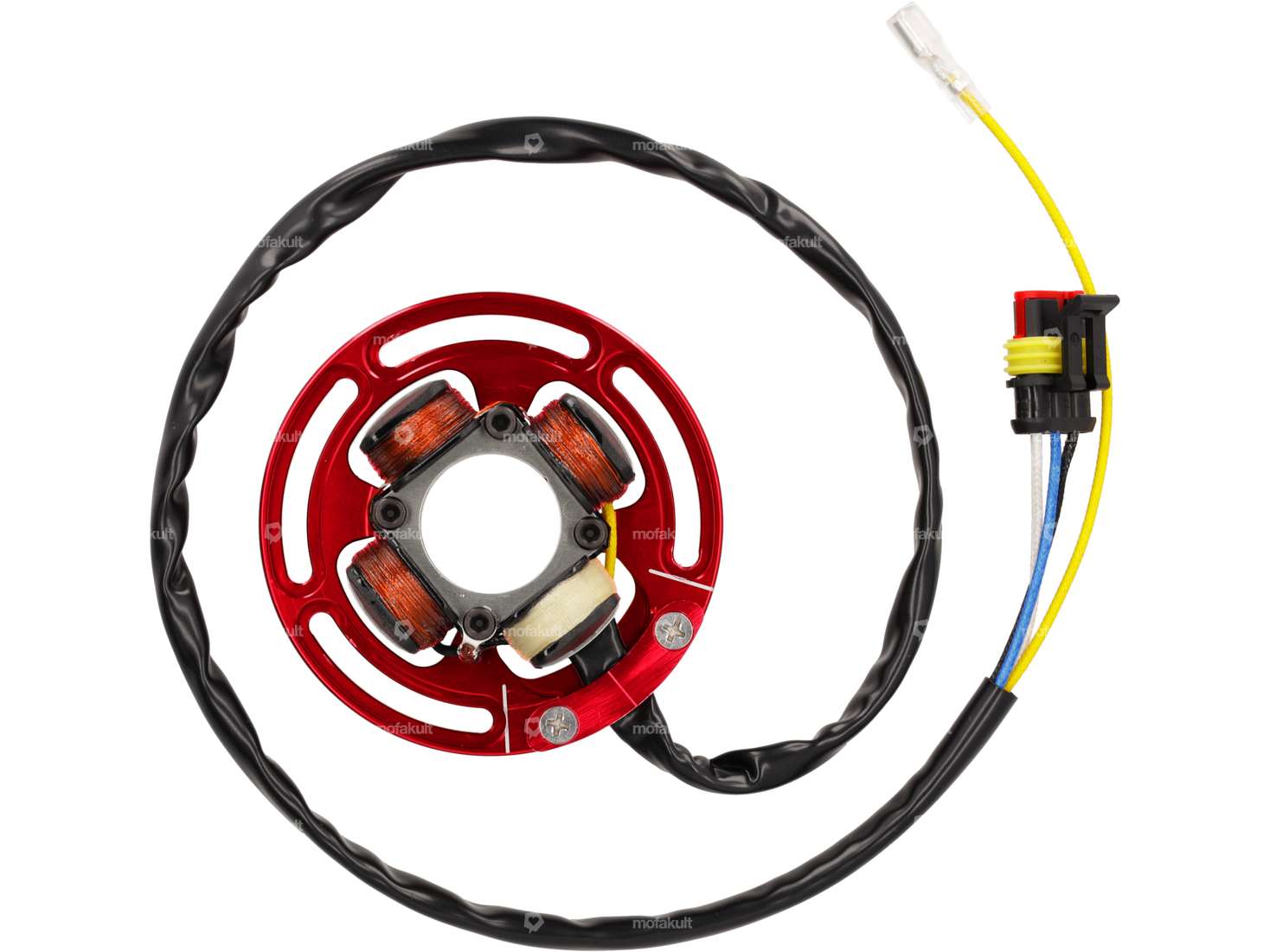

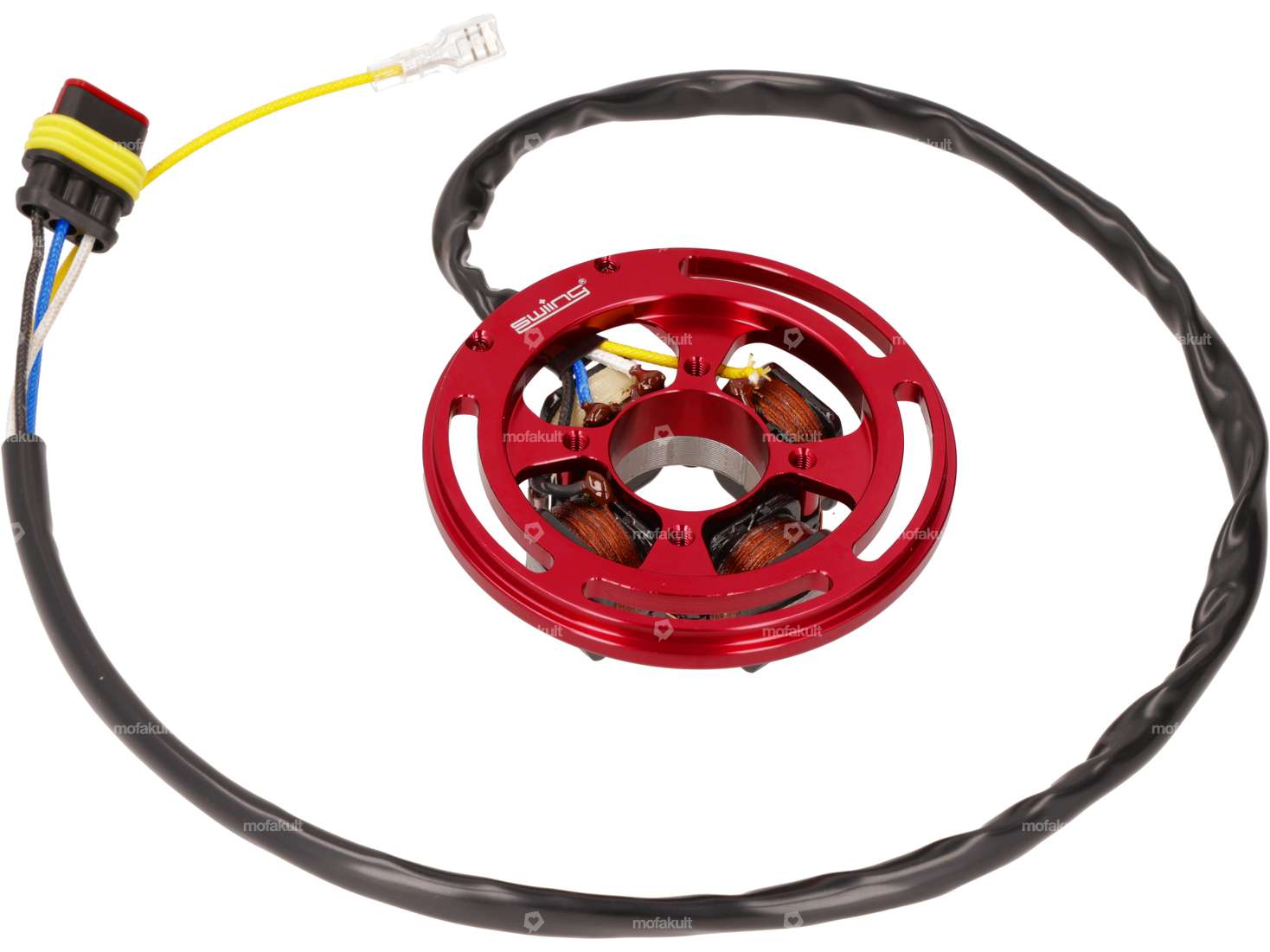

- The stator was designed for high heat loads;designed for high heat loads, no more failures due to overheating
- Optimized ignition curve (adjustment 12° - 14°)
- Light voltage: 12 Volt
- Light output: 60 Watt
- Ø outside flywheel: 75 mm
- Flywheel cone: ratio 1:5 (standard for Puch & Sachs crankshafts)
- Ø outer stator plate: 90 mm
Installation instructions:
- Right-turning engines: Set piston to TDC, marking on the base plate at 11 o'clock (to the left of the swiing logo) must match the marking on the flywheel, this achieves a timing of 2 mm before TDC.
- Left-turning engines: Set the piston to TDC, the marking on the base plate at 13 o'clock (to the right of the swiing logo) must match the marking on the flywheel; this achieves a timing point of 2 mm before TDC.
- Flywheel tightening torque: 37 - 39 Nm (no keyway available)

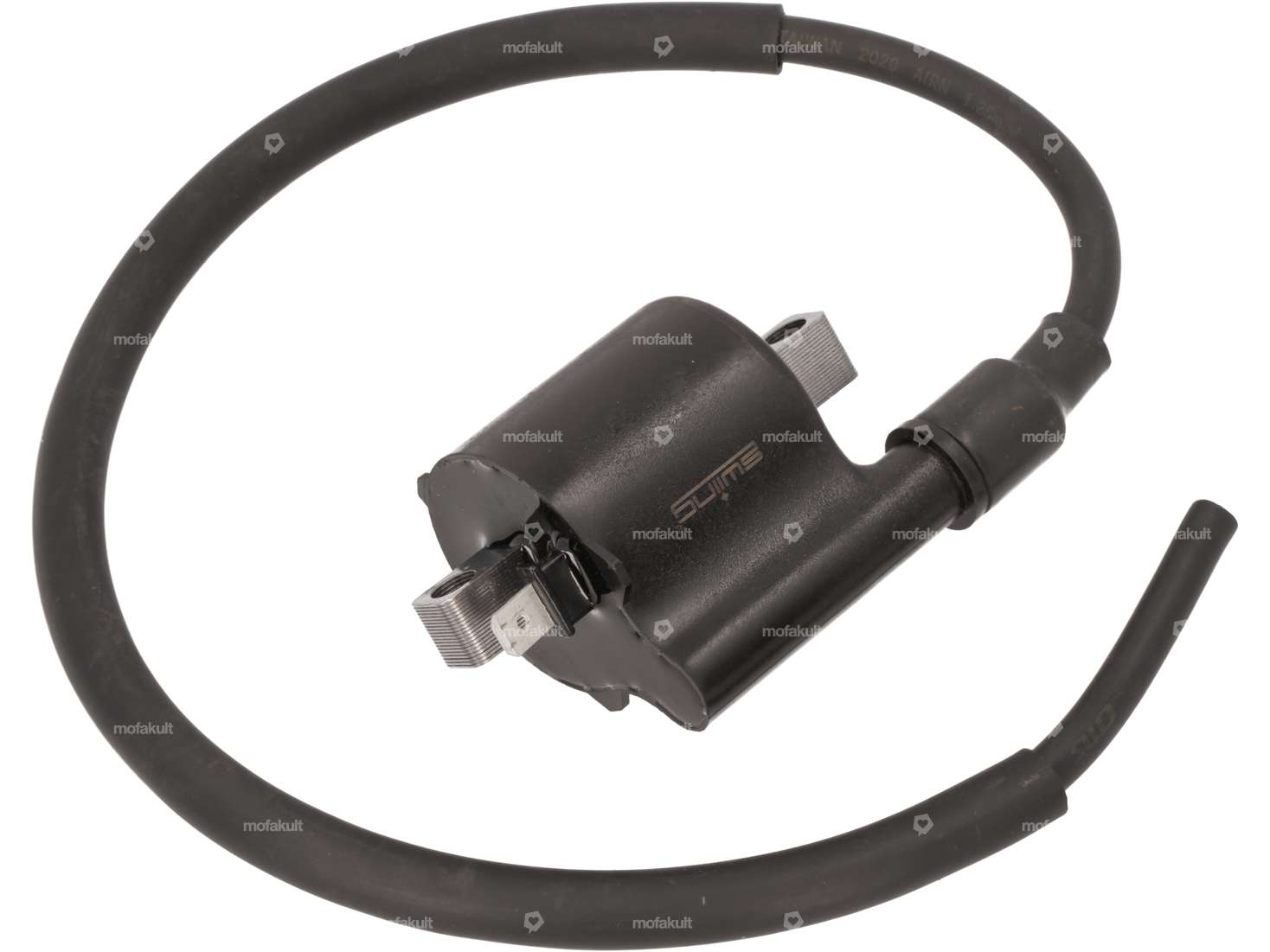

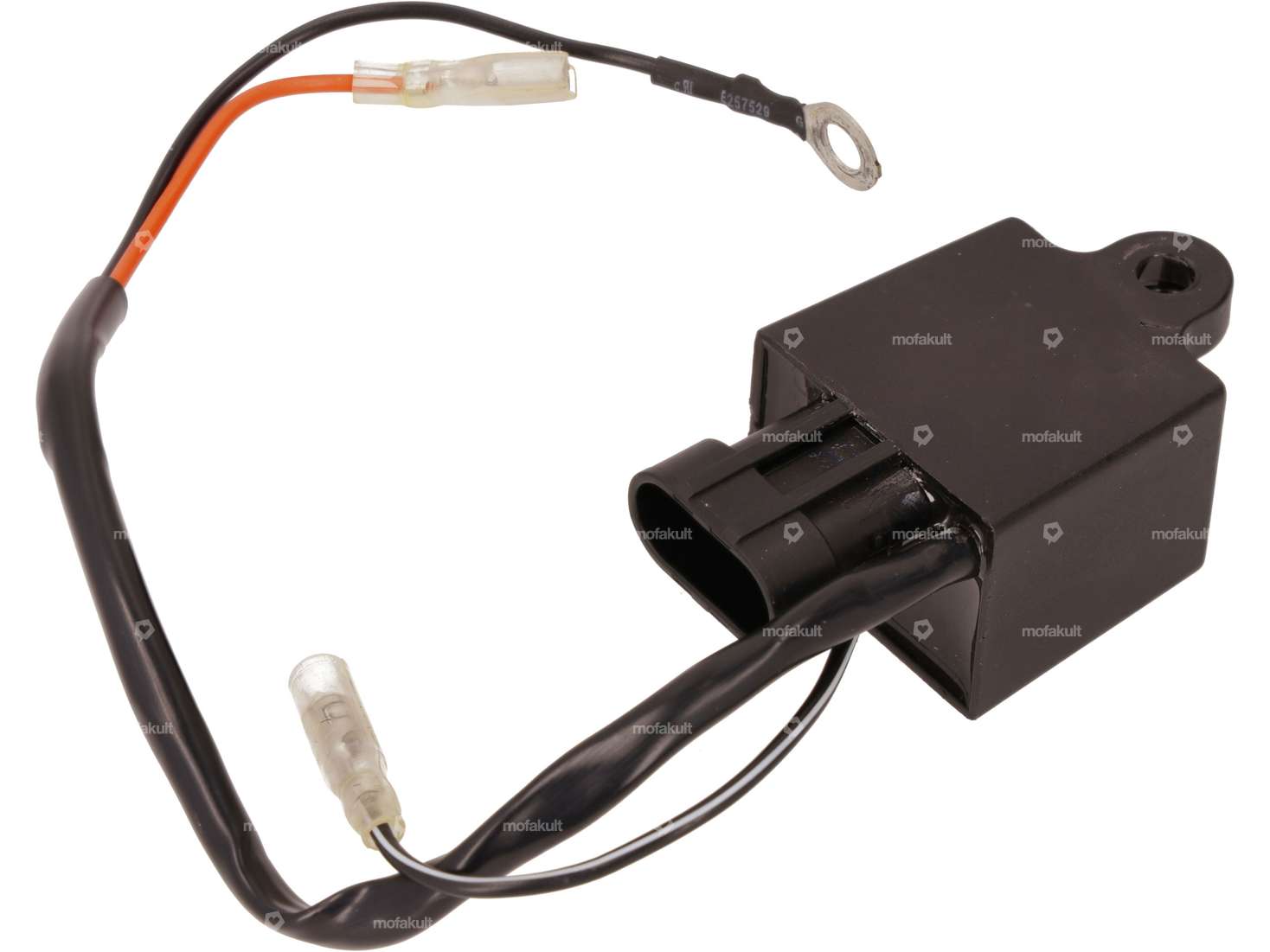

- The CDI and ignition coil must be supplied with a good earth (grounding), otherwise they can be damaged within a short time.
- The lighting system should also be equipped with a 12 V voltage regulator.
Correct pinning of the Superseal connector:
- 1 = black
- 2 = blue
- 3 = white
Attention: The ignition components stator, rotor, CDI and ignition coil are not compatible with parts of the HPI ignition!
Note: With the Tomos Quadro model, it is possible to fit the ignition, but the E-Start cannot be used.
When purchasing this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Exclusive product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Area of application | Tuning, High End, Racing |
| Light coil voltage | 12 V |
| Tension | 12 V |
| Direction of rotation | any |
| Performance | 60 W |
| Ø mounting plate | 90 mm |
| Number of fixing points | 3 pcs |
| Ø Internal flywheel | 63.5 mm |
| Ø Flywheel outside | 75 mm |
| Mounting type | Screws |
Suitable for the following models
| Tomos | Classic Sprint FunSport |
