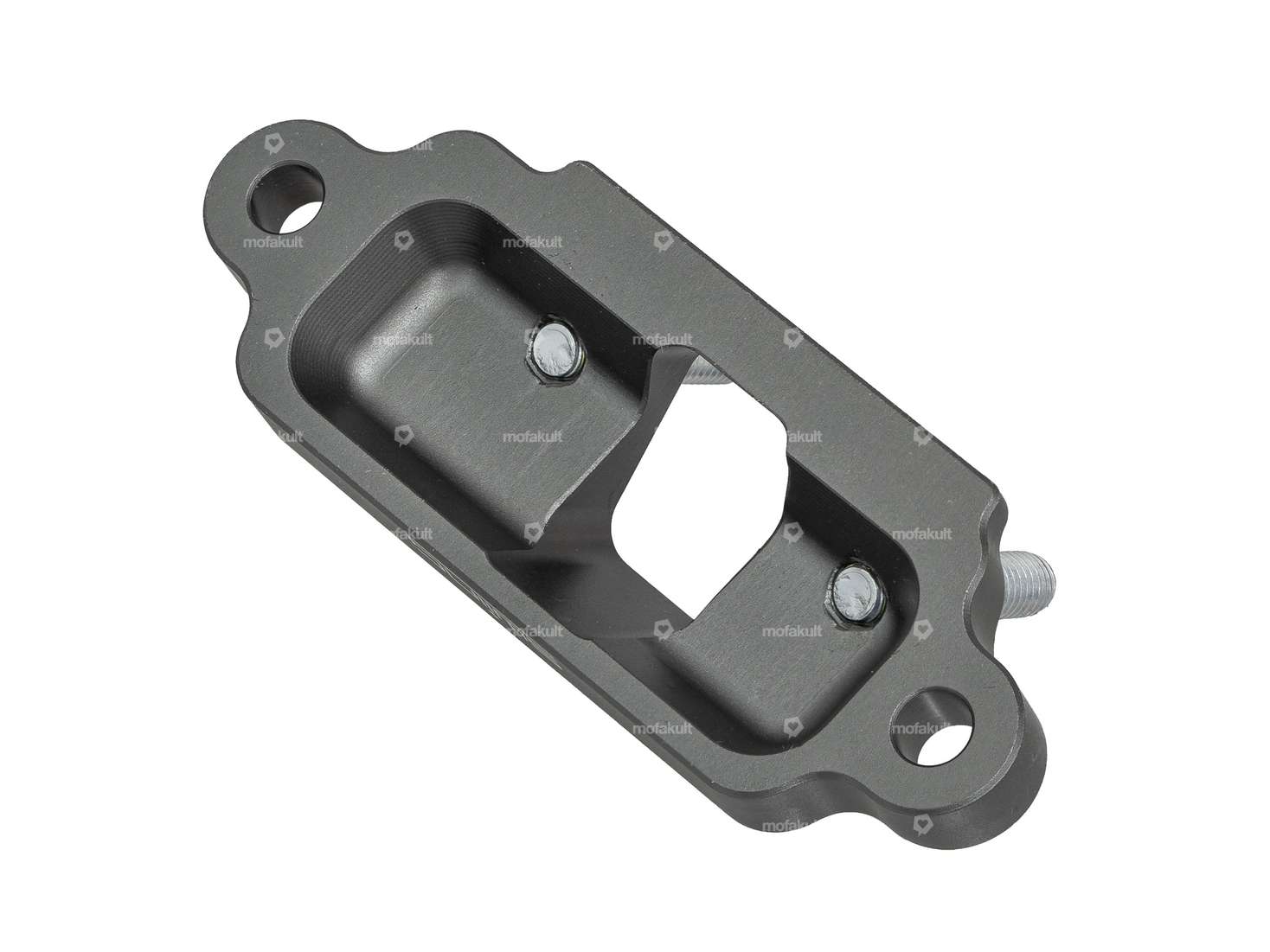

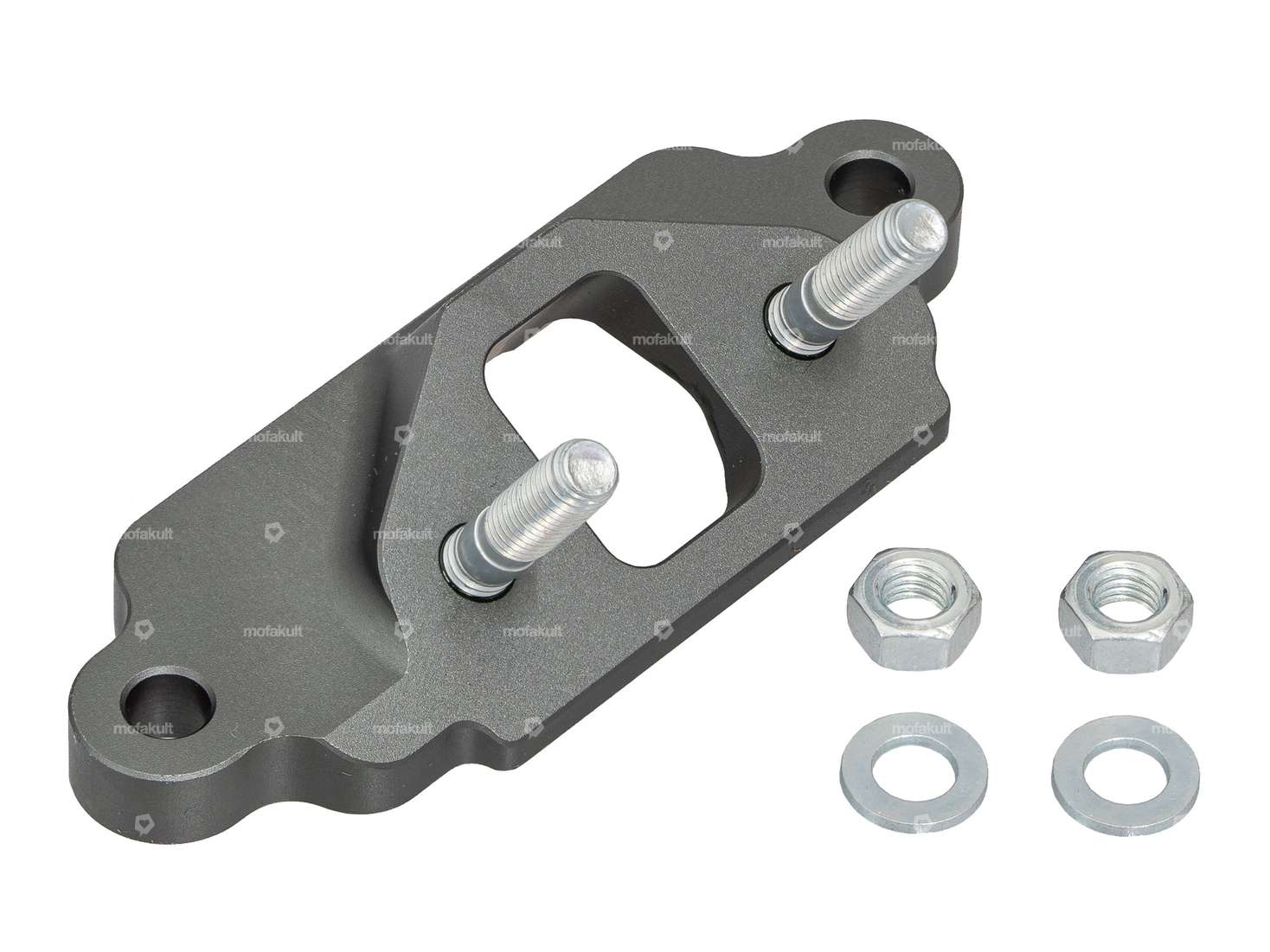

Membrane block made of CNC machined aluminum with 18 x 14 mm intake window. Ideal flange plate to mount the 17 mm SSB carburetor.
Fits Sachs 502, 50/2, 50/3, 50/4 mopeds / mopeds with diaphragm intake.
The stud bolts of the intake flange are already secured with Loctite.
Hole spacing to cylinder: 67 mm
Spacing of stud bolts: 31 mm
Thread: M5
Attention: Due to the nature of the inlet, the carburetor is approx. 5-8 mm higher, this can be compensated for with 2-3 cork gaskets below the carburetor.
In addition, a slight adjustment to the fan cover is necessary.
Gaskets and other intermediate flanges can be found in the accessories.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Ø inside | 17 mm |
| Total length | 29 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum, Steel |
| Area of application | Tuning |
| Surface | anodized, blue galvanized |
| Number of flaps | 2 pcs |
| Width | 80 mm |
| Thickness | 6.9 mm |
| Number of fixing points | 4 pcs |
| Hole spacing | 67 mm, 31 mm |
| Mounting type | Screws |
| Thread type | M5x0.8 (standard thread) |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
Accessories & related products
Diaphragm insert Sachs 50/2
Material: Brass · Area of application: Standard · Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Pony spare part no.: A2624 · Sachs spare part no.: 0286 213 010
32,30 EUR

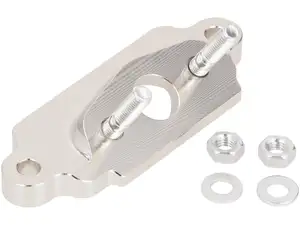

swiing® ingenious intermediate flange 12 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4
Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Hole spacing: 31 mm · Hole spacing: 67 mm · Material: Aluminum · Area of application: Standard · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Number of fixing points: 4 pcs
61,40 EUR

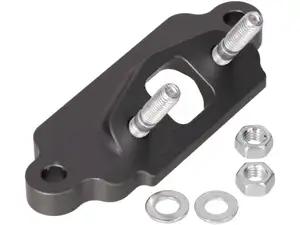

swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4
Ø inside: 13 mm · Manufacturer: swiing® ingenious parts · Hole spacing: 31 mm · Hole spacing: 67 mm · Material: Aluminum · Area of application: Standard · Area of application: Tuning · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Number of fixing points: 4 pcs
67,00 EUR
Moped fans like you also bought:
Diaphragm insert Sachs 50/2
Material: Brass · Area of application: Standard · Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Pony spare part no.: A2624 · Sachs spare part no.: 0286 213 010
32,30 EUR
swiing® revival exhaust nut M35x2 galvanized | Sachs 50/2 (A1507)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Ø inside: 30 mm · Nut type: Union nut · Ø outside: 43 mm · Thread type: M35x2 (standard thread) · Pony spare part no.: A1507 · Sachs spare part no.: 0242 048 101
16,70 EUR
Carburetor 17 mm Bing SSB 1/17/69 reproduction
Nominal diameter: 17 mm · Material: Aluminum · Camouflaged: No · Area of application: Standard · Area of application: Tuning · Carburetor type: SSB · Mounting type: Stud bolts & nuts · Width: 86 mm · Height: 99 mm · Hole spacing inlet: 31 mm · Total length: 116 mm · Nozzle thread: M7x0.75 · Nozzle size: 76 · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m
89,30 EUR
100,50 EUR
swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102
2,00 EUR
GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4
Nominal diameter: 40 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm
44,60 EUR
swiing® revival gasket set cylinder diaphragm version | Sachs 50/2
Manufacturer: swiing® revival parts · Material: Copper · Material: Sealing paper · Area of application: Standard · Number of components: 5 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 mm
14,80 EUR
