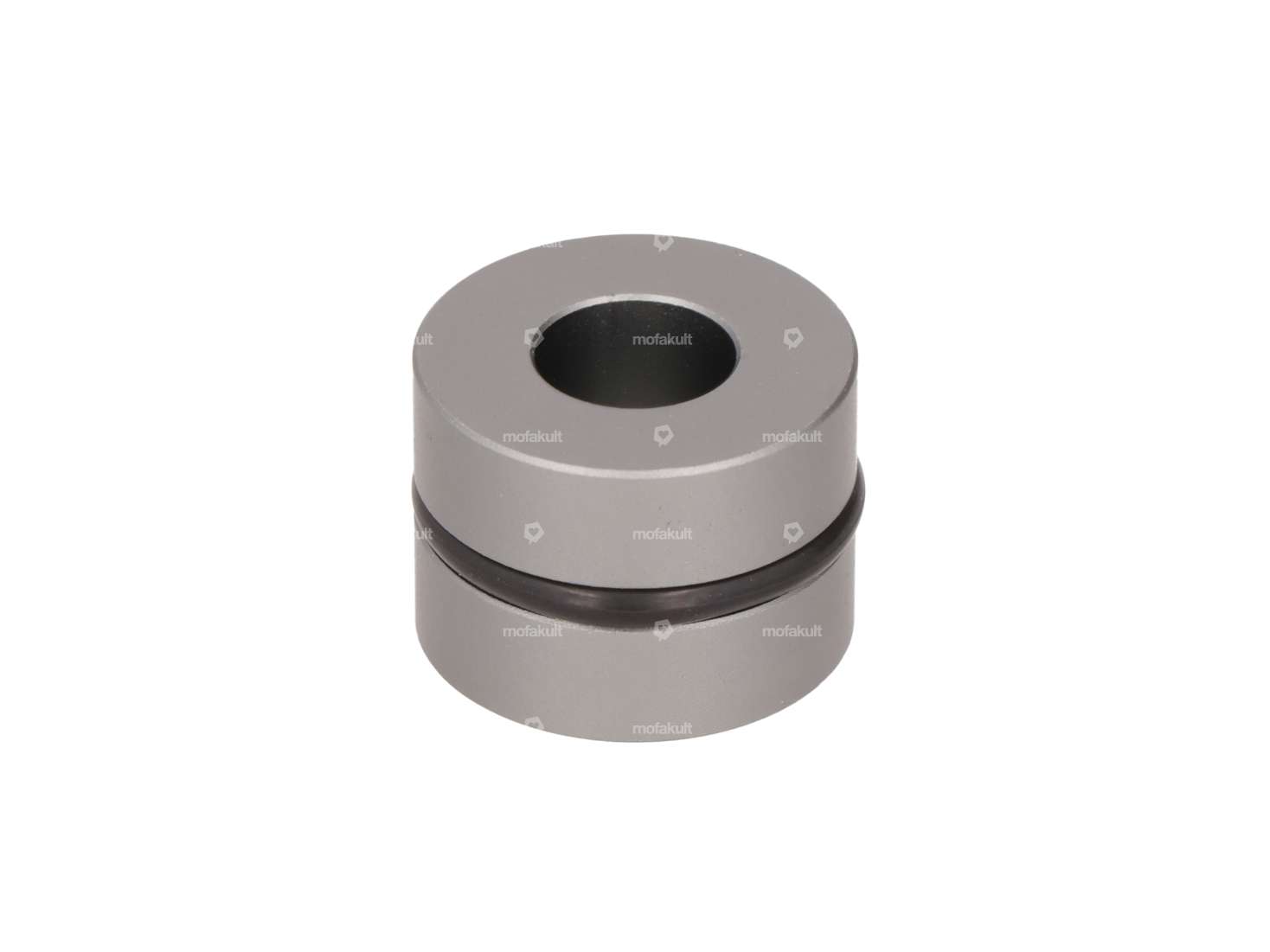

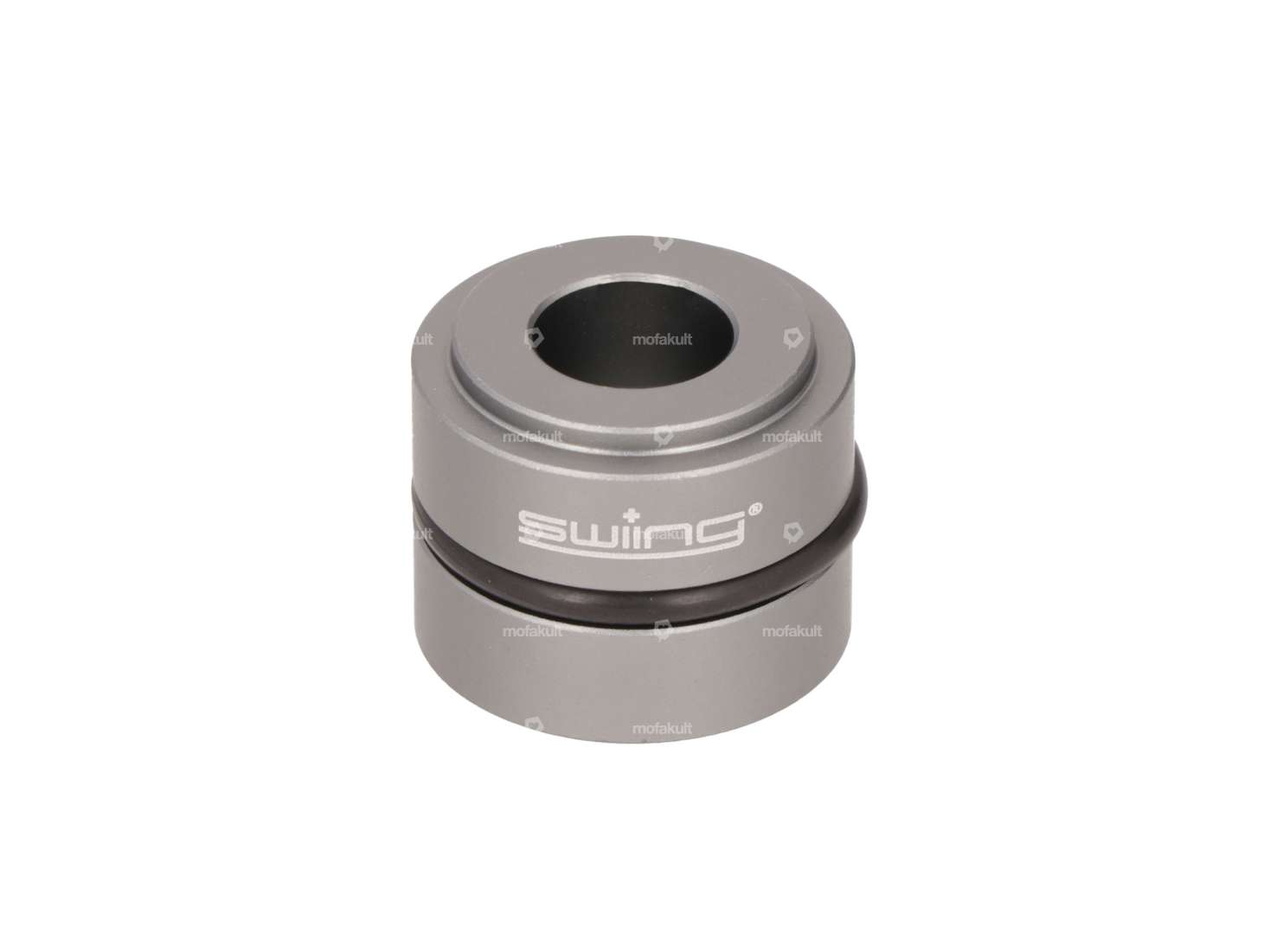

Grey anodized racing silent block 19x15 mm for mopeds, mopeds and small motorcycles with Sachs 50/2 or 50/3 engine, which are used in combination with the swiing cylinder head.
This reinforced vibration damper (19 x 15 mm) made of aluminium is particularly suitable for powerful engines and reduces distortion of the engine block when starting and accelerating.
Ø outer: 19 mm
Ø inner: 8.5 mm
Length: 15 mm
Material: Aluminium, grey anodized
Material O-ring: NBR, petrol-resistant
Price per piece.
Note: Check the required lengths before purchasing. Depending on the frame, you will need 15 or 19 mm long aluminum spacers.
For the motor housing, you will also need blanks with a diameter of 19.2 mm. These can be found under accessories.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Ø inside | 8.5 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum, NBR |
| Area of application | Racing |
| Surface | anodized |
| Ø outside | 19 mm |
| Total length | 15 mm |
Suitable for the following models
| Sachs | 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 |
