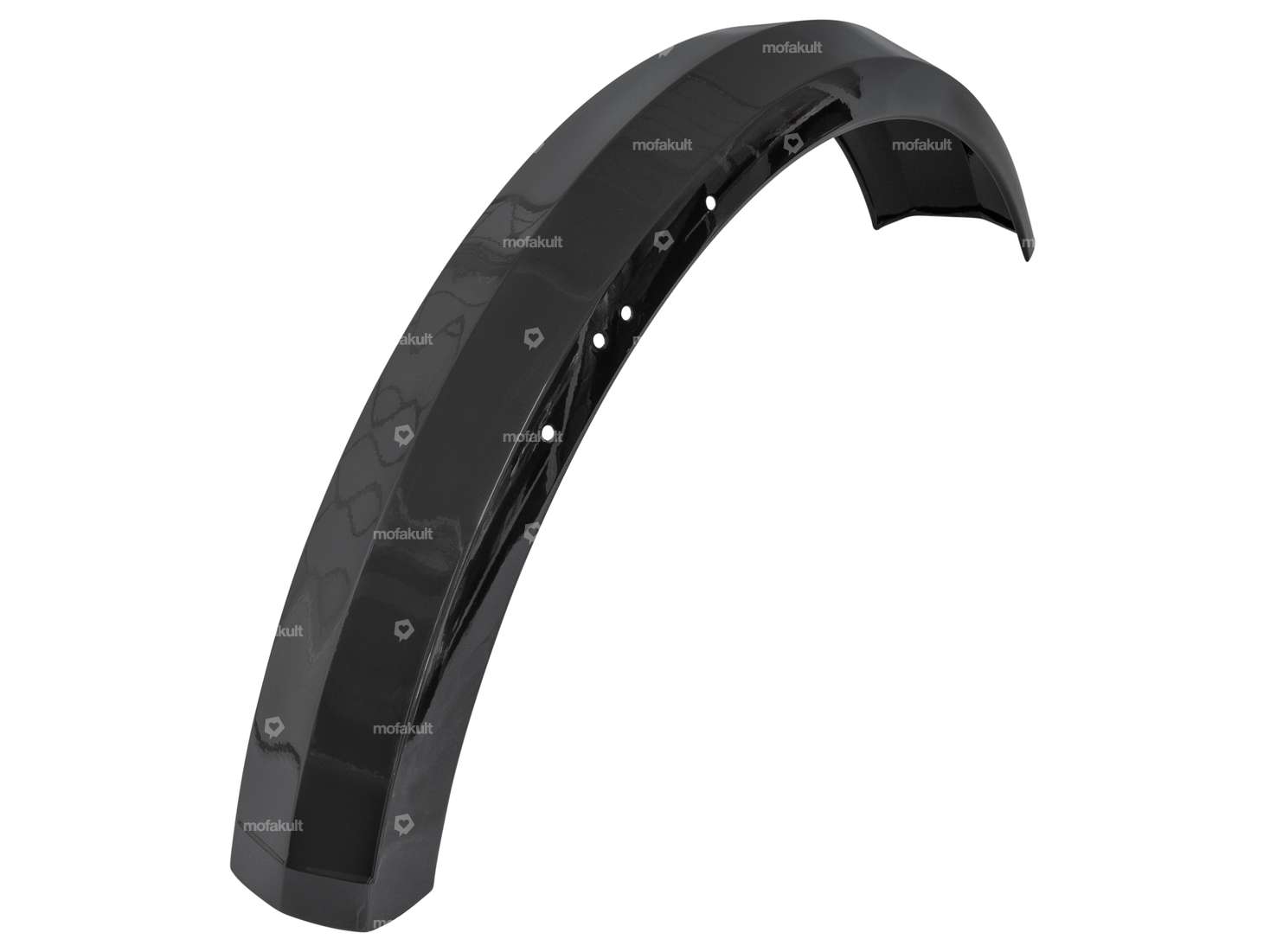

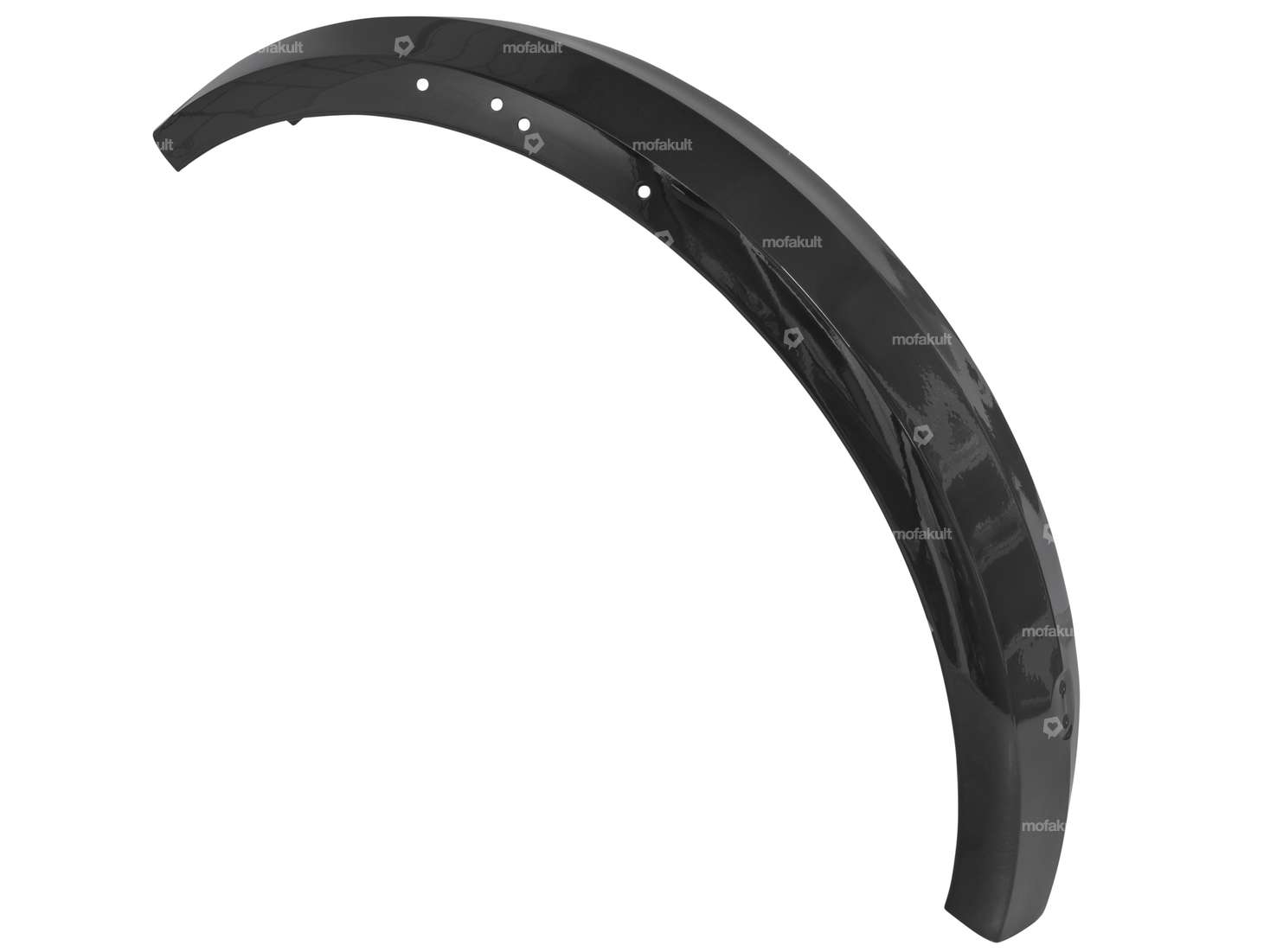

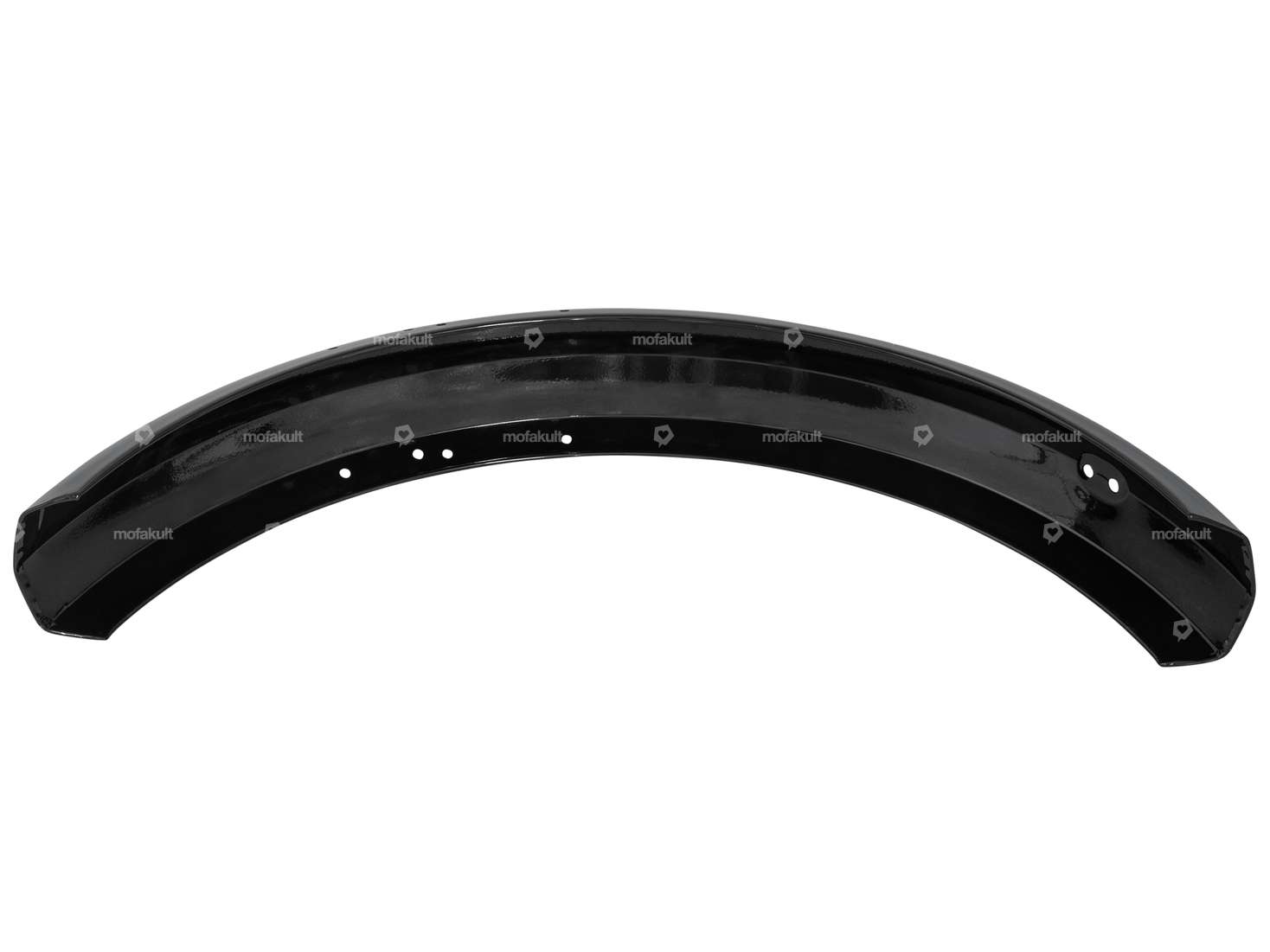

Front, black painted mudguard made of stainless steel for your Puch Maxi S or N moped with 17" rims.
Since the mudguard is folded on both sides, there are no sharp edges, which significantly reduces the risk of injury. Furthermore, it is still possible to use an edge protector or splash guard flap. Corresponding holes must still be drilled if required.
All original holes are provided for mounting the side and lower mudguard struts.
To mount cable ducts, holes are also already provided on both sides of the mudguard.
Shape: angular
Width of mudguard profile (A): 82 mm
Height of mudguard profile (B): 35 mm
End: folded closed on both sides
Material: chrome steel (stainless steel), painted black
Total height from support surface to top edge (C): 200 mm
Total length over ends (D): 565 mm
Circumference (E): 740 mm
Further parts for your wheel fairing, such as mounting material, can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
Manufacturer | swiing® revival parts |
Material | Chrome steel (stainless steel) |
Surface | varnished |
Color | black |
Wheel size [inch] | 17 " |
Folding the ends | closed folded |
Shape of the mudguard | angular |
Total length over ends | 565 mm |
Scope | 740 mm |
Wide mudguard profile | 82 mm |
Height of mudguard profile | 35 mm |
Total height from support surface to top edge | 200 mm |
Mounting type | Nuts & bolts |
Suitable for the following models
Puch |
