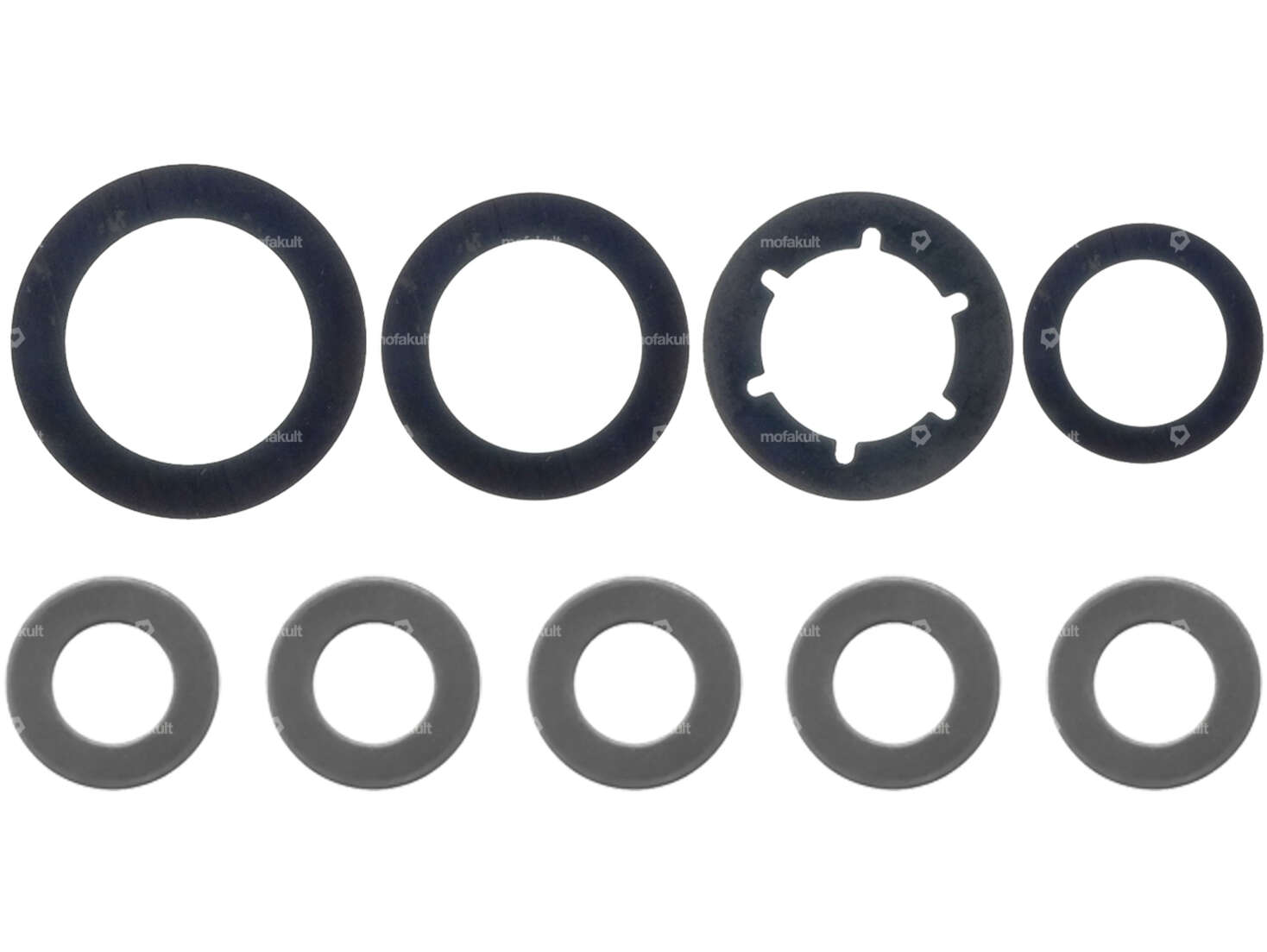

Spacer set for the mono gearbox type MG4 on your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
The shim set consists of the following individual parts:
- 1 piece. Shim 18/29/1.0
- 1 piece. Shim 15/28/1.0
- 1 pc. Shim 23/34/0.5
- 1 pc. Shim 20/33/1.0
- 5 pcs. Shim 18/10/1.0
Note:
Mono gearbox MG4: Type with four gears, in which the gears have additional lubrication slots at the bearing seats. The gearbox has the identification numbers 990575/990507(B16/14B/C16), and the housing is often marked V.
This type of gearbox was mainly used in Swiss Ciao's (1987 - 2006) and Piaggio Si (from 1987) Cat models.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | blank / oiled |
| Piaggio spare part no. | 103058, 131514, 131512, 131513, 175751 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
