Stainless steel inserts to quickly and professionally repair torn and defective M6 threads on your moped, moped and small motorcycle.
The torn M6 thread is drilled out with the drill included in the set and then the appropriate thread is cut with the tap. The supplied guide bush should be used for this to ensure vertical insertion.
Now the threaded bush can be screwed in and optionally secured with Loctite.

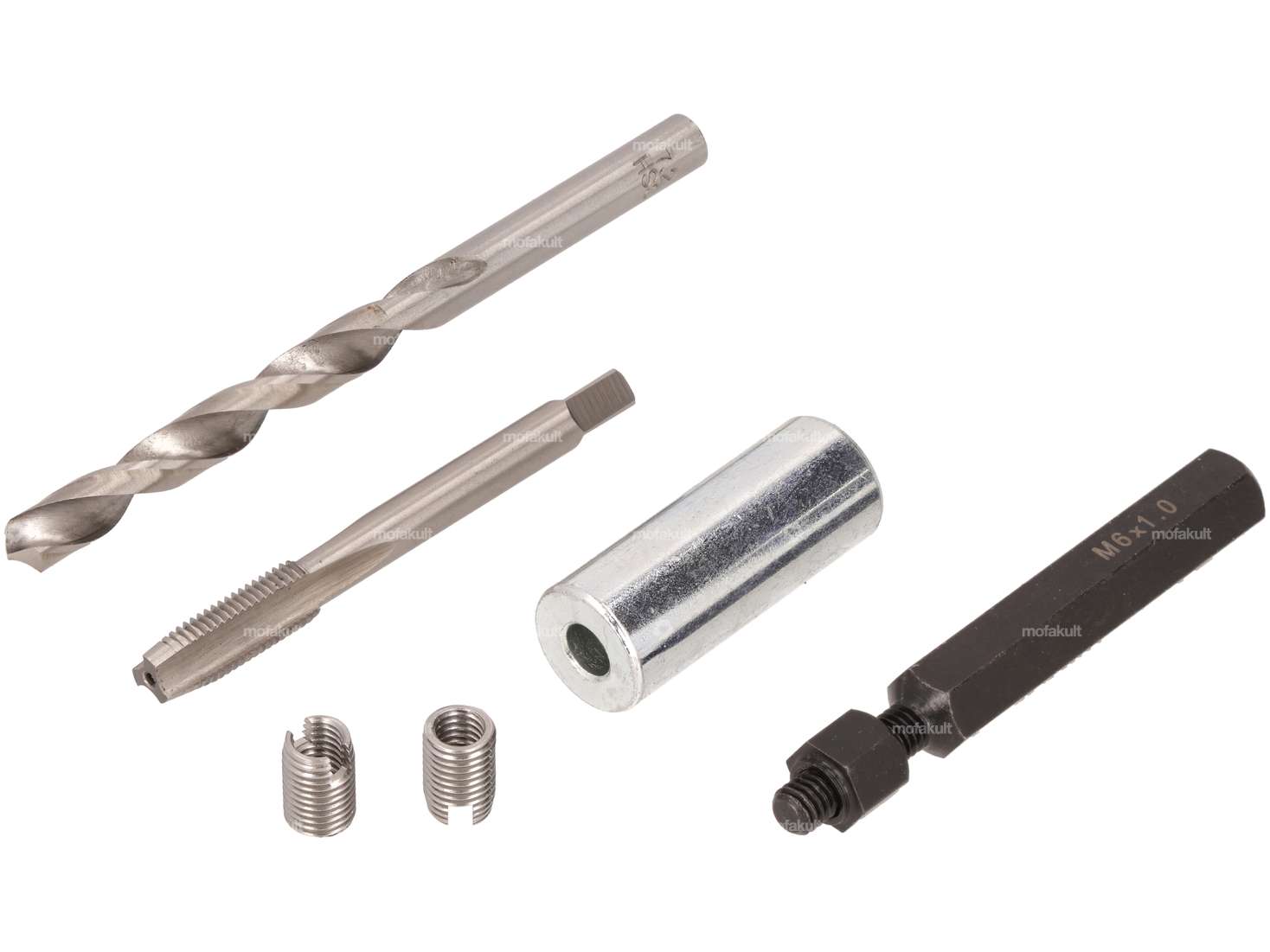

Scope of delivery:
1x twist drill Ø 7.2 mm
1x tap drill
1x guide bush for tap drill
1x assembly tool

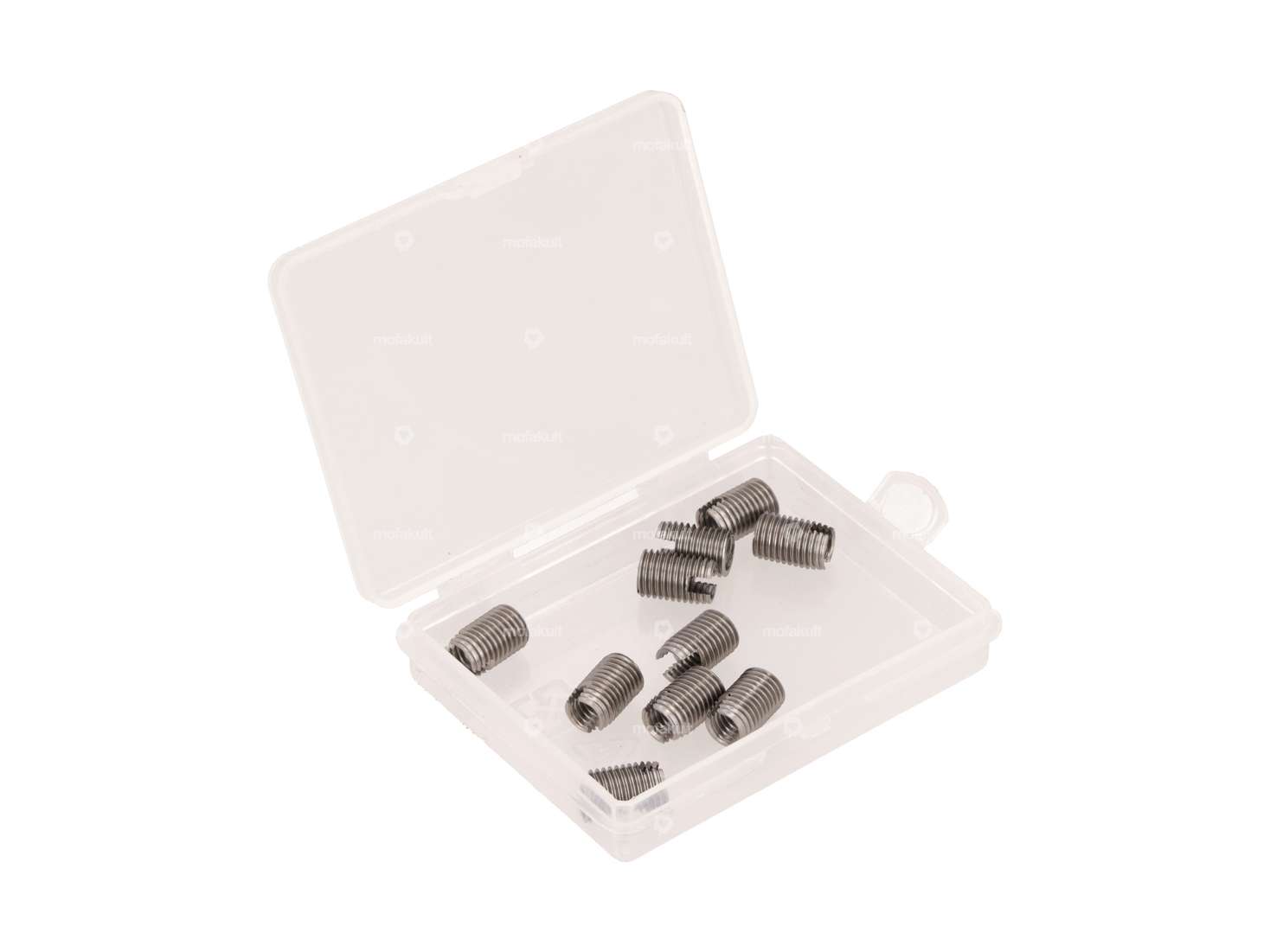

10x threaded inserts M6 x 12 (standard thread, pitch 1 mm)

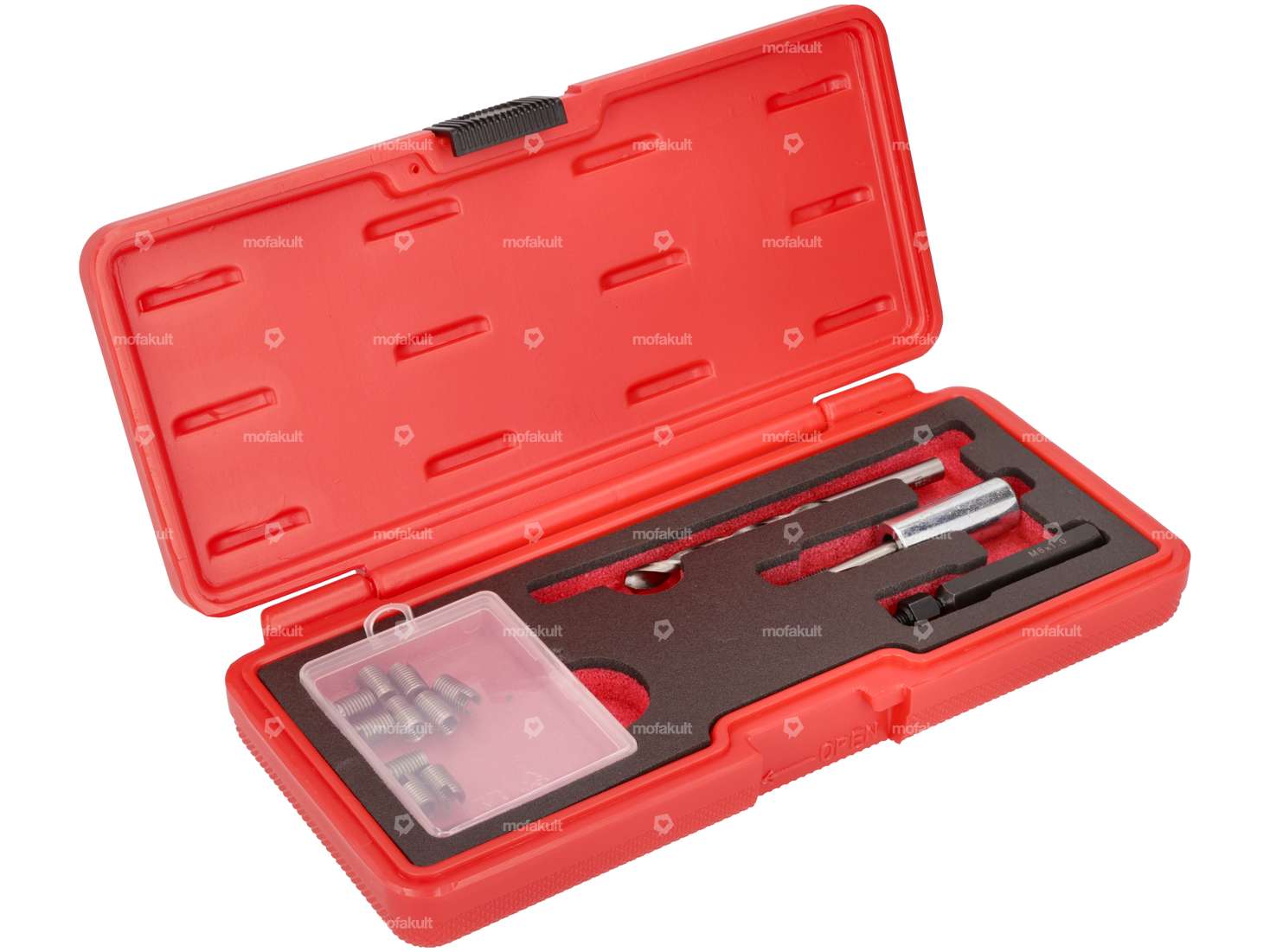

1x storage box
Note: The threaded inserts are often called "Ensat sockets", but this is not the original product.
You can find the matching threadlocker and other repair solutions in the accessories section.
Details
| Storage method | Plastic box |
| Material | Chrome steel (stainless steel) |
| Thread type | M6x1 (standard thread) |
| Dimension thread insert | 2D |
| Ø bore | 7.15 mm |
| Area of application | Workshop accessories |
| Number of components | 13 pcs |
| Dimension storage box | 250 x 120 x 40 mm |
