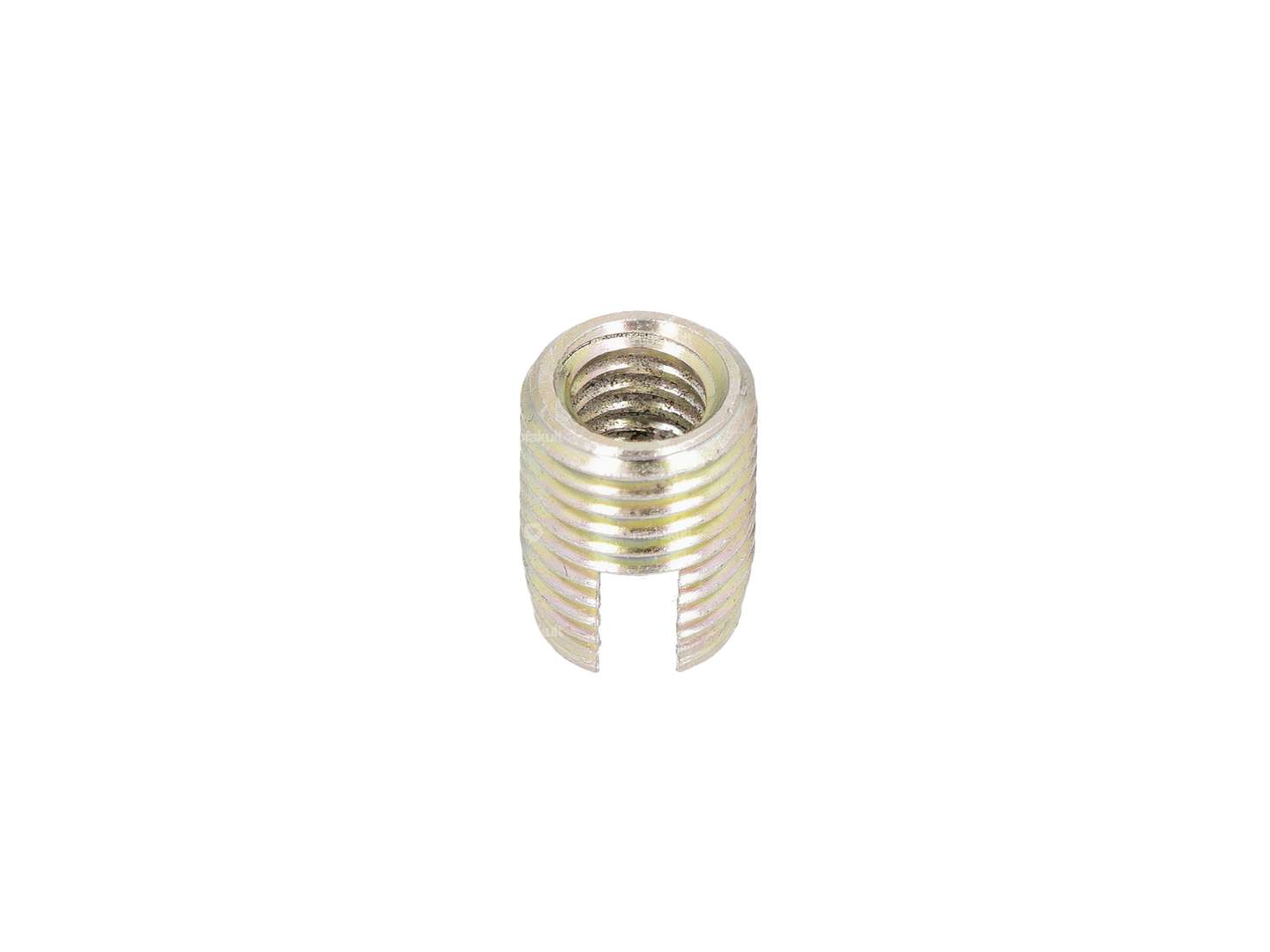

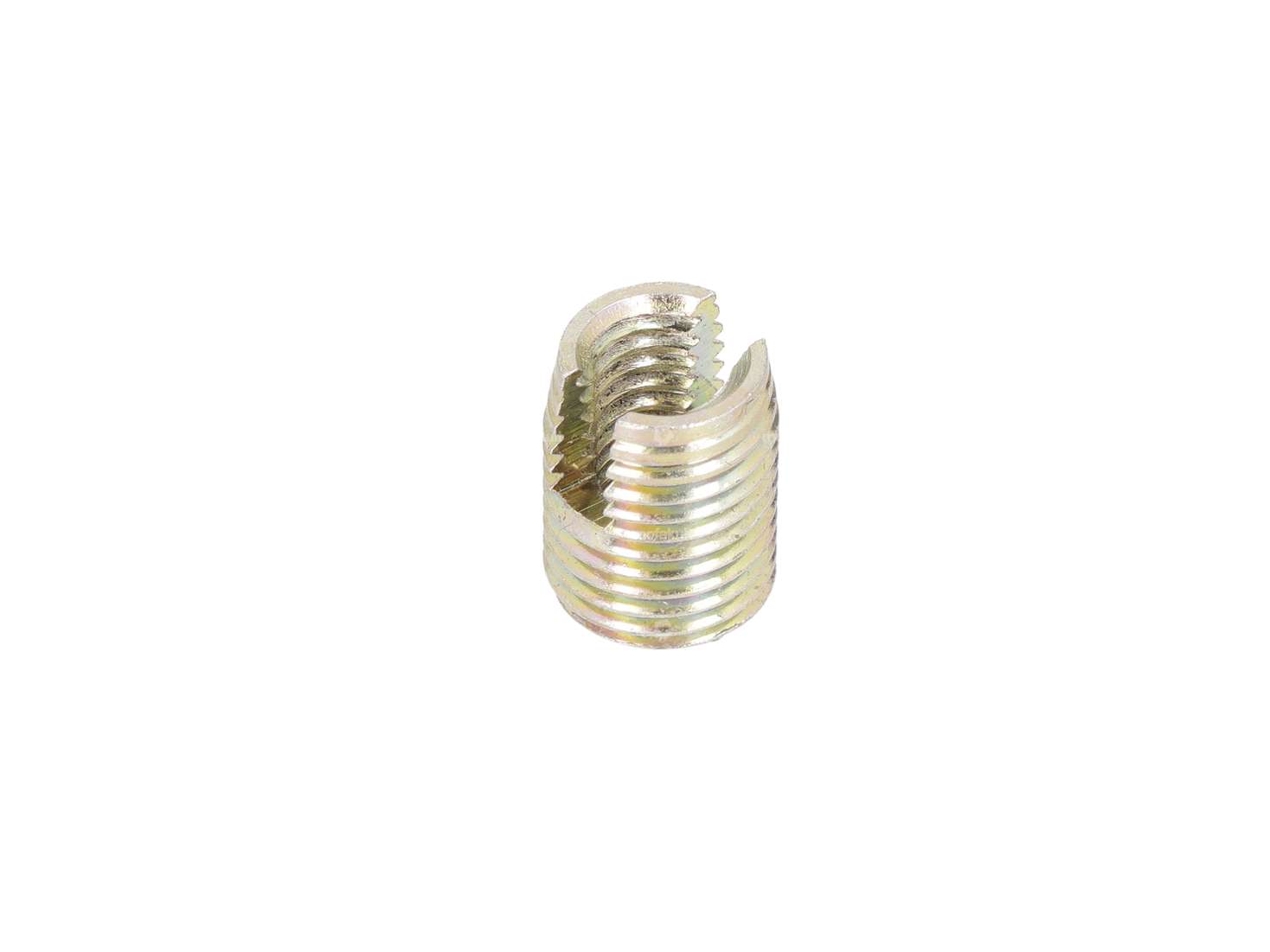

Self-tapping thread insert for repairing defective M6 threads.
The thread works in aluminum.
The broken thread must be drilled out to Ø 8 mm so that the thread insert can be fitted. The external thread cuts a new, firm hold when screwed into the aluminum. Ideally, the bushing should also be secured with Loctite.
External thread: M9 x 1
Internal thread: M6
Total length: 12 mm
Core hole: Ø 8 mm
Price per piece.
Matching threadlocker and repair bushes in other diameters can be found in the accessories
Details
| Total length | 12 mm |
| Ø bore | 8 mm |
| External thread | MF9x1 (fine pitch thread) |
| Internal thread | M6x1 (standard thread) |
