Self-tapping thread insert for repairing defective M5 threads.
The thread works in aluminum.
The broken thread must be drilled out to Ø 7 mm so that the thread insert can be mounted. The external thread cuts a new, firm hold when screwed into the aluminum. Ideally, the bushing should also be secured with Loctite.
External thread: M8 x 1
Internal thread: M5
Total length: 10 mm
Core hole: Ø 7 mm
Price per piece.
Matching threadlocker and repair bushes in other diameters can be found in the accessories
Details
| Ø bore | 7 mm |
| Total length | 10 mm |
| External thread | MF8x1 (fine pitch thread) |
| Internal thread | M5x0.8 (standard thread) |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Area of application: Chemistry · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
25,50 EUR
2.550,00 EUR/l
Loctite 638 High-strength adhesive 10 ml
Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
25,50 EUR
2.550,00 EUR/l
Loctite 638 High-strength adhesive 50 ml
Temperature resistance (min.): -75 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 50 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
78,90 EUR
1.578,00 EUR/l
Loctite 270 High-strength threadlocker 10 ml
Temperature resistance (min.): -55 - 180 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Attention · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: high-strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 5 N/m · Breakaway torque (according to material): 31 N/m · Breakaway torque (according to material): 33 N/m
25,50 EUR
2.550,00 EUR/l
Loctite 242 medium-strength threadlocker 50 ml
Temperature resistance (min.): 0 - 150 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Contents [ml]: 50 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: May irritate the respiratory tract · Hazard pictogram: GHS07 - Caution dangerous · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 300 sec · Breakaway torque (according to material): 7.9 N/m · Breakaway torque (according to material): 17 N/m
84,70 EUR
1.694,00 EUR/l
Loctite 278 High-strength threadlocker 50 ml
Temperature resistance (min.): -55 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Steel · Contents [ml]: 50 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.25 mm · Alignment time: 1200 sec · Breakaway torque (according to material): 42 N/m
84,60 EUR
1.692,00 EUR/l

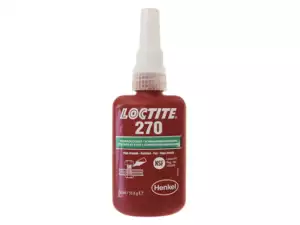

Loctite 270 High-strength threadlocker 50 ml
