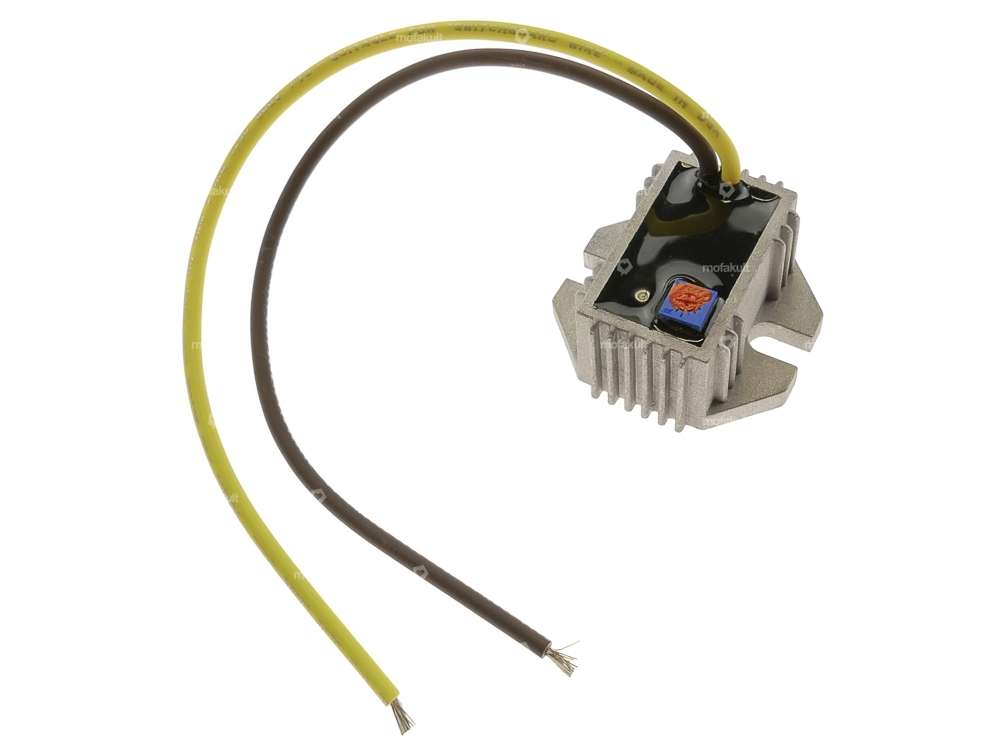

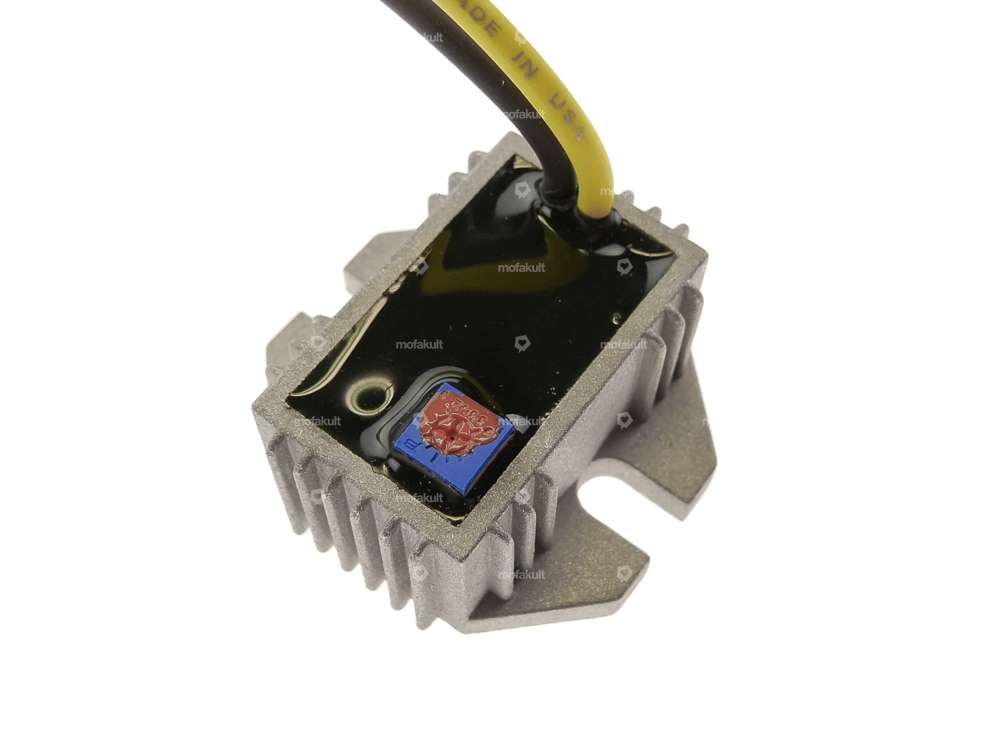

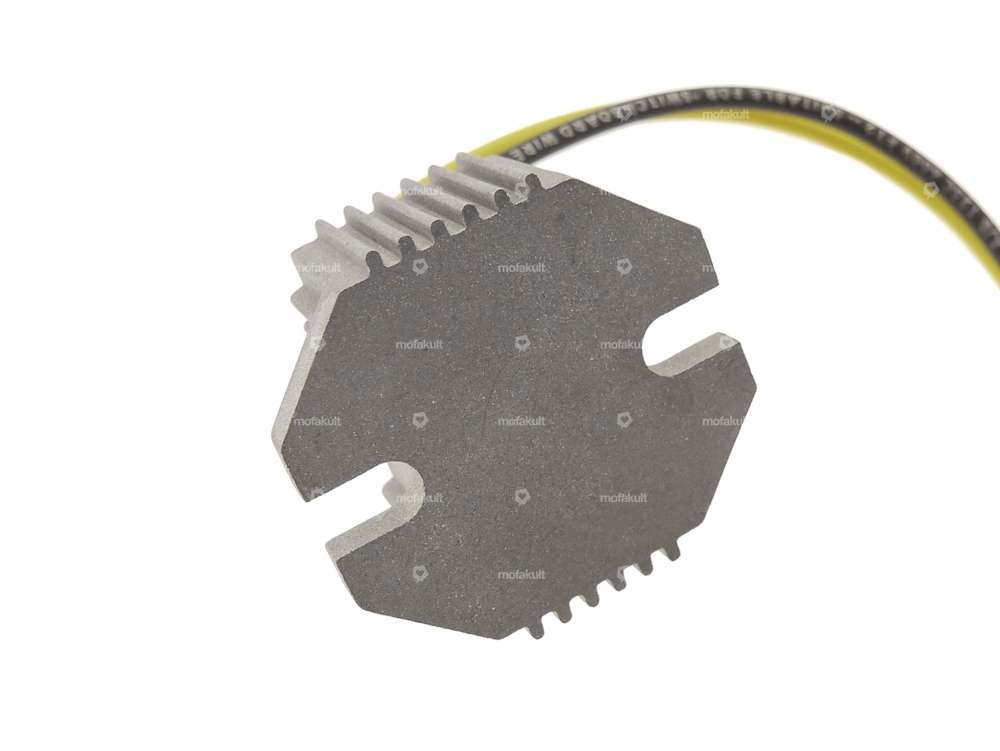

Special voltage regulator, which can be used in conjunction with electronic 12V ignitions.

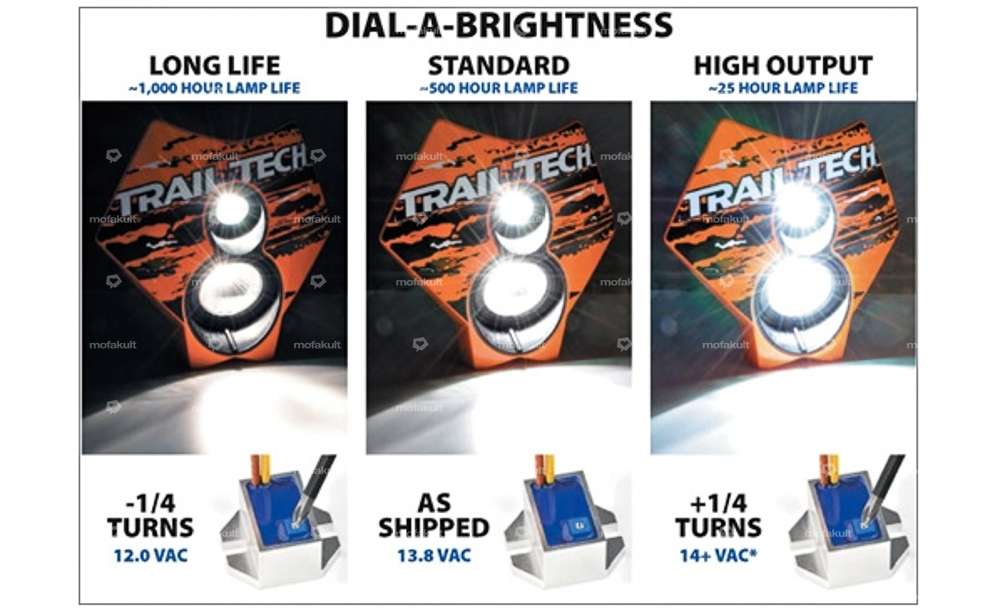

The voltage can be adjusted in three stages on the box. This regulates the voltage and the LED bulb lights up less or more accordingly.
The durability of the bulb decreases with increased voltage.
Figure 4 shows the diagram.
For installation: The brown cable is screwed to the frame (ground) together with the box. The yellow cable from the voltage regulator is connected to the circuit in parallel with the yellow cable from the switch.
Quality product from the American manufacturer Trail Tech.
Details
Manufacturer | Trail Tech |
Material | Aluminum |
Tension | 12 - 16 V |
Type of current | Alternating current (AC) |
Ø mounting hole | 6 mm |
Mounting type | Screws |
