38.5 mm &overmass piston with 1.5 mm rectangular piston ring with flank lock (FS) and 2 mm L-ring piston ring with internal lock (IS) for your Tomos Funtastic, Funsport, Roadie moped / moped with A55 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

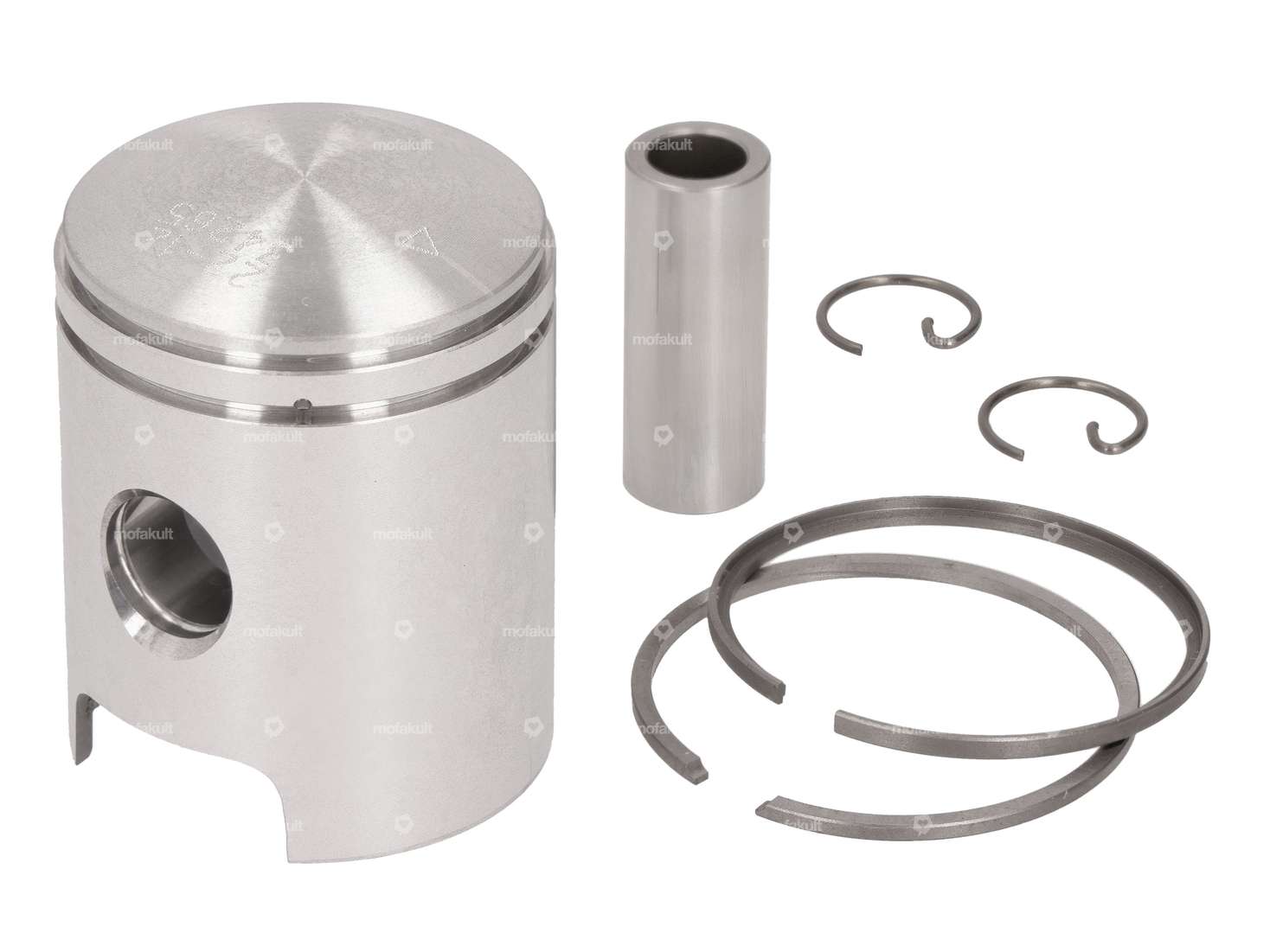

The piston kit contains pistons, piston pins, piston clips and piston rings.
Note: The piston can also be used on Tomos mopeds with an A35 engine, provided the intake and exhaust are also replaced.
Further piston kits, corresponding assembly tools and alternatives can be found in the accessories section.
Quality product from the Italian manufacturer Vertex.
Details
| Manufacturer | Vertex |
| Ø outside piston (A) | 38.45 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38.5 mm |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Flank safety device (FS), Internal fuse (IS) |
| Piston ring height | 2 mm, 1.5 mm |
| Piston weight | 77 g |
Suitable for the following models
| Tomos | FunSport Roadie |
