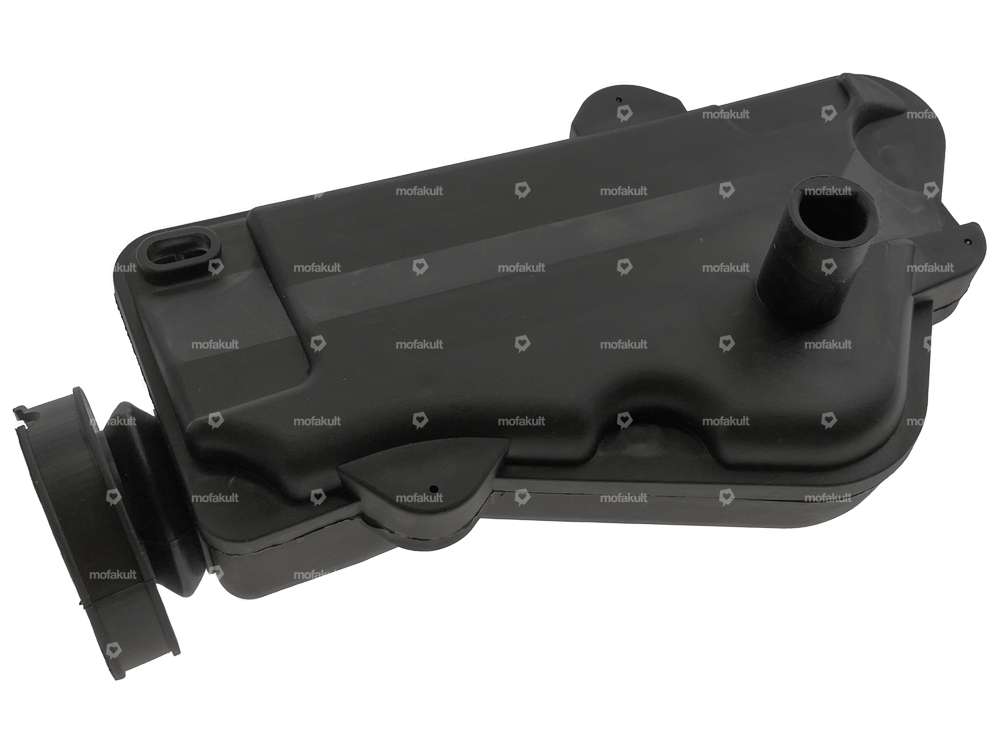

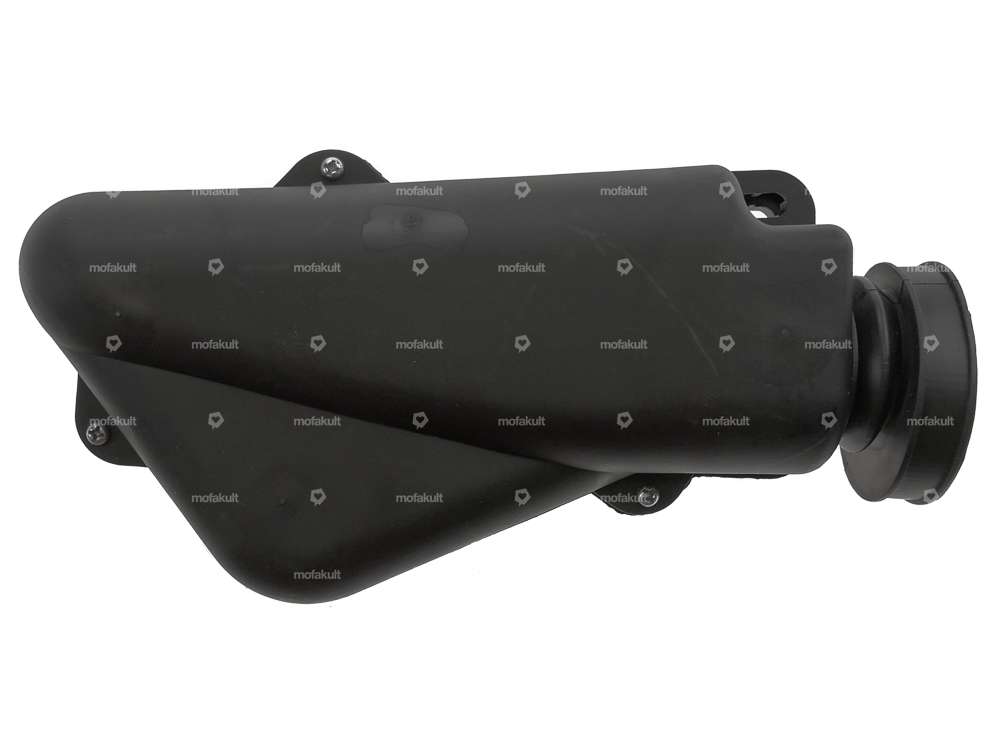

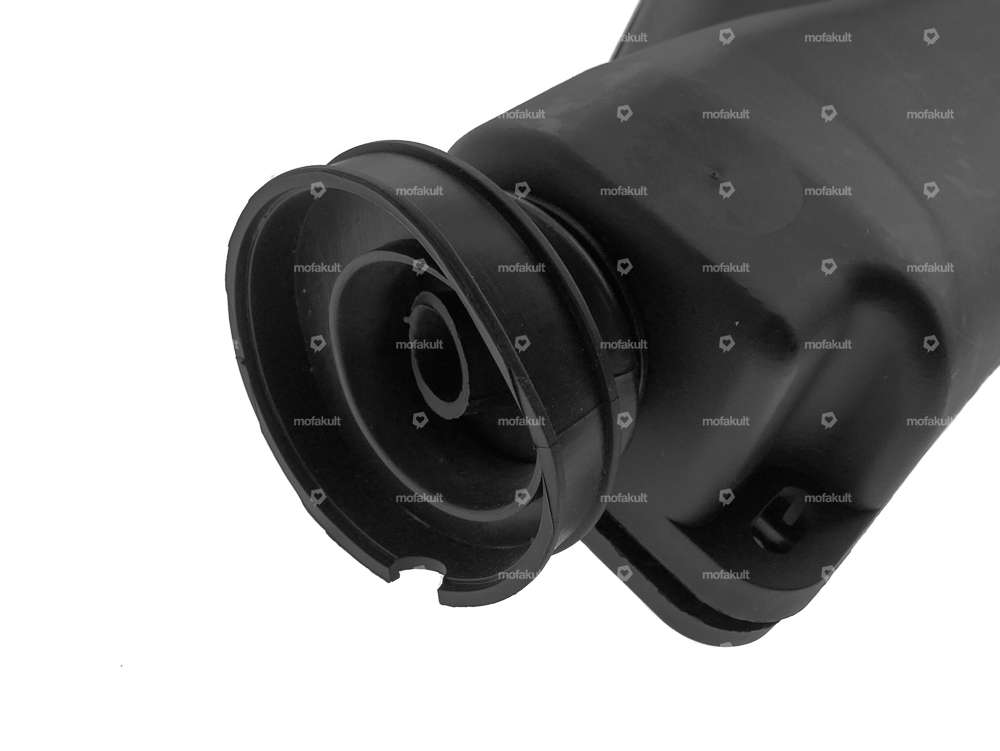

Air filter box Tomos replica

KMC drive chain 415H (reinforced) 128L

Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm · Color: gray

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Magura cable holder

Ø Bundle: 10 mm · Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Area of application: Standard · Color: silver · Ø outside: 8 mm · Total length: 14.5 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Number of components: 1 pcs · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard

GPO bulb 6V - 15W (P26s) with collar, 1 filament

Manufacturer: GPO · Test mark: none · Bulb holder: P26s · Color: white · Tension: 6 V · Performance: 15 W · Total length: 43 mm · Ø base: 26 mm · Ø Lamp head: 25 mm · LED: No

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Place of use: Outlet · Ø mounting hole: 6.7 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm · Thickness: 2 mm

swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm · Drive: Slot

Axle rear swing arm | Tomos

Material: Steel · Surface: blackened · Surface: galvanized (blue) · Color: black · Drive: External hexagon · Ø axle: 12 mm · Ø inside: 12.15 mm · Ø Bearing inside: 18.1 mm · Ø outside: 18 mm · Ø outside: 22 mm · Ø External bearing: 22 mm · Total length: 120 mm · Thread type: M12x1.75 (standard thread) · Tomos OEM number: 026083 · Tomos OEM number: 209144

Dell'Orto 14/9 P SHA carburetor hand choke | Tomos

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA · Nominal diameter: 9 mm · Nominal diameter: 14 mm · Ø Internal connection: 18 mm · Ø without reducing sleeve: 21 mm · Ø Inside entrance: 9 mm · Ø Output inside: 14 mm · Ø Air filter connection: 56 mm · Ø Air filter connection: 59 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 49 · Mounting type: Plug connection clamped · Total length: 58 mm · Width: 90 mm · Height: 82 mm · Area of application: Original · Tomos OEM number: 1236202

Gas cable with sheath | Tomos

Color: black · Quantity: 1 pcs · Ø Stranded wire: 1.2 mm · Total length: 1000 mm · Outer shell length: 880 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder
