Membrane system

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM number: 0250 106 00

Membrane Standard | Solex

Manufacturer: Made in Italy · Material: Rubber · Color: black

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Area of application: Tuning · Number of components: 5 pcs · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm

Diaphragm insert Sachs 50/2

Material: Brass · Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Spring steel · Ø mounting hole: 5.2 mm · Area of application: Standard · Number of fixing points: 2 pcs · Hole spacing: 67 mm · Pony OEM number: A2624 · Sachs OEM number: 0286 213 010

Diaphragm motor Beta 521 & 512 (A8114)

Manufacturer: Pony · Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Fiberglass · Area of application: Original · Number of fixing points: 2 pcs

swiing® ingenious intermediate flange 17 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Width: 80 mm · Ø inside: 17 mm · Total length: 29 mm · Thickness: 6.9 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm

Polini 2-folding diaphragm insert

Manufacturer: Polini · Mounting type: Screws · Number of flaps: 2 pcs · Thickness: 2 mm · Ø mounting hole: 5.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

Membrane plate Solex

Material: Plastic · Color: white

Polini gasket diaphragm

Place of use: Admission · Manufacturer: Polini · Ø cylinder: 45 mm

Polini intake system 4-folding diaphragm PHBG

Manufacturer: Polini · Mounting type: Screws · Number of flaps: 4 pcs · Ø outside: 24 mm · Ø inside: 19 mm · Area of application: Tuning

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Material: Plastic · Surface: raw · Mounting type: Screws · Number of flaps: 8 pcs · Membrane material: Carbon · Width: 49 mm · Thick membrane platelets: 0.4 mm · Total length: 77 mm · Ø mounting hole: 6.6 mm · Area of application: High End · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Membrane Racing Solex

Manufacturer: Made in France · Material: Rubber · Color: red · Mounting type: Screws · Height: 0.4 mm

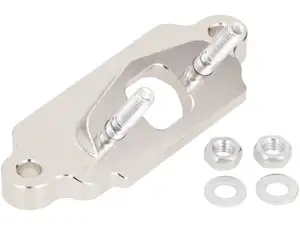

swiing® ingenious intermediate flange 13 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Ø inside: 13 mm · Area of application: Standard · Area of application: Tuning · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm

Polini lung aluminum

Total length: 105 mm · Manufacturer: Polini · Material: Aluminum · Mounting type: Cable ties · Area of application: Tuning · Total height: 40 mm

Polini gasket diaphragm | Morini M1, M01 / M02

Manufacturer: Polini · Thickness: 0.8 mm · Hole spacing inlet: 44 mm

Polini 2-folding diaphragm | Tomos

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Tomos OEM number: 222238

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Hole pattern [mm]: 33 x 32 mm

Stage6 lung aluminum

Total length: 105 mm · Total length: 125 mm · Manufacturer: Stage6 · Material: Aluminum · Surface: chrome-plated · Color: Chrome · Mounting type: Cable ties · Ø inside: 4 mm · Ø External connection: 6 mm · Area of application: Tuning · Total height: 40 mm · Camouflaged: No

Malossi 4-folding diaphragm carbonite Puch

Manufacturer: Malossi · Mounting type: Screws · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Area of application: Tuning

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

Malossi diaphragm plate carbonite 0.3 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Area of application: Tuning

Intermediate flange diaphragm 12 mm | Sachs 502, 50/2, 50/3, 50/4 (A2621)

Material: Aluminum · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Area of application: Standard · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm · Pony OEM number: A2621 · Sachs OEM number: 0286 210 001

Malossi reed valve carbon 0.3 mm

Manufacturer: Malossi · Total length: 100 mm · Membrane material: Carbon · Width: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Membrane Carbon | Cilo Cross 521, 512 / Pony Cross 521, GTX 521 (A8114)

Material: Aluminum · Number of flaps: 2 pcs · Width: 33 mm · Membrane material: Carbon · Thick membrane platelets: 0.25 mm · Total length: 48 mm · Number of fixing points: 2 pcs · Hole spacing: 35 mm · Area of application: Tuning · Alternative version of the Pony OEM number: A8114

Malossi 4-flap diaphragm Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Area of application: Tuning

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Mounting type: Screws · Ø inside: 22 mm · Ø External connection: 26 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Ø inside: 28.6 mm · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø mounting hole: 5.2 mm · Ø outside: 24 mm · Thread type: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Racing · Area of application: Tuning

swiing® ingenious diaphragm plate 0.15 mm spring steel | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Membrane material: Spring steel · Width: 17 mm · Thick membrane platelets: 0.15 mm · Total length: 53 mm · Number of fixing points: 1 pcs

swiing® ingenious diaphragm insert (steel or carbon) | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Brass · Number of flaps: 2 pcs · Total length: 80.6 mm · Width: 27 mm · Hole spacing: 67 mm · Area of application: Racing · Area of application: Tuning · Alternative version of the Sachs OEM number: A2624

Athena diaphragm seal AJH

Place of use: Admission · Manufacturer: Athena · Material: Oiled paper · Thickness: 0.5 mm · Area of application: Tuning · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62

MBR plate inlet Gilardoni italkit steel

Manufacturer: MBR · Material: Steel · Surface: raw · Mounting type: Screws · Width: 48 mm · Ø inside: 21 mm · Total length: 72.5 mm · Thickness: 5 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Mounting type: Screws · Ø inside: 20 mm · Ø External connection: 25 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 46 mm

Malossi diaphragm plate carbonite 0.35 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Area of application: Tuning

2-folding membrane insert Athena AJH

Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 40 mm

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit Puch

Manufacturer: Malossi · Mounting type: Screws · Number of flaps: 4 pcs · Membrane material: Carbonite · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

Malossi diaphragm plate carbonite 0.4 mm

Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Area of application: Tuning

Polini 2-folding diaphragm Puch

Thickness: 2 mm · Manufacturer: Polini · Number of flaps: 2 pcs · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Area of application: Tuning

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Mounting type: Plug connection clamped · Ø inside: 25.3 mm · Ø External connection: 28.5 mm · Area of application: Tuning · Total height: 80 mm

Malossi gasket set 4-folding diaphragm

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 4 pcs

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Mounting type: Screws · Width: 42.5 mm · Width: 46 mm · Total length: 50 mm · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 32 / 36 x 39

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Mounting type: Screws · Width: 48 mm · Total length: 72.5 mm · Thickness: 5 mm · Ø mounting hole: 6.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Malossi diaphragm plate carbonite | Minarelli, Morini

Manufacturer: Malossi · Material: Carbonite · Mounting type: Screws · Membrane material: Carbonite · Width: 20 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Ø mounting hole: 3 mm · Area of application: Tuning · Number of fixing points: 2 pcs · Hole spacing: 8 mm

swiing® ingenious intermediate flange 12 mm diaphragm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Mounting type: Screws · Number of flaps: 2 pcs · Thread type: M5x0.8 (standard thread) · Ø inside: 12 mm · Area of application: Standard · Number of fixing points: 4 pcs · Hole spacing: 31 mm · Hole spacing: 67 mm

Malossi reeds carbon & fiberglass 0.3 / 0.35 / 0.4 mm

Manufacturer: Malossi · Mounting type: Screws · Number of flaps: 2 pcs · Membrane material: Carbon · Membrane material: Glass fiber · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Area of application: Tuning · Number of fixing points: 2 pcs

Gasket set diaphragm Gilardoni italkit Puch

Area of application: Tuning · Number of components: 2 pcs · Hole pattern [mm]: 60 x 35 mm

Diaphragm seal | Minarelli, Aprilia, Suzuki

Place of use: Admission · Material: Sealing paper · Thickness: 0.5 mm · Area of application: Racing · Area of application: Tuning · Ø screw holder: 6.3 mm

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Ø inside: 19 mm · Color: black · Total height: 67 mm · Number of fixing points: 4 pcs · Ø External connection: 23 mm · Mounting type: Screws · Area of application: Tuning

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Total length: 48 mm · Width: 66 mm · Hole spacing: 52 mm · Thread type: M6x1 (standard thread) · Hole pattern [mm]: 37 x 55

DMP 4-folding diaphragm insert

Manufacturer: DMP · Mounting type: Screws · Number of flaps: 4 pcs · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 4 pcs · Ø mounting hole: 5.8 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Polini 2-folding diaphragm Peugeot 103

Thickness: 2 mm · Manufacturer: Polini · Number of flaps: 2 pcs · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Area of application: Tuning

Polini intake system 4-folding diaphragm SHA

Manufacturer: Polini · Material: Aluminum · Mounting type: Screws · Number of flaps: 4 pcs · Ø outside: 19 mm · Ø inside: 15 mm · Area of application: Tuning

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Manufacturer: MBR · Material: Aluminum · Mounting type: Screws · Width: 48 mm · Total length: 72.5 mm · Thickness: 8 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Mounting type: Screws · Number of flaps: 4 pcs · Membrane material: Carbon · Ø mounting hole: 6.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Manufacturer: Malossi · Material: Plastic · Surface: raw · Mounting type: Screws · Number of flaps: 1 pcs · Membrane material: Carbon · Width: 43 mm · Width: 47 mm · Thick membrane platelets: 0.3 mm · Total length: 50 mm · Thickness: 3 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 32 / 36 x 39 · Camouflaged: No

swiing® ingenious membrane plate 0.30 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Membrane material: Carbon · Width: 17 mm · Thick membrane platelets: 0.3 mm · Total length: 53 mm · Number of fixing points: 1 pcs

swiing® ingenious membrane plate 0.40 mm carbon | Sachs 50/2, 50/3, 50/4

Manufacturer: swiing® ingenious parts · Membrane material: Carbon · Width: 17 mm · Thick membrane platelets: 0.4 mm · Total length: 53 mm · Number of fixing points: 1 pcs

Malossi gasket set 2-folding diaphragm for Polini 43.5 mm | Puch

Manufacturer: Malossi · Material: Sealing paper · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi 2-folding diaphragm insert

Manufacturer: Malossi · Mounting type: Screws · Number of flaps: 1 pcs · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm
