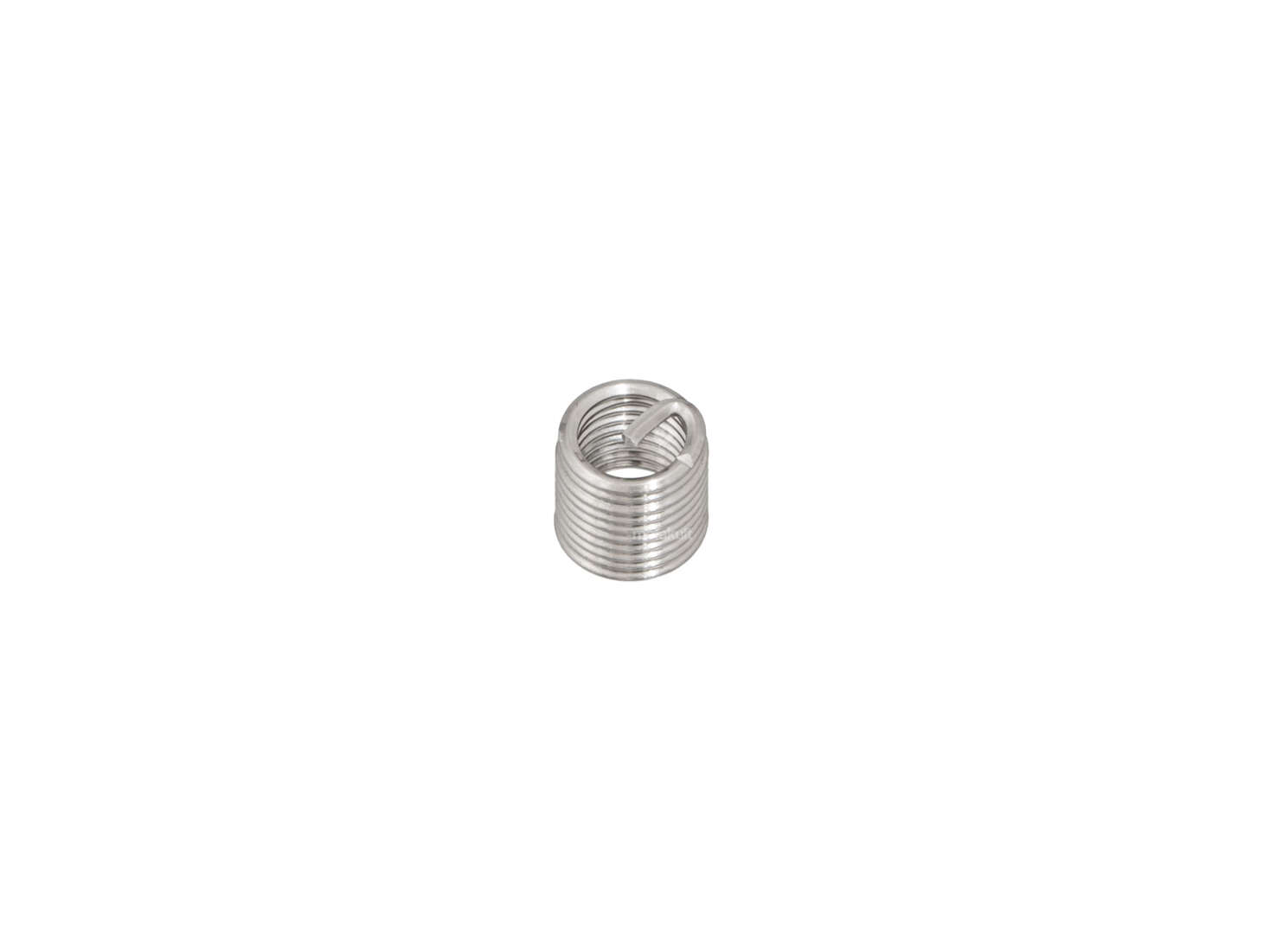

Original Amecoil thread insert (wire thread insert) for M5 thread made of stainless steel for universal use.
Thread: M5
Thread pitch: 0.8 mm
Thread height: 10 mm (2D)
Material: stainless steel
Price per piece.
Complete Helicoil thread repair kits and other individual thread inserts can be found in the accessories section.
Quality product from the French manufacturer Amecoil.
Details
Manufacturer | Amecoil |
Material | Chrome steel (known as Nirosta®) |
Nominal diameter (thread) | 5 mm |
Dimension thread insert | 2D |
Total length | 10 mm |
Thread type | M5x0.8 (standard thread) |
