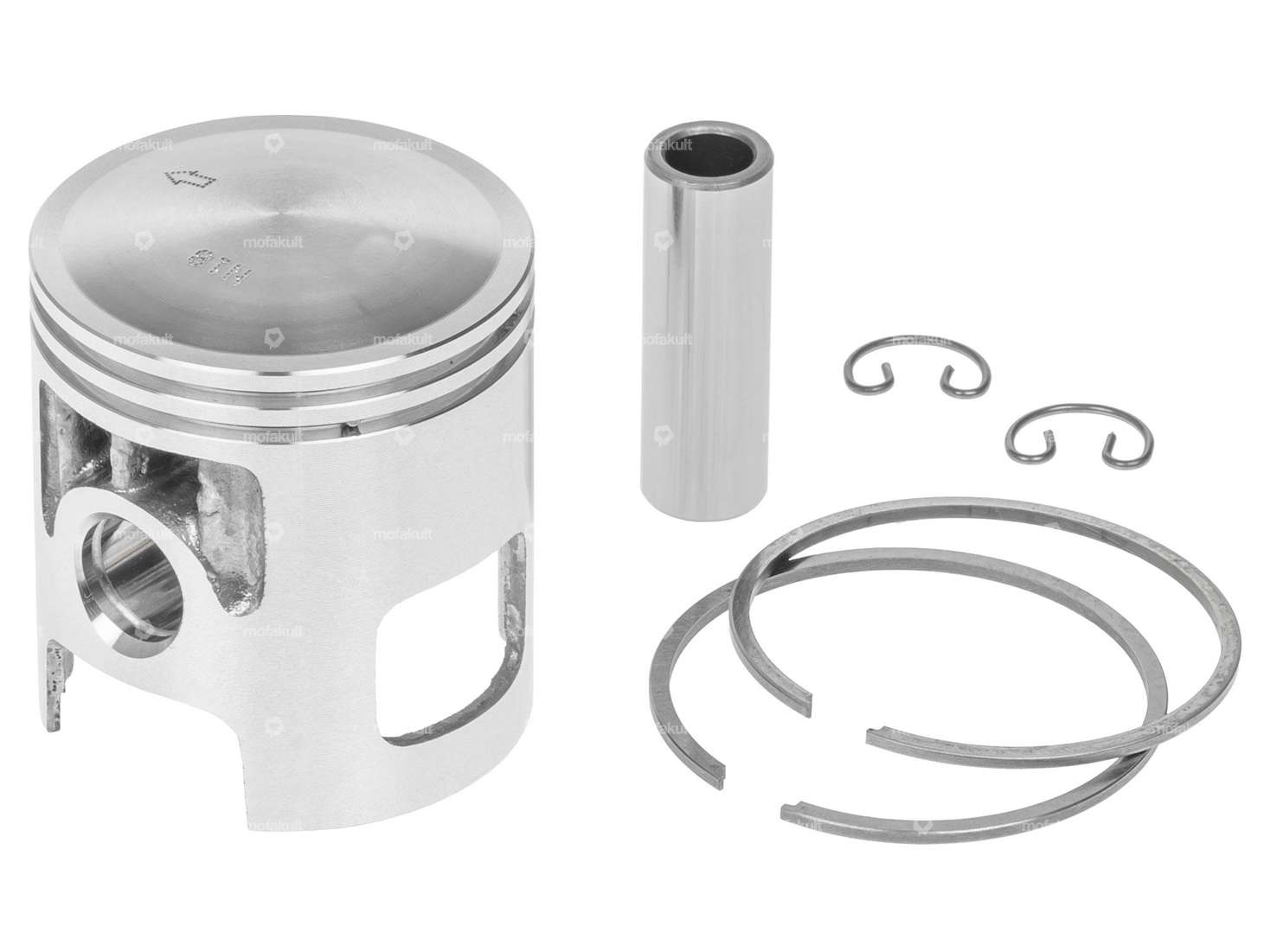

45 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for various Puch mopeds / mopeds with Athena AJH cylinders.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Tolerance type: C
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Ø outside piston (A) | 44.91 mm |
| Compression height (C) | 25 mm |
| Curvature (D) | 2.8 mm |
| Total piston height (E) | 50.8 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 45 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | C |
| Piston weight | 95 g |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
Athena 45 mm cylinder kit incl. diaphragm AJH | Puch
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 40 mm · Ø cylinder neck: 47.8 mm · Hole spacing inlet: 60 mm · Ø Inlet inside: 16 mm · Ø outlet inside: 26 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Camouflaged: No
344,60 EUR
Athena piston AJH 45 mm #A | Puch
Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.9 mm · Compression height (C): 25 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 94 g
74,30 EUR
Athena piston 45 mm AJH #B | Puch
Manufacturer: Athena · Ø outside piston (A): 44.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 45 mm · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 94 g
74,30 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
23,10 EUR
