Kurbelwelle
GPO gasket set | Puch E50
Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Number of components: 7 pcs · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm · Area of application: Standard
11,50 EUR
SKF 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Width: 11 mm · Ø outside: 35 mm · Ø inside: 15 mm · Puch OEM number: 900.4.6202
11,50 EUR
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Pony OEM number: A1830 · Sachs OEM number: 0250 090 000
6,30 EUR
NTN 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202
6,85 EUR
swiing® revival crankshaft standard with mounted bearings (version 2.0) | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Area of application: Standard · Weight: 873 g · Number of gears: 1 pcs
156,80 EUR
Oil seal NBR 17/40/7 A DUO | Puch E50
Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Area of application: Standard
5,95 EUR
Oil seal FPM 17/40/7 DUO VITON | Puch E50
Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Area of application: Standard
11,50 EUR
swiing® revival shim set crankshaft L17 | Puch Z50
Nominal diameter inside: 17 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø inside: 17.1 mm · Ø outside: 23.8 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm
10,30 EUR
swiing® ingenious crankshaft High End with mounted bearings (Version 2.0) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
208,00 EUR
Not in stock
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548
13,80 EUR
NTN 6203 Ball bearing 17/40/12
Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm · Ball bearing closed: No
7,55 EUR
Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50, ZA50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized
8,60 EUR
Not in stock
swiing® revival needle roller bearing 12/15/14.2 original
Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Ø inside: 12 mm · Ø outside: 15 mm · Width: 14.2 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001
10,30 EUR
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 16.2 · Manufacturer: swiing® ingenious parts · Width: 16.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Tomos OEM number: 035548
16,20 EUR
Oil seal NBR 17/35/7 AS crankshaft | Puch X30
Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Place of use: Crankshaft · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm
9,20 EUR
Rito crankshaft full cheeks with mounted bearings | Puch E50
Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 10 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Area of application: High End
232,40 EUR
Oil seal FPM 22/40/7 A DUO VITON crankshaft | Puch E50
Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Place of use: Crankshaft · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm
13,80 EUR
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Diameter: 24 mm · Diameter: 40.3 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Width across flats (trigger): 8 mm · Width across flats (trigger): 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Total length: 120 mm · Area of application: (Dis)assembly tool · Surface: galvanized (blue) · Number of components: 1 pcs
51,00 EUR
Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Place of use: Crankshaft · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm
6,85 EUR
swiing® ingenious crankshaft High End (Version 2.0) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Number of gears: 1 pcs
158,80 EUR

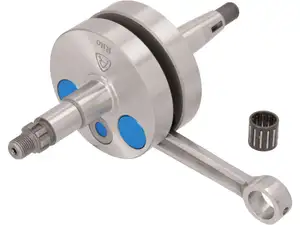

Rito crankshaft Racing (Version 2023) | Puch X30 NS, NL / Velux (Z50)
Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Rito · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67.5 mm · Thread length: 8.5 mm · Thread length: 12 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 12 mm · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Weight: 913 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 18.5 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 18 mm · Number of gears: 2 pcs · Puch OEM number: 349.1.10.215.0 · Puch OEM number: 350.7.10.015.0
232,40 EUR
NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50
Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: Yes · Material: Steel · Surface: blank · Ø outside: 40 mm · Ø outside: 44 mm · Width: 12 mm · Area of application: Standard
12,70 EUR
NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50
Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm
20,80 EUR
swiing® ingenious crankshaft High End C3/4 & Viton (+1 mm stroke) (Version 2.0) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Area of application: High End · Ø Connecting rod eye: 15 mm · Weight: 970 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
271,90 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm
23,10 EUR
Oil seal FPM 22/40/7 AS VITON crankshaft | Puch E50
Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Width: 7 mm · Ø outside: 40 mm · Ø inside: 22 mm
16,20 EUR
swiing® revival crankshaft standard (version 2.0) | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Area of application: Standard · Weight: 873 g · Number of gears: 1 pcs
104,50 EUR

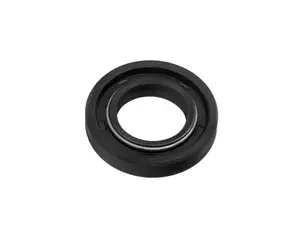

Oil seal NBR 20/35/7 A DUO crankshaft | Puch ZA50
Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Place of use: Crankshaft · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 35 mm · Width: 7 mm
9,20 EUR
Oil seal NBR 20/35/7 AS crankshaft | Puch ZA50
Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Place of use: Crankshaft · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 35 mm · Width: 7 mm
6,85 EUR
DMP crankshaft full cheeks | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: DMP · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 10 mm · Thread length: 14.5 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø Connecting rod eye: 15 mm · Weight: 977 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Number of gears: 1 pcs
139,40 EUR
Page 1 of 3
High-quality crankshafts for your Puch moped
The crankshaft is all about durability, accuracy of fit and quality! It is a real precision part. But you should also focus on material quality and value when it comes to the corresponding accessories and additional components such as bearings, oil seals and shim discs. You will find everything that revolves around the crankshaft in our range, as usual at a fair price and in top quality. Whether for your Puch Maxi entry, Puch X30 two-speed with manual gearbox or automatic engines, we have the right parts for you in our range. You can also find racing crankshafts designed for use in your tuned and more powerful Puch moped here. Look forward to complete crankshafts and accessories from swiing, Rito, Top Racing, Mazzucchelli, DMP, Malossi, SRT and other manufacturers. Here you can order at a fair price and benefit from short delivery times, as almost all parts are available from stock.
How the drive shaft works
The crankshaft is not actually a modern invention; it has been around since before the advent of the reciprocating piston engine. The ancient Romans were already operating a sawmill in Hierapolis in Asia Minor in the third century. The rotary motion of the mill wheel was converted into vertical motion with the help of a shaft and a connecting rod. The same principle that powers your Puch moped. The only difference is that the combustion engine works in exactly the opposite way. The movement of the moped piston is converted into a rotary movement. This is then transmitted via the moped clutch and gearbox.
Highest quality for the highest demands
The crankshaft of your Puch motorbike is exposed to incredible thermal and mechanical forces. For this reason, it must be manufactured with the utmost precision. This also applies to the accuracy of fit of the shaft parts, such as the ball bearing or shim discs. Inconspicuous, but of enormous importance, is the oil seal. The shaft seal, as this part is also called, has the important task of preventing dust or splash water from entering. Even on a non-tuned Puch moped, the loads that your crankshaft has to withstand are enormous. If you have tuned your bike and are travelling at high speeds, then our high-end racing crankshafts are sure to put a smile on your face. These parts are particularly robust and specially developed for particularly powerful engines.
Order crankshafts, bearings, connecting rod bolts for your Puch moped and much more at mofakult
Whether your Puch moped has a manual or automatic gearbox, you'll find what you're looking for here if you're looking for a drive shaft. Discover products from well-known manufacturers such as Jasil, Rito or Mazzucchelli and the crankshafts manufactured to the highest quality standards by our own brand swiing. We also stock precision ball bearings from NTN. Matching needle bearings from Malossi are also part of the range, as are oil seals made from NBR. Speaking of quality: you can of course also find connecting rods and connecting rod bolts for your Puch moped in our shop, as well as plain bushes and engine overhaul kits. If you have any questions about our products or need advice, we will be happy to help you on the phone. Of course you can also contact us by e-mail.
