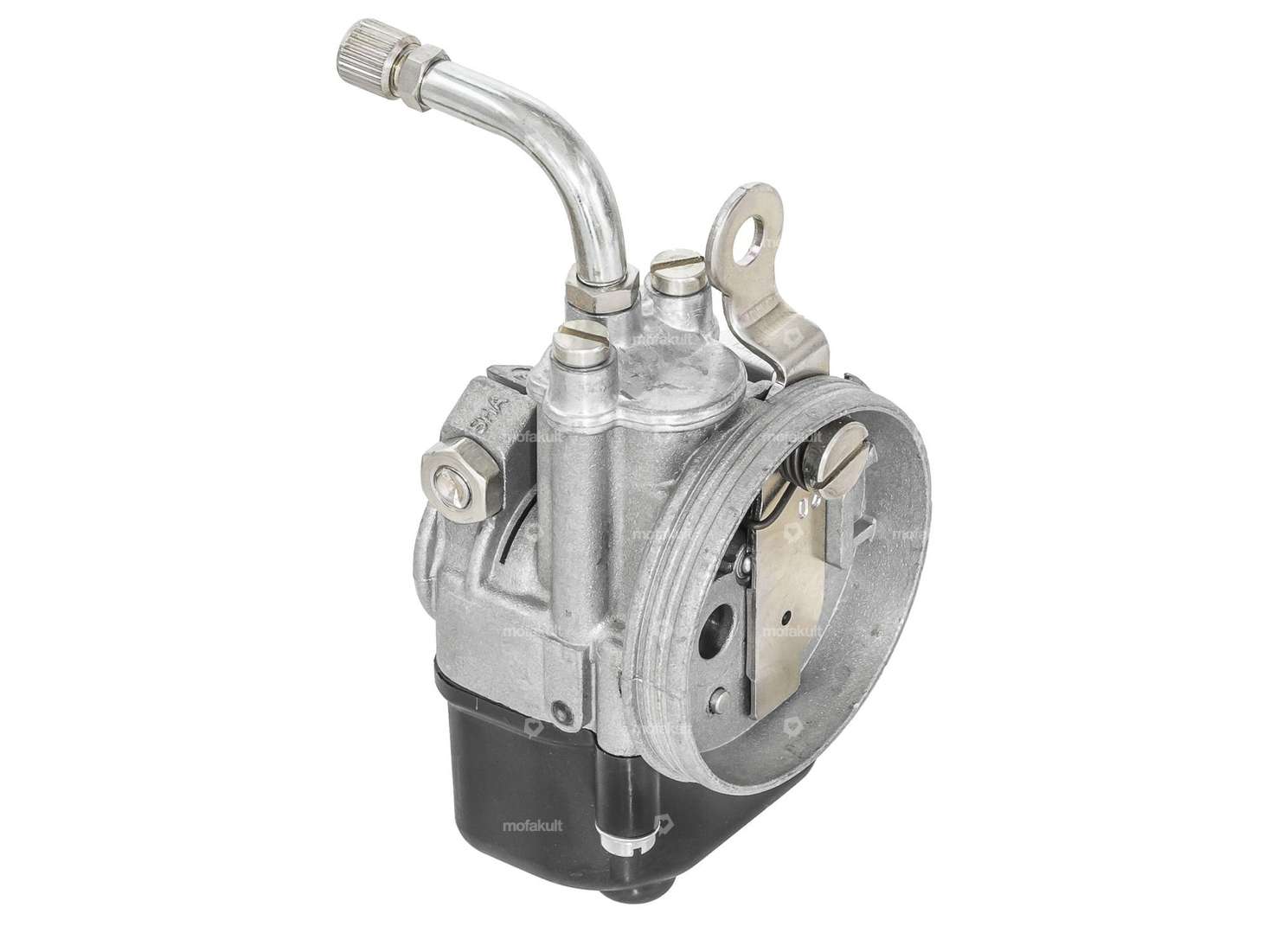

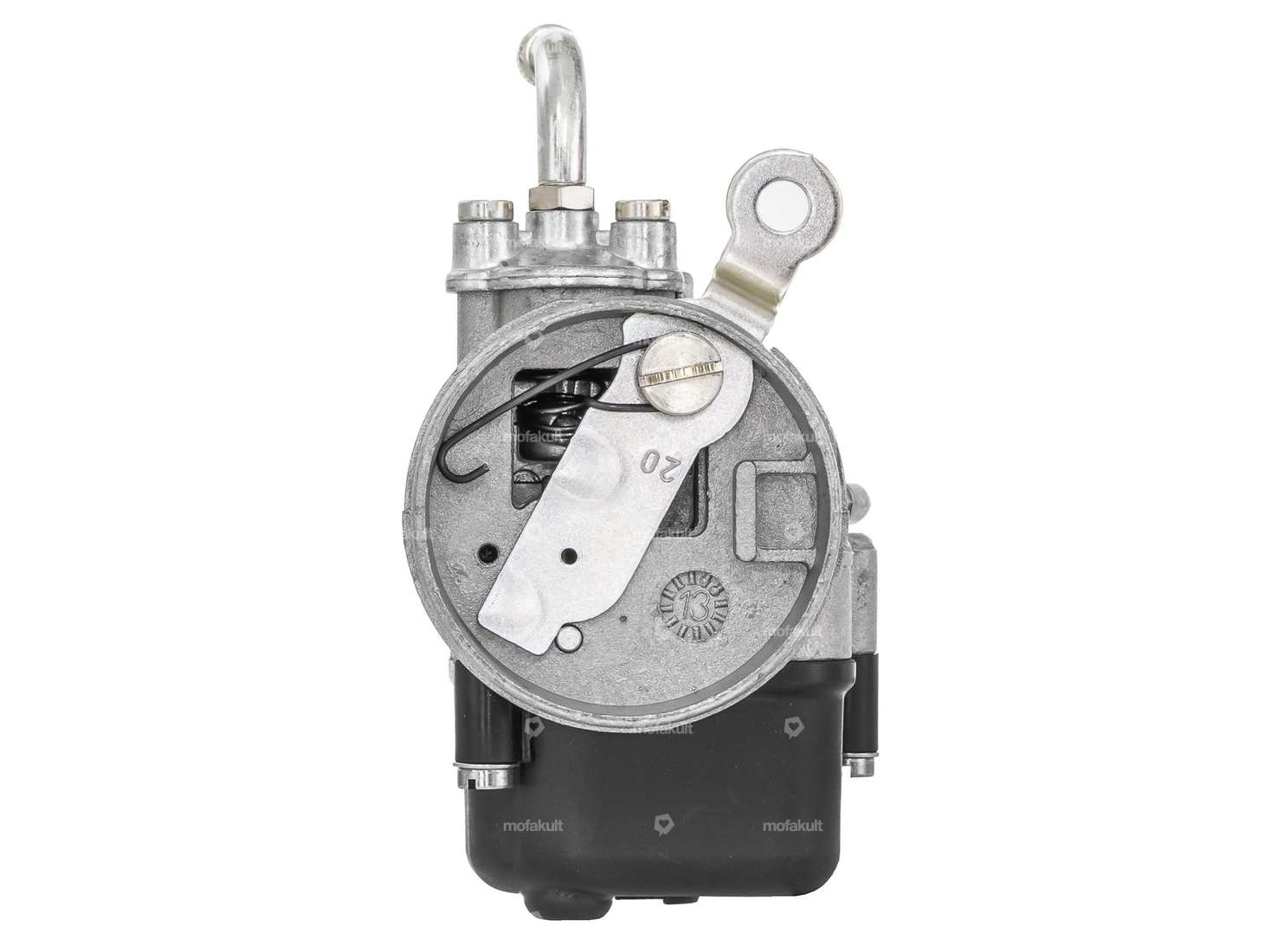

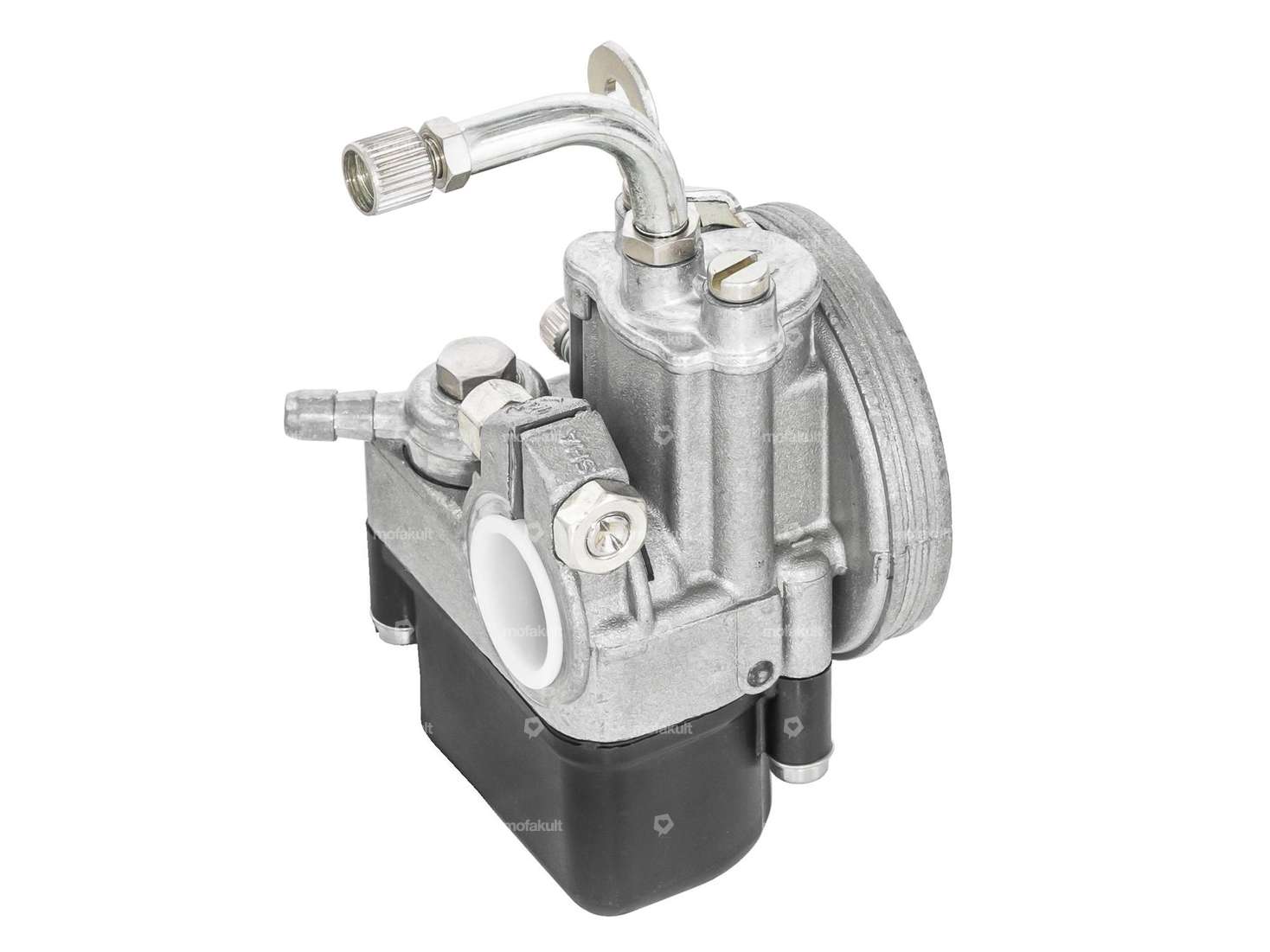

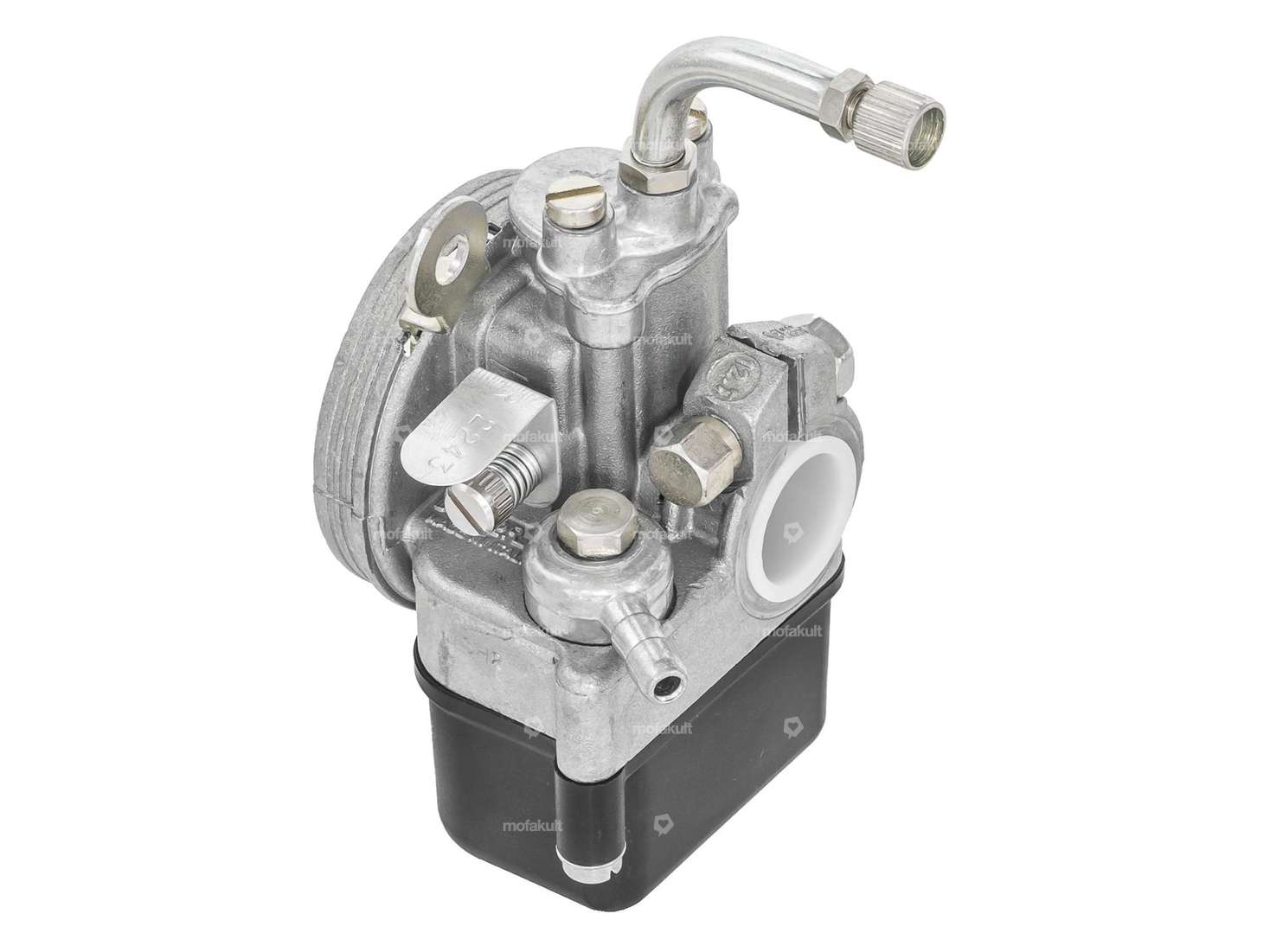

The Dell'Orto 12 / 7 SHA original carburetor impresses with its compact design and can also be used universally for various mopeds, mopeds and small motorcycles in addition to your Piaggio Ciao.
The carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 36
Inlet connection diameter: 16 mm (or 18 mm after removing the reducing sleeve)
Ø external air filter connection: 50.8 mm
Ø passage on air filter side: 7 mm
Ø passage on intake manifold side: 12 mm
Total height: 97 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
For matching nozzles and alternative air filters, see accessories.
Original Piaggio spare part number: 247270
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Area of application | Original |
| Carburetor type | SHA (type 3) |
| Nominal diameter | 12 mm |
| Ø Internal connection | 16 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 7 mm |
| Ø Output inside | 12 mm |
| Mounting type | Plug connection clamped |
| Ø Air filter connection | 50.8 mm |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 45 mm |
| Width | 60 mm |
| Nozzle size | 36 |
| Height | 97 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao |
