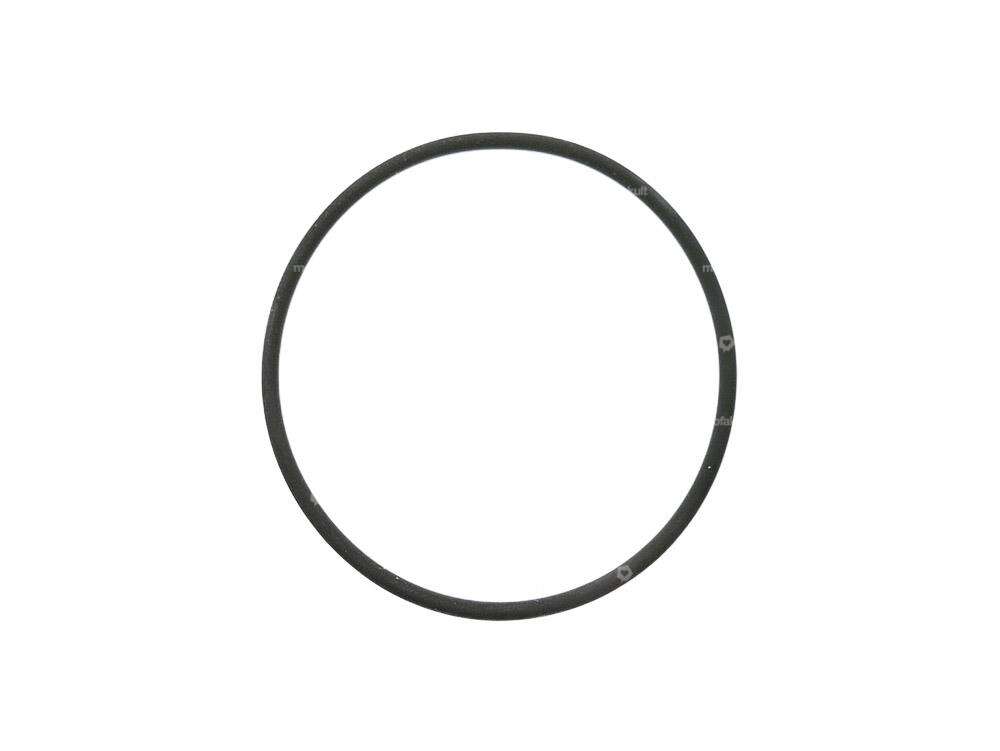

Sealing ring for the carburetor cover of the float chamber of Dell'Orto carburetors on your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
This high-quality gasket impresses with its extremely high fuel resistance and guarantees absolute tightness of the float cover.
Suitable carburetors can be found in the accessories section.
Original Piaggio spare part number: 113909
The set includes the following fixed parts:
Details
| Cord thickness | 1.5 mm |
| Manufacturer | Piaggio |
| Material | NBR |
| Place of use | Float chamber |
| Color | black |
| Number of components | 1 pcs |
| Ø outside | 44 mm |
| Ø inside | 41 mm |
| Piaggio spare part no. | 113909 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
Accessories & related products
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24
Total length: 46 mm · Width: 60 mm · Height: 96 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Color: black · Nominal diameter: 13 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66
67,00 EUR
Dell'Orto 12/7 carburetor hand choke original | Piaggio Ciao PX
Total length: 45 mm · Width: 60 mm · Height: 97 mm · Manufacturer: Dell'Orto · Area of application: Original · Nominal diameter: 12 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 36
72,50 EUR
Dell'Orto 12/10 SHA carburetor hand choke | Piaggio Ciao PX
Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm · Total length: 45 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Width: 60 mm · Vacuum connection: No · Height: 96 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 37 · Area of application: Tuning
72,50 EUR

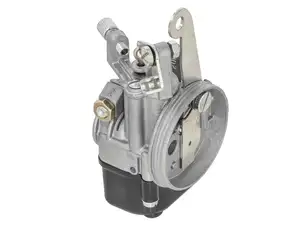

12/7 SHA carburetor original | Piaggio SI
Total length: 58 mm · Width: 64 mm · Height: 110 mm · Manufacturer: Piaggio · Material: Aluminum · Area of application: Original · Nominal diameter: 12 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 36
100,50 EUR
Dell'Orto 12/7 SHA carburetor hand choke | Piaggio SI
Total length: 60 mm · Width: 60 mm · Height: 117 mm · Manufacturer: Dell'Orto · Area of application: Original · Nominal diameter: 12 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 36
73,70 EUR
Dell'Orto 13/13 SHA carburetor | Piaggio SI, Boss, Grillo
Total length: 55 mm · Width: 60 mm · Height: 118 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Color: black · Nominal diameter: 13 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66
78,10 EUR
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Color: black · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.9 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Total length: 55 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Width: 60 mm · Vacuum connection: No · Height: 110 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 66 · Area of application: Tuning
78,10 EUR
Dell'Orto 12/7 SHA carburetor hand choke | Piaggio Ciao C24
Total length: 45 mm · Width: 60 mm · Height: 112 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Original · Area of application: Standard · Color: black · Nominal diameter: 7 mm · Nominal diameter: 12 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 7 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 36
78,10 EUR
Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
Total length: 55 mm · Width: 60 mm · Height: 109 mm · Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Color: black · Nominal diameter: 12 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 51
72,50 EUR
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Total length: 46 mm · Width: 60 mm · Height: 96 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Area of application: Tuning · Nominal diameter: 13 mm · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66
74,80 EUR
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao P, SC
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Carburetor type: SHA (type 3) · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm · Total length: 46 mm · Mounting type: Plug connection clamped · Width: 60 mm · Height: 96 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Area of application: Tuning
84,80 EUR
