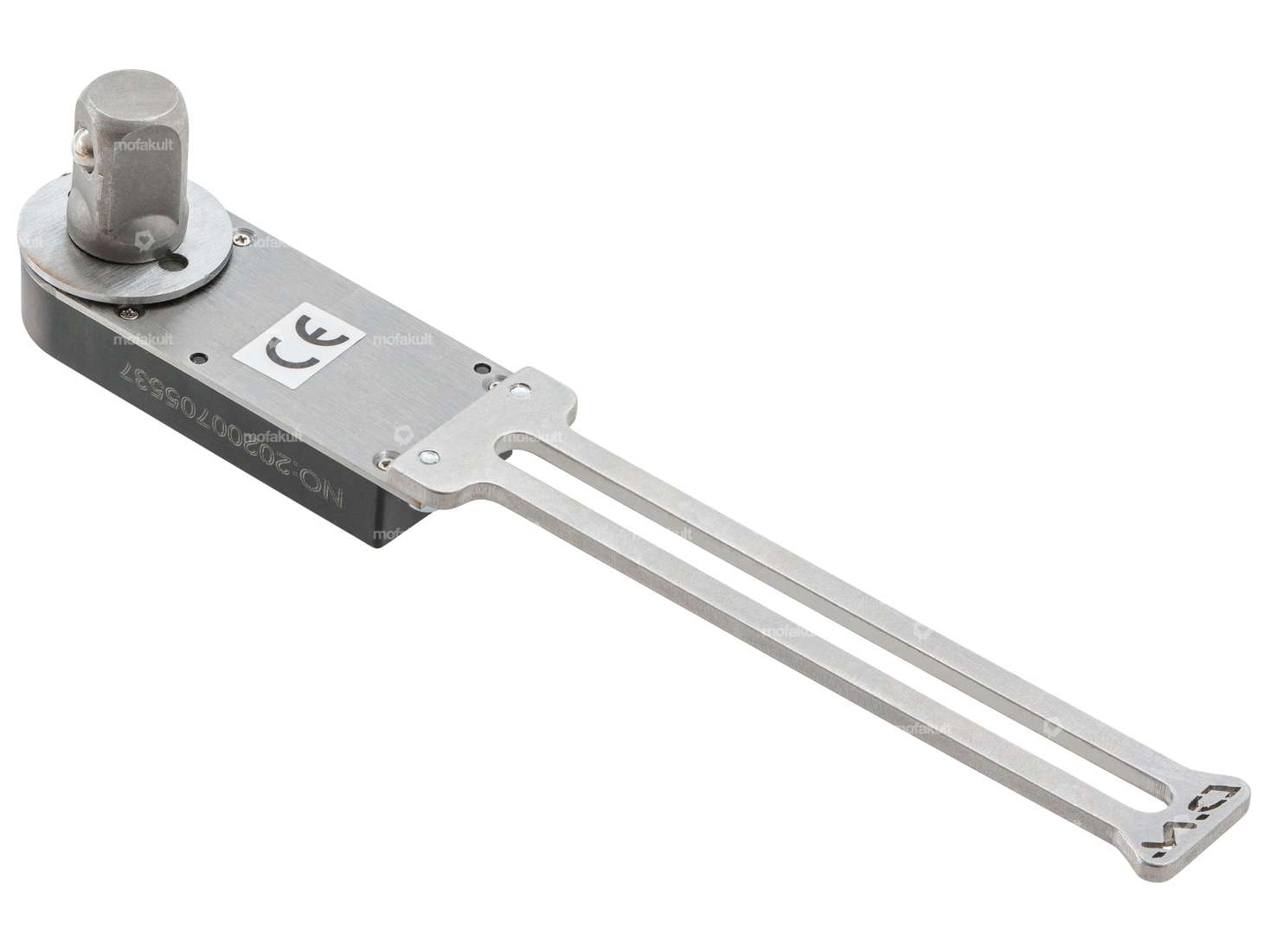

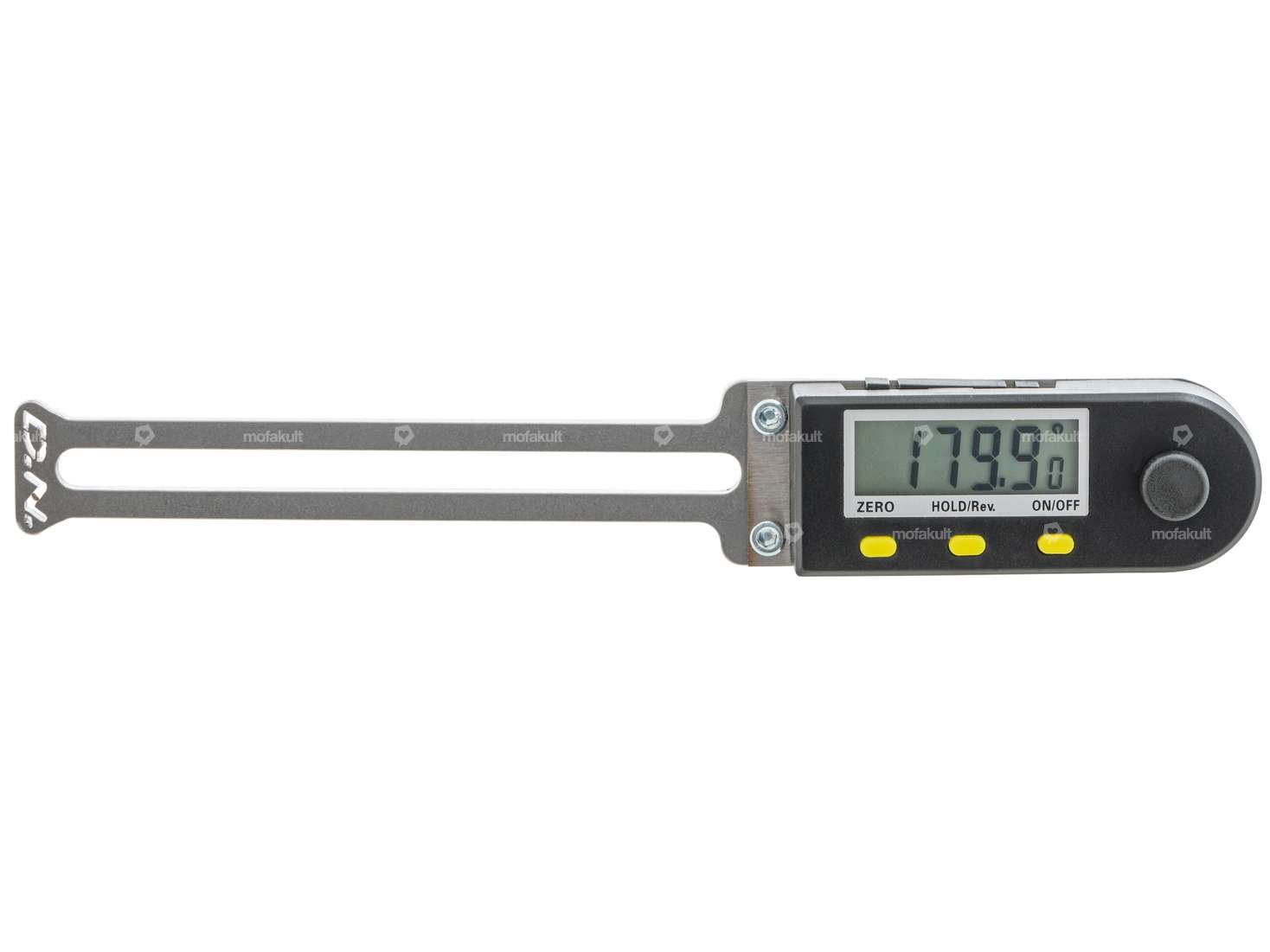

Digital 360° protractor with holder for standard 1/2" sockets to measure the timing on your moped, moped and small motorcycle.

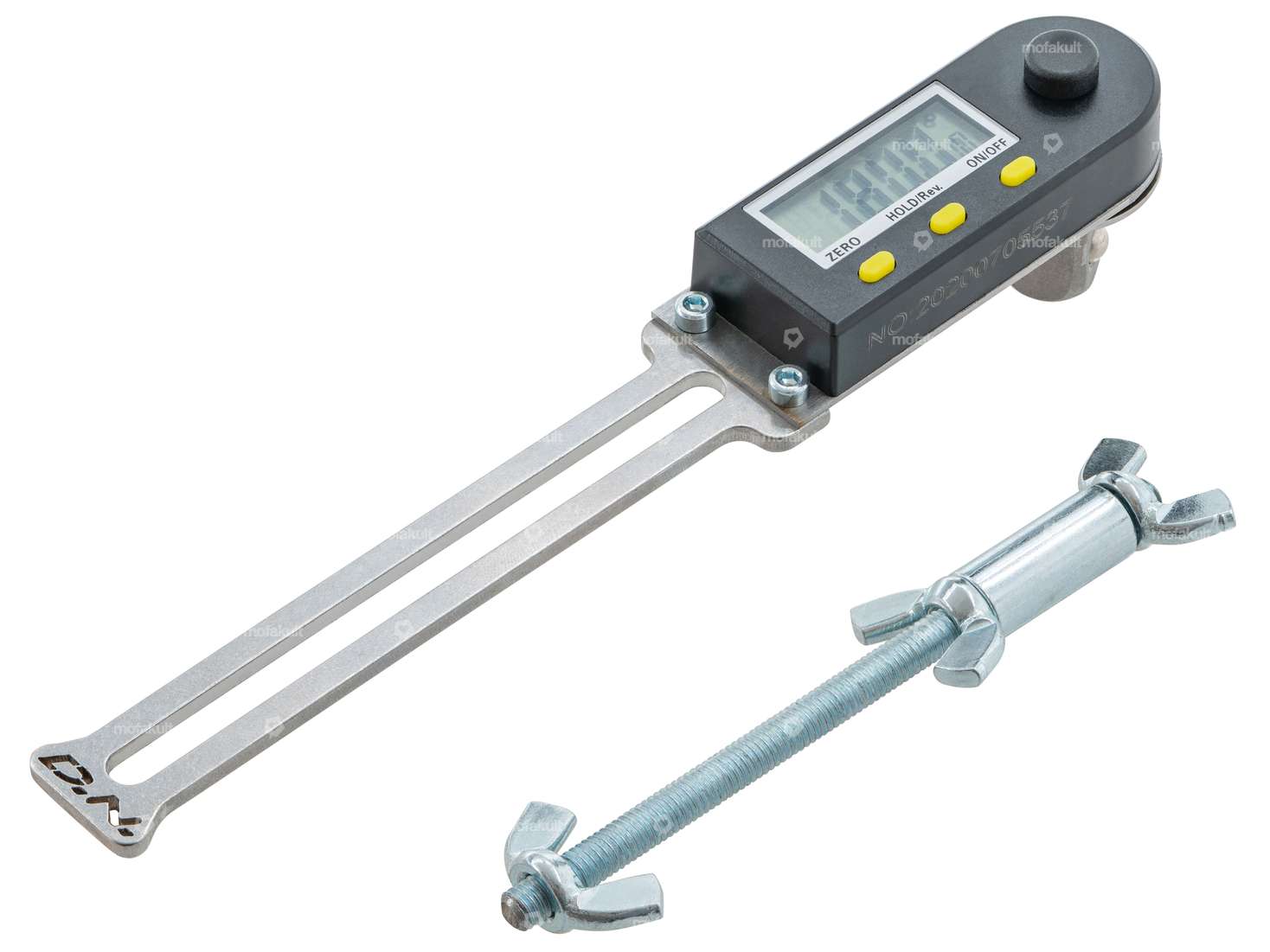

The protractor can be attached to the pole wheel using a ratchet nut. Then fix the supplied threaded rod to an attachment point on the engine or fan cover using a wing nut. Use the spacer sleeve and the other wing nuts to align and fix the protractor.
Then turn the engine until the exhaust opens, for example. After zeroing the timing meter, you can now turn the engine until the exhaust closes and read off the corresponding degree display.
Instructions are included with the timing meter.
Maximum mounting distance: 163 mm
Nut size: 1/2"
Thread rod: M6x110 mm
Measuring range: 0 - 360°
Accuracy: 0.05°
Delivered in a small wooden box. A replacement battery is also included.
If you prefer to use conventional degree disks, you can find these in the accessories section.
Details
| Measuring range [°] | 360 ° |
| Area of application | Workshop accessories |
| Thread type | M6x1 (standard thread) |
| Total length | 185 mm |
