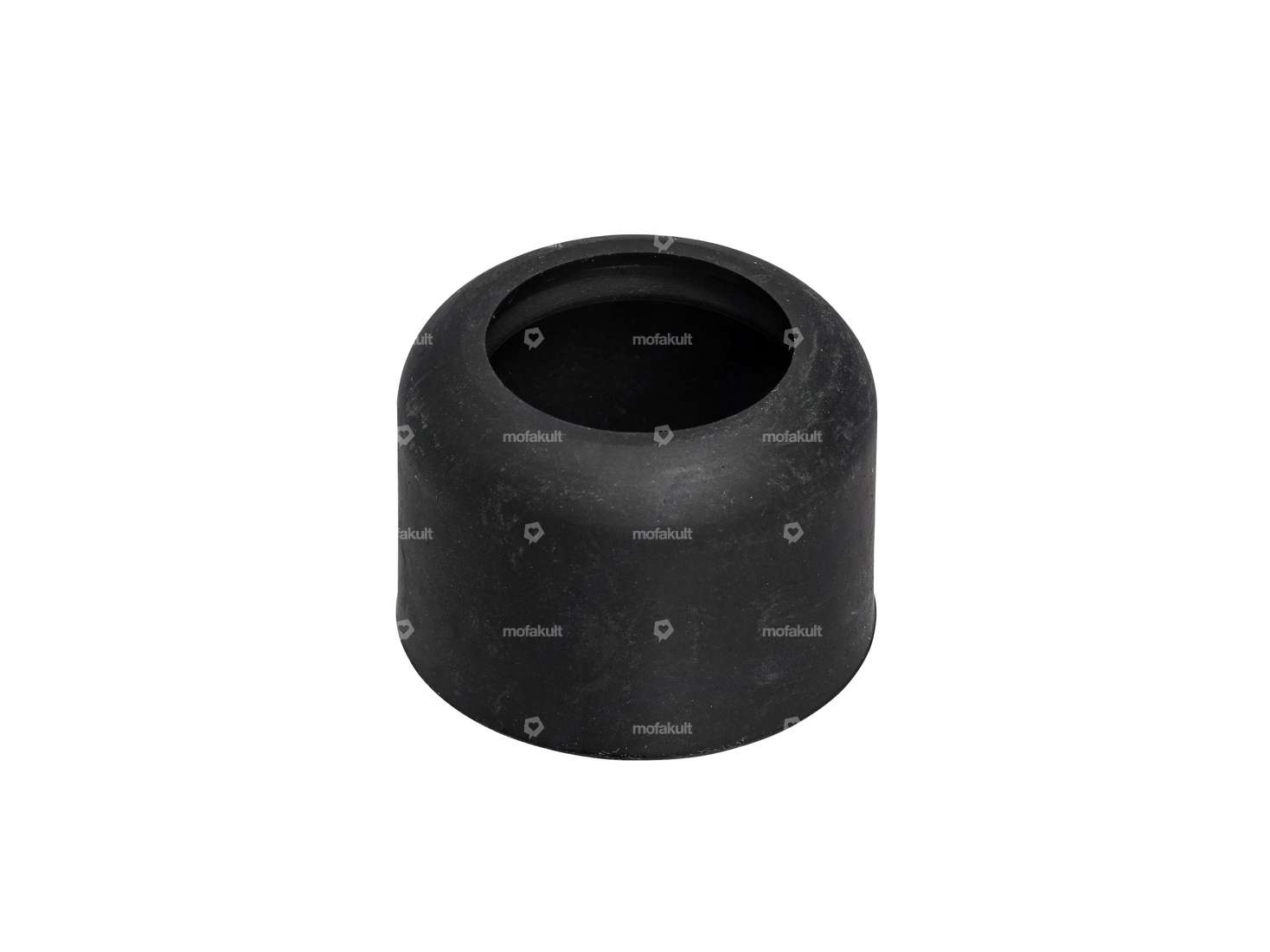

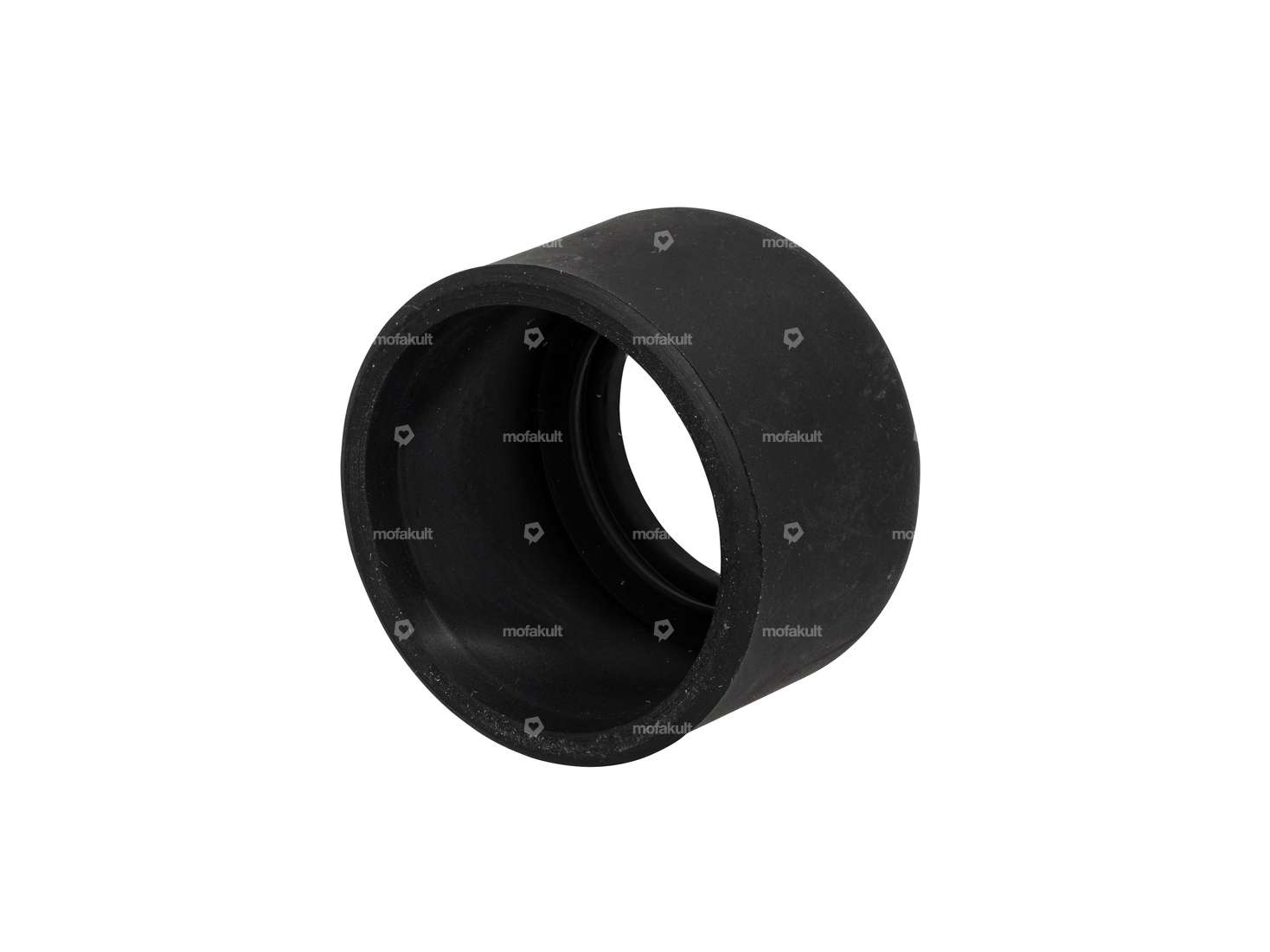

EBR rubber cap standard fork

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Spar end distance (center-center): 140 mm · Thread type: MF26x1 (fine pitch thread) · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 23 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Total length: 570 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread length: 57 mm

GPO clamping bridge EBR cast fork plate aluminum silver

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: silver · Total length: 47 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Hole spacing: 30 mm

EBR standard fork black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

Bellows Ø 27/37 x 160 mm (P4520) | Pony GTX

Manufacturer: Pony · Material: Rubber · Color: black · Ø inside: 27 mm · Ø inside 2: 37 mm · Total length: 160 mm

EBR sliding bush Ø 30 mm fork

Manufacturer: EWC · Material: Plastic · Color: black · Ø inside: 30 mm · Total length: 20 mm · Ø outside: 34 mm

EBR cover sleeve fork | Puch

Manufacturer: EWC · Material: Rubber · Color: black · Ø inside: 27 mm · Ø inside 2: 35 mm · Total length: 44 mm

GPO clamping bridge EBR cast fork plate aluminum chrome

Manufacturer: GPO · Material: Aluminum · Surface: chrome-plated · Color: Chrome · Total length: 47 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Hole spacing: 30 mm

GPO clamping bridge EBR cast fork plate aluminum black

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: black · Total length: 47 mm · Width: 17 mm · Height: 20.4 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.4 mm · Hole spacing: 30 mm

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Thread type: MF26x1 (fine pitch thread) · Ø outside: 41 mm · Ø inside: 26.8 mm

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Ø outlet inside: 19.9 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard

Oil filler plug with sealing ring | Puch Maxi

Number of components: 2 pcs · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Total length: 14.6 mm · Thread length: 6 mm · Puch OEM number: 364.1.10.660.1

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Material: Plastic · Color: white · Ø inside: 23 mm · Ø outside: 27 mm · Total length: 30 mm · Puch OEM number: 349.1.30.126.1

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Manufacturer: swiing® revival parts · Material: Nylon · Surface: blank · Color: black · Bearing type: Plain bearing · Total length: 19 mm · Ø Bundle: 24.1 mm · Ø outside: 20.2 mm · Ø inside: 16.2 mm · Puch OEM number: 349.1.42.005.1

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom | Puch Maxi S, N

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0

Polini brake shoes Ø 80 x 18 | Puch Maxi

Slotted: No · Manufacturer: Polini · Color: silver · Springs included: Yes · Ø locating bolt: 10 mm · Number of springs: 2 pcs · Width: 18 mm · Ø drum: 80 mm · Area of application: Tuning
