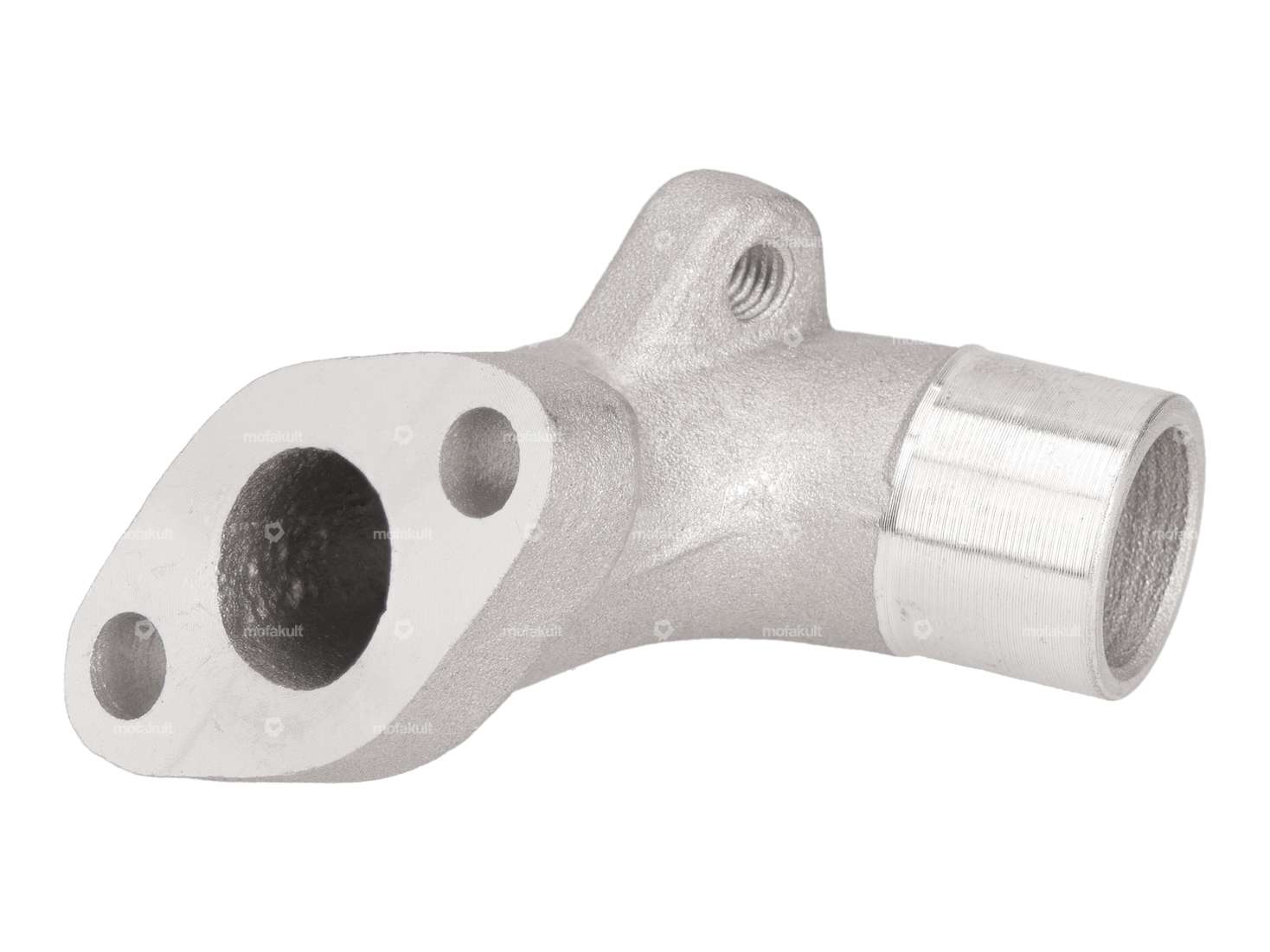

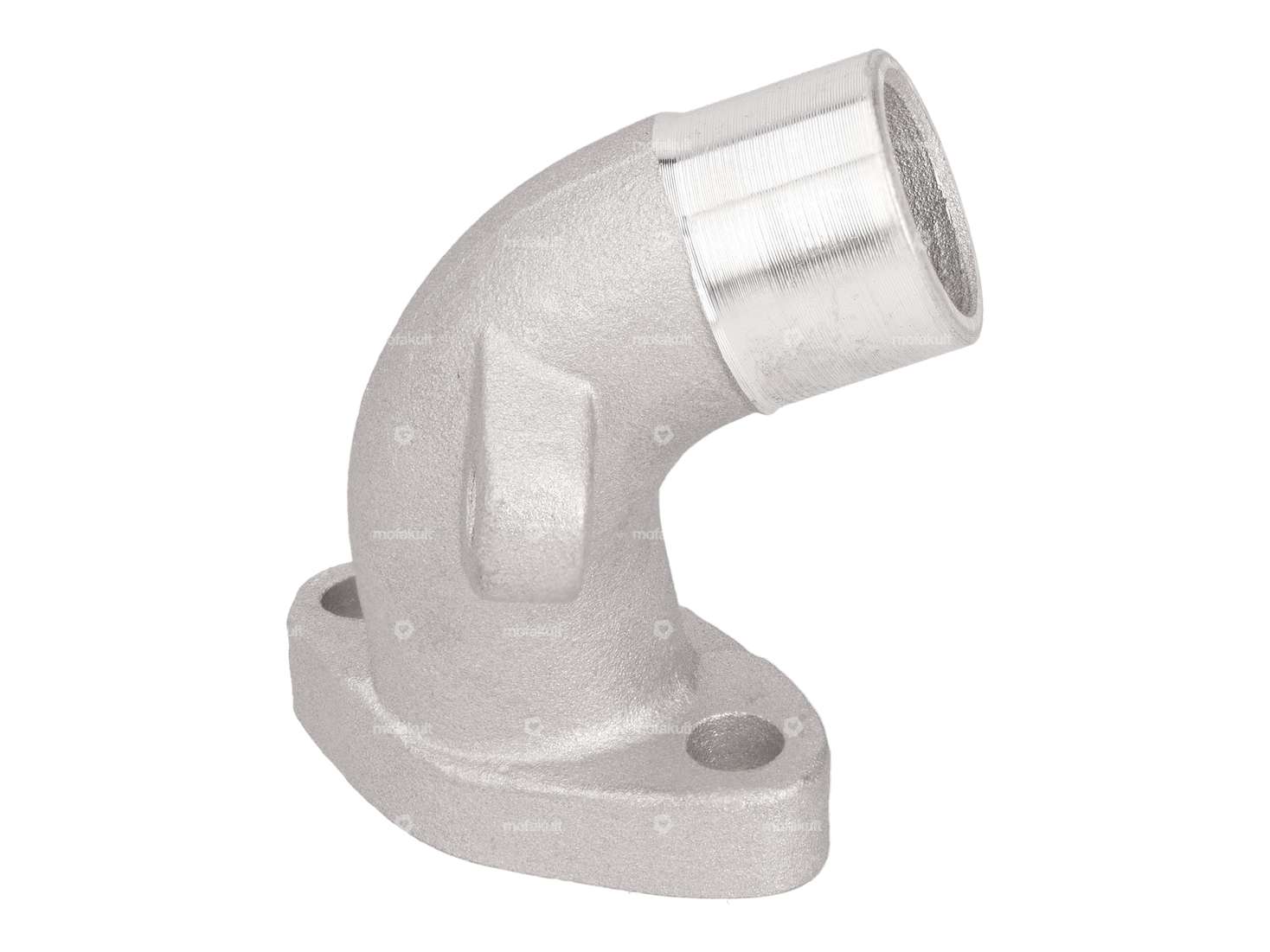

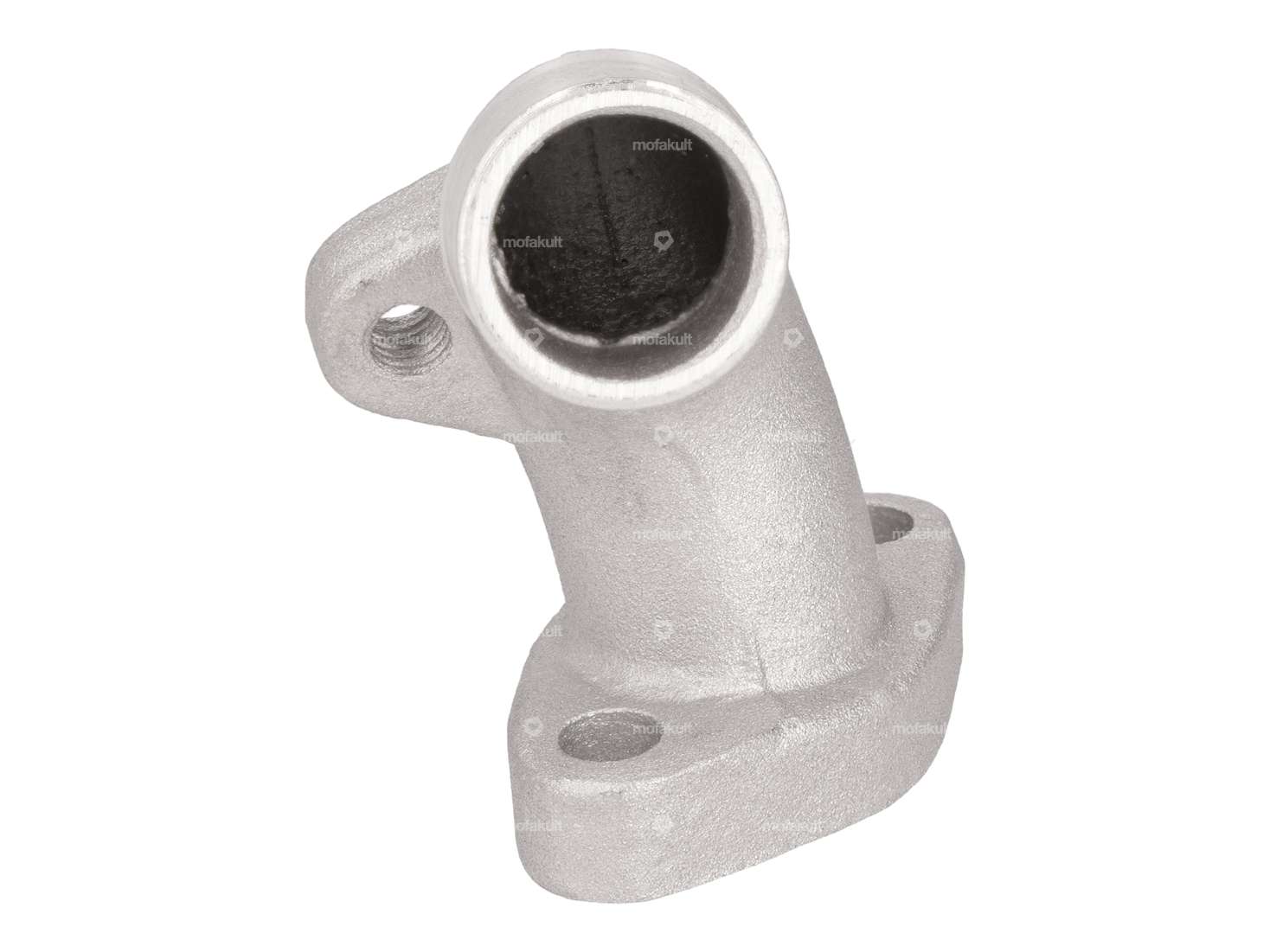

50 mm short intake manifold with 15 mm inner diameter for your manual Sachs 503 2AL, 2BL moped / moped with Bing SRE carburetor.
Note: To simplify installation of the intake manifold, we recommend using M6 nuts with reduced key width.
You can find the right nuts for installation as well as other intake manifolds and other parts in the accessories section.
Tuning version of the original Sachs spare part with the number A2177.
Details
| Material | Aluminum |
| Mounting type | Screws |
| Number of fixing points | 2 pcs |
| Area of application | Tuning |
| Total length | 50 mm |
| Thread type | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Ø inside | 15 mm |
| Ø External connection | 20 mm |
| Sachs spare part no. | A2177 |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
