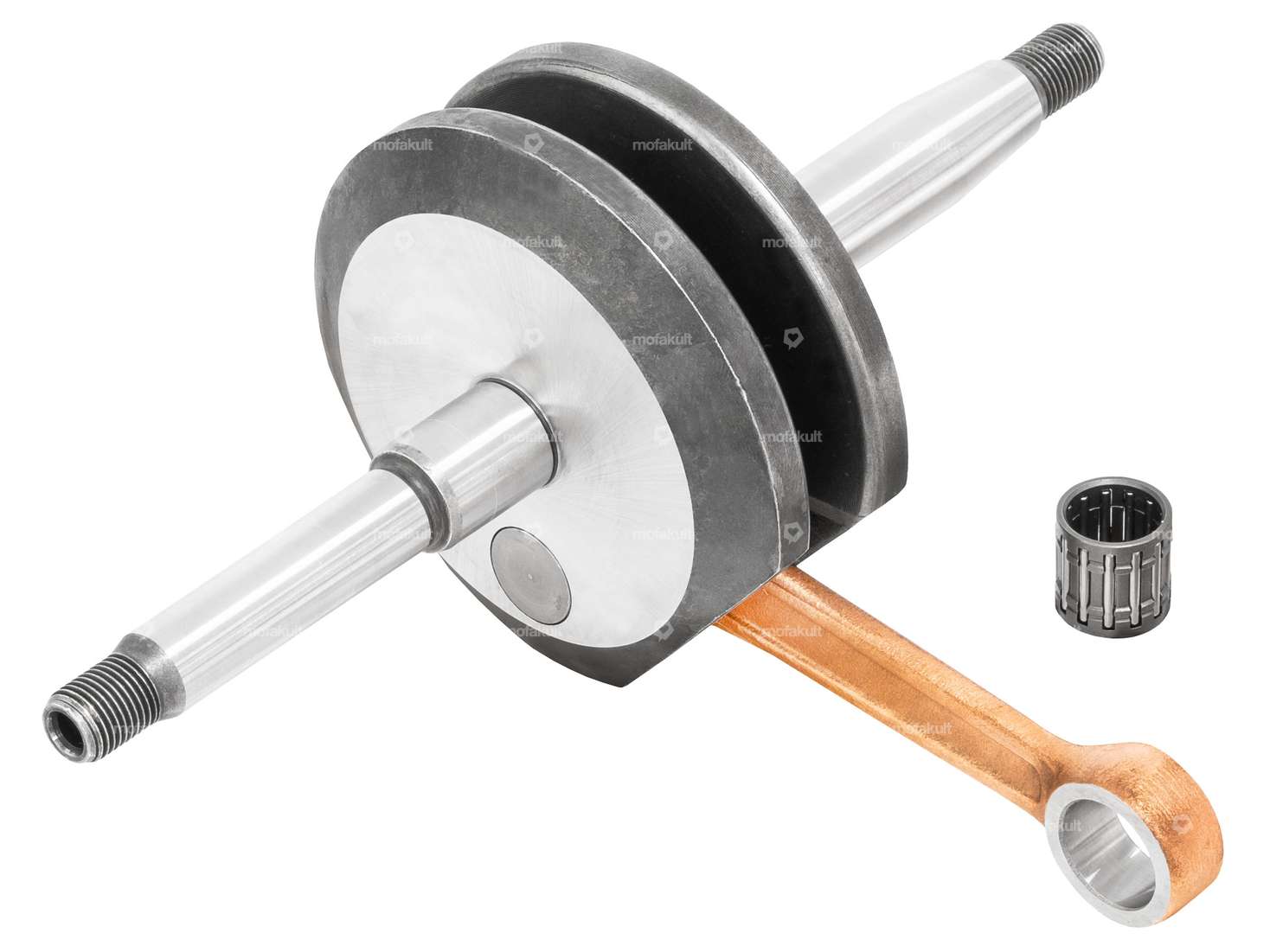

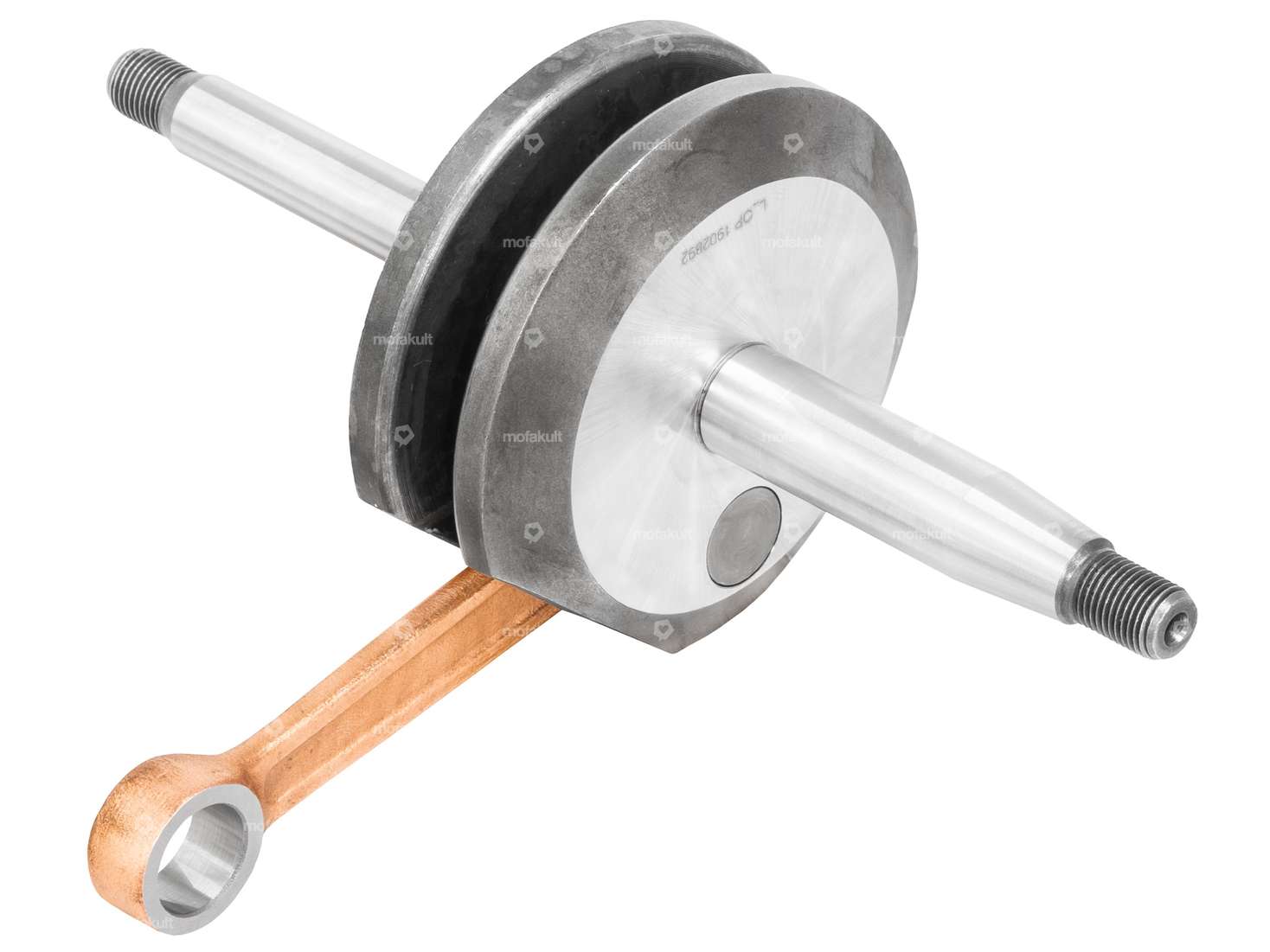

Crankshaft suitable for mopeds / mopeds with Sachs 505, 535 A1 and 535 AV engines.
The needle bearing is included in the scope of delivery.
Original Pony spare part number: A4477
Branded product of the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Cheek type | standard |
| Thread type | MF10x1 (fine pitch thread) |
| Total length of crankpin on clutch side | 77.5 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Area of application | Standard |
| Pony spare part no. | A4477 |
Suitable for the following models
| Sachs | 505 (mit Tretwelle) |
Accessories & related products
Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 508
Nominal diameter: 43.5 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
188,90 EUR
223,40 EUR
Crankshaft | Sachs 505, 535 A1, 535 AV (A4477)
Area of application: Standard · Material: Steel · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 73.5 mm · Ø crank webs: 79.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Weight: 956 g · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 18 mm · Length 2nd paragraph: 44 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 42.5 mm · Number of gears: 1 pcs · Number of gears: 2 pcs · Pony spare part no.: A4477
189,90 EUR
Jasil crankshaft full cheeks | Sachs 505, 535 A1, 535 AV
Manufacturer: Jasil · Area of application: Standard · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Total length of crankpin on clutch side: 77.5 mm · Total length crankpin ignition side: 74 mm · Ø Bearing seat (clutch side): 14.95 mm · Ø Bearing seat (ignition side): 14.95 mm · Alternative version of Sachs spare part no.: A4477
167,60 EUR
Moped fans like you also bought:
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 5.5 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
8,85 EUR
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C
9,95 EUR
Oil seal NBR 15/35/7 A DUO crankshaft | Sachs 535
Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 15 mm · Place of use: Crankshaft · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C
9,95 EUR
NTN 6202 Ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Width: 11 mm · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No
7,70 EUR
Oil seal FPM 15/30/5.5 AS crankshaft / main shaft | Sachs 503, 504, 535, 504/1 (A4215 / A5602)
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Manufacturer: Sachs · Material: FPM - Rubber · Surface: rubberized · Pony spare part no.: A5602 · Sachs spare part no.: 0230 111 100
10,80 EUR
Not in stock
Collection only possible with online purchase and appointment.
