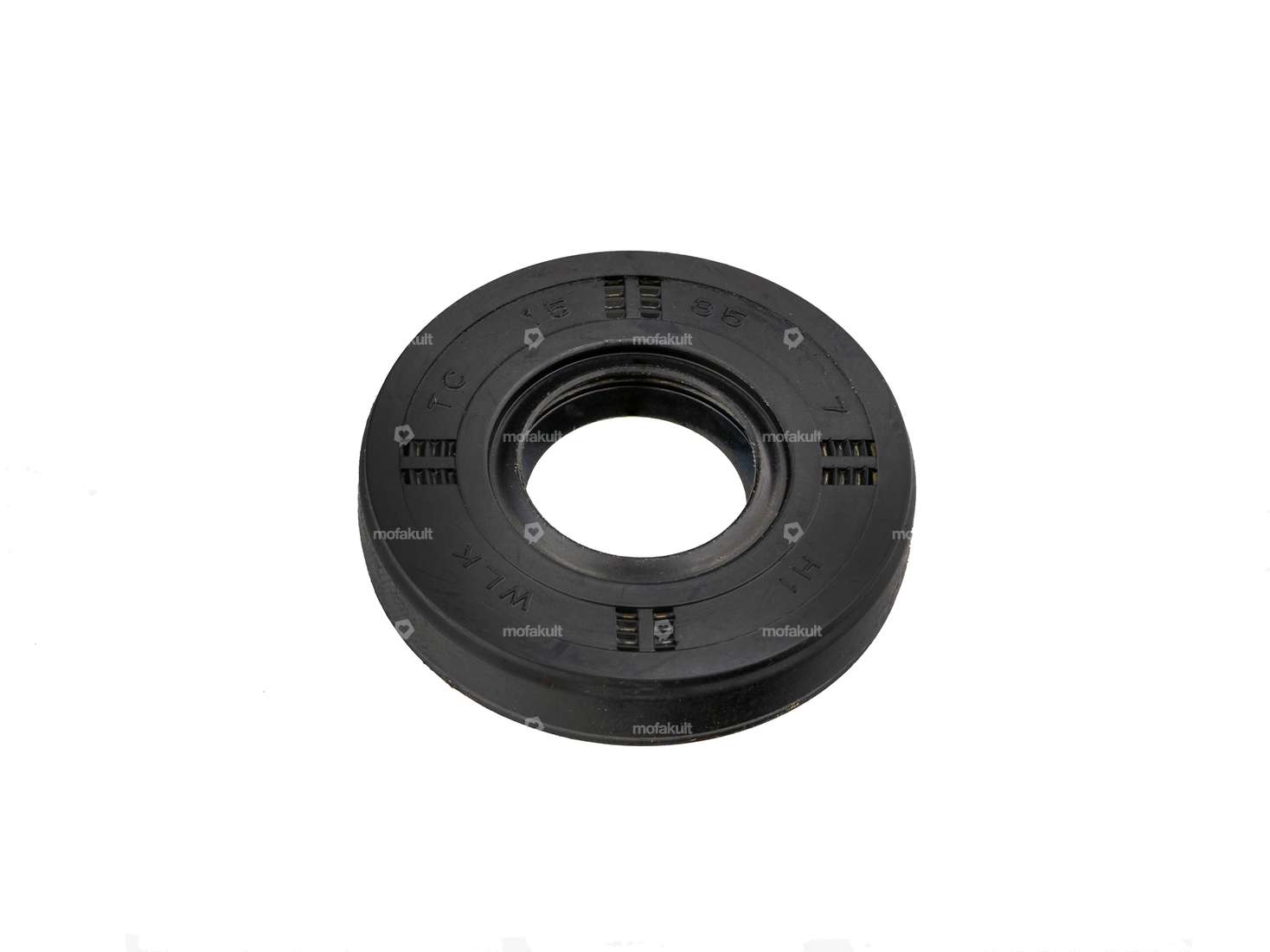

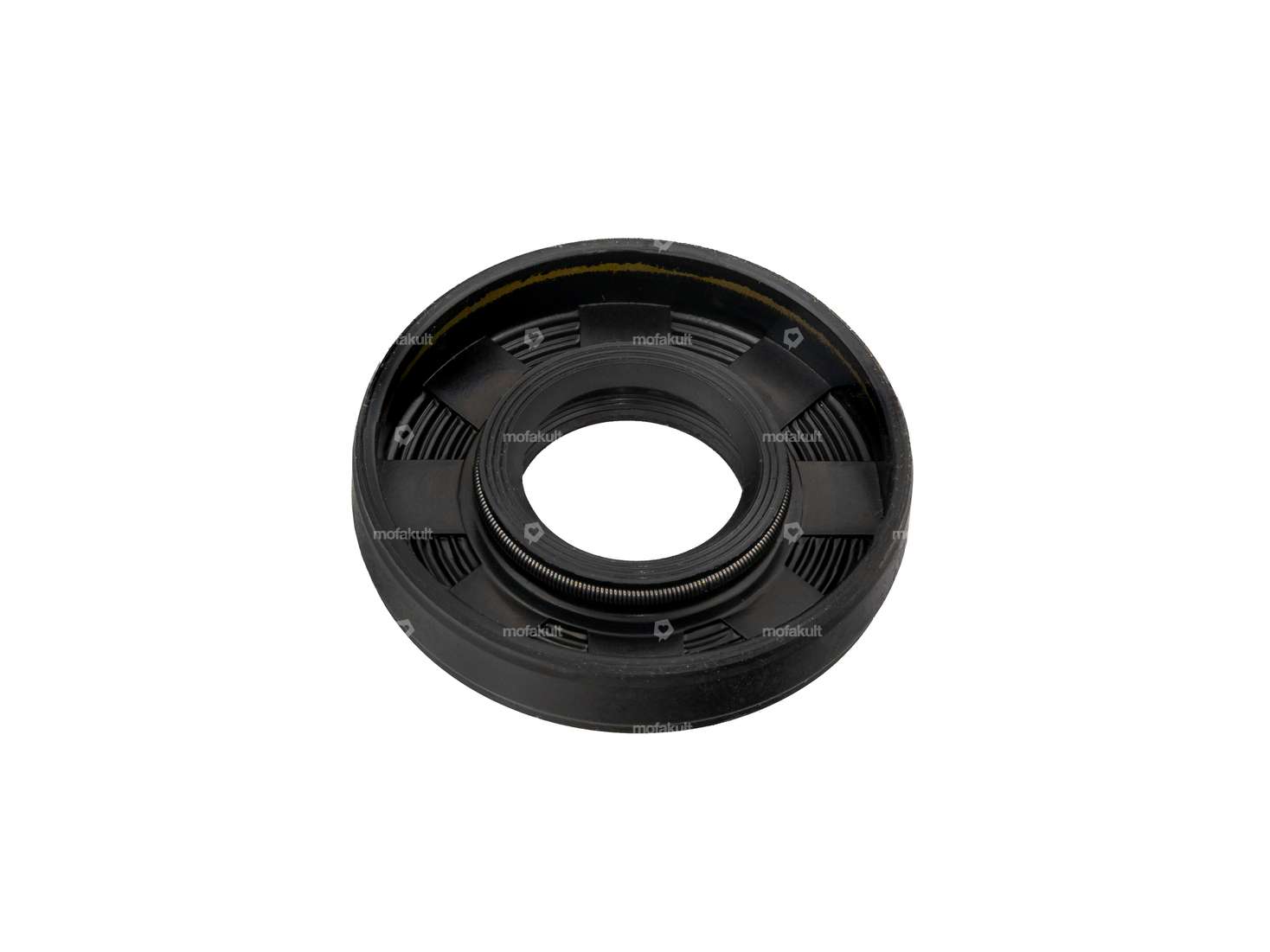

Shaft seal ring 15x35x7 mm for use on the crankshaft of your Sachs 504 (manual and automatic) and Sachs 535 moped / moped
This radial shaft seal ring is temperature-resistant up to 100°C.
Ø inner: 15 mm
Ø outer: 35 mm
Width: 7 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer casing, one sealing lip and one dust lip.
Original Sachs spare part number: A4214
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Ø outside | 35 mm |
| Manufacturer | Sachs |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 15 mm |
| Width | 7 mm |
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 100 °C |
Suitable for the following models
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
| Hercules | Prima - 2, 3, 4, 5, Optima |
