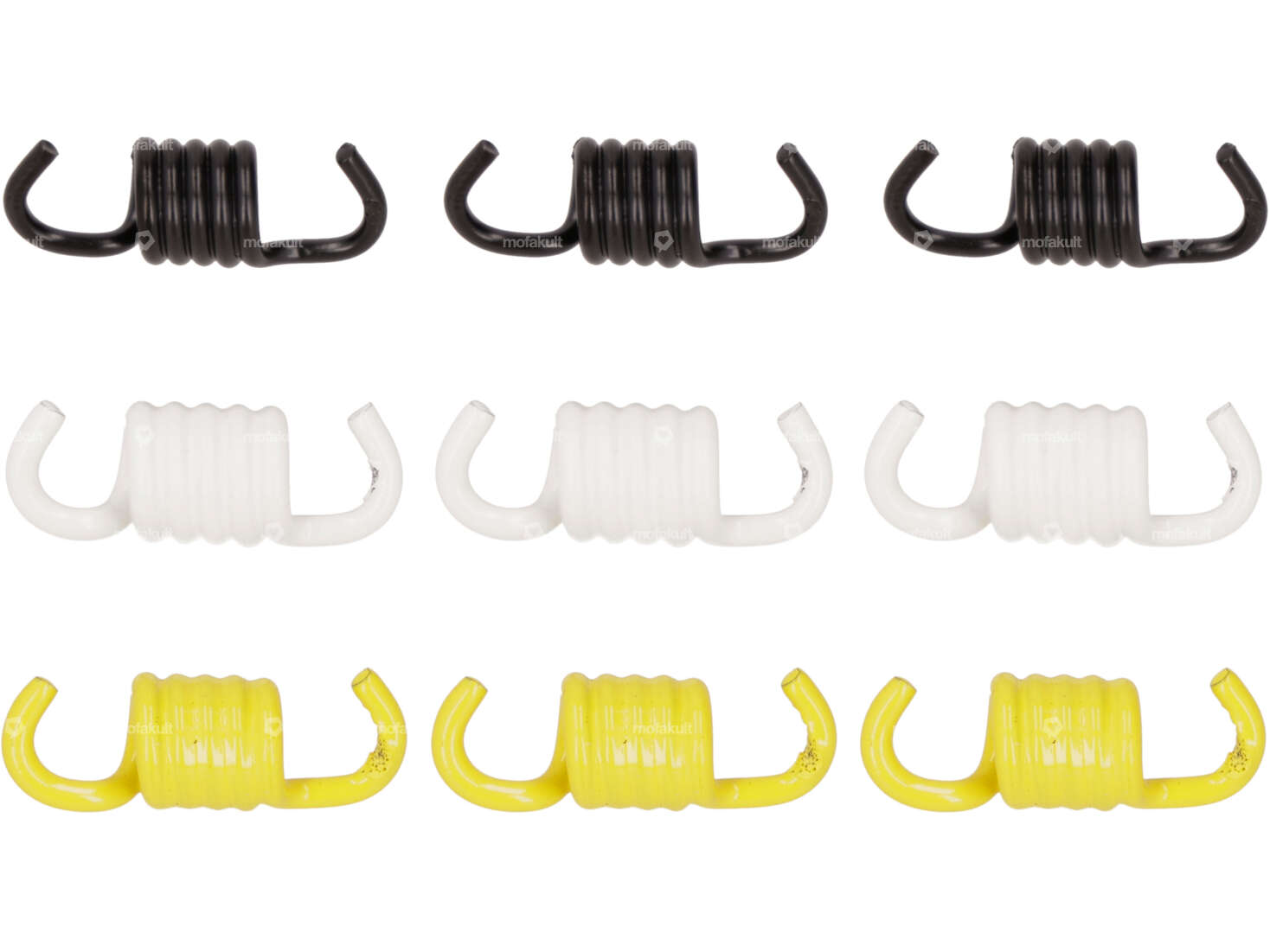

Set with different clutch springs for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with mono drive and Malossi clutch linings.
Yellow: For lightly tuned engines - clutch engagement speed approx. 4000 rpm
Black: For heavily tuned engines - clutch engagement speed approx. 5000 rpm
White: For very heavily tuned engines - clutch engagement speed approx. 6000 rpm
(original: approx. 2500 - 3000 rpm)
Length of all springs: 26 mm
Wire thickness yellow: 1.7 mm
Wire thickness black: 1.9 mm
Wire thickness white: 2 mm
(Original: 1.5 mm)
We recommend breaking the color before using the springs. To do this, either hang a heavy weight on the springs or pull them apart with two pairs of pliers so that the coils are exposed.
You can find more clutch parts for your Piaggio moped / moped in the accessories section.
Quality product from the Italian manufacturer Malossi.
Details
| Spring design | Tension spring |
| Total length | 26 mm |
| Ø wire | 1.7 mm, 1.9 mm, 2 mm |
| Manufacturer | Malossi |
| Material | Spring steel |
| Surface | varnished |
| Area of application | Tuning |
| Color | yellow, black, white |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
