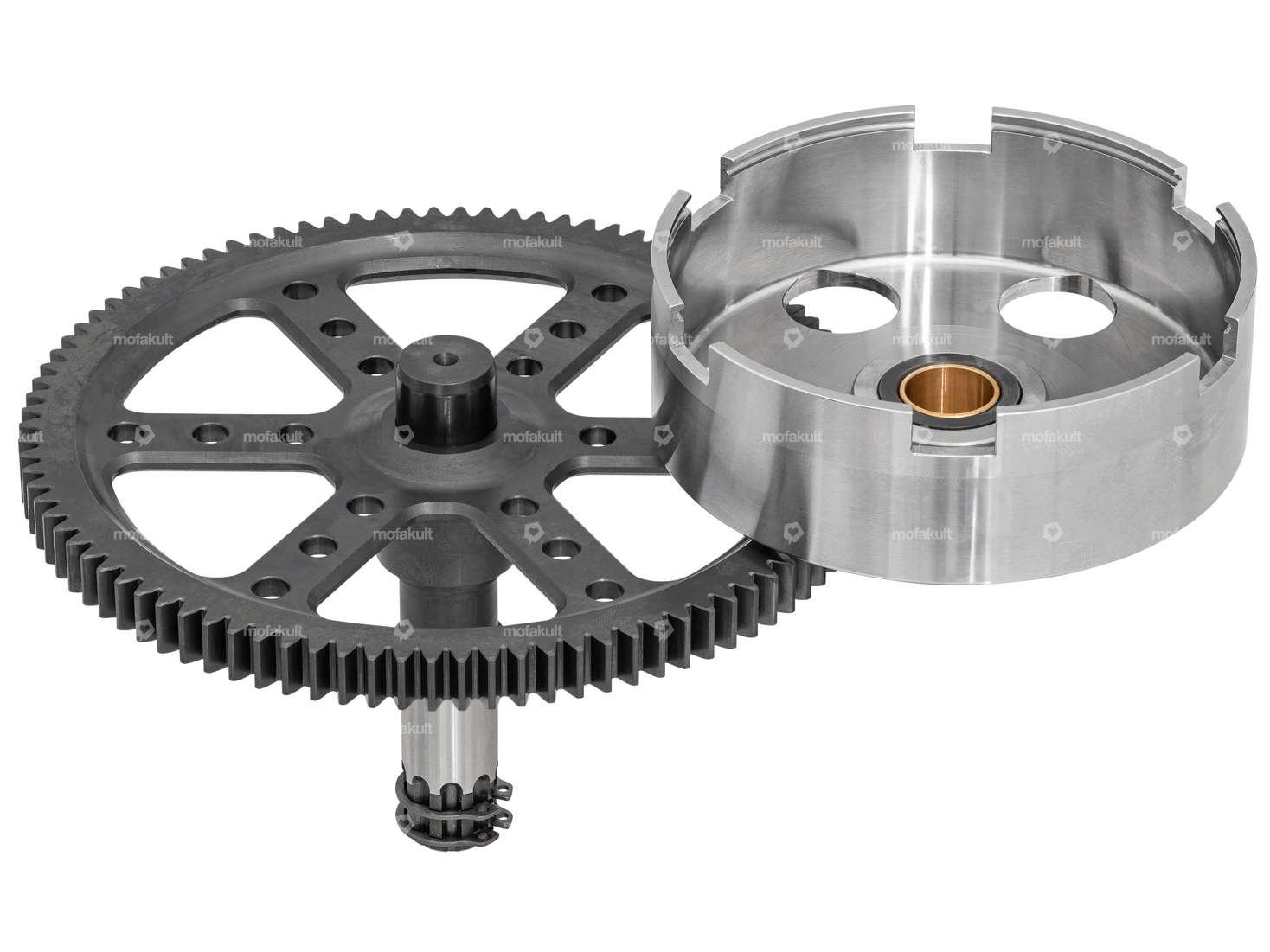

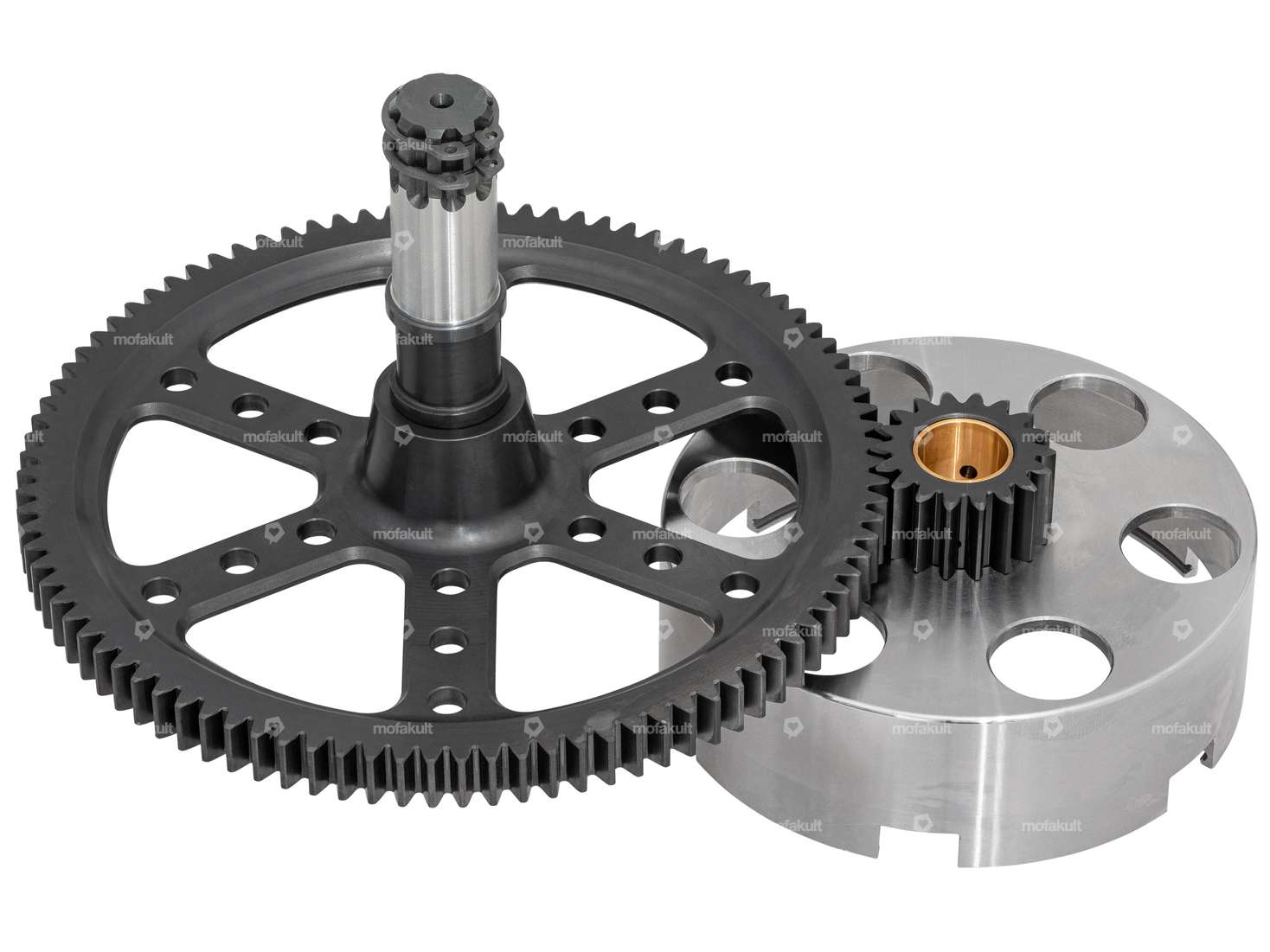

Racing set consisting of a clutch basket and a spur gear.
Reinforced, CNC-milled parts specially developed for racing purposes. Designed for the highest loads.
Fits E50 engines of all Puch Maxi mopeds.
The original clutch and starter clutch can be used with this basket.
Shorter gear ratio. (18:94 teeth, instead of the original 19:96 teeth)
Clutch basket:
- Reinforced press fit. No more welding points required.
- The special sliding bush is included in the scope of delivery.
Spur gear:
- Spur gear, made from high-quality, hardened material.
- Perfectly balanced for smooth running even at high speeds.
- Lightweight construction: 70 grams lighter than the original gear wheel
The set includes the following fixed parts:
Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 94 pcs · Recording type: Interlocking · Ø outside: 145 mm · Ø axle: 17 mm
Manufacturer: MBR · Material: Steel · Recording type: Interlocking · Toothing type: straight toothed · Number of teeth: 18 pcs · Ø Receptacle: 31 mm · Ø inside: 15 mm, 17 mm · Ø outside: 99.5 mm · Height: 49 mm · Area of application: Tuning
Details
| Manufacturer | MBR |
| Area of application | Tuning |
| Toothing type | straight toothed |
| Number of teeth | 18 pcs, 94 pcs |
Suitable for the following models
| Puch | E50 |
