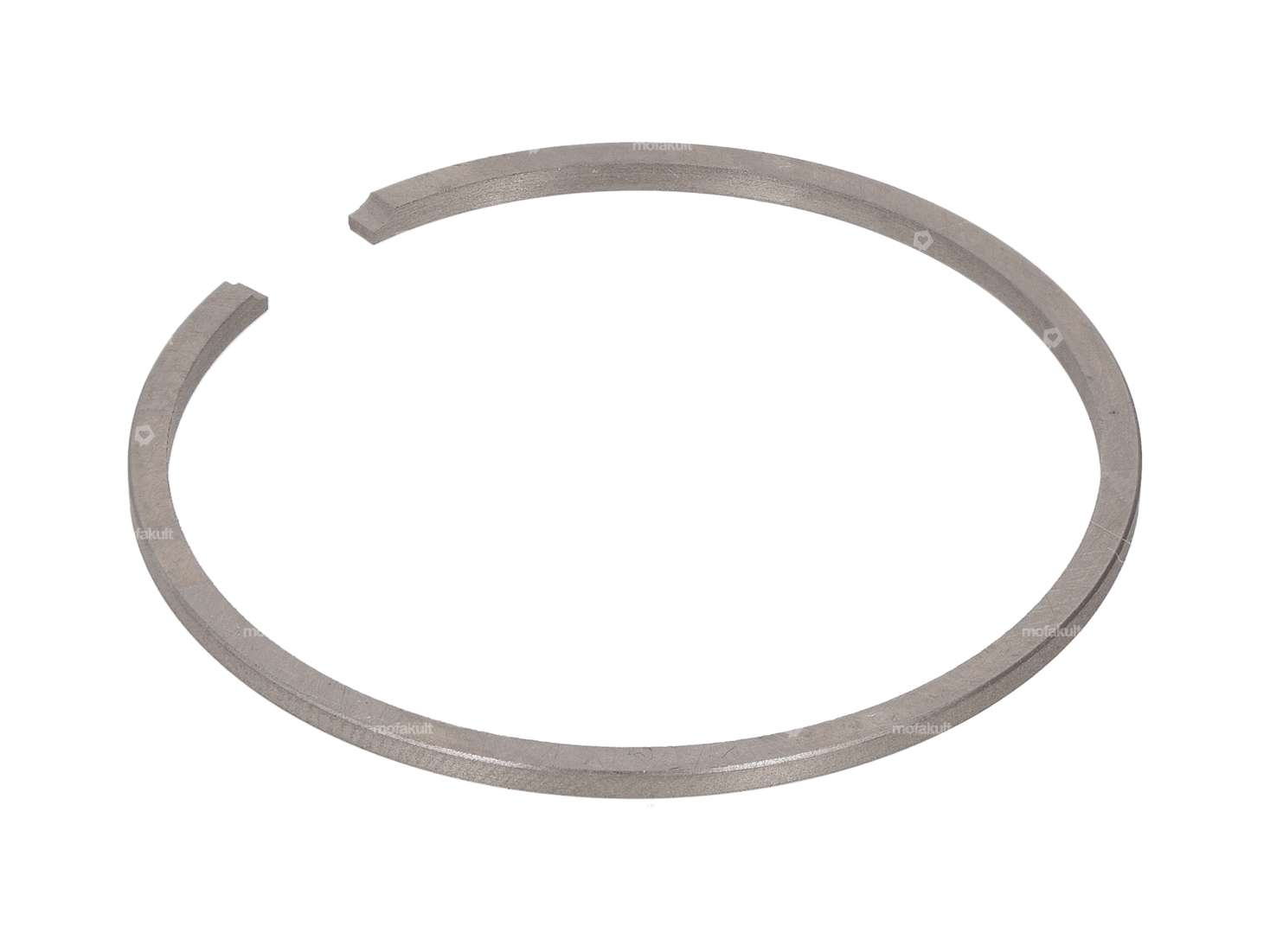

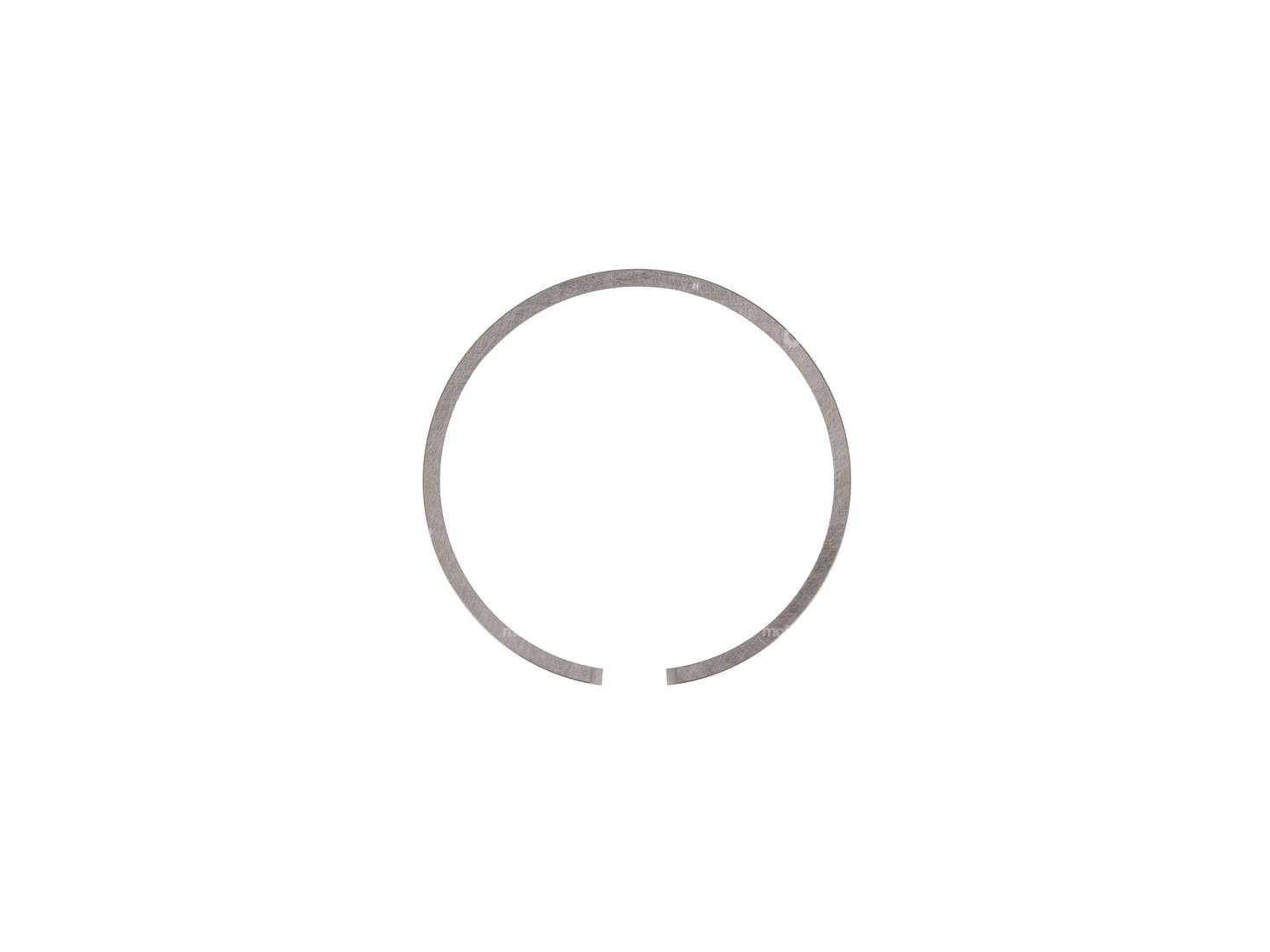

Universal 40.2 x 1.5 mm rectangular piston ring with flank lock (FS), suitable for various pistons on mopeds, mopeds and small motorcycles.

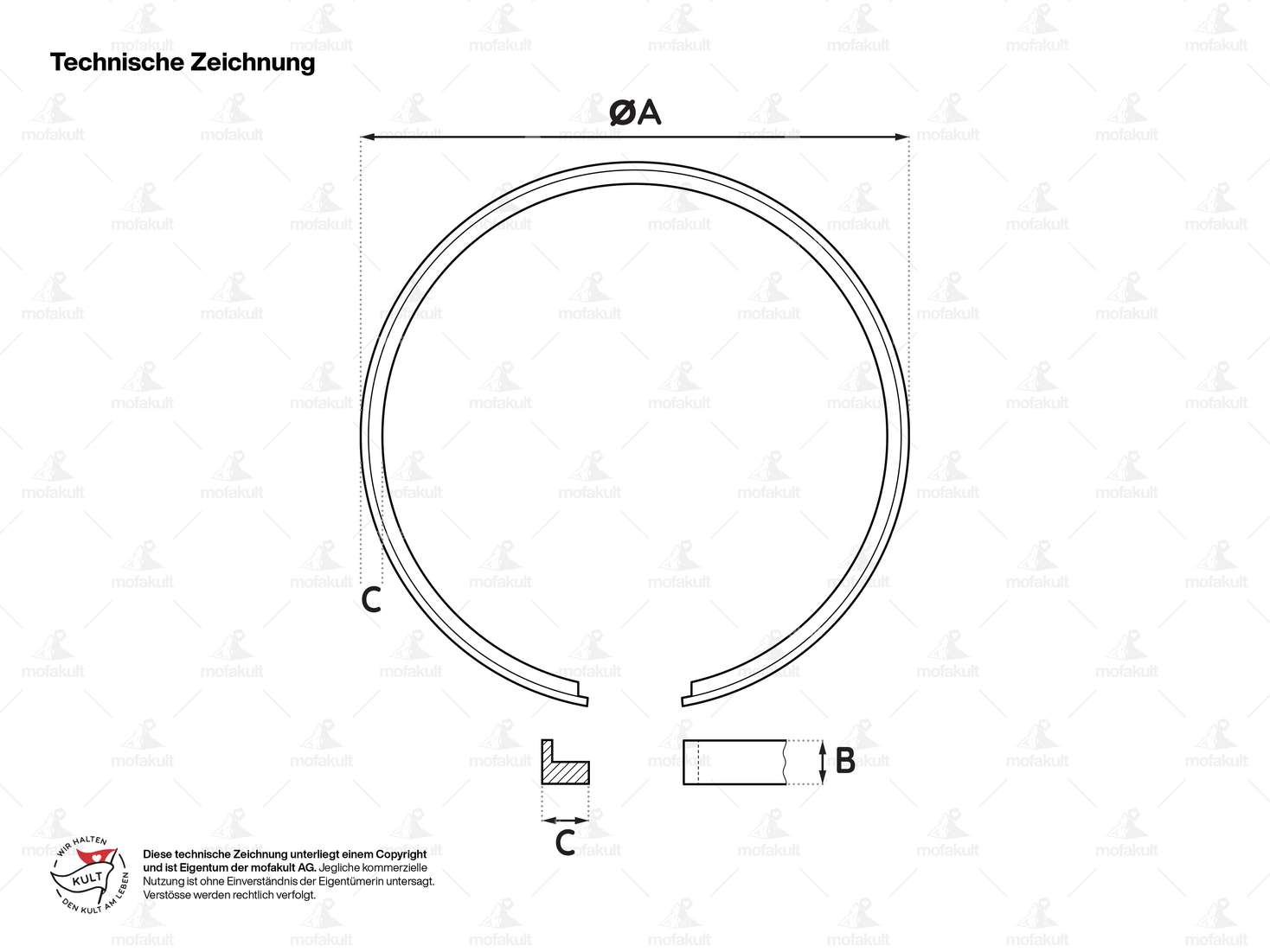

The detailed dimensions of the piston ring according to the technical drawing can be found in the details. You can also find out about the common piston rings, their dimensions and locking types on the legend in the images.
Rectangular ring dimensions:
Ø outer (ØA): 40.2 mm
Height (B): 1.5 mm
Thickness (C): 1.65 mm
Piston ring shape: Rectangular ring
Piston ring joint: Flank lock (FS)
Price per piece.
You can find more compression rings and corresponding mounting material in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 40.2 mm |
| Manufacturer | Meteor |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Thick piston ring | 1.65 mm |
| Area of application | Tuning |
| Height | 1.5 mm |
Suitable for the following models
| Universal | |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
Accessories & related products
Meteor piston KAT 38.2 - 40.2 mm (10 mm KoBo) | Piaggio Ciao, SI
Manufacturer: Meteor · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Nominal diameter: 39.8 mm · Nominal diameter: 40 mm · Nominal diameter: 40.2 mm · Ø outside piston (A): 38.2 mm · Ø outside piston (A): 38.4 mm · Ø outside piston (A): 38.6 mm · Ø outside piston (A): 38.8 mm · Ø outside piston (A): 39 mm · Ø outside piston (A): 39.2 mm · Ø outside piston (A): 39.4 mm · Ø outside piston (A): 39.6 mm · Ø outside piston (A): 39.8 mm · Ø outside piston (A): 40 mm · Ø outside piston (A): 40.2 mm · Ø piston pin (B): 10 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)
69,20 EUR

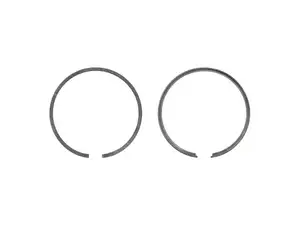

Meteor piston rings 38.2 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Meteor · Nominal diameter: 38.2 mm · Thick piston ring: 1.6 mm · Thick piston ring: 1.75 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Height: 2 mm
19,40 EUR

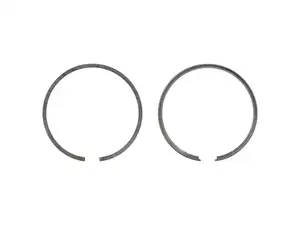

Meteor piston rings 40 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer
