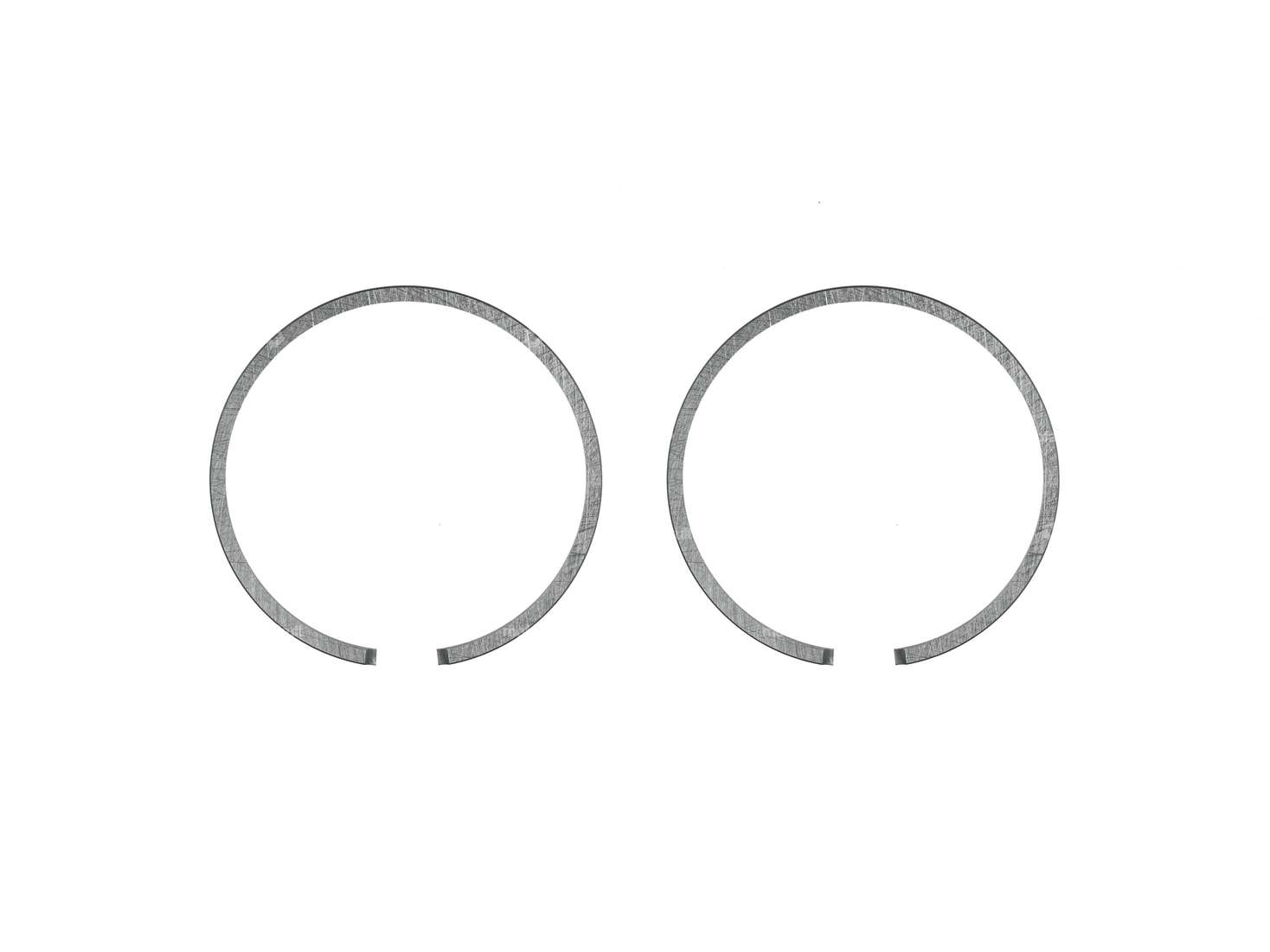

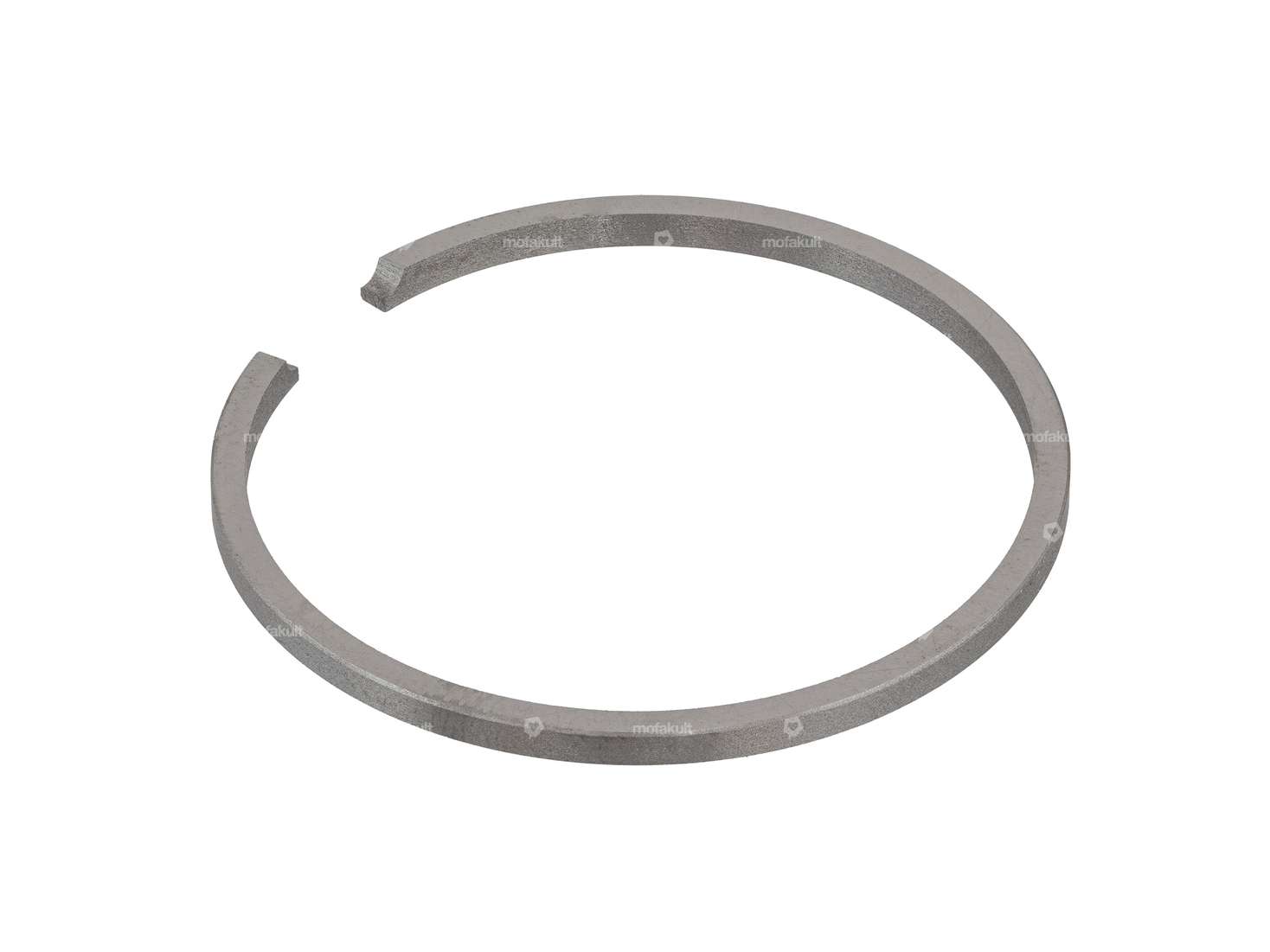

One set of compression rings consisting of two 39.0 x 2.0 mm rectangular rings, suitable for various Puch engines with Meteor pistons such as Puch X30 NG, Velux, etc.
Dimension rectangular ring:
Diameter: 39.00 mm
Height: 2.00 mm
Thickness: 1.60 mm

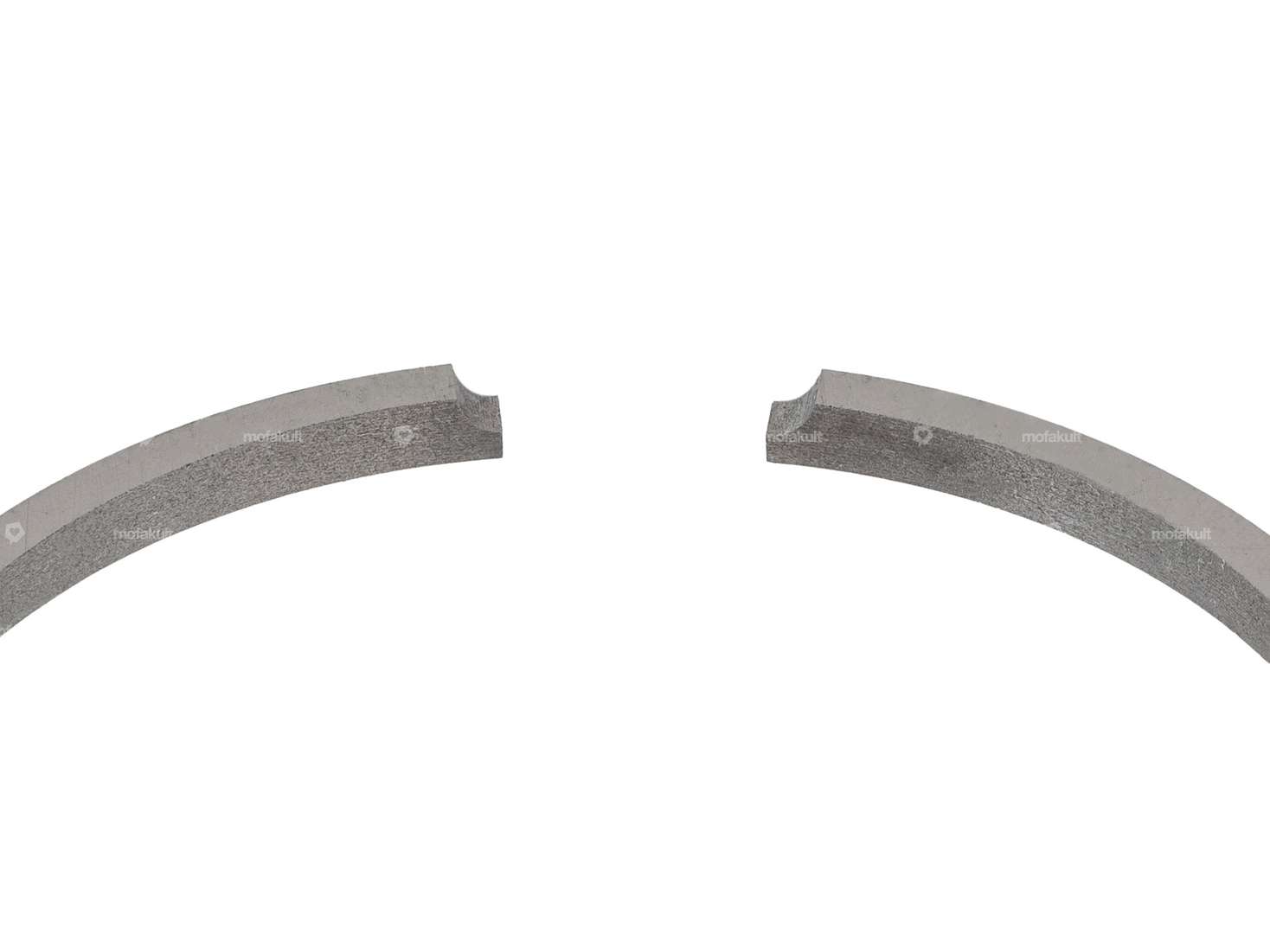

Piston ring joint: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Details
| Manufacturer | Meteor |
| Thick piston ring | 1.6 mm |
| Nominal diameter | 39 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Height | 2 mm |
Suitable for the following models
| Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
