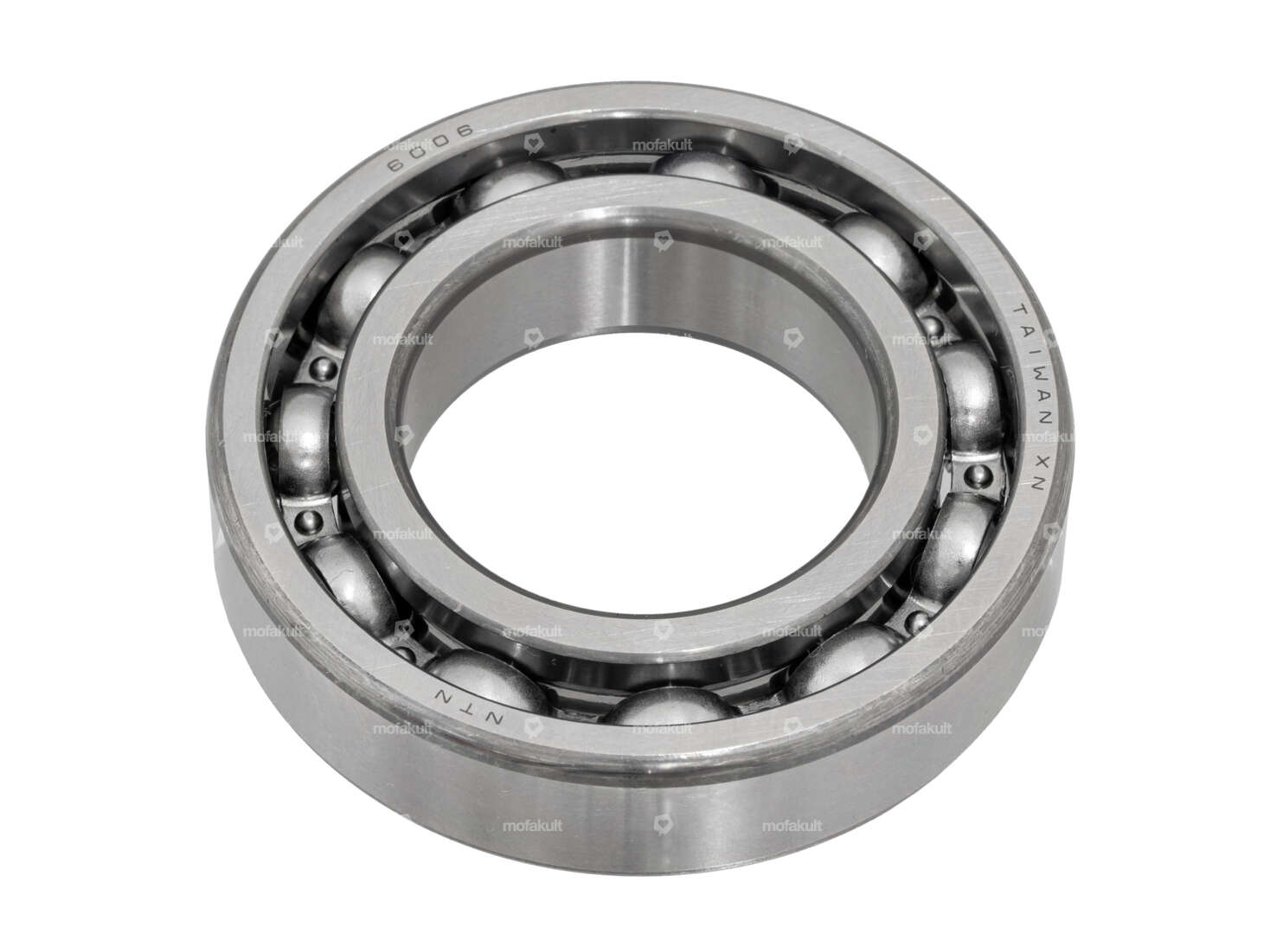

NTN 6006 ball bearing 30/55/13 pinion shaft | Tomos

Oil seal NBR 35/47/7 AS Pinion shaft | Tomos

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 35 mm · Ø outside: 47 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos spare part no.: 036620

Spacer sleeve behind pinion Tomos

Ø inside: 30.25 mm · Nominal diameter inside: 30 mm · Ø outside: 34.8 mm · Manufacturer: Tomos · Total length: 11 mm · Tomos spare part no.: 209077

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

NSK 6201 ball bearing 12/32/10

Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Ø inside: 12 mm · Ø outside: 32 mm · Ball bearing closed: No

NTN 608 Ball bearing 8/22/7

Bearing type: Deep groove ball bearing · Stock number: 608 · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 8 mm · Ø outside: 22 mm · Width: 7 mm

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 47 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Decompressor: No · Outlet type: slanted · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm

GPO Simmerring set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Width: 7 mm · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm

NTN bearings & oil seals engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

Engine gasket set | Tomos A35

Number of components: 6 pcs · Area of application: Standard

NSK 6000 ball bearing 10/26/8

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Ø inside: 10 mm · Ø outside: 26 mm · Stock number: 6000 · Width: 8 mm

NSK 6201 ball bearing 12/32/10 gearbox | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6201 · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm · Manufacturer: NSK · Tomos spare part no.: 035072

NSK 6000 ball bearing 10/26/10 gearbox | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6000 · Ø inside: 10 mm · Ø outside: 26 mm · Width: 8 mm · Manufacturer: NSK · Tomos spare part no.: 035031
