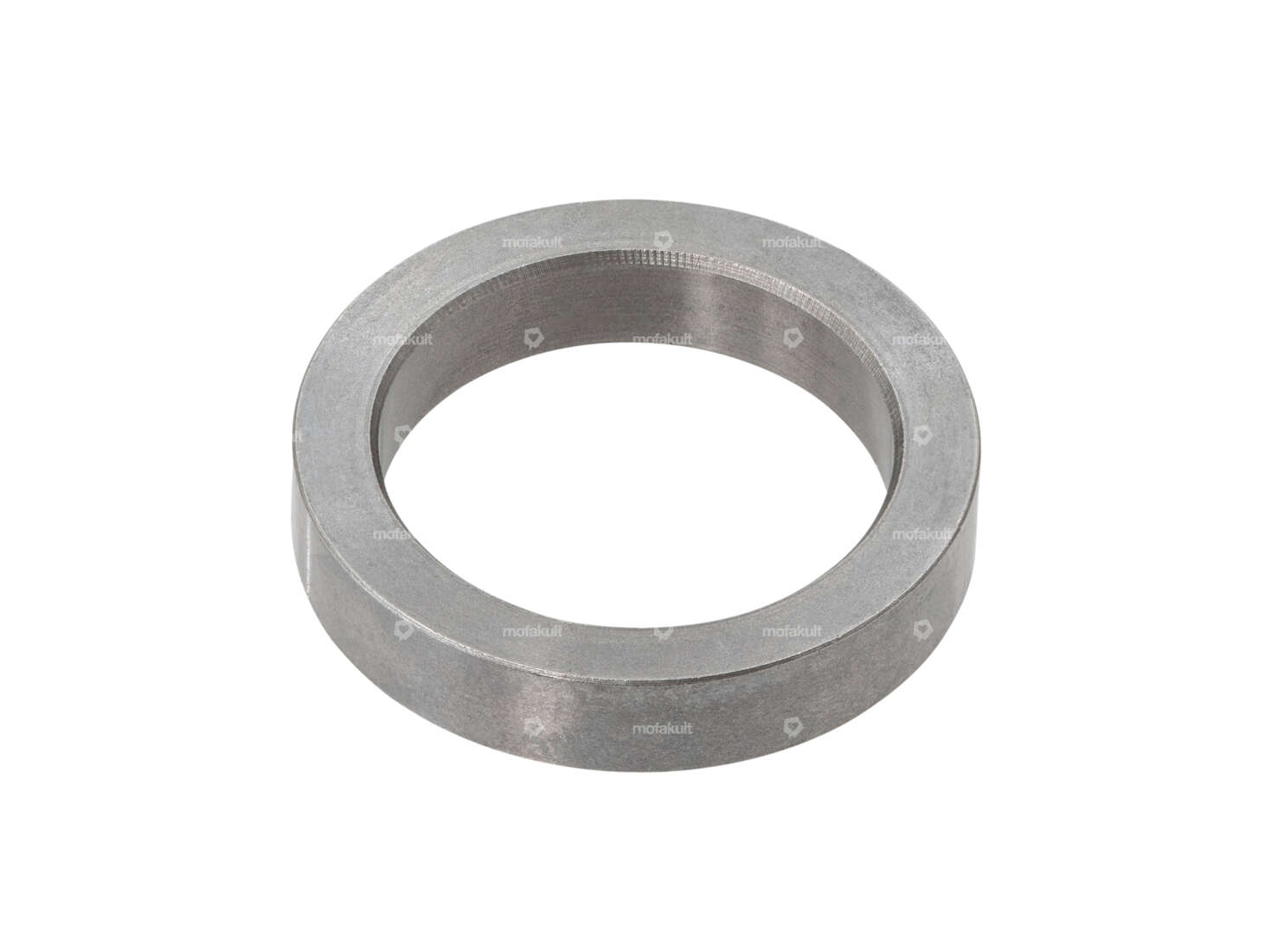

Bearing ring with the dimensions 31.5x23.5x6 mm for the roller bearing on the 15.5 mm pinion shaft of the following Sachs engines:
- 50/2 with diaphragm (not for slotted engines)
- 50/3
- 50/4
- 502 Saxonette (not for slotted engines)
- 503 AB / AC / ADV / ABL / AAL / 2AL / 2BL
Mass of the bearing race:
Ø inside: 23.5 mm
Ø outer: 31.5 mm
Thickness: 6 mm
Original Sachs spare part number: A1157
Details
| Material | Steel |
| Surface | hardened & ground |
| Width | 6 mm |
| Ø outside | 31.5 mm |
| Ø inside | 23.5 mm |
| Pony spare part no. | A1157 |
| Sachs spare part no. | 0232 049 000 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
