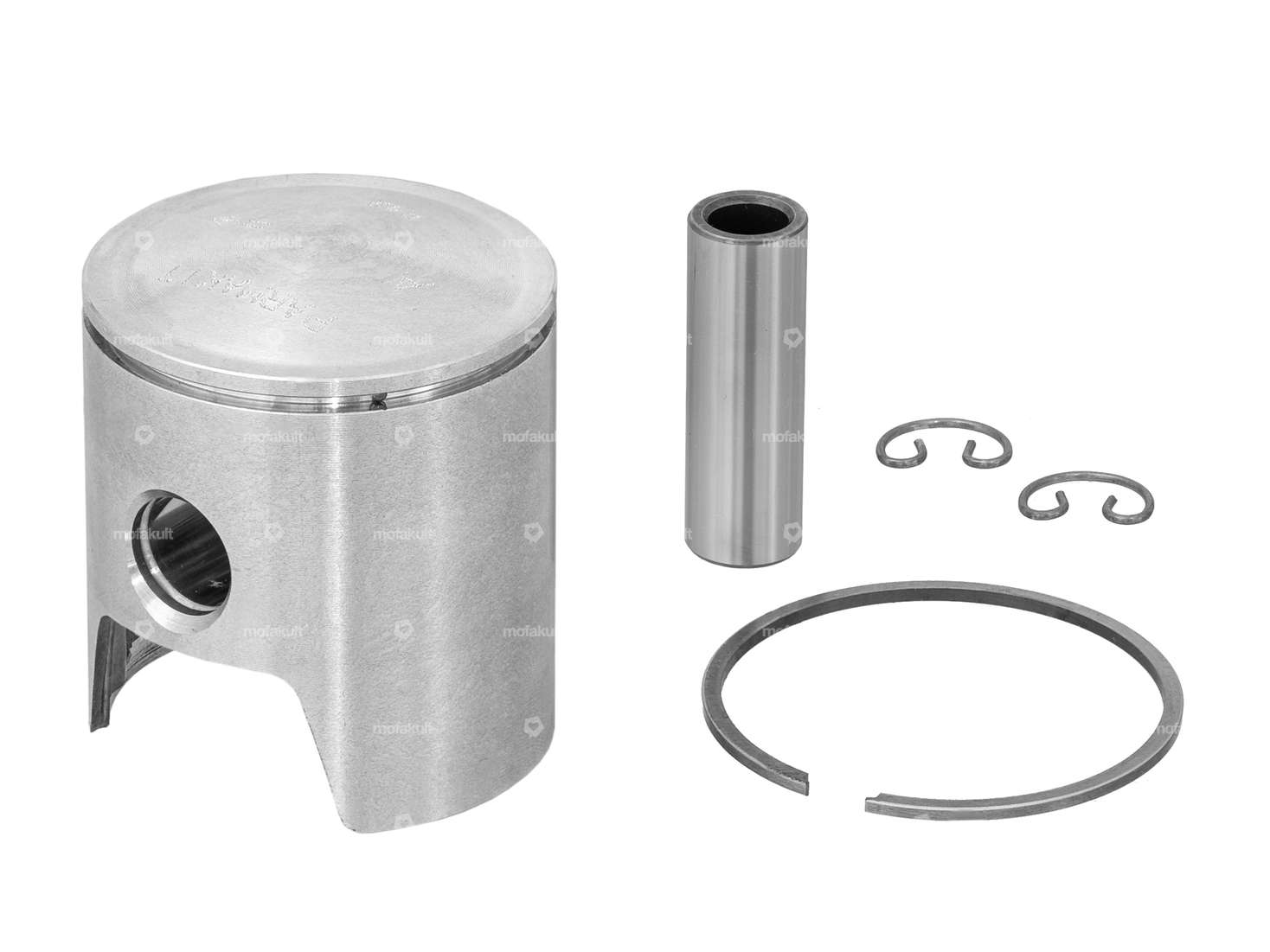

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.
Tolerance type: A
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Product of the Italian manufacturer Parmakit.
Details
| Nominal diameter | 45 mm |
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.93 mm |
| Compression height (C) | 21.5 mm |
| Curvature (D) | 3.83 mm |
| Total piston height (E) | 52.3 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
GPO 45 mm cylinder head tuning Puch Maxi S, N / X30 NS, NL, N-2AH
Height: 55 mm · Width: 125 mm · Total length: 135 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Ø cylinder: 45 mm · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No · Hole pattern [mm]: 44 x 44
36,90 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs
22,20 EUR
Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch
Nominal diameter: 45 mm · Manufacturer: Parmakit · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44
268,10 EUR
Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
Manufacturer: Parmakit · Camouflaged: No · Area of application: Tuning · Material: Cast aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Number of fixing points: 4 pcs · Inlet window: 23.7 x 15 · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 26.5 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Hole spacing inlet: 38 mm
234,60 EUR
Parmakit piston 45 mm #C | Puch
Nominal diameter: 45 mm · Manufacturer: Parmakit · Ø outside piston (A): 44.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: C
82,60 EUR
Parmakit piston 45 mm #B | Puch
Nominal diameter: 45 mm · Manufacturer: Parmakit · Ø outside piston (A): 44.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B
82,60 EUR
