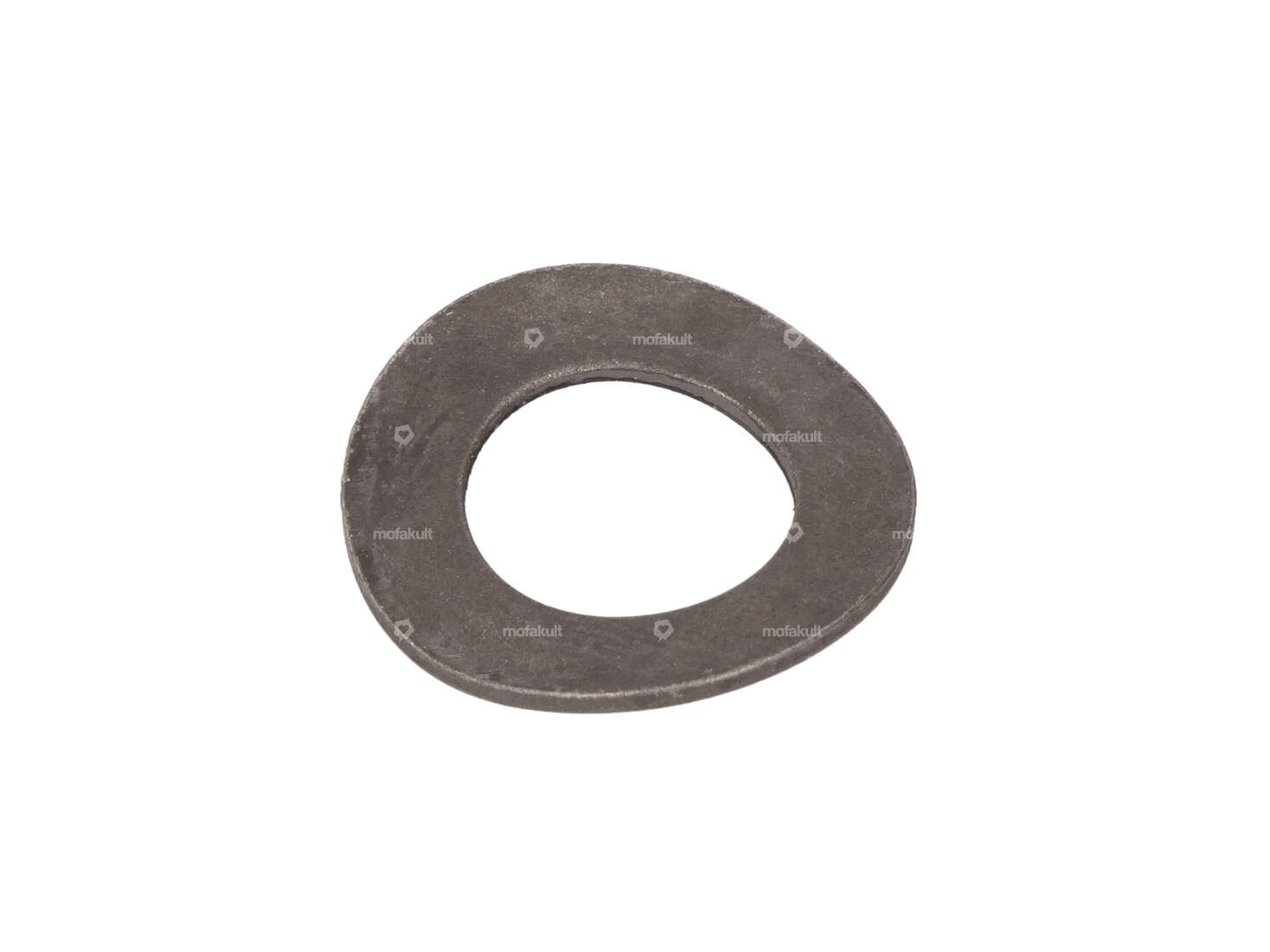

B12 corrugated washer / cooled spring washer 17.2x29.5x1.6 made of black tempered spring steel for the countershaft above the fixed gear on your moped, moped and small motorcycle with Sachs 503, 50/2, 50/3, 50/4 engine.
Price per piece.
You can find more parts for the gearbox shaft in the accessories section.
Original Pony spare part number: A3746
The set includes the following fixed parts:
Details
| Material | Steel |
| Surface | blank |
| Ø inside | 13 mm |
| Ø outside | 24 mm |
| Height | 1.2 mm |
| Pony spare part no. | A3746 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - 2AL / 2BL |
