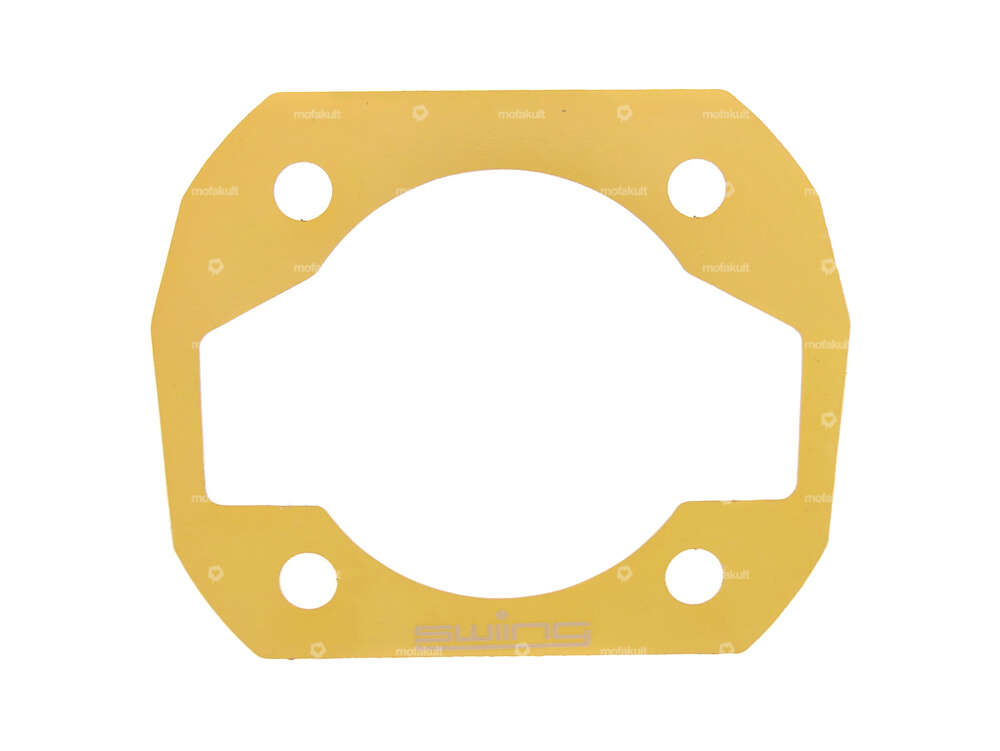

Aluminum stroke plate suitable for Puch Maxi S/N, Puch X30 NG-2AH, Puch X30 Sport NS/NL, as well as Puch X30 N-2A cylinders.
Gasket with large overrun channels for racing cylinders up to Ø 45 mm.
Material thickness: 0.5 mm
Material: aluminium, gold anodized
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Place of use | Cylinder base |
| Material | Aluminum |
| Surface | anodized |
| Thickness | 0.5 mm |
| Ø cylinder | 45 mm |
| Area of application | Racing |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
