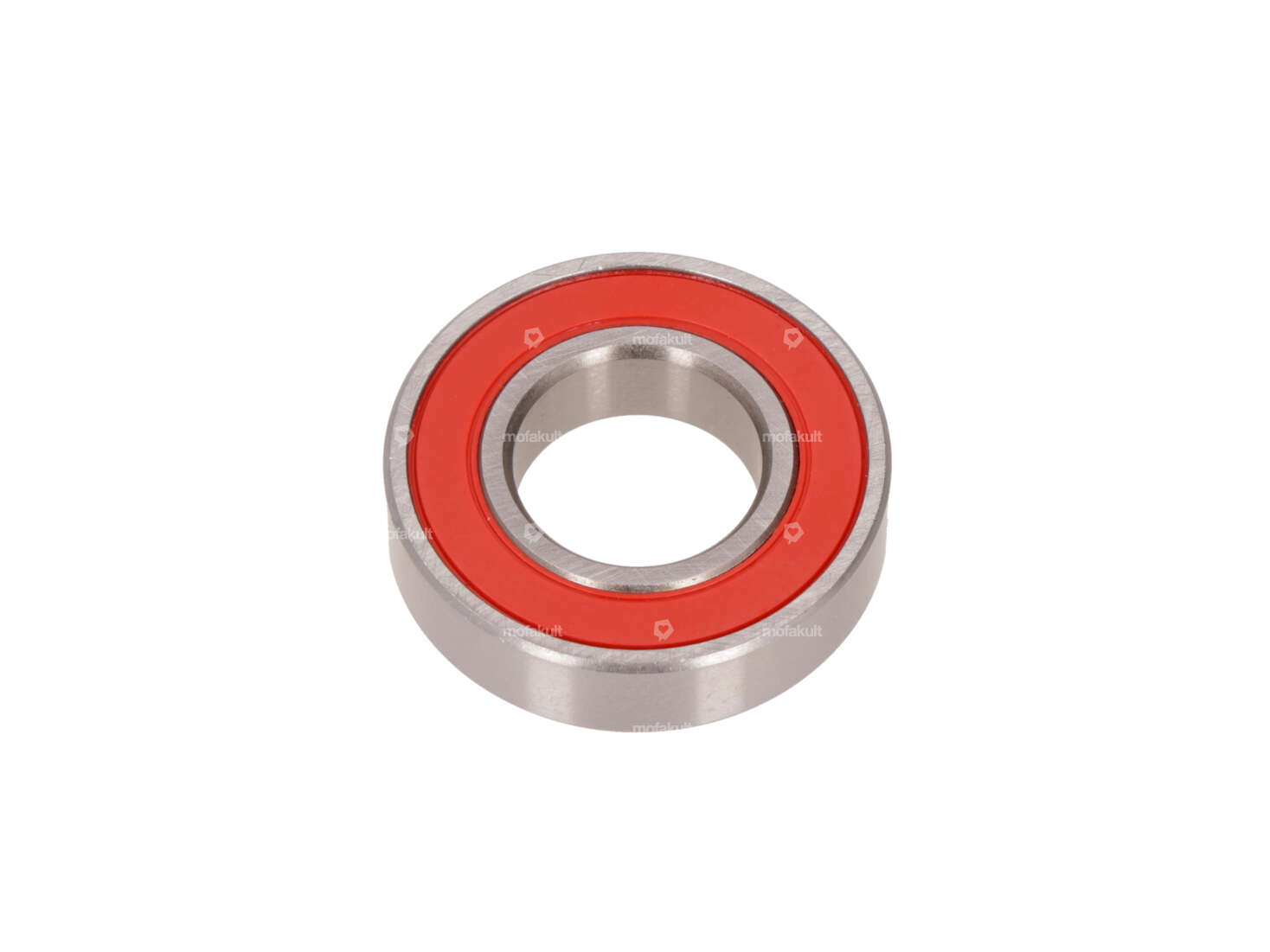

Special ball bearing 15.5x31.5x8 mm for the left side of the pinion shaft on your moped / moped with Sachs 502 AML (diaphragm), 50/2 ML, 50/3, 50/4 & 503 engine. Suitable on the right-hand side on 50/3 & 50/4 engines with splined gearbox.
The deep-groove ball bearing has a dust ring made of NBR on both sides.
This pinion shaft bearing replaces the roller race (bearing ring) A1157, the 6 x 4 mm cylindrical rollers A1145 and also the two thrust washers A1570 on the left-hand side (and on the right-hand side for 3- & 4-speed) of the main shaft in your Sachs gearbox.
Other form: 2RSH (two sheet steel reinforced NBR contact seals)
Bearing clearance: Standard
Ball bearings: Sheet steel ball bearing, ball-guided «-»
Installation instructions: Check the pinion shaft for scalloping or other damage before installation. First, the bearing should be shrunk into the housing. The shaft can then be inserted into the bearing without play and, if necessary, additionally secured with adhesive. The axial play of the shaft must be set to 0.1-0.2 mm.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Bearing type | Deep groove ball bearing |
| Bearing cage | Sheet steel cage |
| Manufacturer | swiing® ingenious parts |
| Dust protection type | 2RS1 - NBR contact seal on both sides |
| Material | Steel |
| Width | 8 mm |
| Ø inside | 15.5 mm |
| Ø outside | 31.5 mm |
| Ball bearing closed | Yes |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
Accessories & related products
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Ø inside: 14.96 mm · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Width: 3.5 mm · Ø outside: 31.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200
8,40 EUR
Loctite 638 High-strength adhesive 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Contents [ml]: 10 ml · Color: green · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m
24,50 EUR
2.450,00 EUR/l
swiing® revival pinion shaft | Sachs 503 2AL, 2BL (A1322)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Recording type: Ø15 x SW12 · Toothing type: straight toothed · Ø inside: 12.9 mm · Number of teeth: 4 pcs · Ø outside: 15.4 mm · Total length: 91.5 mm · Thread type: MF12x1 (fine pitch thread)
82,60 EUR

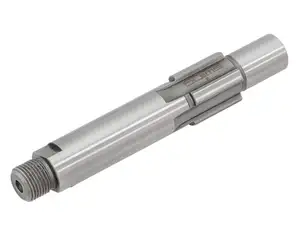

swiing® revival pinion shaft | Sachs 50/2 manual (A1291)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Recording type: Ø15 x SW12 · Toothing type: straight toothed · Ø inside: 13 mm · Number of teeth: 4 pcs · Ø outside: 15.4 mm · Total length: 102.6 mm · Thread type: MF12x1 (fine pitch thread) · Pony spare part no.: A1291 · Sachs spare part no.: 0237 014 002
86,50 EUR
swiing® revival thrust washer 16.6/31.2/1 pinion shaft | Sachs 502, 50/2, 50/3, 50/4, 503 (A1570)
Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1 mm · Ø outside: 31.2 mm · Ø inside: 16.6 mm · Pony spare part no.: A1570 · Sachs spare part no.: 0244 078 000
13,30 EUR
swiing® ingenious ball bearing pinion shaft 13/28/8 | Sachs 502, 50/2, 503
Bearing cage: Sheet steel cage · Ø inside: 13 mm · Manufacturer: swiing® ingenious parts · Dust protection type: 2RS1 - NBR contact seal on both sides · Bearing clearance: CN (standard) · Material: Steel · Bearing type: Deep groove ball bearing · Width: 8 mm · Ø outside: 28 mm · Ball bearing closed: Yes
29,00 EUR
