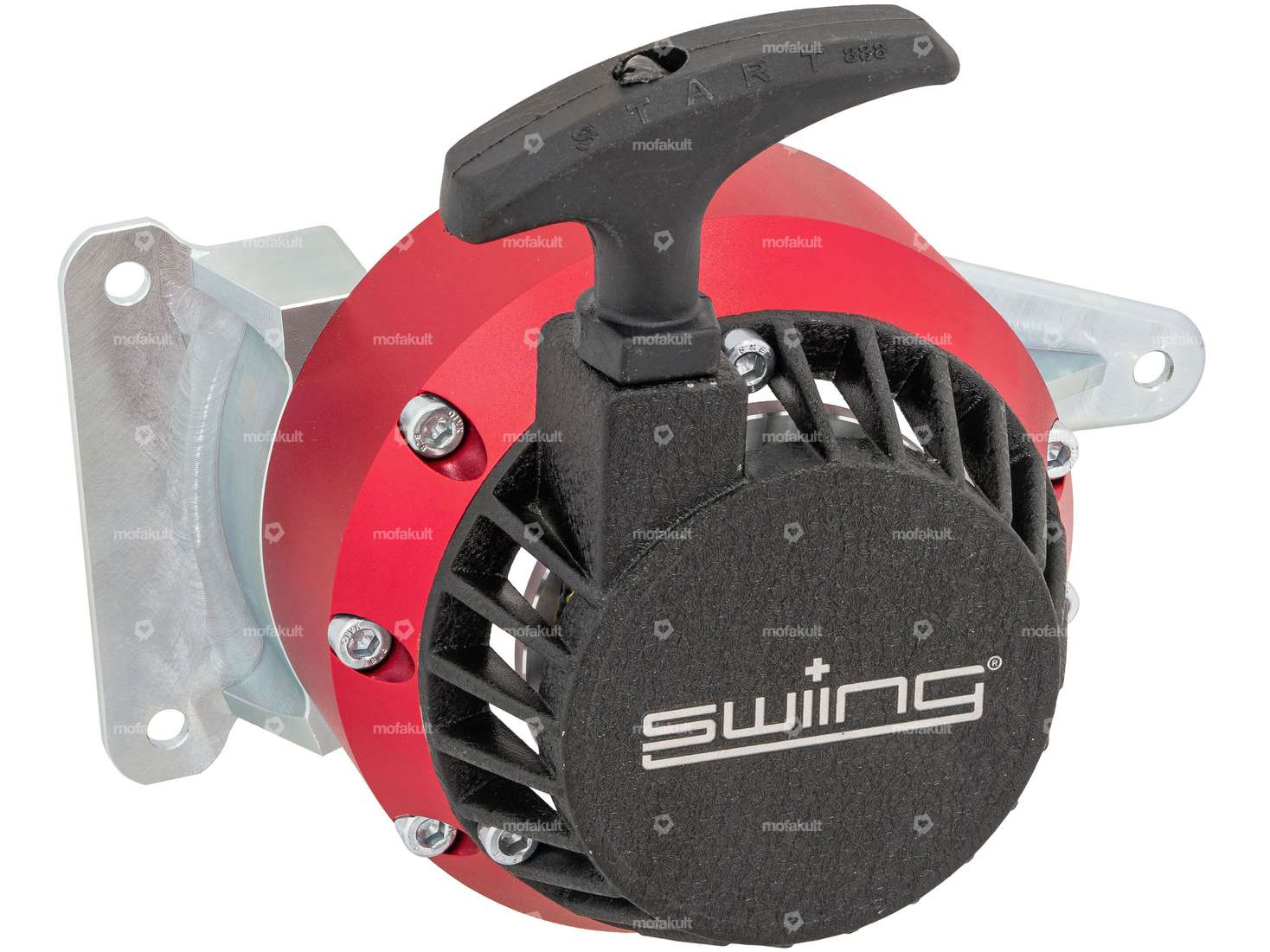

Ready-to-install cable starter for all Piaggio Ciao moped / moped models with mono and variomatic drive.
The Swiss-made pull starter is designed for the highest loads and has proven itself in racing.
Assembly:
1. Starter pinion: Clean the mounting surfaces, then screw the counterpart for the pull starter onto the clutch or Variomat (secure the enclosed flange nut with Loctite).

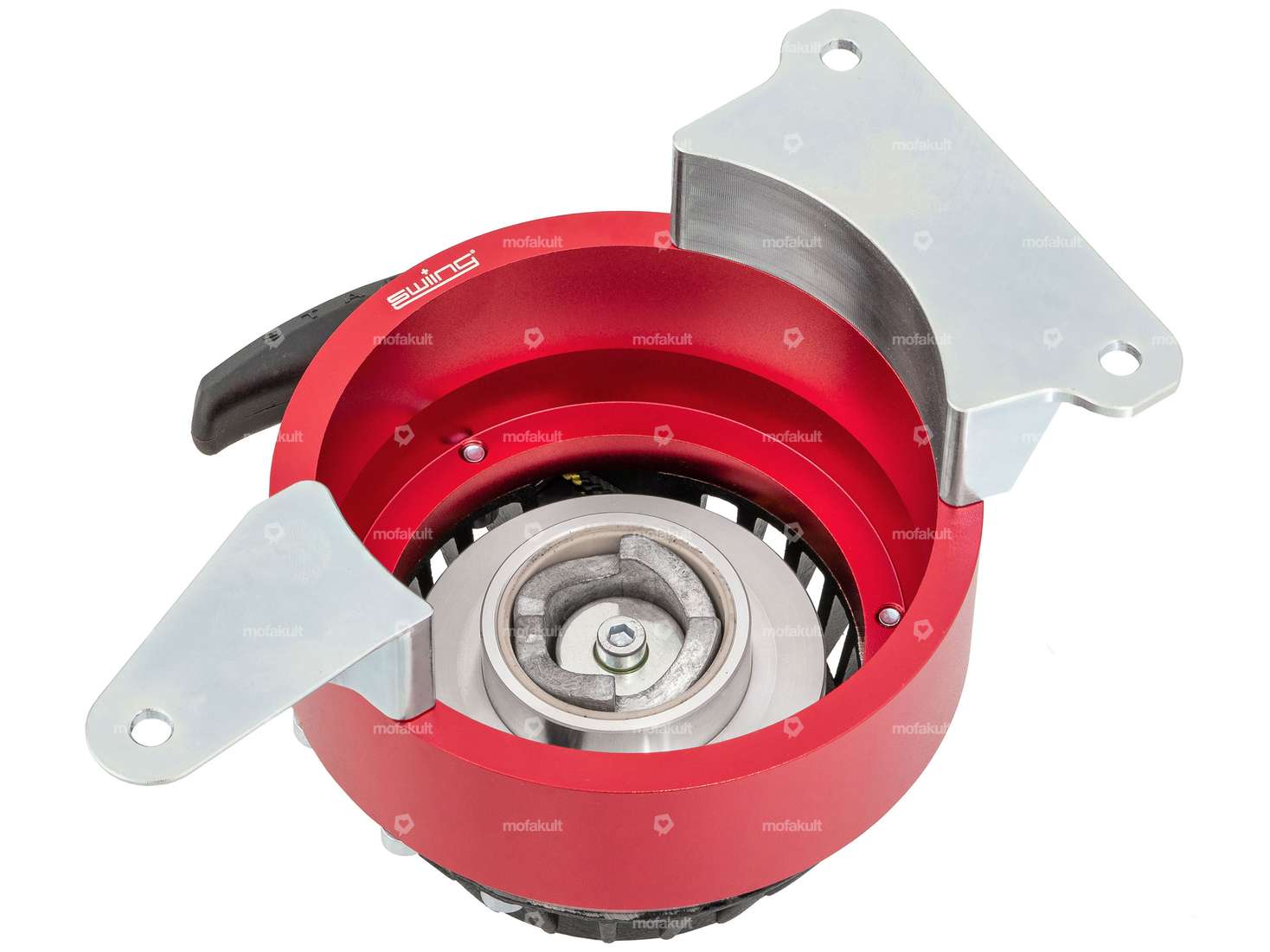

2. Pull starter: Lightly fasten the housing adapter using the engine screws. Then fit the round housing with the pull-wire starter unit and secure with the enclosed M5 x 45 mm screws. Finally, tighten the engine screws.
Application:
1. Before starting, pull the cable slowly a few times so that the engine turns over empty (must be done before each start attempt).
2. Pull out the cable starter handle until it engages fully and meets with resistance. Then pull through in one go.
Tip: Wear gloves! Hold the handle firmly.
Note: The pedal mechanism can no longer be operated as the pedal arms would come into contact with the housing of the pull starter. Therefore, footrests or a pedal axle extension must be fitted.
Further helpful parts for the cable starter conversion such as Loctite, racing gloves, replacement cord etc. can be found in the accessories section. You can find them in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.

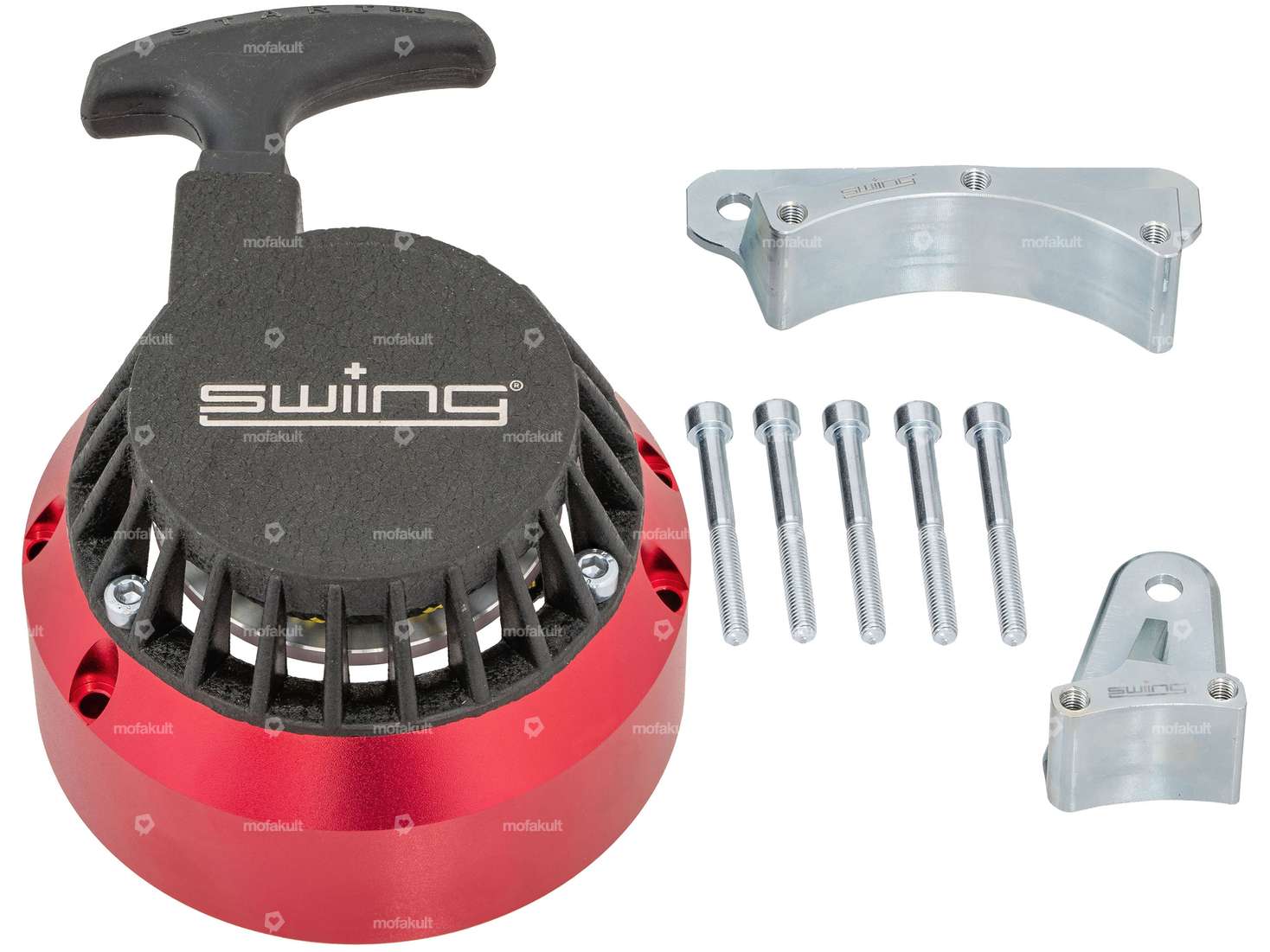

The set includes the following fixed parts:
Manufacturer: swiing® ingenious parts · Material: Steel, Aluminum, Plastic · Surface: anodized · Color: red, black, silver · Ø outside: 115 mm · Number of fixing points: 3 pcs · Hole spacing: 75 mm, 78 mm · Height: 103 mm · Total length: 160 mm · Width: 135 mm
Details
| Ø outside | 115 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel, Aluminum, Plastic |
| Surface | anodized |
| Color | red, black |
| Hole spacing | 75 mm, 78 mm |
| Number of fixing points | 3 pcs |
| Total length | 160 mm |
| Width | 135 mm |
| Height | 103 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
