swiing® ingenious digital ignition adjustment tool

Home
| Motor
| Engine block
| Tools & Lubricants
223,40 EUR

Incl. VAT, plus shipping costs

in stock

Only 4 pieces left.

With this Holex tool, you can determine the top dead center of the piston to an accuracy of 0.01 mm and thus set the ignition perfectly.
Universally applicable for Puch, Puch Maxi, Sachs, Piaggio Ciao & SI, Hercules, Pony, Tomos, Kreidler, Alpa, Zündapp mopeds, mopeds and small motorcycles.

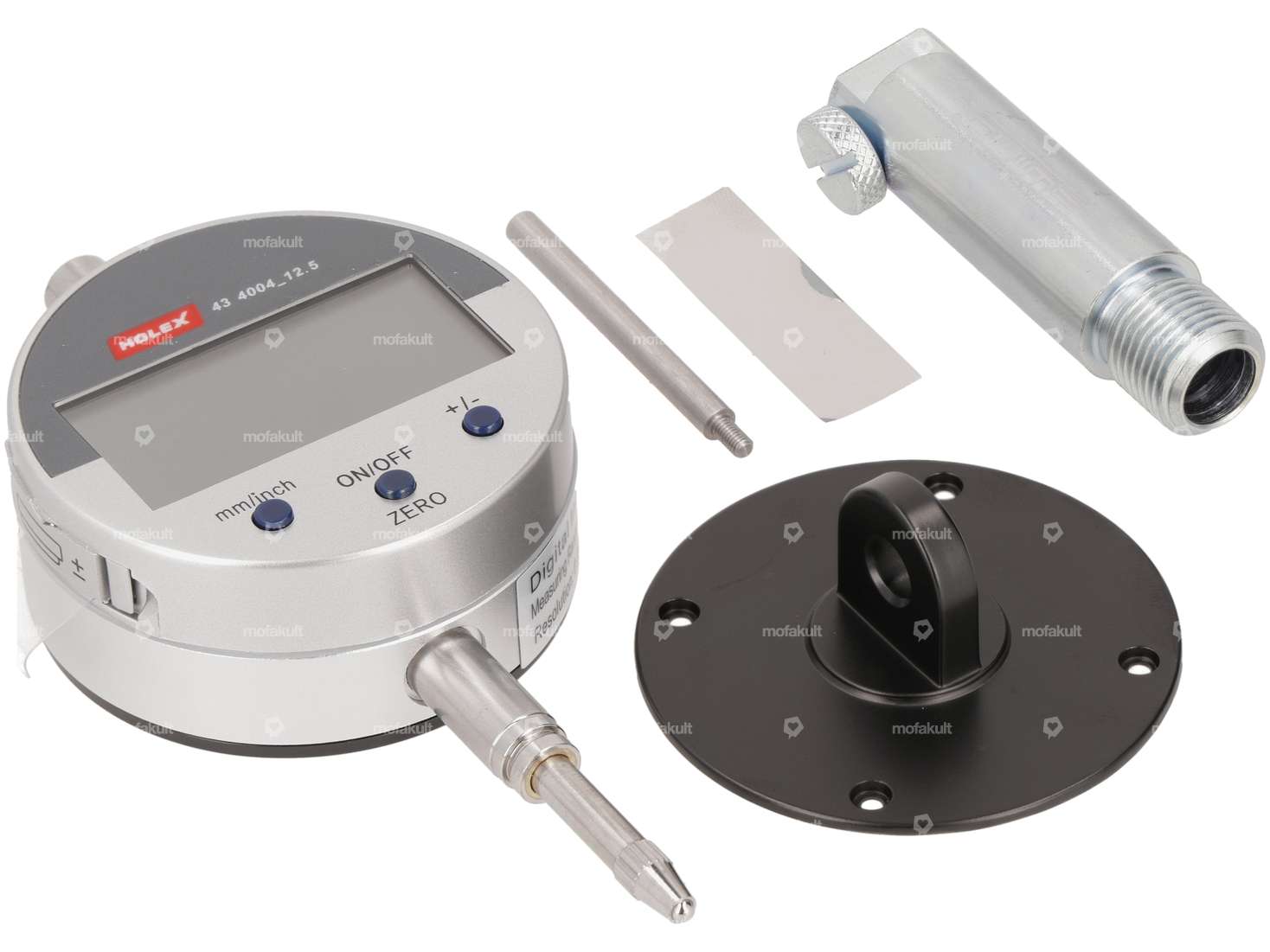

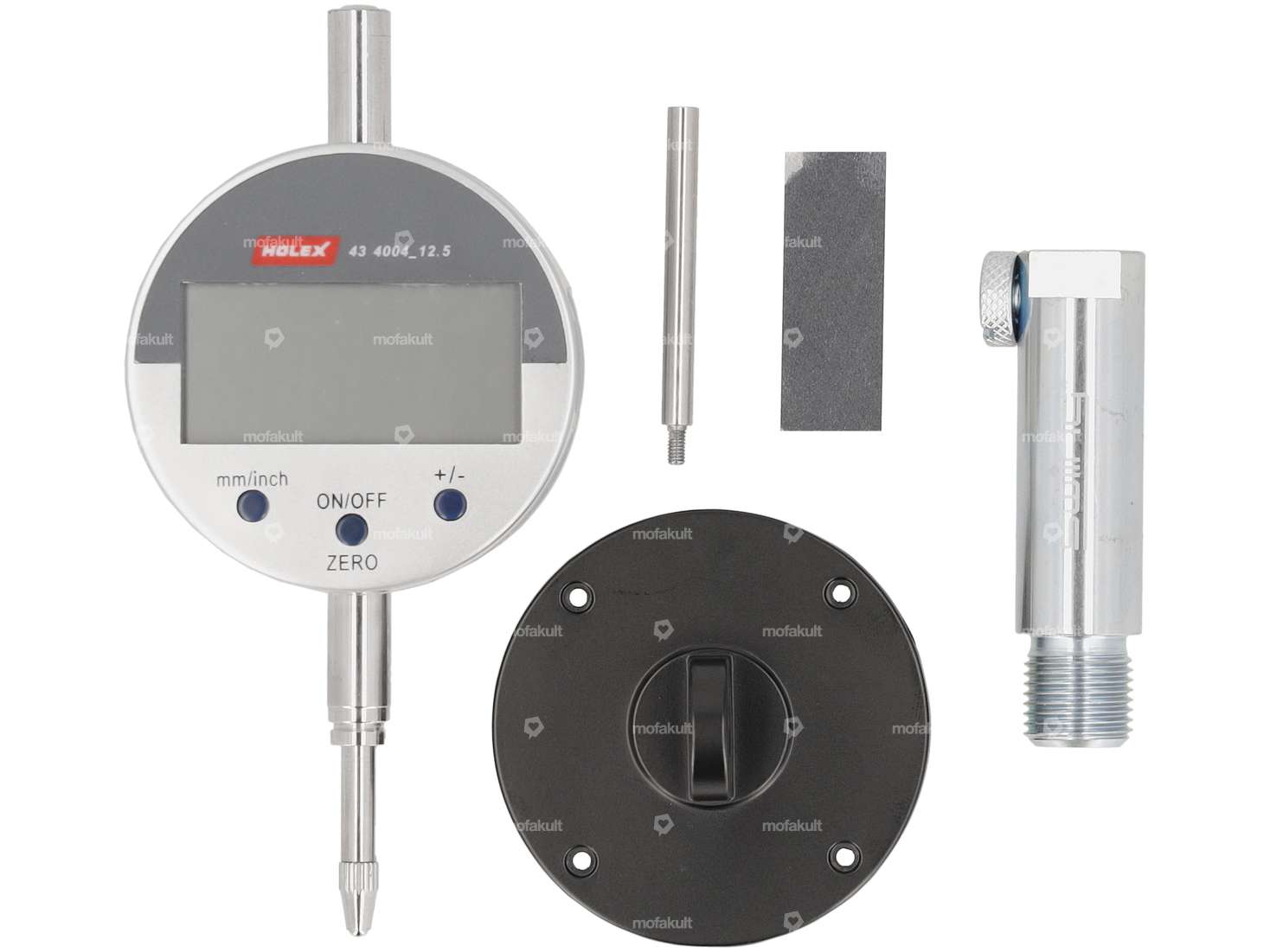

Scope of delivery of the TDC dial gauge:
- 0.01 mm dial gauge for between breaker contacts
- Dial gauge (incl. plastic box)
- Mounting piece with M14x1.25 thread
- Dial gauge extension
- Button battery for dial gauge

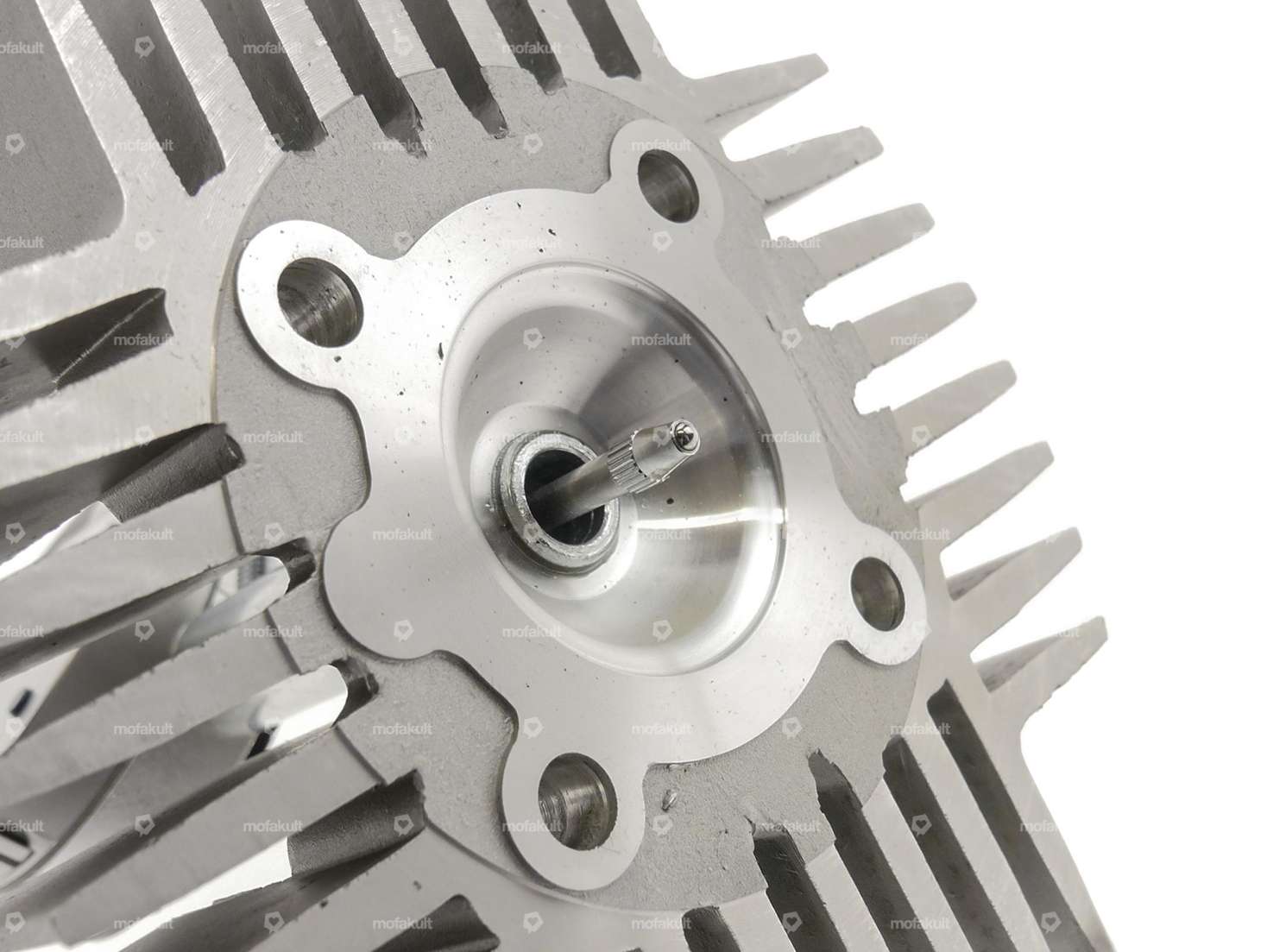

Figures 2 & 3 serve to illustrate the operation.

The set includes the following fixed parts:

40 mm extension dial gauge digital / analog

Universal

40 mm extension dial gauge digital / analog

25195

Manufacturer: Made in Germany · Area of application: Measuring tool · Material: Steel · Surface: blank · Number of components: 1 pcs · Total length: 40 mm, 45 mm · Diameter: 4 mm · Thread type: M2.5x0.45 (standard thread) · Thread length: 5 mm

Digital dial gauge (professional tool)

Universal

Digital dial gauge (professional tool)

19153

Area of application: Measuring tool · Material: Metal · Measuring range [mm]: 0 - 12.5 mm · Reading accuracy [mm]: 0.01 mm · Ø Clamping shaft: 8 mm · Calibration: C1

0.01 mm foil for setting the ignition

Universal

0.01 mm foil for setting the ignition

15287

Area of application: Measuring tool · Thickness: 0.01 mm · Measuring range [mm]: 0.01 mm

swiing® ingenious transition piece M14x1.25 Cylinder dial gauge Ignition micrometer

Universal

swiing® ingenious transition piece M14x1.25 Cylinder dial gauge Ignition micrometer

26940

Manufacturer: swiing® ingenious parts · Area of application: Measuring tool · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Total length: 62 mm · Diameter: 15.9 mm · Ø Clamping shaft: 9.1 mm · Thread type: MF14x1.25 (fine pitch thread) · Thread length: 10.5 mm

Details

Reading accuracy [mm]0.01 mm
Manufacturerswiing® ingenious parts
Thread typeMF14x1.25 (fine pitch thread)
Area of applicationMeasuring tool
Number of components4 pcs

Suitable for the following models

Universal
Puch
Sachs
Zündapp Belmondo
Solex
Tomos
Bye Bike
