Engine mount 2.0 for Sachs 503 engines. Revised version for a better fit of the engine.
The revised version can only be used in conjunction with the engine mount 2.0. Not suitable for the conventional engine mounts.
No more makeshift placement of wooden blocks during engine overhauls and tilting of the engine when tightening the screws.
We offer you an exclusive engine holder with which you can carry out revisions, tuning or other work on the engine conveniently and efficiently.
The mounting bracket can be rotated 360°. The holder is only fixed to one half of the housing. This means that gearbox revisions can be carried out in full.

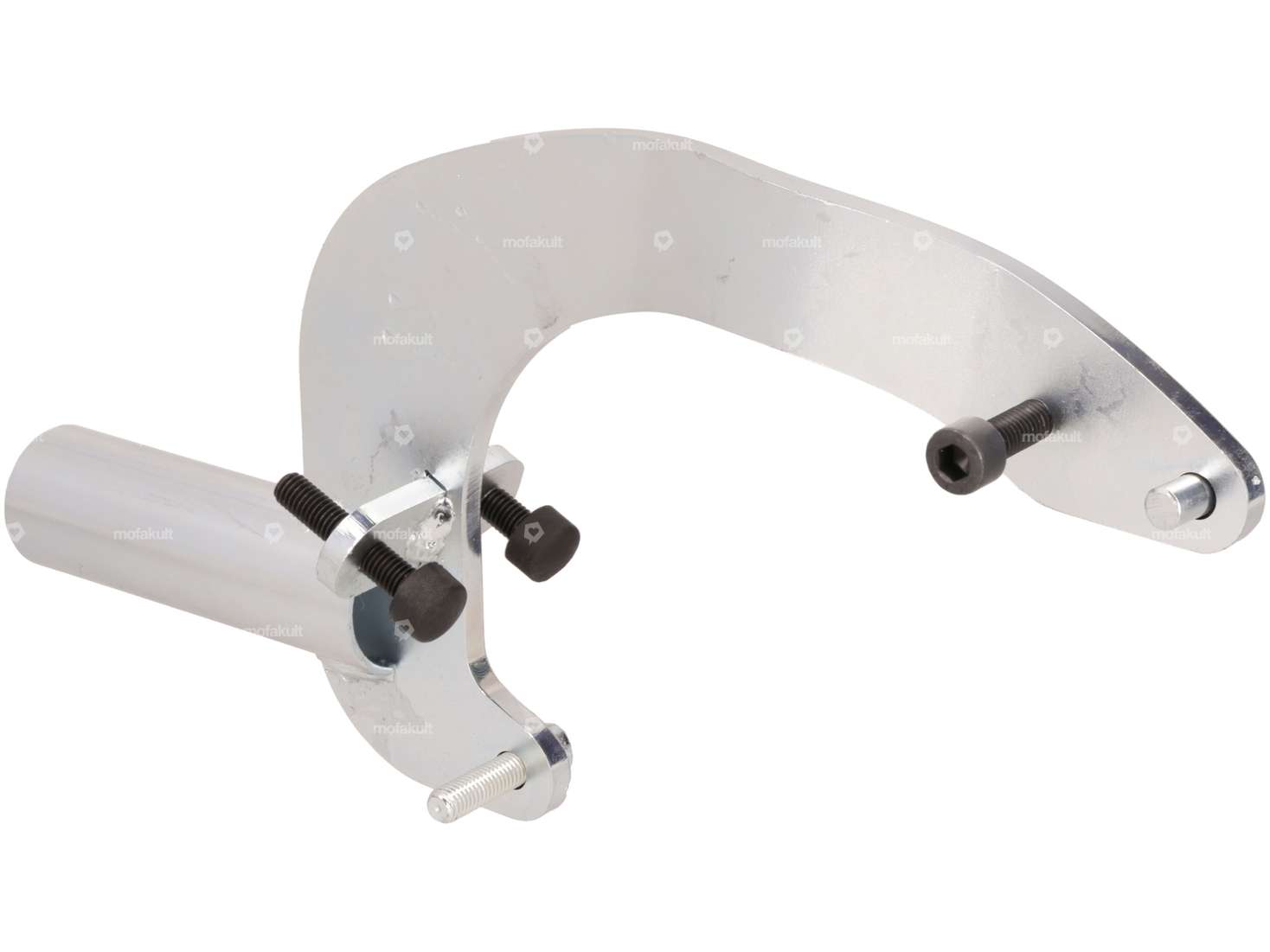

Figure 1 shows the "Expert 2.0" engine stand with the engine mount. The scope of delivery corresponds to picture 3 or 4.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Area of application | Motor bracket |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
