swiing® revival engine revision set large | Sachs 503 HG

Home
| Motor
| Engine block
| Crankshaft

Bitte wähle die gewünschte Kurbelwelle:

616,00 EUR

Incl. 19% VAT.

Revision kit for Sachs engines from the manual 503 series with the designation 2AL-CH / 2BL-CH.

The revision kit contains all wear parts that you should replace during an engine restoration.

The revision kit includes all gaskets, oil seals, bearings, clutch parts, a chrome steel screw set and a crankshaft.

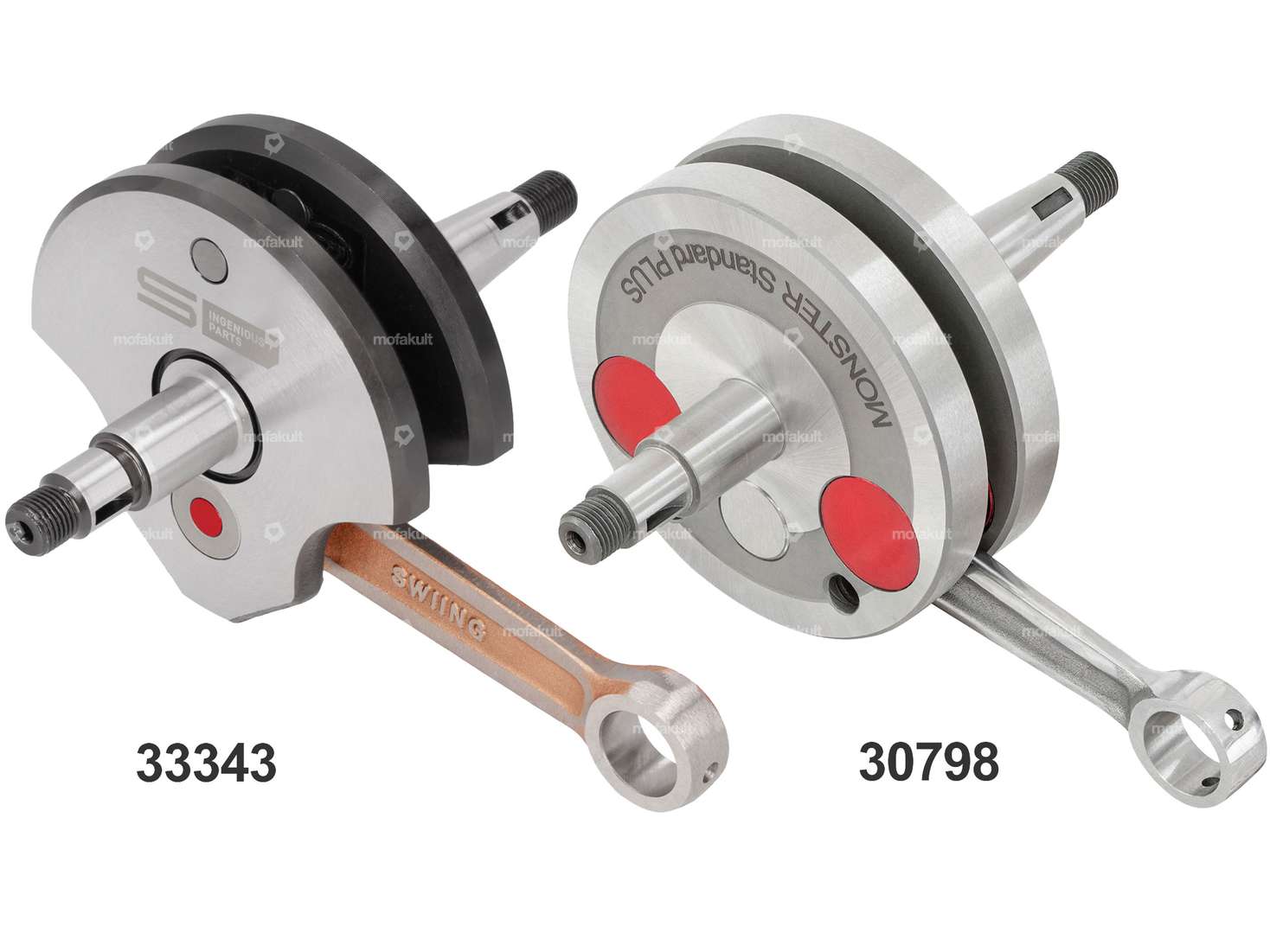

We offer you the option of choosing between a racing or high-end crankshaft. Make the appropriate choice in the selection field.

Top quality at a fair price!

When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.

Nostalgic product for the highest demands of the quality brand swiing®.

The set includes the following fixed parts:

Gasket set large | Sachs 503 engine

For: Sachs

Gasket set large | Sachs 503 engine

19536

Hole pattern [mm]: 60 x 40 · Material: Sealing paper, Sealing carton, Aluminum, Fiber, Copper · Number of components: 14 pcs · Hole spacing inlet: 32 mm · Ø outlet inside: 13.3 mm · Area of application: Standard

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

For: Sachs

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

28363

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard, High End · Bearing type: Deep groove ball bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM number: 0286 079 105

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

For: Sachs

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

11990

Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony OEM number: A4502 · Sachs OEM number: 0932 007 001

Quantity: 2

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

For: Sachs

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

22384

Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats SW: 26 mm · Pony OEM number: A1504 · Sachs OEM number: 0242 030 005, 0242 030 105

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

For: Sachs

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

23304

Manufacturer: swiing® revival parts · Material: Steel, Composite materials · Recording type: Interlocking · Ø inside: 29.7 mm, 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony OEM number: A3887 · Sachs OEM number: 0659 010 006

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

For: Sachs

GPO sealing ring 12.8/19/2.4 shift/clutch lever (version 2.0) | Sachs 50/2, 503 A3844

15052

Manufacturer: GPO · Material: Rubber · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony OEM number: A3844 · Sachs OEM number: 0650 017 000

Quantity: 2

BING O-ring Bing SRE & 85, Ø 20 mm

For: Puch · Sachs · Hercules · KTM · Batavus

BING O-ring Bing SRE & 85, Ø 20 mm

10964

Manufacturer: BING · Material: Rubber · Surface: raw · Area of application: Standard · Place of use: Carburetor · Ø inside: 17.2 mm · Ø outside: 20 mm · Cord thickness: 1.4 mm · Color: black · Number of components: 1 pcs · Pony OEM number: A4281 · Sachs OEM number: 0250 160 101

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

For: Sachs

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

12036

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony OEM number: A1908 · Sachs OEM number: 0259 015 000

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

For: Sachs

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

15074

Material: Steel · Area of application: Standard · Pony OEM number: A4023 · Sachs OEM number: 0686 018 005

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

For: Sachs

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

17941

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony OEM number: A1717 · Sachs OEM number: 0246 049 000, A1717

Lock washer | Sachs

Lock washer | Sachs

15057

Material: Steel · Surface: galvanized (blue) · Number of lobes: 1 pcs · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm

GPO screw set Motor Inox | Sachs 503

For: Sachs

GPO screw set Motor Inox | Sachs 503

17953

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel)

Protective cap shift/clutch lever | Sachs 50/2, 503 2AL/2BL (A1687)

For: Sachs

Protective cap shift/clutch lever | Sachs 50/2, 503 2AL/2BL (A1687)

16975

Material: Steel · Surface: galvanized (blue) · Ø inside: 14.15 mm · Ø outside: 20 mm · Height: 2.4 mm · Pony OEM number: A1687 · Sachs OEM number: 0246 012 000

Quantity: 2

Spacer washer 12/18/1 drive wheel | Sachs 503

For: Sachs

Spacer washer 12/18/1 drive wheel | Sachs 503

17232

Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 12 mm · Ø outside: 18 mm · Thickness: 1 mm · Nominal diameter inside: 12 mm

Quantity: 2

Cylindrical roller Ø 4x6 mm | Sachs 50/2, 50/3, 50/4, 503 manual/automatic (A1145)

For: Sachs

Cylindrical roller Ø 4x6 mm | Sachs 50/2, 50/3, 50/4, 503 manual/automatic (A1145)

15281

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 4 mm · Width: 6 mm · Pony OEM number: A1145 · Sachs OEM number: 0232 002 000

Quantity: 28

Notched nail clutch lever Ø 3 x 20 mm Sachs 50/2, 50/3, 50/4, 503 AB/ABL/2AL/2BL (A1784)

For: Sachs

Notched nail clutch lever Ø 3 x 20 mm Sachs 50/2, 50/3, 50/4, 503 AB/ABL/2AL/2BL (A1784)

15067

Manufacturer: Sachs · Ø outside: 3 mm · Total length: 20 mm · Pony OEM number: A1784 · Sachs OEM number: 0249 023 000

Rubber washer under notched nail | Sachs 50/2, 503 AB/AC/ABL (A3890)

For: Sachs

Rubber washer under notched nail | Sachs 50/2, 503 AB/AC/ABL (A3890)

15073

Material: Rubber · Ø inside: 3 mm · Ø outside: 10 mm · Height: 1.8 mm · Color: black · Pony OEM number: A3890 · Sachs OEM number: 0660 002 000

Rubber grommet round 2 cables | Sachs 502, 503, 504 (A1923)

For: Sachs

Rubber grommet round 2 cables | Sachs 502, 503, 504 (A1923)

12023

Material: Rubber · Surface: raw · Area of application: Standard · Ø Cable bushing: 2.2 mm · Ø mounting hole: 8.5 mm · Ø outside: 12.8 mm · Ø Bundle: 10.5 mm · Waistband height: 2 mm · Total length: 7 mm · Color: black · Pony OEM number: A1923 · Sachs OEM number: 0260 020 000

swiing® revival rubber grommet ignition cable | Sachs 503 2AL/2BL/AAL, 535 (A4521)

For: Sachs

swiing® revival rubber grommet ignition cable | Sachs 503 2AL/2BL/AAL, 535 (A4521)

15220

Manufacturer: swiing® revival parts · Material: Rubber · Surface: raw · Area of application: Standard · Ø Cable bushing: 5.2 mm · Ø mounting hole: 8.5 mm · Ø outside: 10.5 mm · Ø Bundle: 10.5 mm · Waistband height: 3 mm · Color: black · Pony OEM number: A4520, A4521 · Sachs OEM number: 0960 135 000, 0960 136 000

Nut & spring washer clutch hub | Sachs

For: Sachs

Nut & spring washer clutch hub | Sachs

17716

Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread) · Width across flats SW: 17 mm

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

For: Sachs

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

15072

Pony OEM number: A3884 · Sachs OEM number: 0659 006 000

Quantity: 3

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

For: Sachs

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

12026

Manufacturer: swiing® revival parts · Spring design: Pressure spring · Pony OEM number: A1325 · Sachs OEM number: 0239 015 000

Quantity: 9

Details

Manufacturerswiing® revival parts
Area of applicationStandard

Suitable for the following models

Sachs

503 - 2AL / 2BL
