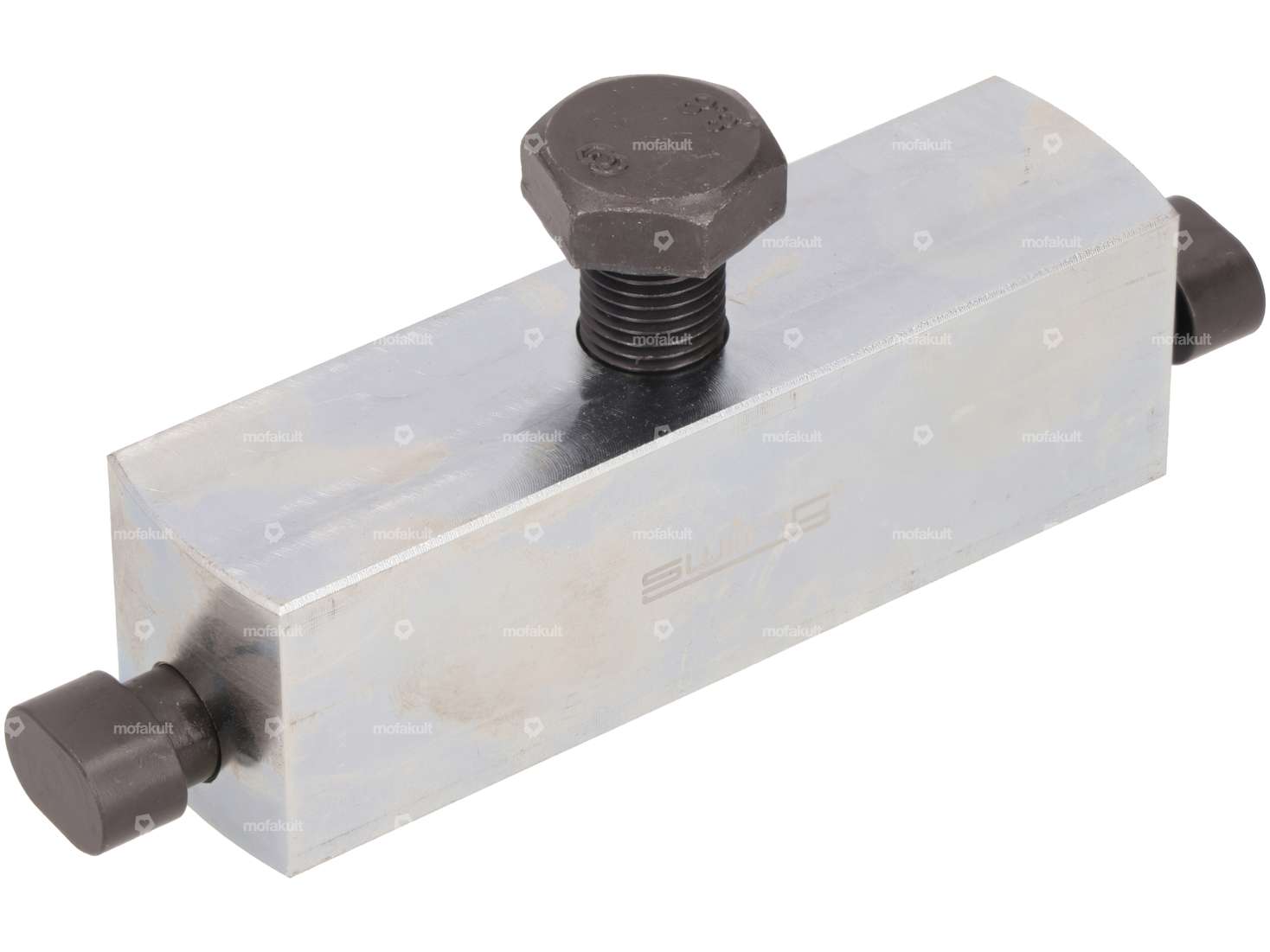

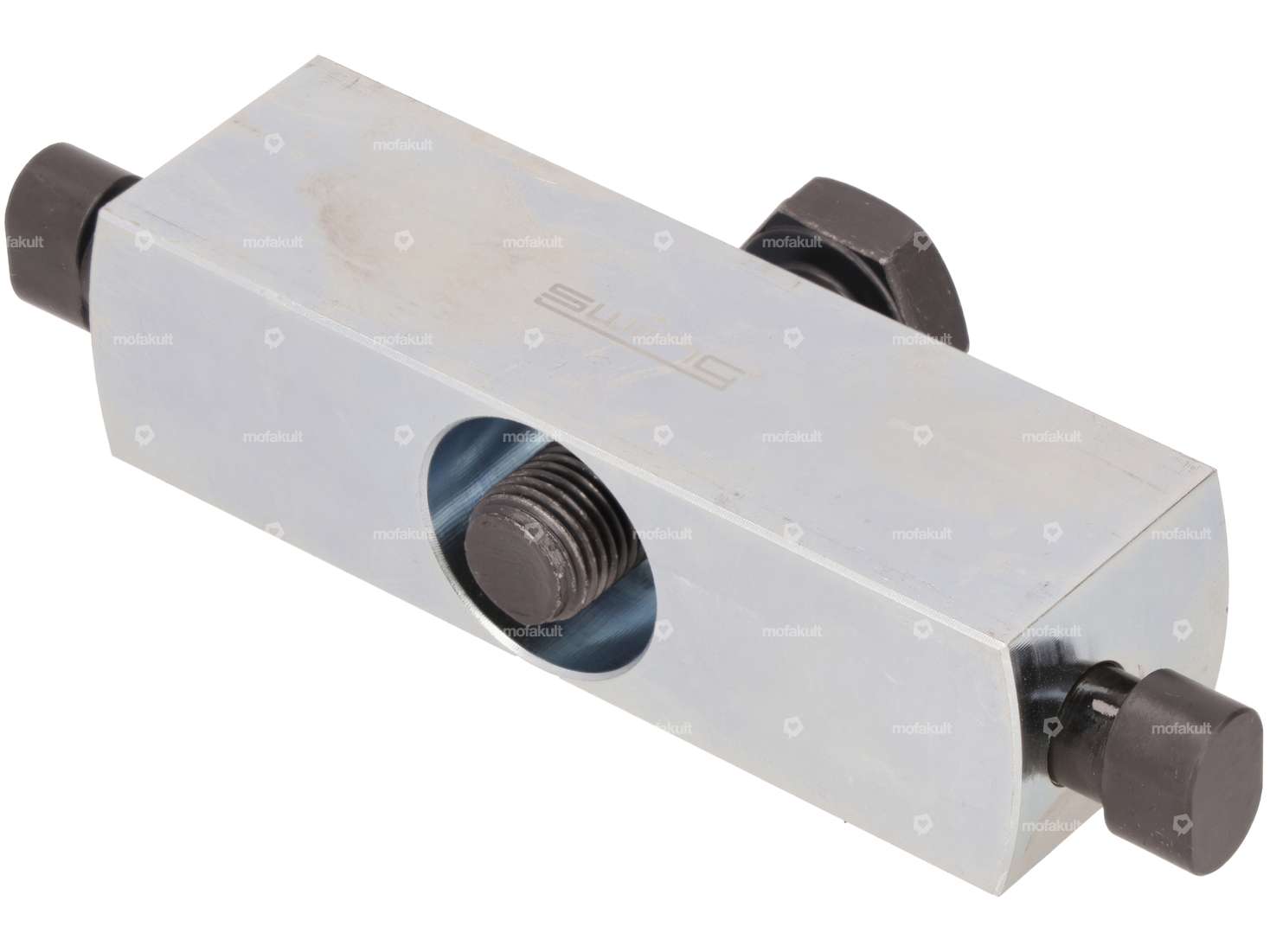

A very helpful tool for removing the clutch basket from standard geared mopeds / mopeds with Sachs engines.
The dowel pins are pushed laterally through the oval openings of the clutch basket into the trigger block.
This can then be easily removed.
Further special tools can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Sachs spare part number: 0276 117 000
Details
| Width across flats Screw | 19 mm |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | blue galvanized, blackened |
| Thickness | 25 mm |
| Thread type | MF12x1.25 (fine pitch thread) |
| Total length | 106 mm |
| Area of application | (Dis)assembly tool |
| Number of components | 4 pcs |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - 2AL / 2BL |
