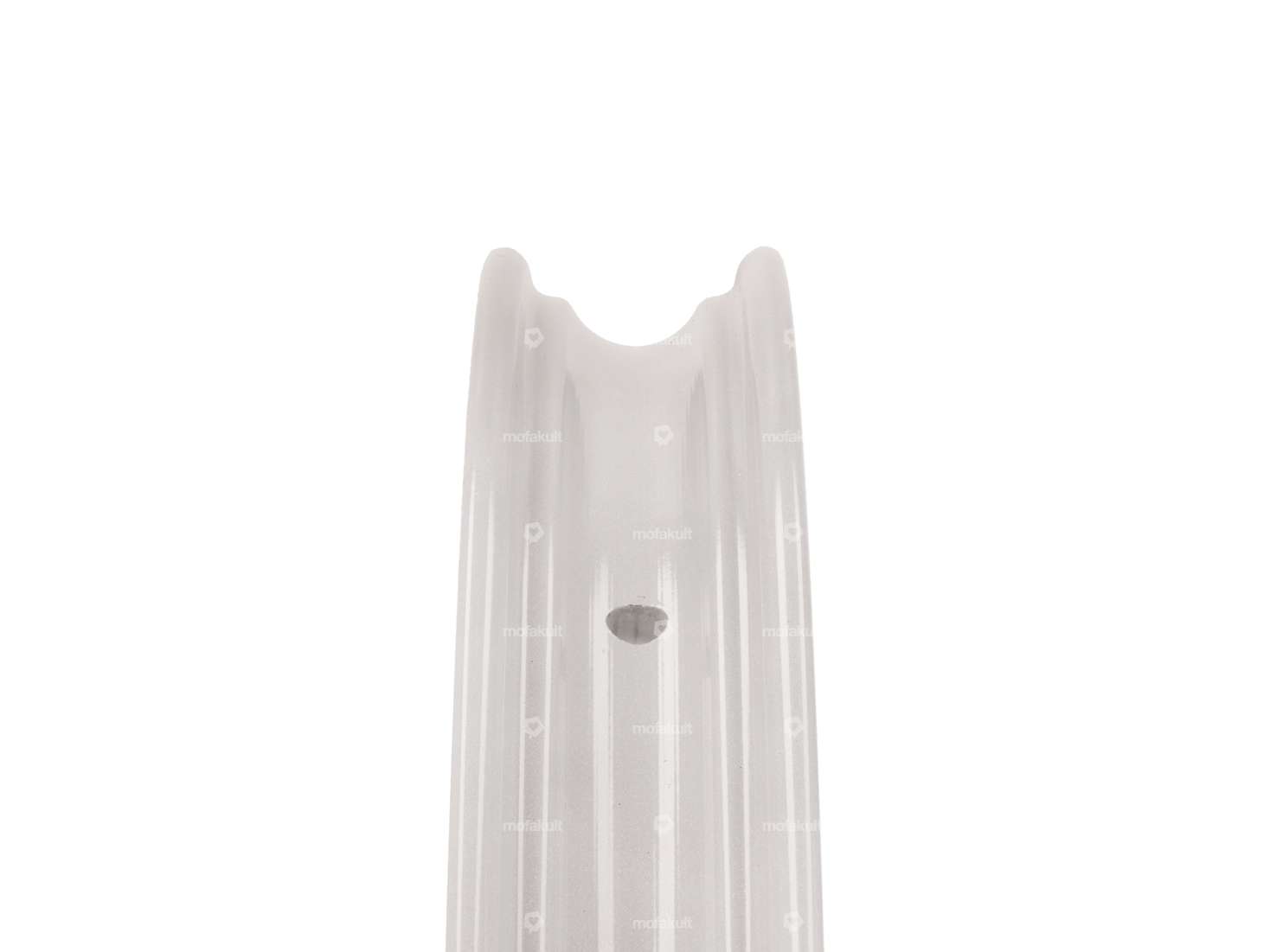

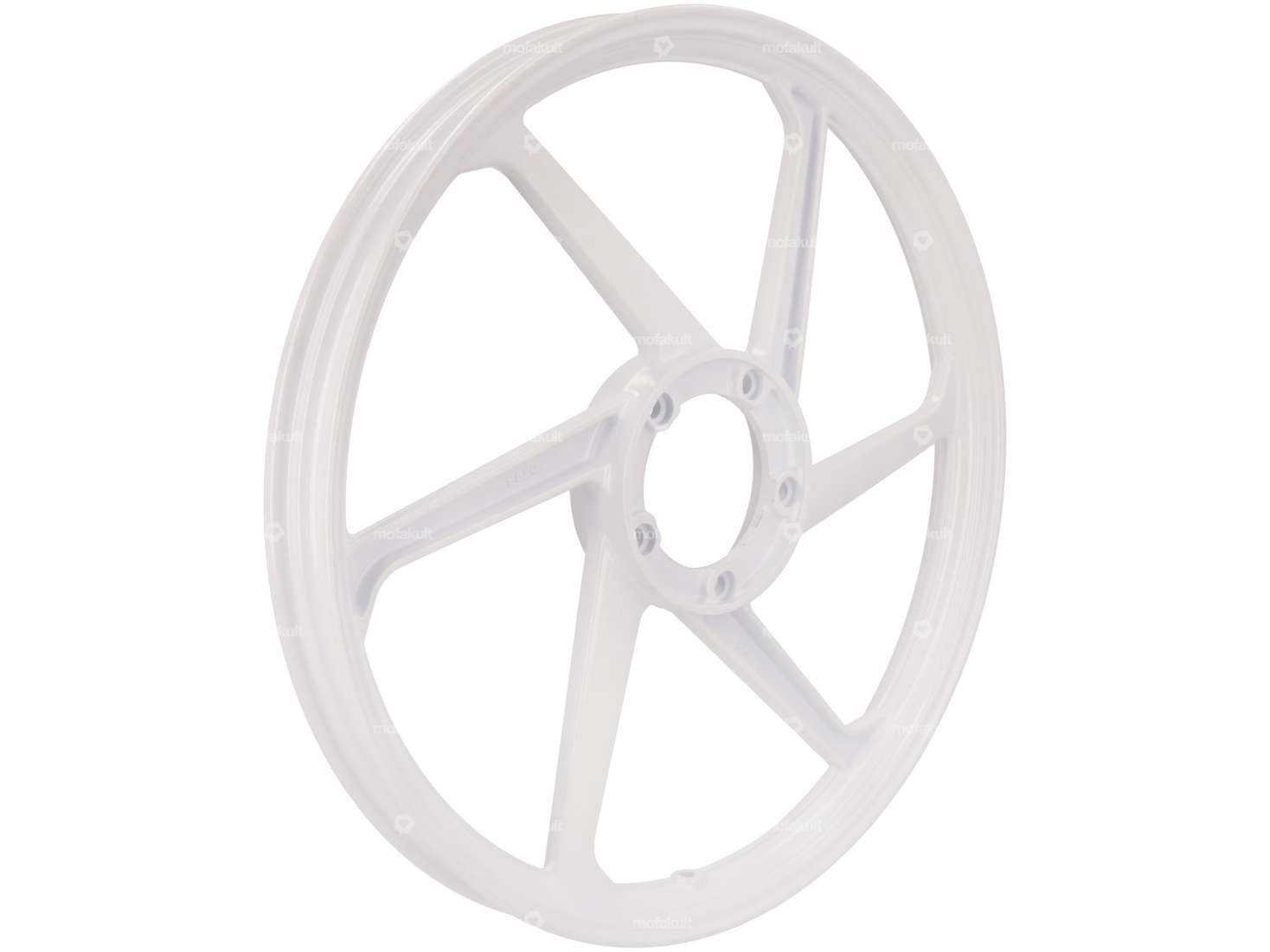

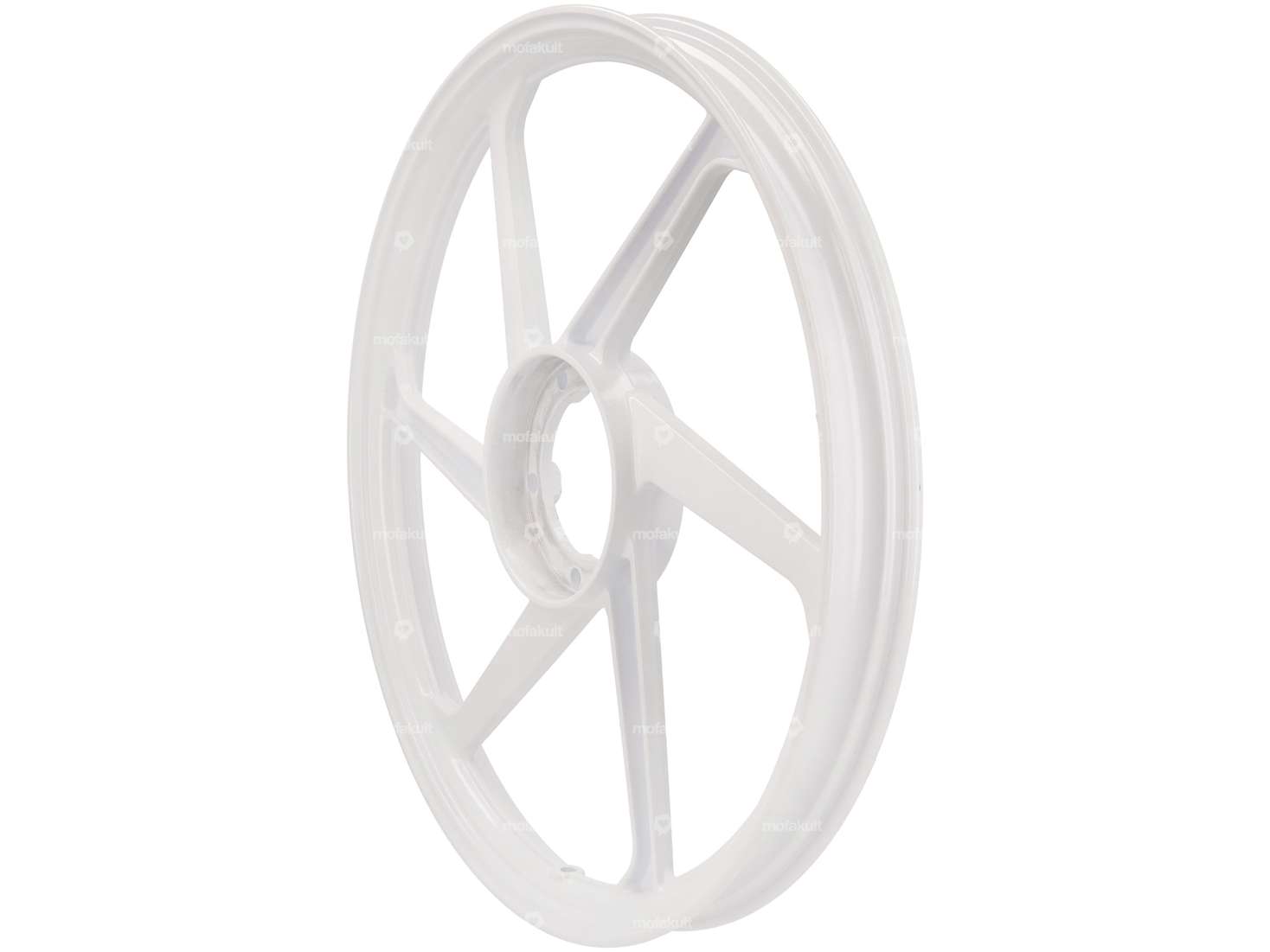

White 6-spoke rim with 17 inch diameter for your Puch Maxi S/N, Supermaxi LG1/LG2, X30 NG-2AH, X30 N-2A and other Puch mopeds / mopeds with Leleu or Grimeca hub.
The cast aluminum rim allows for a 1-to-1 wheel hub replacement and gives your bike a modern, sporty look. In terms of quality, the rim fulfils its purpose, but the powder coating won't knock anyone off their saddle.
The banana rim can be used both as a front wheel and as a rear wheel.
You can find more wheel rims and matching tires in the accessories section.
Details
| Nominal diameter | 432 mm |
| Material | Aluminum |
| Surface | powder-coated |
| Color | white |
| Wheel size [inch] | 17 " |
| Rim well depth | 8 mm |
| Overall width outside | 48 mm |
| Jaw width | 34.3 mm |
| Jaw width [inch] | 1.35 " |
Suitable for the following models
| Puch |
